Lubluelu Cordless Vacuum Cleaner Vacuum2 User Manual

Introduction

Thank you for choosing the Lubluelu Cordless Vacuum Cleaner, Model Vacuum2. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new vacuum cleaner. Please read it thoroughly before first use and keep it for future reference.

Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store the appliance indoors. Put away after use to prevent accidents.
• Prevent unintentional starting. Ensure the switch is in the OFF position before connecting to battery pack, picking up or carrying the appliance.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

Product Overview

The Lubluelu Vacuum2 is a versatile cordless stick vacuum cleaner designed for efficient cleaning across various surfaces. It features a powerful motor, multi-stage filtration, and a removable battery for extended use.

Main unit of the Lubluelu Cordless Vacuum Cleaner, showing its sleek design and primary components.

The vacuum cleaner disassembled, showcasing the main unit, extension wand, floor brush, and various attachments like the crevice tool and dusting brush, along with spare filters.

Key Features:

• Powerful Suction: Up to 25,000 Pa suction power with an upgraded 220W digital motor.
• Long Runtime: Up to 50 minutes of cleaning on a single charge (minimum mode) with 7x 2200 mAh lithium-ion batteries.
• Removable Battery: Easy charging and replacement of the battery.
• Self-Standing Design: Conveniently stands upright on its own for temporary pauses during cleaning.
• Advanced Filtration: 4-layer filtration system including a Top H11 HEPA filter, capturing 99.7% of dust particles down to 0.3 µm.
• LED Headlights: Integrated LED lights on the brush head illuminate dark areas for thorough cleaning.
• Versatile Cleaning: Suitable for hard floors, carpets, pet hair, and various other surfaces with interchangeable accessories.
• Adjustable Height: Telescopic handle for comfortable use by users of different heights.

Setup

1. Assembly

Assemble the main components of the vacuum cleaner as follows:

1. Insert the extension wand into the main motor unit until it clicks securely.
2. Attach the floor brush head to the other end of the extension wand, ensuring it locks into place.
3. For handheld use, attach desired accessories (e.g., crevice tool, dusting brush) directly to the main motor unit.

2. Initial Charging

Before first use, fully charge the battery.

• The battery is removable. You can charge it while attached to the vacuum or separately.
• Connect the charger to the battery pack and plug it into a power outlet.
• Charging time is approximately 4 hours for a full charge. The battery indicator lights will show charging status.

Illustration of the removable battery pack, highlighting its 7x 2200 mAh cells and charging port.

Operating Instructions

1. Power On/Off and Suction Modes

• Press the power button to turn the vacuum cleaner on or off.
• The vacuum features multiple suction power levels (3 or 4, based on specifications). Use the mode selection button to cycle through these levels:
  • Low (10 kPa): For light debris and extended runtime (up to 50 minutes).
  • Medium (17 kPa): For daily cleaning (25-30 minutes runtime).
  • High (25 kPa): For stubborn dirt and deep cleaning (15-20 minutes runtime).

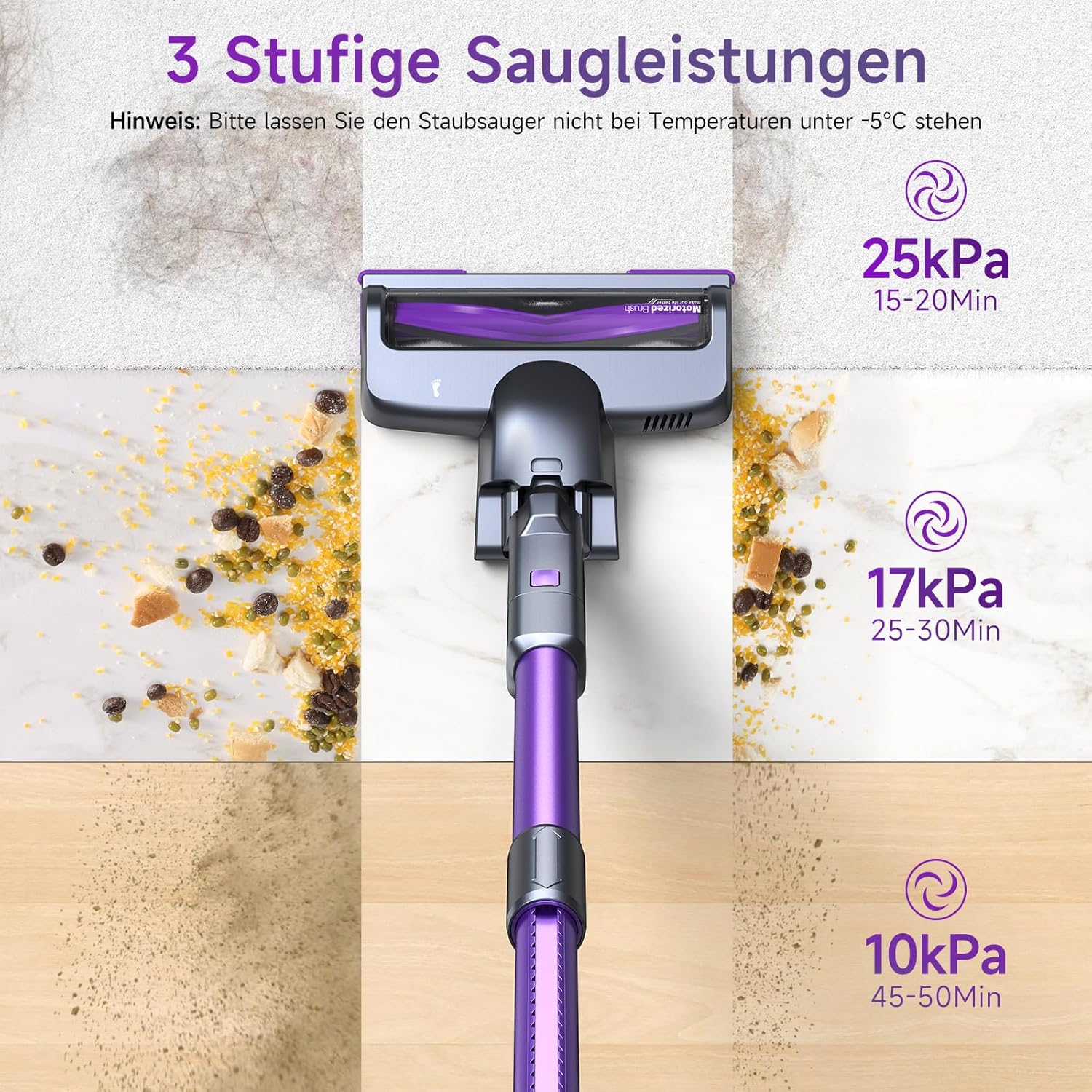

Visual representation of the three suction power levels (10kPa, 17kPa, 25kPa) and their corresponding approximate runtimes.

2. Using the Vacuum

• Floor Cleaning: Use the main floor brush for hard floors, tiles, and carpets. The V-shaped brush design helps prevent hair tangling.
• LED Headlights: The integrated LED lights on the brush head automatically illuminate when in use, helping to spot dust in dark areas under furniture.
• Handheld Mode: Detach the extension wand and attach a suitable accessory for cleaning upholstery, car interiors, stairs, or tight spaces.
• Self-Standing Feature: The vacuum can stand upright on its own, allowing for convenient pauses during cleaning without needing to lean it against a wall or lay it down.

The floor brush head with active LED lights, illuminating debris on a hard floor surface.

The vacuum cleaner standing upright independently, demonstrating its self-standing capability for easy storage or temporary pauses.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

1. Emptying the Dust Cup

• Empty the dust cup after each use or when the MAX fill line is reached.
• Press the dust cup release button to detach it from the main unit.
• Open the bottom flap of the dust cup to dispose of collected debris.
• Close the flap and reattach the dust cup until it clicks.

2. Cleaning Filters

The vacuum features a 4-layer filtration system. Clean filters regularly to maintain suction power.

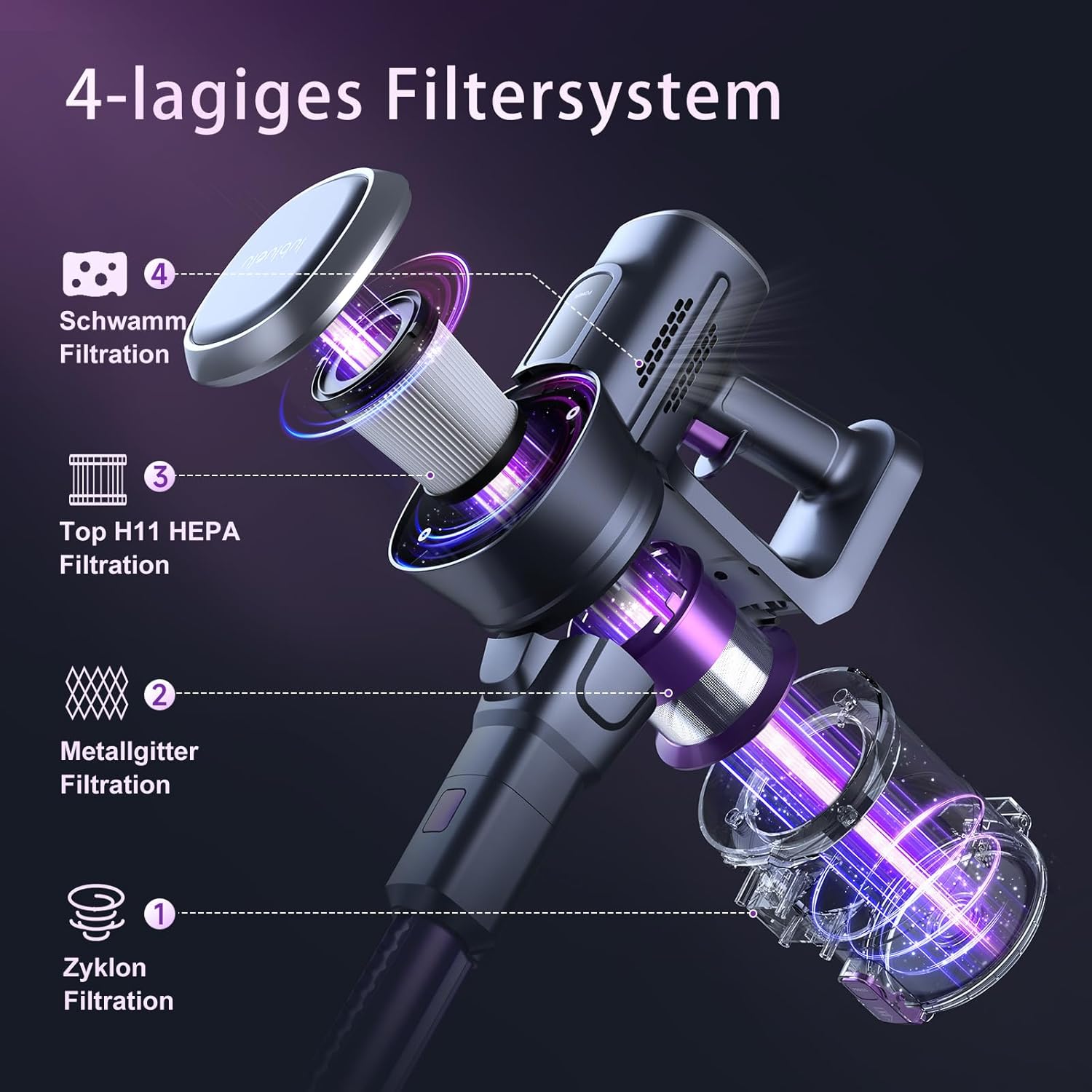

Diagram illustrating the 4-layer filtration system: Cyclone Filtration, Metal Mesh Filtration, Top H11 HEPA Filtration, and Sponge Filtration.

• HEPA Filter and Sponge Filter: Remove these filters from the dust cup. Tap them gently to remove loose dust. Rinse under cold water if heavily soiled. Ensure they are completely dry before reinserting (allow 24-48 hours for air drying).
• Metal Mesh Filter: This can also be rinsed if necessary. Ensure it is dry before reassembly.
• Replace filters every 3-6 months depending on usage, or if they show signs of wear or damage.

3. Cleaning the Brush Roll

• Turn off and unplug the vacuum before cleaning the brush roll.
• Release the brush roll cover on the floor head.
• Remove any tangled hair or debris from the brush roll using scissors or a cleaning tool.
• Reinsert the brush roll and secure the cover.

4. Battery Care

• Always use the original charger provided.
• Do not store the battery in extreme temperatures (below -5°C or above 40°C).
• If storing for a long period, charge the battery to about 50% and store in a cool, dry place.

Troubleshooting

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Lubluelu website. Keep your proof of purchase for warranty claims.

For technical assistance or spare parts, please contact Lubluelu customer service. Contact details are typically found on the product packaging or the brand's official support page.
