IFYOO GTP01 Wired Gaming Touchpad User Manual

1. Introduction

The IFYOO GTP01 Wired USB Gaming Touchpad combines keyboard and mouse functionalities into a compact gamepad form factor. Designed for precision and comfort, it is compatible with PC (Windows 11, 10, 8, 7), Xbox One, Xbox Series S/X, PS4, and PS5. This device is intended for games that support keyboard and mouse input.

This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and user experience.

2. Package Contents

• 1x IFYOO GTP01 Wired USB Gaming Touchpad
• 1x User Manual (this document)

3. Product Overview

The GTP01 features a large precision trackpad, a left joystick, and up to 24 buttons and triggers equipped with mouse micro switches for tactile feedback. It includes a scroll wheel and back buttons for enhanced control.

Figure 3.1: Top and bottom view of the IFYOO GTP01 Gaming Touchpad.

3.1 Key Features

• Mouse-Level Precision Trackpad: Large trackpad (8.4cm x 6.3cm) for accurate aiming, precise tracking, and fast turning.
• Micro Switch Buttons: Up to 13 buttons feature mouse micro switches for crisp, tactile feedback and a 5 million click lifespan.
• Alps Joystick: Short concave joystick for enhanced movement control.
• Ergonomic Design: Anti-slip textured back grip and carefully placed buttons for comfortable use.
• Modifier Key (FN): Allows changing key mappings for D-pad and other buttons to suit various game requirements.
• Back Buttons & Scroll Wheel: Three programmable back buttons and a mouse scroll wheel for quick in-game actions.
• Plug & Play: No drivers required.

Figure 3.2: Detailed key layout of the IFYOO GTP01, showing primary and FN-modified functions.

4. Setup

4.1 System Requirements

• PC: Windows 11, Windows 10, Windows 8, Windows 7
• Game Consoles: Xbox One, Xbox Series S/X, PS4, PS5
• Note: Console games must support keyboard and mouse input for compatibility.

4.2 Connecting the Device

1. Locate an available USB port on your PC or game console.
2. Plug the USB cable of the IFYOO GTP01 into the USB port.
3. The device is Plug & Play and does not require additional drivers. Your system should automatically recognize the device.
4. For console use, ensure the game you intend to play supports keyboard and mouse input.

Figure 4.1: The GTP01 connected via its 10-foot USB cable to a gaming console.

5. Operating Instructions

5.1 Recommended Holding Posture

For optimal control and comfort, fit the right side of the device to the joints of your fingers and palm. Use your thumb tip to slide on the touchpad for precise control. This allows for a larger slide range and easier access to the right-side buttons.

Figure 5.1: Illustration of the recommended ergonomic grip for the GTP01.

5.2 Touchpad Operation

• Movement: Slide your finger across the touchpad to move the mouse pointer or control in-game camera/view.
• Backward Key: Press the touchpad down to activate the Backward Key function.

5.3 Joystick Operation

The left joystick controls movement. The up, down, left, and right directions correspond to W, S, A, and D key values respectively. Pressing the joystick down outputs the Ctrl key value.

5.4 FN Modifier Key

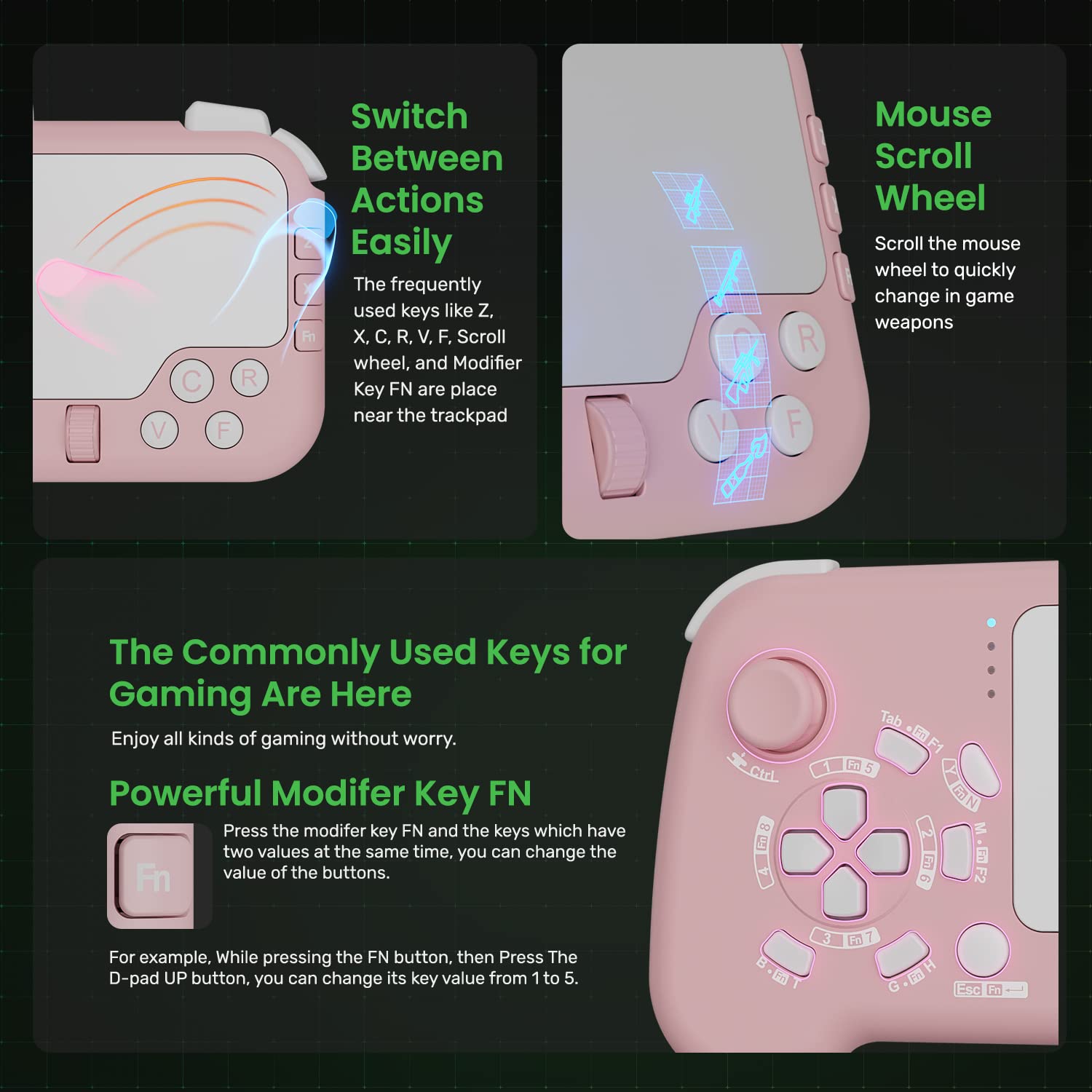

The FN modifier key allows you to access secondary functions for certain buttons. To use a secondary function, hold down the FN key and then press the desired button. For example, holding FN and pressing the D-pad Up button will output key value 5 instead of 1.

5.5 Mouse Buttons and Scroll Wheel

• Left Click: Located on the left shoulder button (Q).
• Right Click: Located on the right shoulder button (E).
• Scroll Wheel: Functions identically to a standard mouse scroll wheel for scrolling. Pressing the scroll wheel down activates its middle mouse button function.

5.6 Back Buttons

The GTP01 includes three back buttons (Space, Left Shift, Left Alt) for additional customizable controls, allowing for quick access to frequently used actions.

Figure 5.2: View of the back buttons and the anti-slip textured grip.

6. Maintenance

• Keep the device clean by wiping it with a soft, dry cloth.
• Avoid exposing the device to extreme temperatures, humidity, or direct sunlight.
• Do not attempt to disassemble the device, as this may void the warranty.
• Store the device in a safe place when not in use to prevent damage.

7. Troubleshooting

7.1 Device Not Recognized

• Ensure the USB cable is securely plugged into both the device and the computer/console.
• Try plugging the device into a different USB port.
• Restart your computer or console.
• For PC, check Device Manager to see if the device is listed and if there are any driver issues (though no specific drivers are typically needed).

7.2 Input Lag or Unresponsive Controls

• Ensure the USB cable is not damaged.
• Verify that the game you are playing supports keyboard and mouse input.
• Reduce other USB device connections to free up bandwidth if experiencing issues on PC.

7.3 Touchpad Precision Issues

• Ensure your thumb is clean and dry when using the touchpad.
• Adjust in-game mouse sensitivity settings to find your preferred precision level.
• Practice the recommended holding posture (refer to Section 5.1) for better control.

8. Specifications

9. Warranty and Support

For warranty information and technical support, please refer to the official IFYOO website or contact their customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

IFYOO Official Website: Visit IFYOO Store on Amazon
