PEXMOR Electric Bike User Manual

Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your PEXMOR 14-inch Folding Electric Bike. Please read this manual thoroughly before first use to ensure proper function and longevity of your e-bike.

Image: The PEXMOR 14-inch Folding Electric Bike in black, showcasing its compact design and full suspension.

Safety Information

Always prioritize safety when operating your electric bike. Failure to follow safety guidelines can result in serious injury or damage to the product.

• Wear a helmet and appropriate safety gear at all times.
• Ensure all components are securely fastened before each ride.
• Do not operate the e-bike under the influence of alcohol or drugs.
• Adhere to local traffic laws and regulations.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Regularly inspect brakes, tires, and battery for optimal performance.
• Keep hands and feet clear of moving parts.

Package Contents

Upon unpacking, verify that all items listed below are present and in good condition:

• PEXMOR 14-inch Folding Electric Bike (main unit)
• Charger
• User Manual (this document)
• Assembly Tools (if applicable, not explicitly listed but common)

Setup and Assembly

The PEXMOR Electric Bike requires some assembly. Follow these steps carefully:

1. Unfolding the Frame: Carefully unfold the main frame of the bike until it locks into place. Ensure the folding mechanism is securely latched.
2. Handlebar Installation: Insert the handlebar stem into the fork tube and tighten the quick-release lever or bolts as instructed. Ensure the handlebars are aligned with the front wheel.
3. Seat Post Adjustment: Insert the seat post into the frame and adjust the height to a comfortable riding position. Secure it with the quick-release clamp.
4. Pedal Attachment: Identify the left (L) and right (R) pedals. Thread them into the crank arms (left pedal counter-clockwise, right pedal clockwise) and tighten securely with a wrench.
5. Initial Battery Charge: Before first use, fully charge the battery using the provided charger. The charger's indicator light will change from red (charging) to green (full).

Image: A man demonstrating the folding capability of the PEXMOR Electric Bike, easily storing it in a car trunk.

Operating Instructions

Riding Modes

Your PEXMOR Electric Bike offers three distinct riding modes:

• Ordinary Bicycle Mode: Ride the bike like a traditional bicycle, using pedal power only.
• PAS (Pedal Assist System) Mode: The motor provides assistance as you pedal, making riding easier, especially on inclines.
• Electric Mode: Use the throttle for full electric power without pedaling.

Image: Visual representation of the three riding modes: Ordinary Bicycle, PAS Mode, and Electric Mode, highlighting the 36V 6AH battery.

Motor and Speed

Equipped with a powerful 350W high-speed brushless motor, the bike provides strong climbing power and can reach a maximum speed of 15.5 mph (25 km/h).

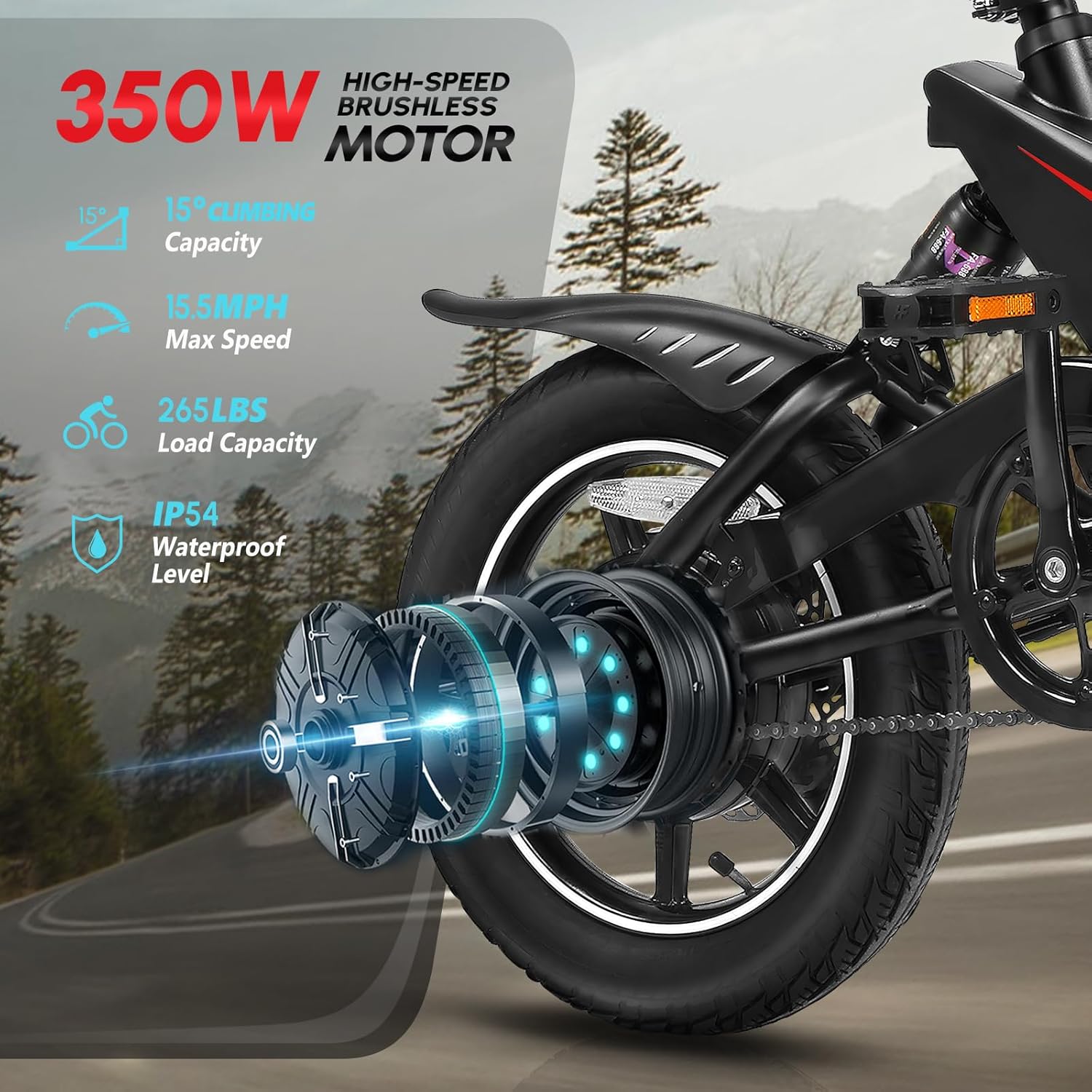

Image: Close-up view of the 350W high-speed brushless motor and rear wheel, illustrating its power and climbing capacity.

Battery and Charging

The 36V 6AH battery with BMS technology ensures safety and provides a range of 20-30KM in assist mode and 20±3KM in pure electric mode. Charging time is approximately 3-4 hours.

To charge, connect the charger to the bike's charging port and then to a power outlet. The charger indicator will show red during charging and turn green when fully charged.

Braking System

The bike features front and rear dual disc brakes for reliable stopping power and enhanced control.

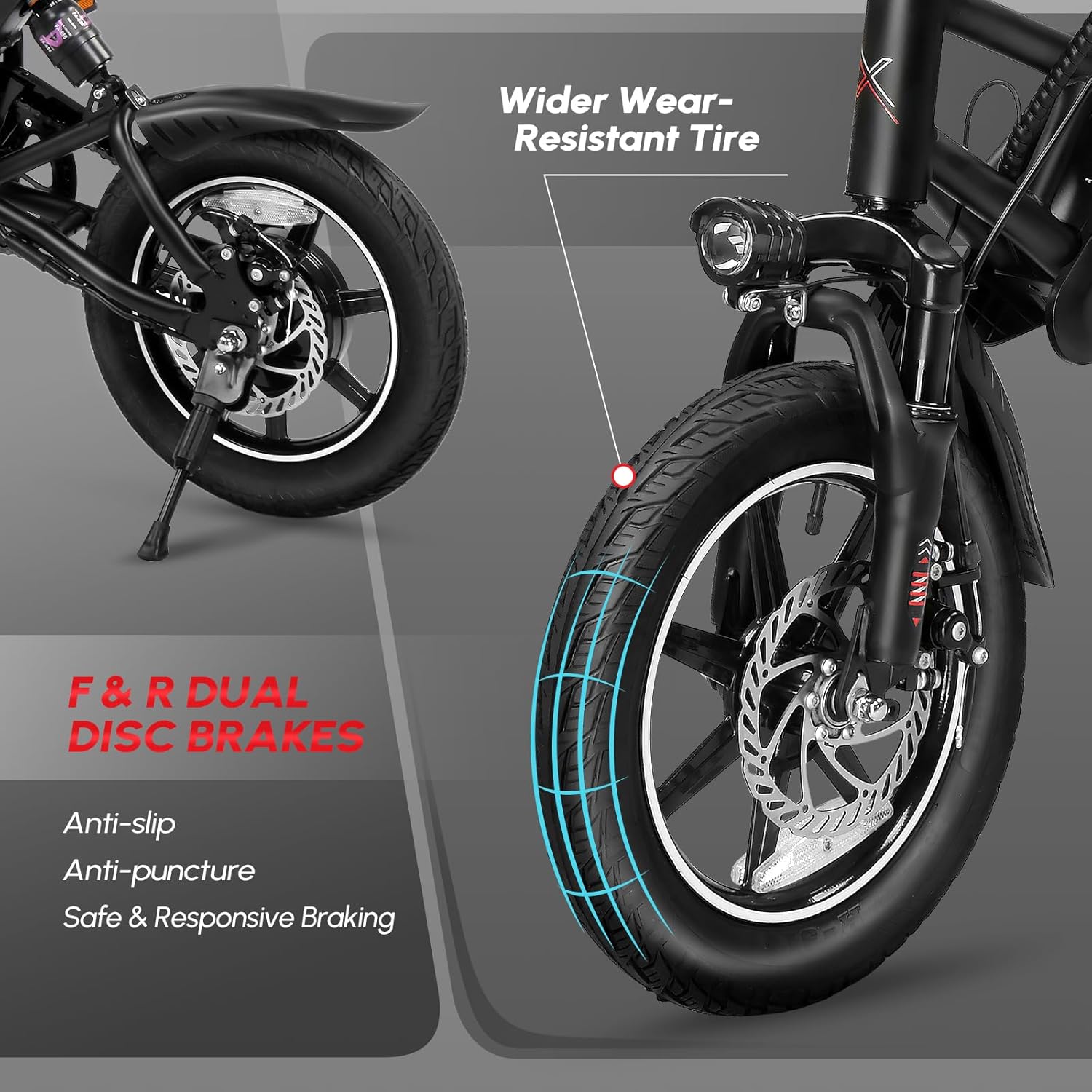

Image: Detail of the wider wear-resistant tire and front dual disc brake, emphasizing anti-slip and safe braking features.

Lighting and Display

A bright headlight illuminates the path ahead, and a brake alert tail light enhances visibility and safety at night. The intelligent LED display shows the current battery life.

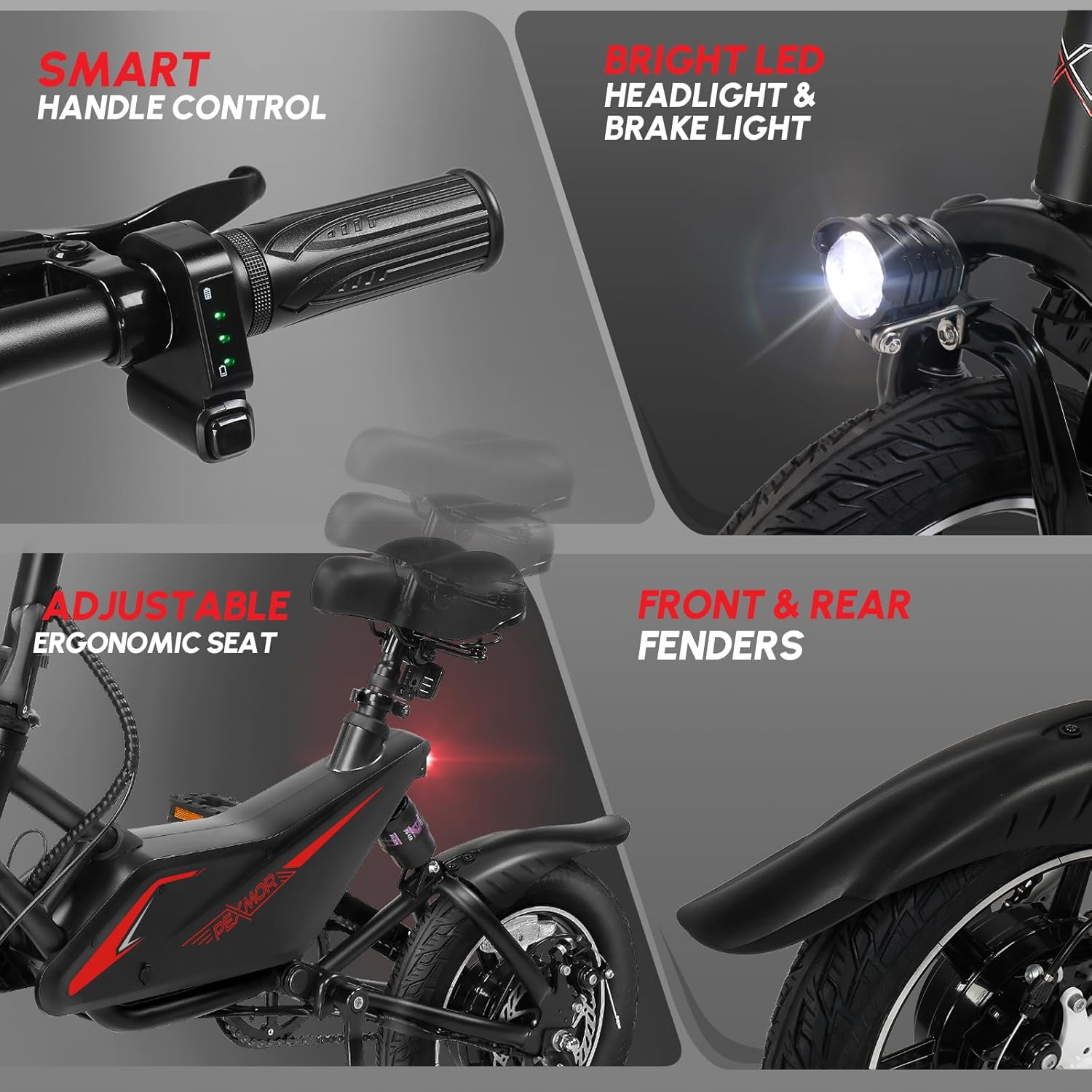

Image: Overview of smart handle controls, bright LED headlight, brake light, adjustable ergonomic seat, and front & rear fenders.

Suspension and Comfort

The full suspension system, with both front and rear shock absorbers, adapts to various road conditions, providing a smoother and more comfortable ride. The seat height is adjustable for rider comfort.

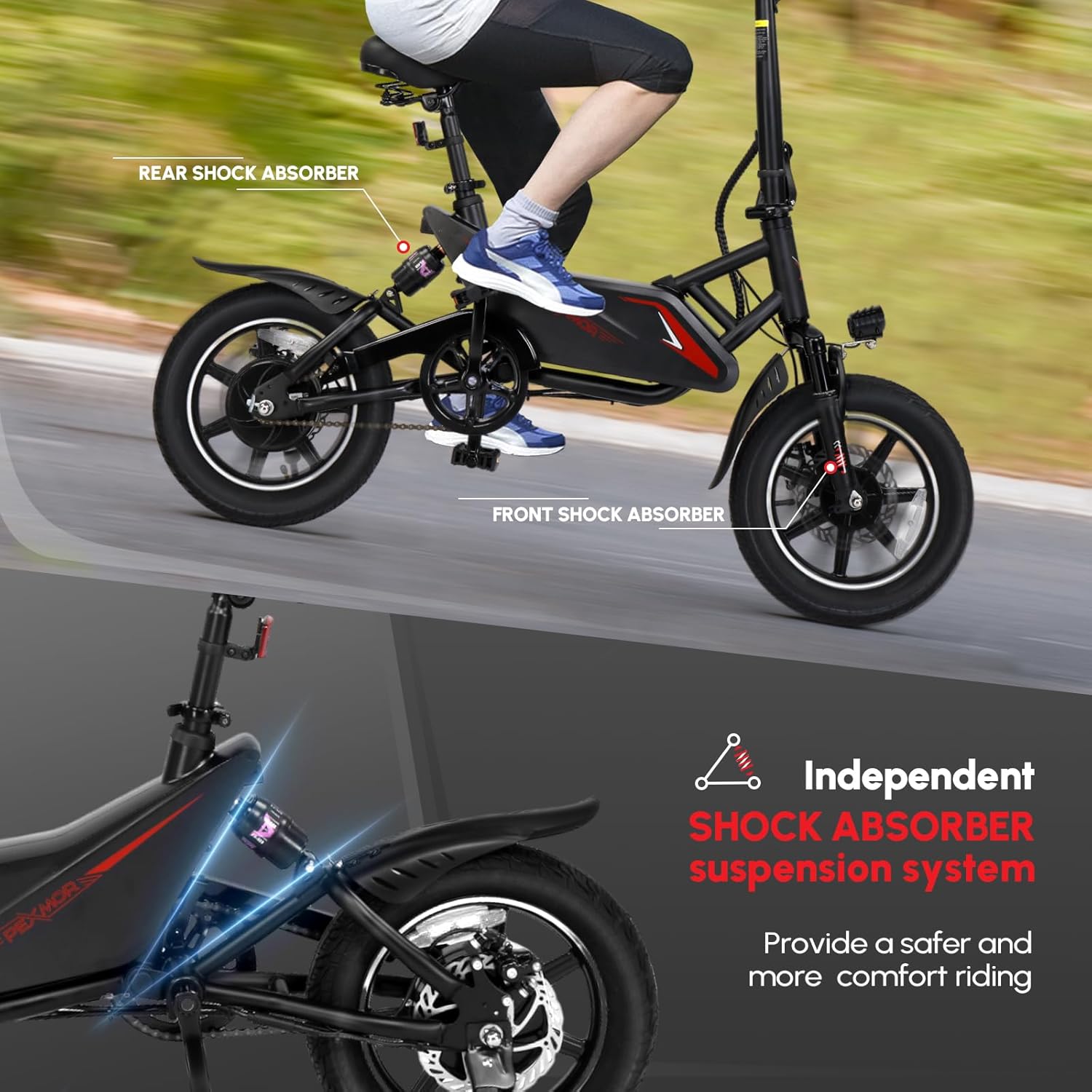

Image: Illustration of the independent shock absorber suspension system, showing both front and rear shock absorbers for a safer and more comfortable ride.

Maintenance

Regular maintenance is crucial for the performance and lifespan of your e-bike.

• Battery Care: Charge the battery regularly, even if not in use, to maintain its health. Avoid fully discharging the battery. Store in a cool, dry place.
• Tire Pressure: Check tire pressure before each ride and inflate to the recommended PSI.
• Brake Inspection: Regularly check brake pads and cables for wear. Adjust or replace as needed to ensure effective braking.
• Cleaning: Clean the bike with a damp cloth. Avoid high-pressure washing directly on electrical components.
• Fasteners: Periodically check and tighten all bolts and fasteners, especially on the folding mechanism, handlebars, and wheels.

Troubleshooting

If you encounter issues with your PEXMOR Electric Bike, refer to the following common problems and solutions:

Specifications

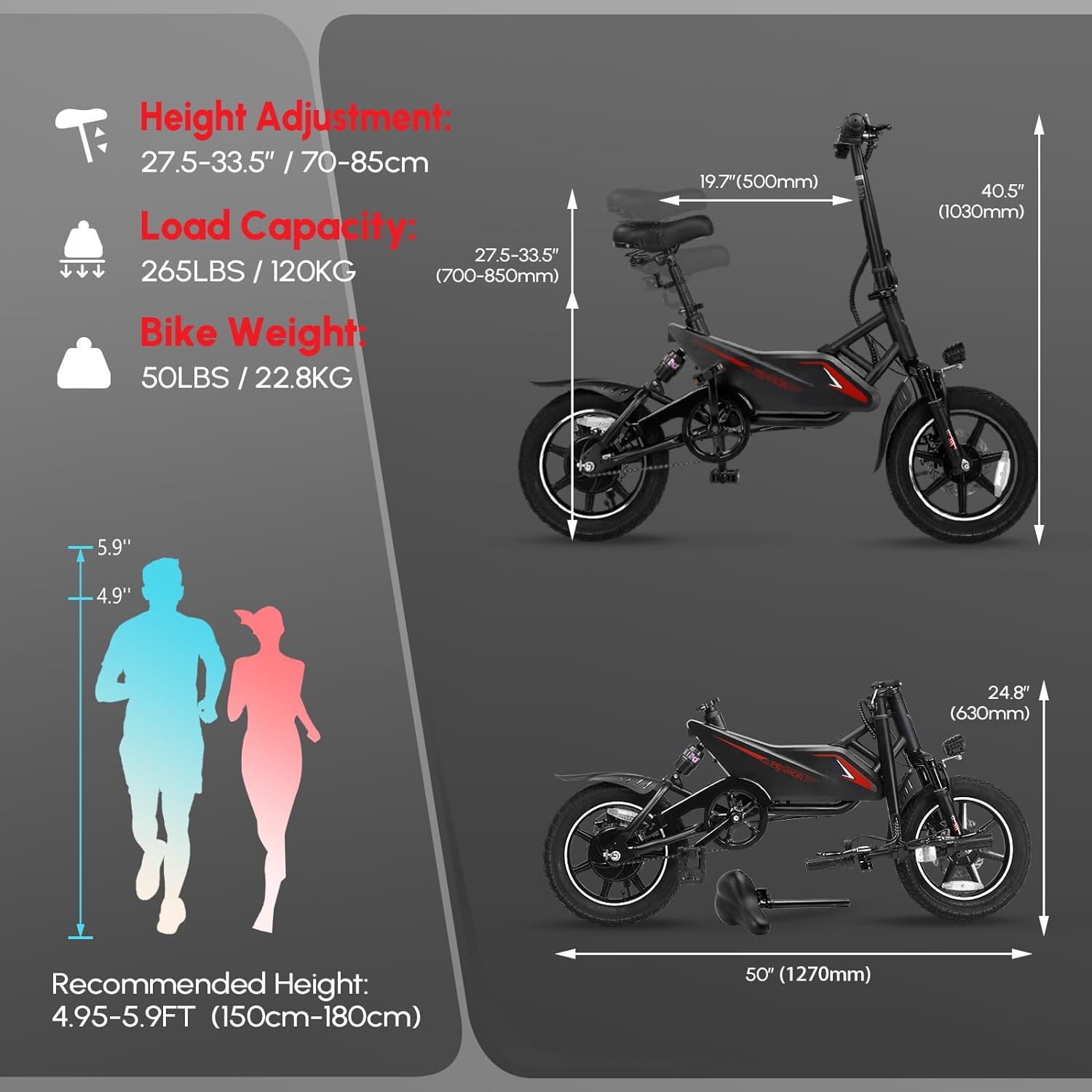

Image: Detailed dimensions of the PEXMOR Electric Bike, including height adjustment range, load capacity, and bike weight.

Warranty and Support

PEXMOR stands behind the quality of its products. For specific warranty details and terms, please refer to the warranty card included with your purchase or visit the official PEXMOR website.

For technical support, troubleshooting assistance, or parts inquiries, please contact PEXMOR customer service. Have your model number (EbikeAF1-BLK120) and purchase date ready for faster service.

You can visit the PEXMOR Store for more information: PEXMOR Store
