Sofucor 52K076-YM
Sofucor 52 Inch Ceiling Fan with Lights User Manual
Model: 52K076-YM
Product Overview
The Sofucor 52 Inch Ceiling Fan with Lights is a modern farmhouse-style fan designed for both indoor and covered outdoor spaces. It features three durable wood blades, a powerful yet quiet DC motor, and an integrated LED light with adjustable color temperature. The fan comes with a convenient remote control for easy operation of speeds, light settings, and timing functions.

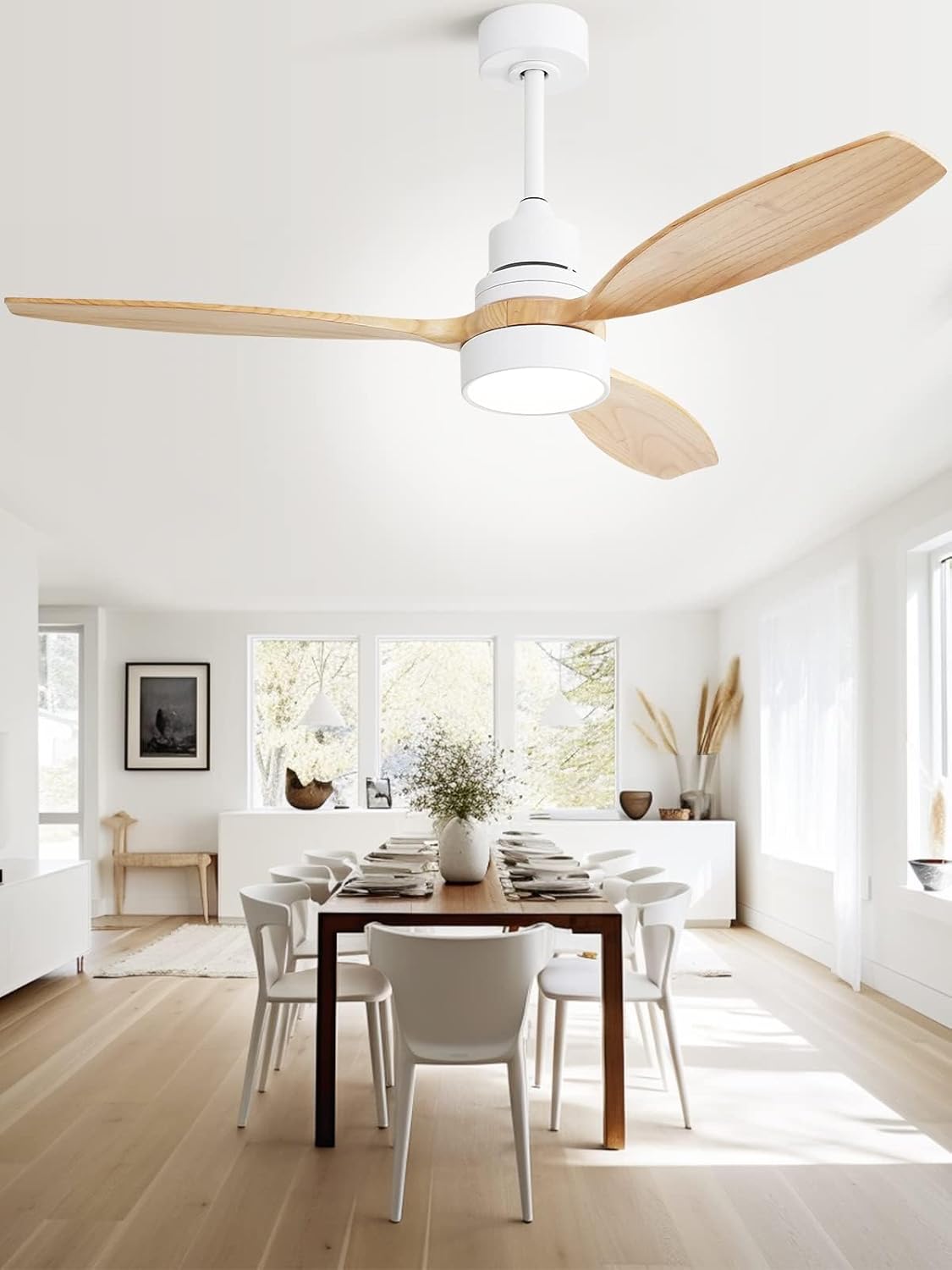

Image: The Sofucor 52-inch ceiling fan with light wood blades and a white body, installed in a modern dining room setting.
Safety Information
Please read and understand this entire manual before attempting to assemble, operate, or install the product. Failure to do so could lead to electric shock, fire, or serious injury.
- Ensure all electrical connections comply with local codes and ordinances, and with the National Electrical Code (NEC).
- Always disconnect power at the main circuit breaker before installation or maintenance.
- Mount the fan only to an outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less" and use the mounting screws provided with the outlet box.
- Do not bend the blade holders during installation, balancing, or cleaning.
- Keep hands, feet, and other objects clear of the rotating fan blades.
- This fan is suitable for indoor and covered outdoor use. Do not expose to direct water spray.
What's Included
The Sofucor Ceiling Fan package includes the following components:
- Ceiling Fan Motor Assembly
- 3 Wood Fan Blades
- Integrated LED Light Kit
- Remote Control
- Remote Control Holder
- 3 Rustproof Downrods (5", 10", 24")
- Mounting Hardware
- User Guide (this manual)
Image: A visual representation of the fan's key features: 3 color temperature LED light, ETL DC motor, three available rod sizes, and solid wood blades.
Setup and Installation
This ceiling fan is designed for straightforward installation. Please refer to the detailed installation instructions provided in the user guide and consider watching the video tutorial for clearer guidance. The fan is compatible with both flat and sloped ceilings.

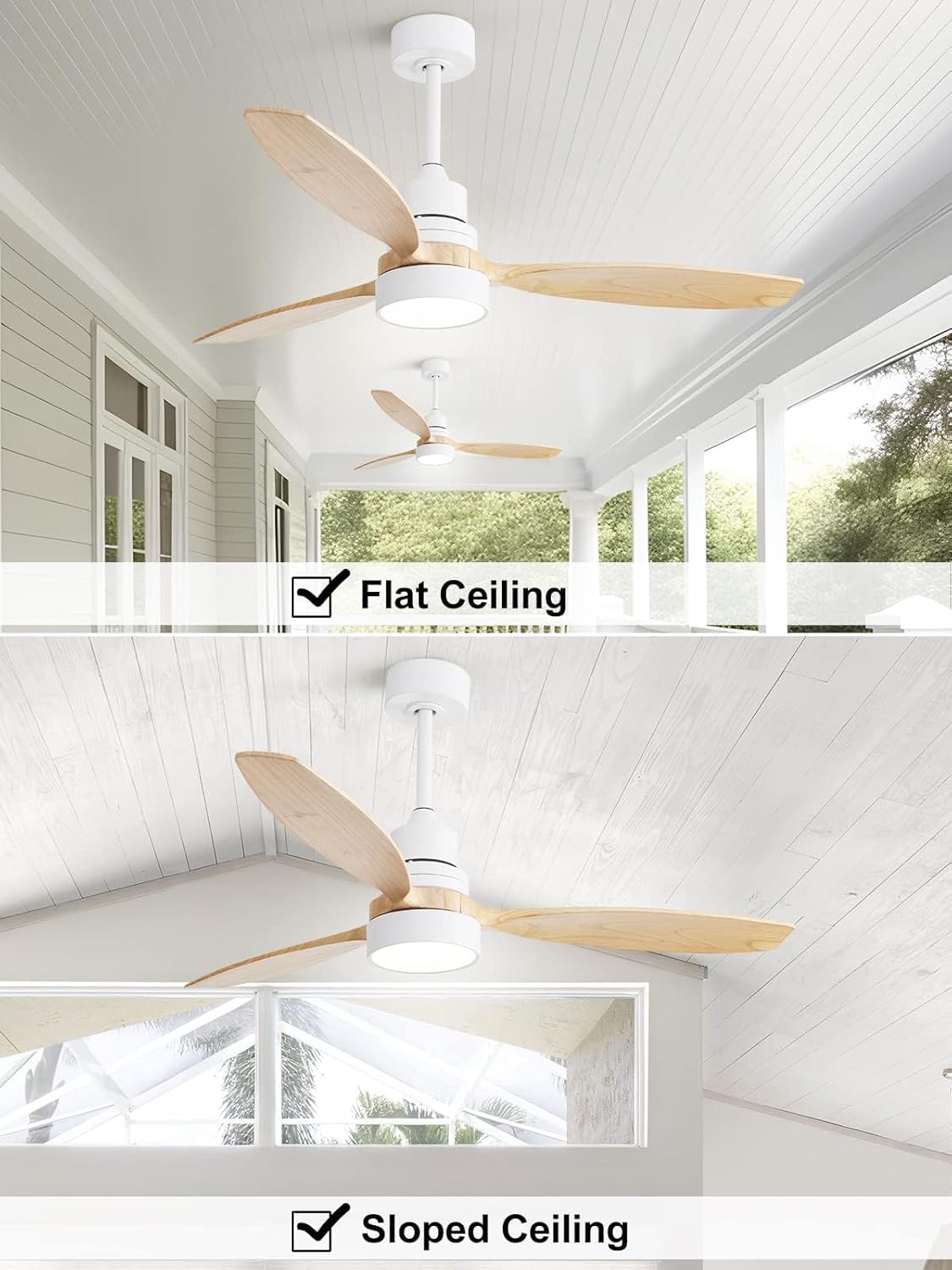

Image: The ceiling fan shown installed on both flat and sloped ceiling types, demonstrating its versatility.
Choose the most suitable downrod size (5", 10", or 24") based on your room's height and aesthetic preference. Ensure proper wiring connections are made. It is recommended to use 14-gauge rated wire nuts (orange or yellow) for secure connections, as some included wire nuts may not be suitable for all wire gauges.
Image: A diagram illustrating the three different downrod lengths (5, 10, and 24 inches) that come with the fan, allowing for flexible installation heights.
Operating Instructions
The Sofucor ceiling fan is operated exclusively via the included wireless remote control. There is no manual pull chain or wall switch functionality beyond the main power supply.
Remote Control Functions:
- Power Button: Turns the fan and light on/off.
- Fan Speed Control: Select from 6 different fan speeds (1-6) to adjust airflow.
- Reversible Motor: Change the direction of blade rotation for summer (downward airflow for cooling) or winter (upward airflow for air circulation) use.
- Light On/Off: Independently control the LED light.
- LED Brightness Adjustment: Increase (LED+) or decrease (LED-) the brightness of the LED light.
- Light Color Temperature: Cycle through three light color temperatures: Warm light (3000K), Natural light (4500K), and Cool light (6000K).
- Timer Settings: Set the fan to automatically turn off after 1, 4, or 8 hours.

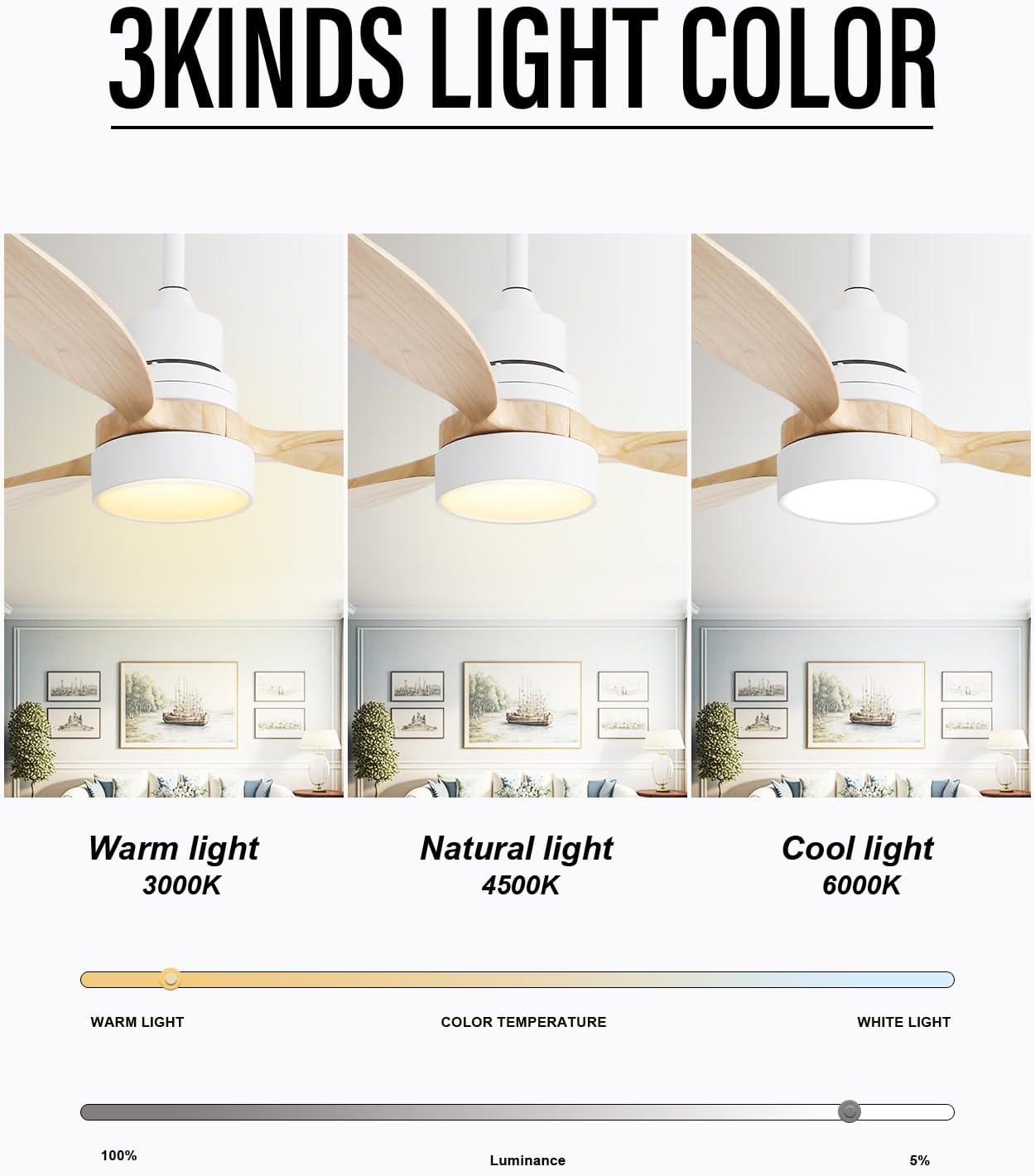

Image: A visual guide to the three adjustable light color temperatures: Warm (3000K), Natural (4500K), and Cool (6000K).
Image: An illustration detailing the six fan speed settings, suggesting optimal use for different activities like sleeping or exercising.
Image: A diagram explaining the reversible DC motor feature, showing how it provides cooling airflow in summer and enhances air circulation in winter.
Maintenance
Regular maintenance ensures optimal performance and longevity of your Sofucor ceiling fan.
- Cleaning: Use a soft, damp cloth to clean the fan blades and motor housing. Do not use abrasive cleaners or solvents.
- Blade Inspection: Periodically check the fan blades for any signs of damage or warping.
- Tighten Screws: Over time, some screws may loosen. Check and tighten all screws on the fan assembly and mounting bracket annually.
- Motor Care: The DC motor is designed for long-lasting, quiet operation and typically requires no lubrication.
Troubleshooting
If you encounter issues with your Sofucor ceiling fan, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start. | No power to the fan; Loose wire connections; Remote control battery low or not paired. | Check circuit breaker; Ensure all wires are securely connected; Replace remote battery or re-pair remote according to manual. |
| Fan is noisy. | Loose screws on motor housing or blade holders; Blades unbalanced. | Tighten all screws; Use the included balancing kit to balance the blades. |
| Light does not work. | Loose wire connection to light kit; LED light failure. | Check light kit wiring; Contact customer support if LED is faulty. |
| Remote control not working. | Low battery; Not paired with fan; Obstruction between remote and receiver. | Replace battery; Re-pair remote (refer to manual); Ensure clear line of sight. |
| Fan wobbles. | Loose blade screws; Unbalanced blades; Improper mounting. | Tighten all blade screws; Balance blades using the balancing kit; Ensure mounting bracket is secure. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Sofucor |
| Model Name | 52K076-YM |
| Size | 52 inch |
| Color | White+Light Wood |
| Number of Blades | 3 |
| Power Source | DC Motor |
| Wattage | 18 watts |
| Voltage | 265 Volts |
| Control Method | Remote |
| Special Feature | LED Light (3 Color Temperatures) |
| Indoor/Outdoor Usage | Indoor, Covered Outdoor (Patio, Porch, Garage) |
| Item Weight | 5.3 Pounds |
| Product Dimensions | 52"D x 52"W x 13"H |
| Airflow | 5230 Cubic Feet Per Minute |
| Airflow Efficiency | 130 Cubic Feet Per Minute Per Watt |

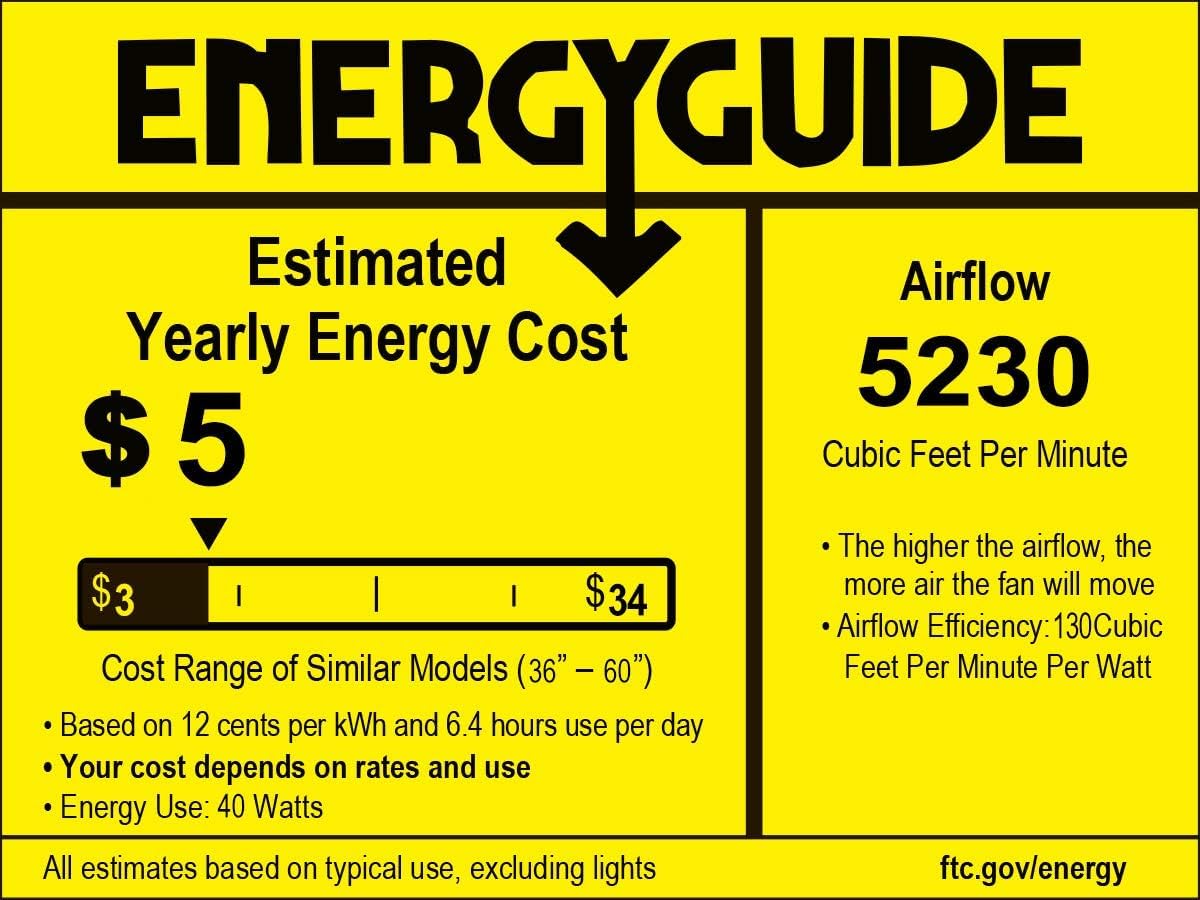

Image: The EnergyGuide label for the fan, indicating its energy efficiency and airflow performance.
Warranty and Customer Support
The Sofucor 52 Inch Ceiling Fan comes with a 3-year warranty. For any questions, technical assistance, or warranty claims, please contact Sofucor customer support. Clear installation instructions and video tutorials are available to assist with setup.
