1. Product Overview
This manual provides detailed instructions for the installation, operation, and maintenance of your Fransiton Oil Rubbed Bronze Bathroom Sink Faucet, Model 2241. Designed for 3-hole, 4-inch centerset installations, this modern faucet features a lead-free stainless steel body, two lever handles for hot and cold water control, a 360-degree swivel spout, and includes a pop-up drain stopper and supply hoses. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your faucet.
Figure 1: Fransiton Oil Rubbed Bronze Bathroom Sink Faucet (Model 2241)
2. Key Features
- Durable Construction: Faucet body constructed from lead-free stainless steel for long-lasting performance and family health safety.
- Easy Installation: Designed for quick 4-step installation on 3-hole or 2-hole 4-inch centerset sinks, typically completed within fifteen minutes.
- Precise Control: Two 90-degree lever handles with drip-free ceramic cartridges allow for independent and accurate control of water flow and temperature.
- Swivel Spout: 360-degree rotating spout enhances cleaning area and convenience. Spout height: 5.2 inches, spout length: 4.8 inches.
- Water-Saving Aerator: Features a splash-free aerator that conserves up to 20% water. The aerator is removable for regular cleaning to prevent clogging.
- Oil Rubbed Bronze Finish: Resistant to fingerprints, water damage, and corrosion, offering a blend of modern and vintage aesthetics.
- Complete Kit: Includes two 23.6-inch hot/cold water supply lines and a matching pop-up drain stopper for easy daily cleaning.
Figure 2: High-Sealing Ceramic Cartridge Benefits
3. Package Contents
Please verify that all components are present before beginning installation.
- Fransiton Bathroom Sink Faucet (Main Body)
- Hot and Cold Water Supply Lines (2 pcs, 23.6 inches each)
- Pop-up Drain Stopper
- Mounting Hardware (Gaskets, Nuts, Base Plate)
- Instruction Manual
Figure 3: Included Components
4. Product Specifications
| Brand | Fransiton |
| Model Number | 2241 |
| Finish Type | Oil Rubbed Bronze |
| Material | Stainless Steel (Body), Copper (Handle) |
| Mounting Type | Deck Mount, Centerset |
| Hole Count | 3 (compatible with 2-hole installations using base plate) |
| Number of Handles | 2 (Lever Type) |
| Valve Type | Disc Valve (Ceramic Cartridge) |
| Spout Design | Rotatable (360 degrees) |
| Spout Height | 5.2 inches |
| Spout Reach | 4.8 inches |
| Mounting Hole Diameter | 1.25 - 1.6 inches |
| Max Base Plate Thickness | 1.3 inches |
| Hose Length | 60 centimetres (23.6 inches) |
| Item Weight | 1.18 kg |
| Dimensions (D x W x H) | 13D x 21.5W x 20.3H centimetres |
Figure 4: Faucet Dimensions and Installation Requirements
5. Setup and Installation
This faucet is designed for easy installation. Follow these steps carefully. Professional installation is recommended if you are unfamiliar with plumbing work.
5.1 Before You Begin
- Ensure you have all necessary tools: adjustable wrench, plumber's putty or silicone sealant, screwdriver, safety glasses.
- Turn off the main water supply to your bathroom.
- Clear the area under the sink for easy access.
- Verify your sink has 3 holes (or 2 holes with a 4-inch centerset spread) and a maximum base plate thickness of 1.3 inches. Mounting hole diameter should be between 1.25-1.6 inches.
5.2 Faucet Installation Steps
- Prepare the Faucet: Place the rubber gasket and metal base plate onto the bottom of the faucet body. Ensure they are aligned correctly.
- Mount the Faucet: Insert the faucet body through the holes in your sink or countertop. From underneath the sink, secure the faucet using the provided washers and mounting nuts. Tighten firmly but do not overtighten.
- Connect Water Supply Lines: Attach the hot and cold water supply lines to the corresponding inlets on the faucet body (typically marked with red for hot and blue for cold). Connect the other ends of the supply lines to your hot and cold water shut-off valves. Use an adjustable wrench to tighten connections, ensuring no leaks.
- Install Pop-up Drain:
- Apply plumber's putty or silicone sealant around the flange of the pop-up drain.
- Insert the drain body into the sink drain hole from above.
- From underneath, secure the drain body with the rubber washer and locking nut. Tighten to create a watertight seal.
- Connect the P-trap to the bottom of the drain assembly.
- Test for Leaks: Slowly turn on the main water supply. Check all connections for leaks. Run both hot and cold water through the faucet for a few minutes to flush out any debris.
Figure 5: Faucet Installation Diagram
Figure 6: Drain Stopper Installation with Built-in Strainer
6. Operating Instructions
Your Fransiton faucet is designed for simple and efficient operation.
- Water Flow Control: The faucet features two lever handles. Turn the left handle counter-clockwise for hot water and the right handle counter-clockwise for cold water. Turn clockwise to shut off.
- Temperature Adjustment: Adjust the hot and cold handles independently to achieve your desired water temperature. The ceramic cartridges ensure smooth and precise control.
- Spout Rotation: The spout can rotate 360 degrees, allowing you to direct water flow as needed for various tasks and to increase the cleaning area of your sink.
- Pop-up Drain Stopper: To close the drain, simply press down on the top of the pop-up stopper. Press again to open it. The removable design allows for easy cleaning of the built-in strainer.

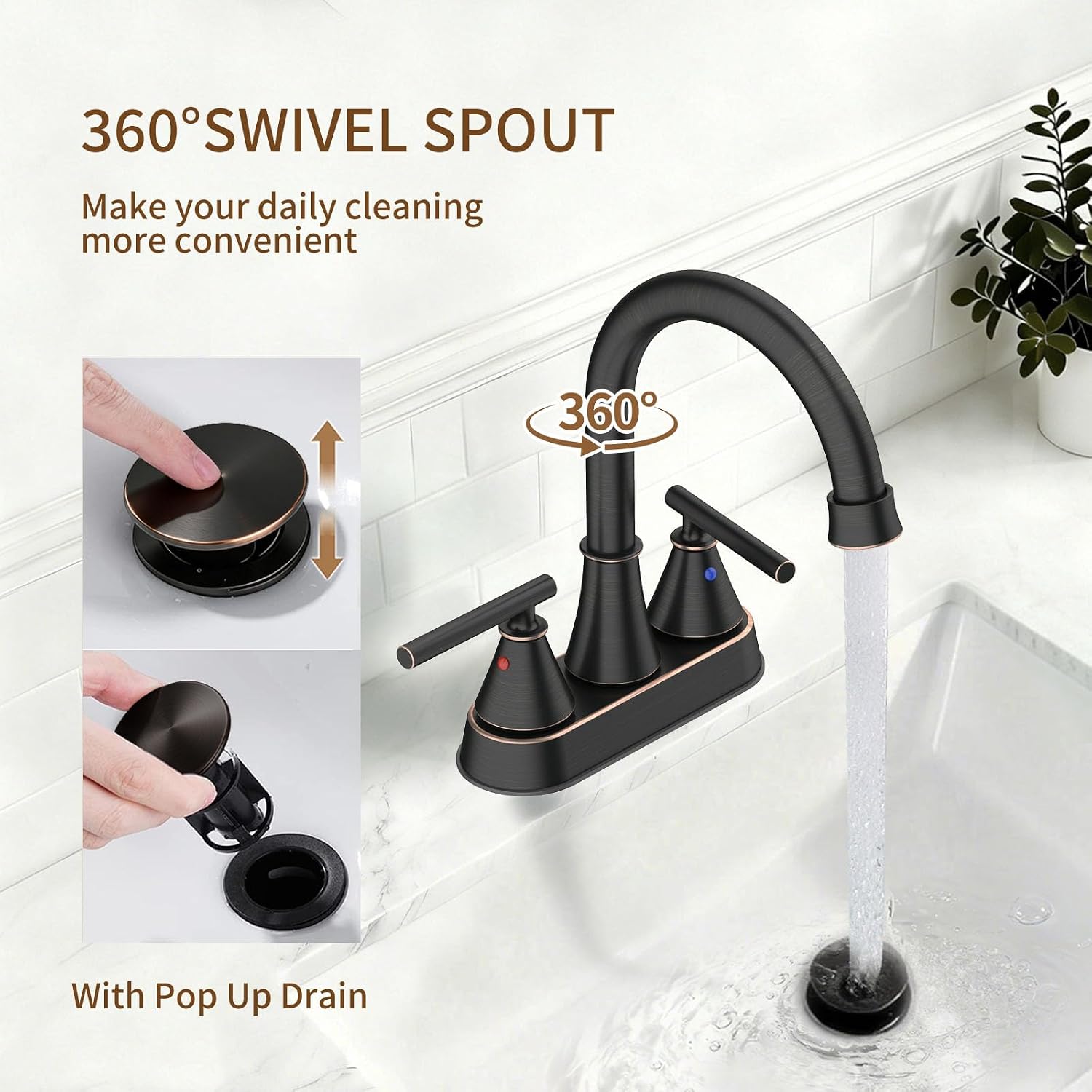

Figure 7: Swivel Spout and Pop-up Drain Operation
7. Care and Maintenance
Proper care will ensure the longevity and appearance of your Fransiton faucet.
- Cleaning the Finish: Clean the oil rubbed bronze finish regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes, as these can damage the finish. The finish is designed to be resistant to fingerprints and water spots.
- Aerator Cleaning: The water-saving aerator can be removed and cleaned periodically to prevent mineral buildup and maintain optimal water flow. Unscrew the aerator from the spout, rinse any debris, and reattach.
- Drain Stopper Cleaning: The pop-up drain stopper is removable for easy cleaning of collected hair and debris, preventing clogs.
- Leak Prevention: The faucet features high-sealing ceramic cartridges designed for drip-free performance. If a leak occurs, check connections and ensure all parts are properly seated.
Figure 8: Aerator for Water Saving and Easy Cleaning
8. Troubleshooting Guide
If you encounter any issues with your faucet, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; debris in supply line. | Remove and clean the aerator. Ensure shut-off valves are fully open. Flush supply lines if necessary. |
| Leaking from Spout | Worn ceramic cartridge; debris in cartridge. | Contact customer support for a replacement cartridge or professional assistance. |
| Leaking from Base/Connections | Loose connections; improperly seated gaskets. | Tighten all connections. Ensure gaskets are correctly positioned and not damaged. |
| Handles Stiff or Hard to Turn | Mineral buildup in cartridge; internal mechanism issue. | Flush the system. If problem persists, contact customer support. |
| Pop-up Drain Not Sealing | Improper installation; debris preventing seal. | Re-install the pop-up drain ensuring proper sealant and alignment. Clear any debris. |
9. Warranty and Customer Support
9.1 Manufacturer's Warranty
The Fransiton Bathroom Sink Faucet (Model 2241) is covered by a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, abuse, accident, or unauthorized repairs.
9.2 Customer Support
For any questions, technical assistance, or warranty claims, please contact Fransiton customer support:
- Email: saleymx@fransiton.com
- Please provide your model number (2241) and date of purchase when contacting support.
