Dirt Devil DD7004-1300W 2-in-1 Steam Mop and Handheld Steam Cleaner User Manual

1. Important Safety Instructions

Please read and understand all safety instructions before using the appliance. Failure to follow these instructions may result in electric shock, fire, or serious personal injury.

• Always ensure the appliance is unplugged from the power outlet before cleaning, performing maintenance, or when not in use.
• Do not immerse the appliance in water or any other liquid.
• This appliance is intended for household use only. Do not use outdoors.
• Do not direct steam at people, animals, or electrical appliances.
• Use only distilled or demineralized water in the water tank to prevent mineral buildup and prolong the life of the appliance.
• Do not use the steam cleaner on leather, waxed furniture, synthetic fabrics, unsealed or untreated wooden floors, or any materials sensitive to steam. Test on an inconspicuous area first.
• Keep children and pets away from the appliance during operation.
• Always allow the appliance to cool down completely before storing.
• Ensure the power cord is not damaged. If damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• The appliance is IPX4 certified, meaning it is protected against splashing water from any direction. However, do not submerge it.

2. Product Overview

The Dirt Devil DD7004 is a versatile 2-in-1 steam cleaner designed for effective and hygienic cleaning of various hard surfaces and for refreshing carpets. It can be used as a traditional steam mop or converted into a handheld steam cleaner for targeted cleaning.

Image: The Dirt Devil DD7004 steam cleaner in its upright steam mop configuration.

2.1. Components and Accessories

The DD7004 comes with several attachments to enhance its cleaning capabilities:

• Main Unit: The core steam generator, convertible between mop and handheld.
• Floor Brush/Mop Head: For cleaning hard floors.
• Mop Pad: Attaches to the floor brush for cleaning surfaces.
• Carpet Glider: Used over the mop head for refreshing carpets.
• Small Curved Nozzle: For reaching tight spaces and corners.
• Spot Jet Nozzle: Provides concentrated steam for stubborn dirt.
• Brush Nozzle: For scrubbing tough stains on various surfaces.
• Measuring Cup: For accurate water filling.

Image: The mop head with an attached cleaning pad.

Image: The small curved nozzle attachment for targeted cleaning.

Image: The brush nozzle attachment for scrubbing.

Image: The spot jet nozzle attachment for concentrated steam.

Image: The measuring cup for filling the water tank.

3. Setup and Assembly

3.1. Assembling the Steam Mop

1. Attach the handle to the main body of the steam cleaner until it clicks securely into place.
2. Slide the mop head onto the bottom of the main unit.
3. Secure a clean mop pad onto the mop head. Ensure it is properly aligned and attached.

3.2. Filling the Water Tank

1. Ensure the appliance is unplugged from the power outlet.
2. Locate the water tank cap on the main unit.
3. Open the water tank cap.
4. Using the provided measuring cup, fill the water tank with up to 330 ml of distilled or demineralized water. Avoid using tap water to prevent mineral buildup.
5. Close the water tank cap securely.

4. Operating Instructions

4.1. Preparing for Cleaning

• Before using the steam mop, sweep or vacuum the floor to remove any loose dirt or debris that could scratch surfaces or hinder cleaning.
• For hard floors, ensure the mop pad is securely attached. For refreshing carpets, place the carpet glider over the mop head.

4.2. Powering On and Heating

1. Plug the power cord into a suitable electrical outlet (220-240V AC, 50/60Hz). The power indicator light will illuminate.
2. Wait approximately 30 seconds for the appliance to heat up. The indicator light will stop flashing when the steam cleaner is ready for use.

4.3. Using as a Steam Mop

1. Once heated, press the steam button to activate steam. You can adjust the steam quantity using the variable steam control.
2. Move the steam mop slowly and steadily across the floor surface. The flexible handle allows easy access under furniture.
3. For heavily soiled areas, hold the mop over the spot for a few seconds to allow the steam to penetrate and loosen dirt.
4. The appliance provides approximately 15 minutes of continuous steam with a full water tank.

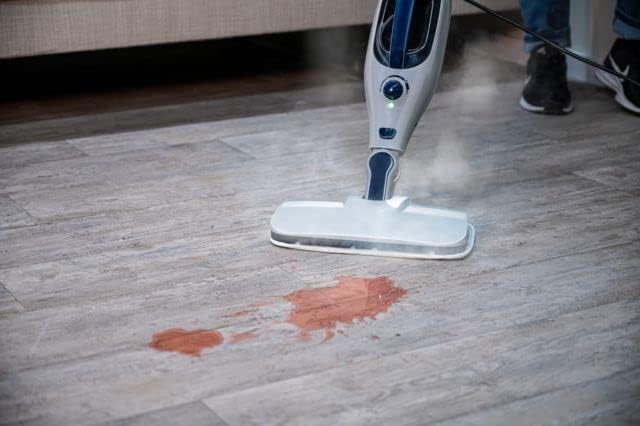

Image: The steam mop effectively cleaning a liquid spill on a hard floor.

Image: The steam mop's flexible handle allows it to reach under furniture for thorough cleaning.

4.4. Using as a Handheld Steam Cleaner

1. To convert to handheld mode, ensure the appliance is unplugged and cooled. Detach the handle and mop head from the main unit.
2. Select the appropriate attachment (curved nozzle, spot jet nozzle, or brush nozzle) for your cleaning task and securely attach it to the handheld unit.
3. Plug in the appliance and wait for it to heat up (approx. 30 seconds).
4. Direct the steam at the surface to be cleaned. The handheld unit is ideal for mirrors, sinks, grout, car rims, and refreshing upholstery or garments.

Image: The main unit detached for handheld steam cleaning.

Image: The handheld steam cleaner with a brush attachment cleaning a car rim.

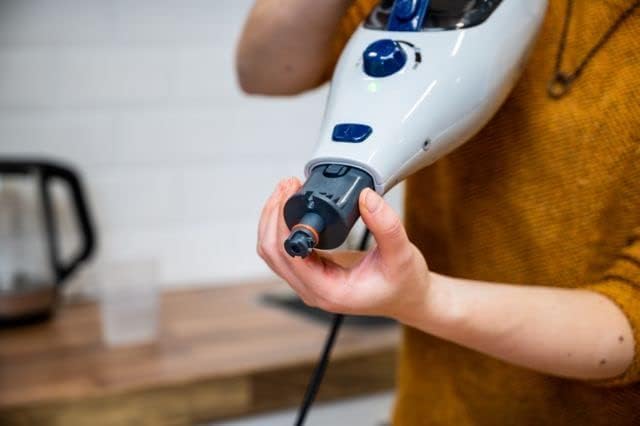

Image: A user attaching a nozzle to the handheld steam cleaner.

Image: Another view of attaching a nozzle to the handheld steam cleaner.

5. Maintenance and Care

5.1. Cleaning the Mop Pads

Mop pads should be cleaned after each use. They can typically be machine washed with mild detergent. Do not use bleach or fabric softeners, as these can damage the fibers and reduce cleaning effectiveness. Air dry or tumble dry on low heat.

5.2. Emptying and Cleaning the Water Tank

After each use, unplug the appliance and allow it to cool completely. Empty any remaining water from the tank. The water tank is not removable, so carefully tilt the unit to drain. Wipe the exterior of the appliance with a damp cloth. Do not use abrasive cleaners.

5.3. Descaling (Hard Water Filter)

The appliance includes a hard water filter. Over time, mineral deposits can accumulate, especially if tap water is used. While distilled water is recommended, if you notice reduced steam output or mineral residue, descaling may be necessary. Refer to the manufacturer's website or contact support for specific descaling instructions for your model.

5.4. Storage

Store the steam cleaner in a cool, dry place. Ensure the water tank is empty and the appliance is completely cool before storing. Wrap the power cord neatly to prevent damage.

6. Troubleshooting

If you encounter issues with your Dirt Devil DD7004, please consult the following common troubleshooting steps:

If the problem persists after trying these steps, please contact customer support.

7. Specifications

8. Warranty and Support

8.1. Warranty Information

This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. Spare parts availability is indicated for 1 year from the date of purchase.

8.2. Customer Support

For technical assistance, warranty claims, or to order replacement parts, please contact Dirt Devil customer support. Contact information can typically be found on the product packaging, the official Dirt Devil website, or your purchase receipt.

When contacting support, please have your model number (DD7004) and purchase date available.
