IRONMAX 11x8 FT Outdoor Storage Shed Instruction Manual

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your IRONMAX 11x8 FT Outdoor Storage Shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Safety Information

WARNING: Failure to follow these safety instructions may result in serious injury or property damage.

• Assembly: This product is heavy-duty and requires at least two adults for safe assembly. Wear appropriate personal protective equipment, including gloves and eye protection.
• Site Preparation: Choose a level, stable surface for installation. Ensure adequate clearance around the shed for assembly and future access.
• Anchoring: The shed must be securely anchored to the ground using expansion screws (for concrete) or tent nails (for soil) to prevent wind damage and ensure stability.
• Sharp Edges: Metal components may have sharp edges. Handle all parts with care and wear protective gloves during assembly.
• Children and Pets: Keep children and pets away from the assembly area. Do not allow them to play inside or around the shed.
• Ventilation: The shed is equipped with air vents. Do not block these vents, as proper air circulation is necessary to prevent moisture buildup.
• Overhead Power Lines: Be aware of overhead power lines and other utilities when selecting a location and during assembly.

3. Included Components

Your IRONMAX 11x8 FT Outdoor Storage Shed package includes:

• All necessary galvanized steel panels and frame components.
• Double sliding doors and associated hardware.
• Roof panels with integrated air vents.
• Fasteners and small parts kit.
• 1 x Pair of Gloves.
• 1 x User Manual (this document).

Note: A detailed parts list with corresponding numbers is provided in the physical manual included with your product. Please verify all parts are present before beginning assembly.

4. Setup and Assembly

Assembly of the IRONMAX 11x8 FT Outdoor Storage Shed requires careful attention to detail. Follow the numbered steps in your physical manual. The following general guidelines are crucial for successful installation:

• Teamwork: Assembly is significantly easier and safer with two or more people.
• Foundation: Ensure your chosen site is level and firm. A concrete slab or a well-prepared gravel base is recommended.
• Step-by-Step: Follow the assembly instructions sequentially. Do not skip steps.
• Align First, Tighten Last: When attaching panels and frame components, loosely fit all screws into their designated holes first. Once all parts for a section are in place and aligned, then proceed to tighten all screws securely. This prevents misalignment and ensures a sturdy structure.
• Anchoring: After completing the main structure, securely anchor the shed to the ground as described in the safety section.

Image: Detail of the shed's sloping roof designed for water runoff and integrated air vents for circulation.

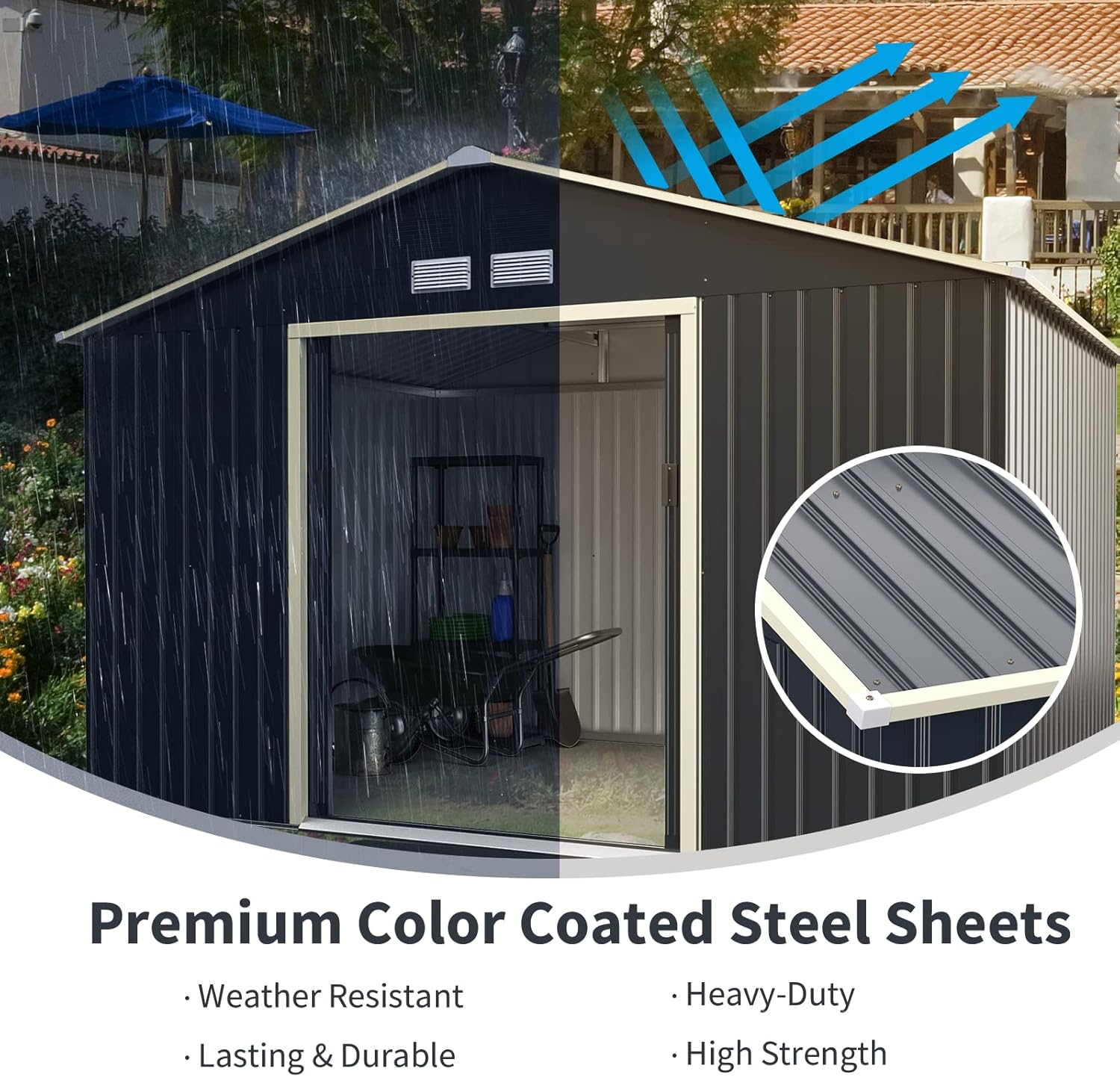

Image: The shed's exterior, showcasing the weather-resistant, heavy-duty, and durable premium color-coated steel sheets.

5. Operating Instructions

Your IRONMAX storage shed is designed for practical and secure storage.

• Double Sliding Doors: The shed features double sliding doors for convenient entry and exit. To open, gently slide the doors along their tracks. Ensure the tracks are clear of debris for smooth operation.
• Security: The door handles are designed to accommodate a padlock (not included) to secure your stored items and prevent unauthorized access.
• Air Ventilation: Four ventilation louvers are strategically placed to ensure continuous air circulation, helping to prevent odors and moisture buildup inside the shed. Do not obstruct these vents.
• Ramp Access: A built-in ramp facilitates easy access for wheeled equipment such as lawnmowers, wheelbarrows, or bicycles.

Image: The shed's double sliding doors with convenient bilateral handles, designed for easy opening and closing.

Image: Examples of versatile use for the shed, including storage for tools, lawnmowers, and other outdoor equipment.

6. Maintenance

Regular maintenance will extend the life and appearance of your IRONMAX storage shed.

• Cleaning: Clean the exterior of the shed periodically with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the galvanized steel finish. Rinse thoroughly with clean water.
• Roof Inspection: Periodically check the roof for any accumulated debris (leaves, branches) and clear it to ensure proper water drainage. The sloping roof is designed to prevent water accumulation.
• Door Tracks: Keep the sliding door tracks clean and free of dirt, leaves, or other obstructions to ensure smooth operation. Lubricate with a silicone-based spray if needed.
• Fasteners: Annually inspect all screws and fasteners for tightness. Re-tighten any loose connections to maintain structural integrity.
• Anchoring: Verify that the shed remains securely anchored to the ground, especially after severe weather conditions.

7. Troubleshooting

If you encounter issues with your IRONMAX storage shed, consider the following common solutions:

• Difficulty with Assembly: If parts do not align easily, ensure you are following the instructions precisely. Do not force components. Loosen previously tightened screws to allow for adjustment, align the current parts, then re-tighten all screws in the section.
• Wobbly or Unstable Shed: Verify that the shed is installed on a perfectly level surface. Ensure all fasteners are securely tightened. Confirm that the shed is properly anchored to the ground.
• Doors Not Sliding Smoothly: Check the door tracks for any debris or obstructions. Clean the tracks thoroughly. Apply a silicone lubricant to the tracks if necessary. Ensure the shed structure is square and level, as misalignment can affect door operation.
• Water Leakage: Inspect all roof and wall panel overlaps to ensure they are correctly installed and sealed according to the manual. Check for any damage to panels. Ensure the roof slope is clear of debris.

8. Specifications

Image: Detailed product dimensions and floor space of the IRONMAX 11x8 FT Outdoor Storage Shed.

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact IRONMAX customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the IRONMAX Store on Amazon.
