Eden 39005 Bypass Pruning Shears User Manual

1. Introduction

The Eden Bypass Pruning Shears are designed for precise cuts on living plants, including vegetables, fruit plants, and thin branches up to 5/8 inch (1.5 cm) in diameter. These shears feature high-quality SK5 hardened carbon steel blades for durability and resistance to rust and corrosion. The Teflon-coated blades facilitate smooth cutting, while the chromium-plated lower blade helps maintain sharpness over time. The lightweight, ergonomic, non-slip handles are designed for comfortable use by both right and left-handed gardeners, reducing hand strain. A simple safety lock mechanism allows for one-handed operation to secure the shears when not in use. A built-in spring mechanism provides a smooth opening and closing action for efficient pruning.

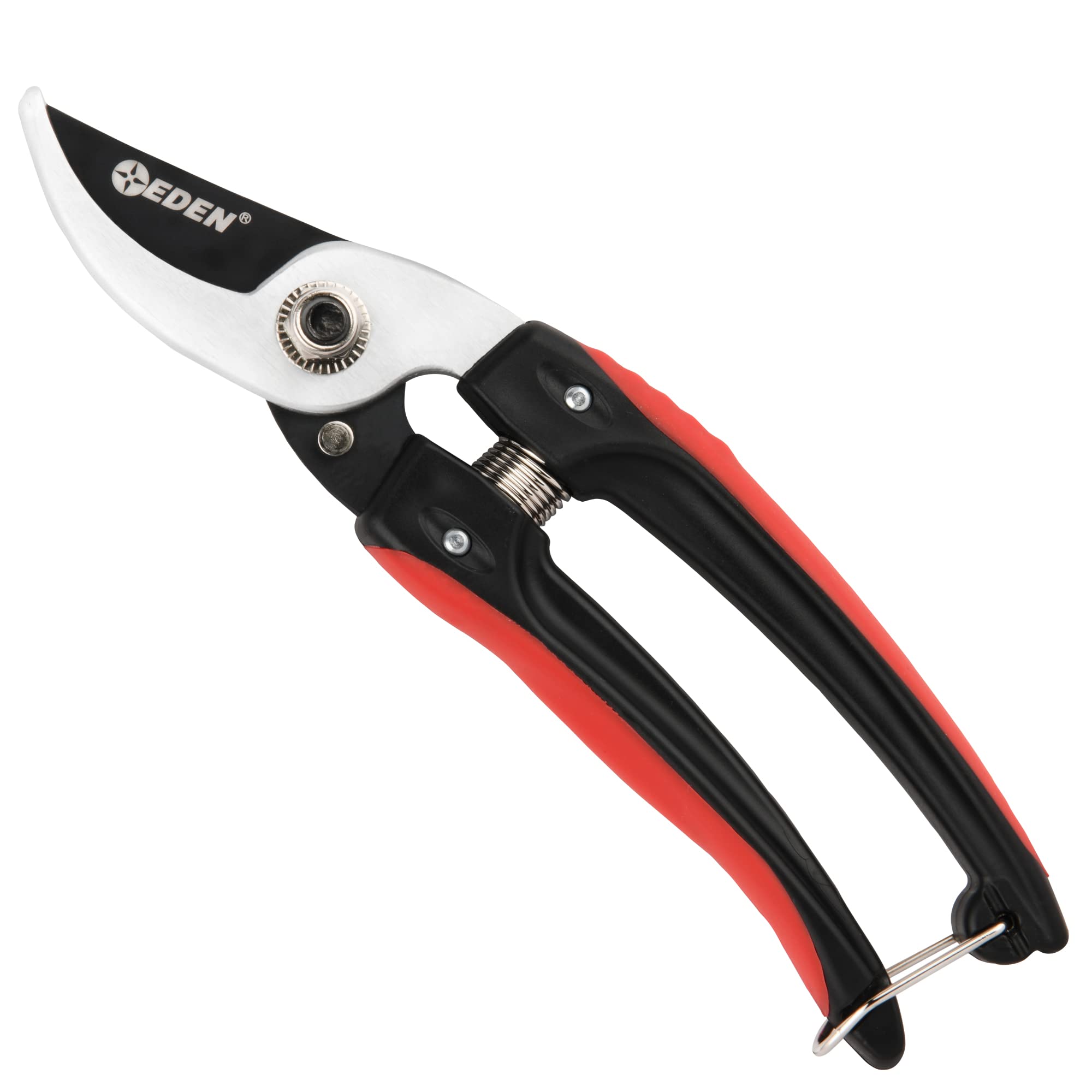

Figure 1: Eden 39005 Bypass Pruning Shears. This image displays the overall design of the pruning shears, featuring red and black ergonomic handles and sharp bypass blades.

2. Product Features

• SK5 High-Quality Carbon Steel: Provides strength and durability for the cutting blades.
• Rust and Corrosion Resistance: Ensures longevity of the tool, even with regular outdoor use.
• 5/8 inch (1.5 cm) Cutting Diameter: Suitable for stems and light branches.
• Chromium-Plated Blades: Enhances blade sharpness retention.
• Teflon-Coated Blades: Facilitates smooth cutting and reduces sap buildup.
• Ergonomic Shock-Absorbing Non-Slip Handles: Designed for comfort and reduced hand fatigue during extended use.
• Safety Lock: A unique clip lock mechanism allows for easy one-handed locking and unlocking to prevent accidental usage and ensure safe storage.
• Built-in Spring Mechanism: Provides a smooth and effortless cutting action, reducing strain.

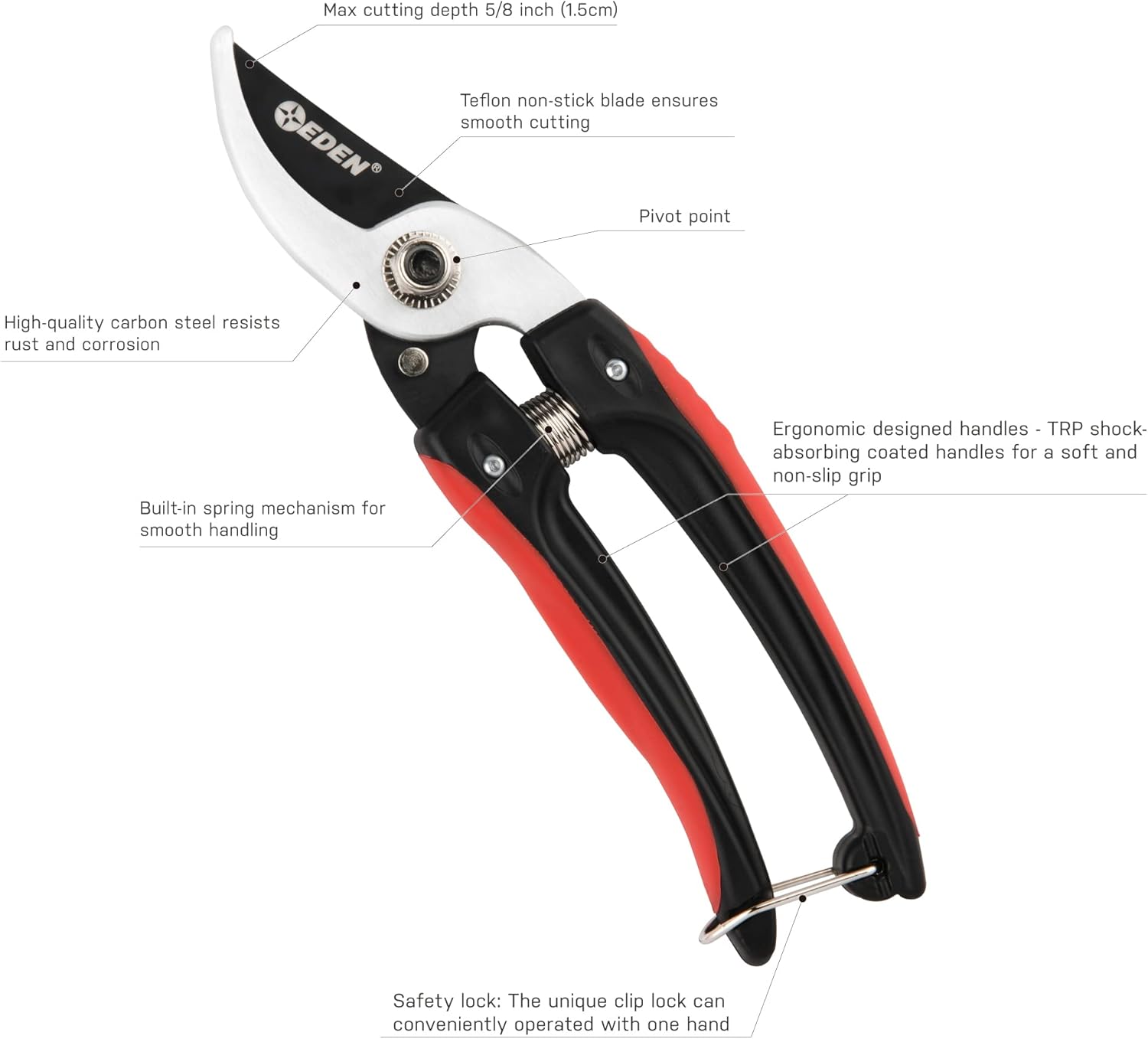

Figure 2: Key features of the Eden 39005 Bypass Pruning Shears. This image highlights the Teflon non-stick blade, pivot point, high-quality carbon steel, built-in spring mechanism, ergonomic handles, and the one-handed safety lock.

3. Setup

Before using your Eden Bypass Pruning Shears, ensure they are properly prepared for safe and effective operation.

1. Unlocking the Shears: Locate the safety lock mechanism at the base of the handles. Push the metal clip away from the blades to release the lock and allow the handles to open.
2. Inspection: Visually inspect the blades for any damage or debris. Ensure the spring mechanism operates smoothly, allowing the handles to open fully after compression.

4. Operating Instructions

Follow these guidelines for effective and safe pruning:

1. Identify the Cut: Determine the branch or stem to be cut. Ensure it is within the 5/8 inch (1.5 cm) cutting capacity of the shears.
2. Positioning: Place the branch or stem between the blades, ensuring it is as close to the pivot point as possible for maximum leverage.
3. Cutting Angle: For optimal performance and plant health, make cuts at a 45-degree angle. This promotes faster healing and reduces the risk of disease.
4. Clean Cut: Apply firm, steady pressure to the handles to make a clean cut. Avoid twisting or forcing the shears, especially on thicker material, to prevent damage to the tool and the plant.
5. Safety: Always keep fingers clear of the blades. When not actively cutting, engage the safety lock.

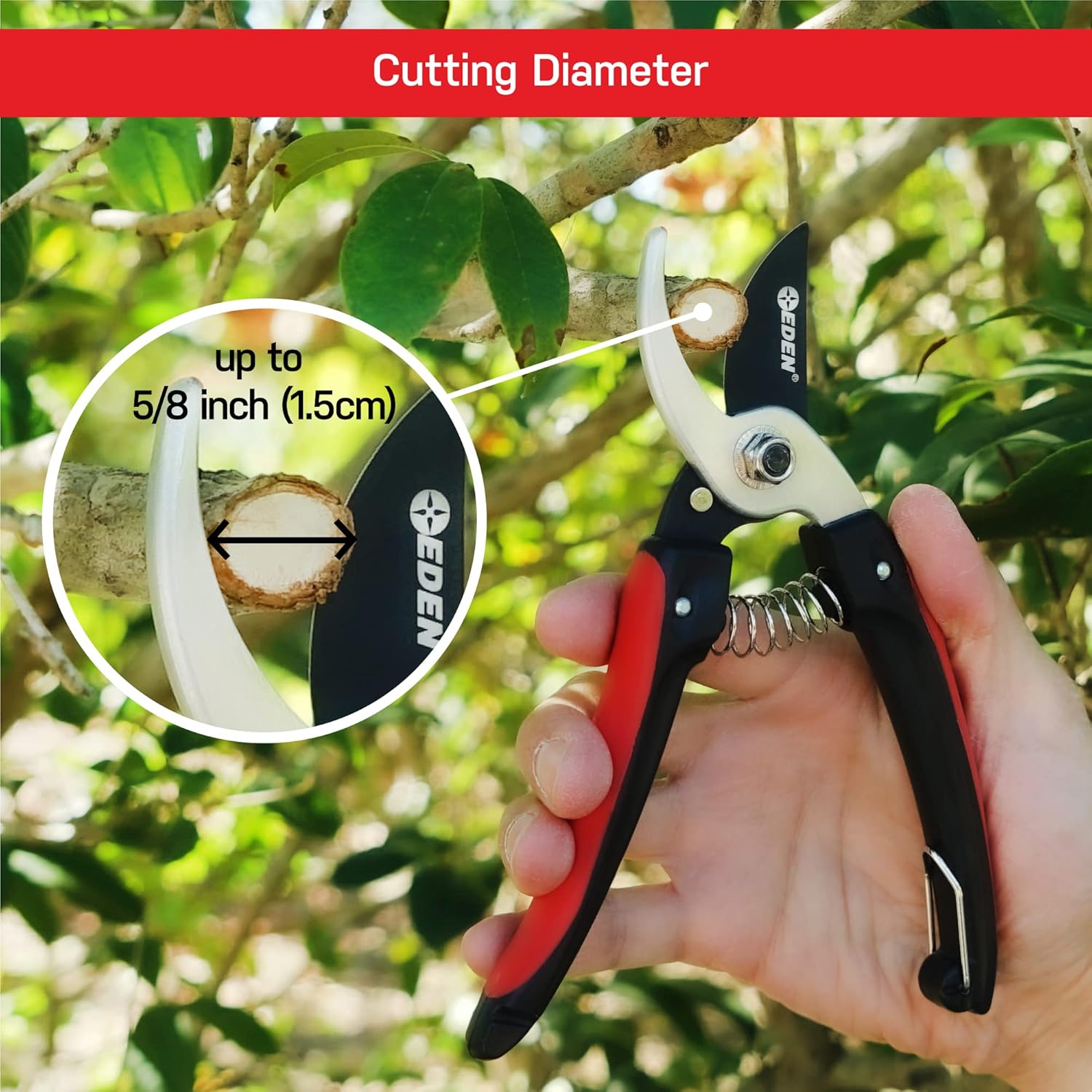

Figure 3: Illustrates the 5/8 inch (1.5 cm) maximum cutting diameter of the shears on a branch.

Figure 4: Demonstrates the recommended 45-degree cutting position for best performance and plant health.

Figure 5: A collage showing the Eden 39005 Bypass Pruning Shears being used for various pruning tasks on different plants.

5. Maintenance

Proper maintenance will extend the life and performance of your pruning shears.

• Cleaning: After each use, clean the blades to remove sap, dirt, and plant debris. A damp cloth is usually sufficient. For stubborn sap, use a mild solvent or rubbing alcohol.
• Drying: Always dry the blades thoroughly after cleaning to prevent rust, especially since they are made of carbon steel.
• Lubrication: Periodically apply a light coat of machine oil or specialized tool oil to the pivot point and blades to ensure smooth operation and further protect against corrosion.
• Sharpening: Over time, the blades may become dull. Sharpen them with a suitable sharpening tool, following the original blade angle. Exercise caution when sharpening.
• Storage: Always engage the safety lock before storing the shears. Store them in a dry place, away from moisture and out of reach of children.

6. Troubleshooting

If you encounter issues with your pruning shears, consider the following:

• Difficulty Cutting: If the shears are not cutting cleanly, the blades may be dull or have sap buildup. Refer to the Maintenance section for cleaning and sharpening instructions. Ensure the material being cut is within the specified 5/8 inch diameter.
• Stiff Operation: If the shears feel stiff, they may require cleaning and lubrication at the pivot point. Refer to the Maintenance section.
• Handles Not Opening Fully: Check if the spring mechanism is free of debris and properly seated. Clean and lubricate if necessary.

7. Specifications

8. Warranty and Support

The Eden 39005 Bypass Pruning Shears are backed by Eden’s limited 2-year warranty. For warranty claims, product support, or further assistance, please refer to the contact information provided on your product packaging or visit the official Eden website.
