MAHANCRIS Console Table CTHB112E01 Instruction Manual

Introduction

Thank you for choosing the MAHANCRIS CTHB112E01 Console Table. This narrow sofa table is designed for versatility and convenience, featuring a built-in power station with AC outlets and USB ports. It is suitable for various spaces such as living rooms, hallways, entryways, and foyers. This manual provides comprehensive instructions for safe assembly, proper operation, and effective maintenance to ensure the longevity and optimal performance of your console table.

Image: The MAHANCRIS CTHB112E01 Console Table, showcasing its sleek design and integrated power station in an entryway setting.

Safety Information

Please read and understand all instructions before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Always follow the assembly instructions carefully.
• Use the adjustable feet to level the table and prevent wobbling on uneven surfaces.
• Secure the table to the wall using the anti-tip kit to prevent tipping, especially in households with children or pets.
• Do not place heavy items on the table that could exceed its maximum weight recommendation of 20 kilograms or cause it to tip over.
• Ensure all screws and fasteners are securely tightened before use. Periodically check and re-tighten as necessary.
• Keep small parts and packaging materials away from children to prevent choking hazards.

Image: Detailed view of the adjustable feet for leveling and the anti-tip accessory for wall mounting, highlighting key safety features.

Parts List

Before beginning assembly, ensure all parts and hardware are present and undamaged. Refer to the diagram below for identification.

Image: A visual guide to all components and fasteners required for assembly.

Components:

• Part 1 (x2): Left Leg Frame
• Part 2 (x2): Right Leg Frame
• Part 3 (x4): Short Side Rail
• Part 4 (x2): Long Side Rail
• Part 5 (x2): Bottom Support Rod
• Part 6 (x1): Power Station Panel
• Part 7 (x2): Iron Sheet (Cross Brace)
• Part 8 (x1): Power Station Unit
• Part 9 (x2): Tabletop Panel

Hardware:

• A (x1): Allen Wrench
• B (x24): Short Screws
• C (x18): Long Screws
• D (x4): Adjustable Feet
• E (x2): Power Station Screws
• F (x1): Anti-Tip Kit
• G (x1): Wall Plugs and Screws for Anti-Tip Kit

Assembly Instructions

Follow these steps carefully for proper assembly. A screwdriver (not included) is recommended in addition to the provided Allen wrench.

Step 2: Attach Side Rails to Tabletop Panels

Place the tabletop panels (Part 9) face down. Position the assembled long side rails (Part 4) along the edges of the tabletop panels. Use 12 long screws (C) to attach the side rails to the tabletop. Before tightening, align the panels to prevent gaps.

Image: A frame from the assembly video demonstrating the attachment of side rails to the tabletop panels.

Step 3: Attach the Short Leg Frames

Attach the adjustable feet (Part D) to the bottom of the short leg frames (Part 1 and Part 2). Then, attach the short leg frames to the tabletop assembly using 4 long screws (C).

Image: A frame from the assembly video illustrating the attachment of the short leg frames.

Step 4: Install Iron Sheets (Cross Braces)

Install the iron sheets (Part 7) on the rear side of the product for added stability. Use 4 short screws (B) to secure them to the leg frames.

Image: A frame from the assembly video demonstrating the installation of the iron cross braces.

Step 5: Attach the Long Leg Frames

Attach the long leg frames (Part 2) to the tabletop assembly. Use 8 short screws (B) to secure these connections.

Image: A frame from the assembly video illustrating the attachment of the long leg frames.

Step 6: Assemble the Bottom Support Rod

Connect the segments of the bottom support rod (Part 5) using 4 short screws (B). This forms a single long rod.

Image: A frame from the assembly video showing the connection of bottom support rod segments.

Step 7: Install the Bottom Support Rod

Install the assembled bottom support rod (Part 5) on the rear side of the product, connecting it between the leg frames. Use 2 long screws (C) to secure it.

Image: A frame from the assembly video demonstrating the installation of the bottom support rod.

Step 8: Install the Power Station

Insert the power station unit (Part 8) into the designated cutout on the power station panel (Part 6). Secure it with 2 power station screws (E). The power station panel can be placed in three positions: left, middle, or right, according to your preference.

Image: Visual representation of the two assembly options for the charging station, allowing flexible placement.

Operating Instructions

The MAHANCRIS CTHB112E01 Console Table is equipped with a convenient power station to charge your electronic devices.

• Power Connection: Plug the 59-inch power cord from the power station into a standard 120V/12A wall outlet.
• AC Outlets: Use the two (2) AC outlets to power devices such as lamps, diffusers, or other small appliances.
• USB Ports: Use the two (2) USB ports (5V/2A) to charge smartphones, tablets, and other USB-powered devices.
• Placement: The power station can be positioned on the left, middle, or right section of the tabletop during assembly to best suit your needs.

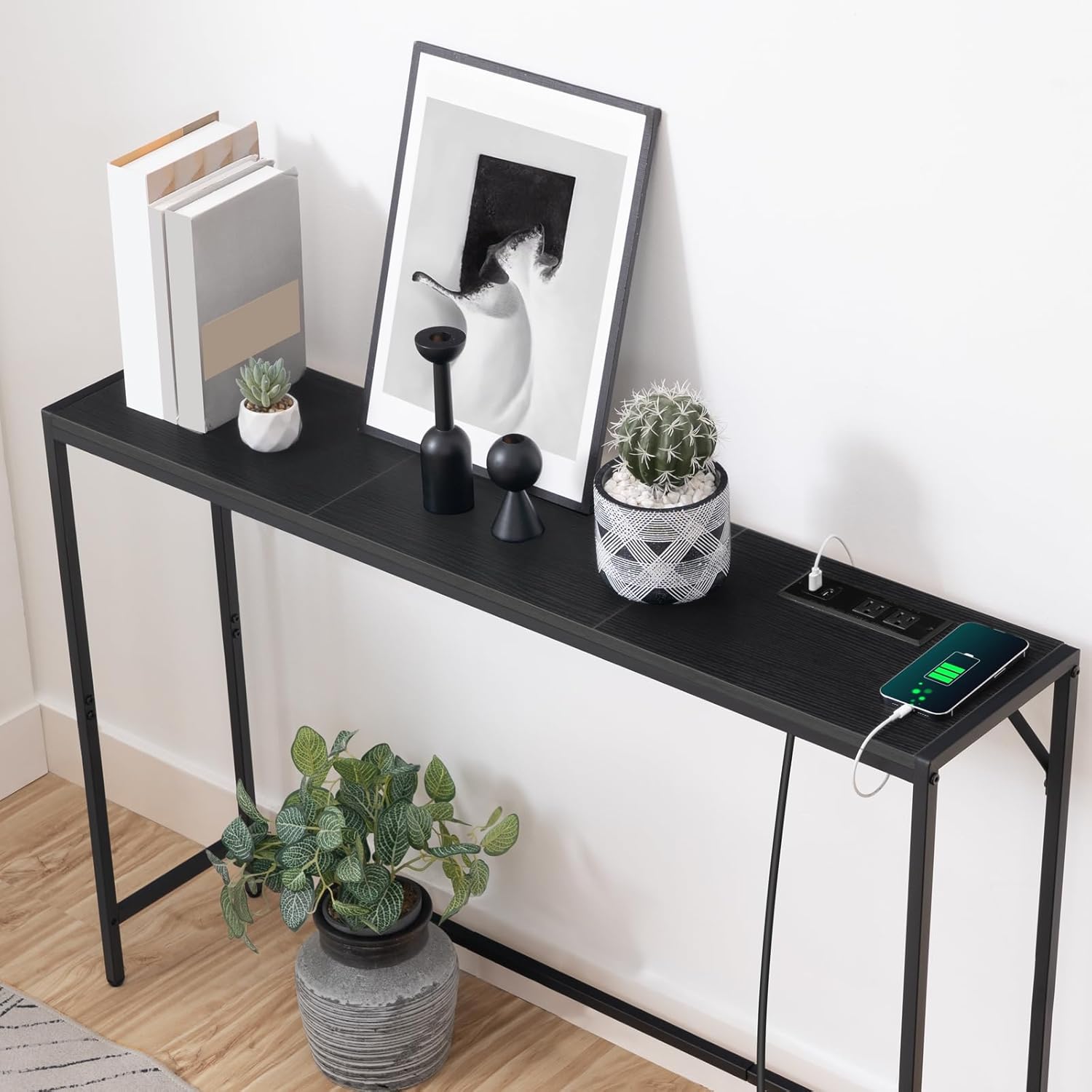

Image: A detailed view of the integrated power station, showing the AC outlets and USB charging ports.

Maintenance

Proper care will help maintain the appearance and extend the life of your console table.

• Cleaning: Wipe the table surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Spills: Clean up spills immediately to prevent staining, especially on the engineered wood top.
• Inspection: Periodically check all fasteners and connections to ensure they remain tight. Re-tighten if necessary.
• Environment: Avoid exposing the table to extreme temperatures, direct sunlight, or high humidity, which can cause warping or discoloration.

Troubleshooting

If you encounter any issues with your console table, refer to the following common solutions:

• Wobbling Table: Adjust the leveling feet (Part D) at the bottom of the legs until the table is stable on an even surface. Ensure all assembly screws are tightened.
• Power Station Not Working: Check if the power cord is securely plugged into both the table's power station and the wall outlet. Verify that the wall outlet is functional by testing it with another device.
• Loose Parts: If any parts feel loose, re-tighten the corresponding screws using the provided Allen wrench or a screwdriver.
• Missing Parts: If you find any parts missing upon unboxing, please contact customer support for assistance.

Specifications

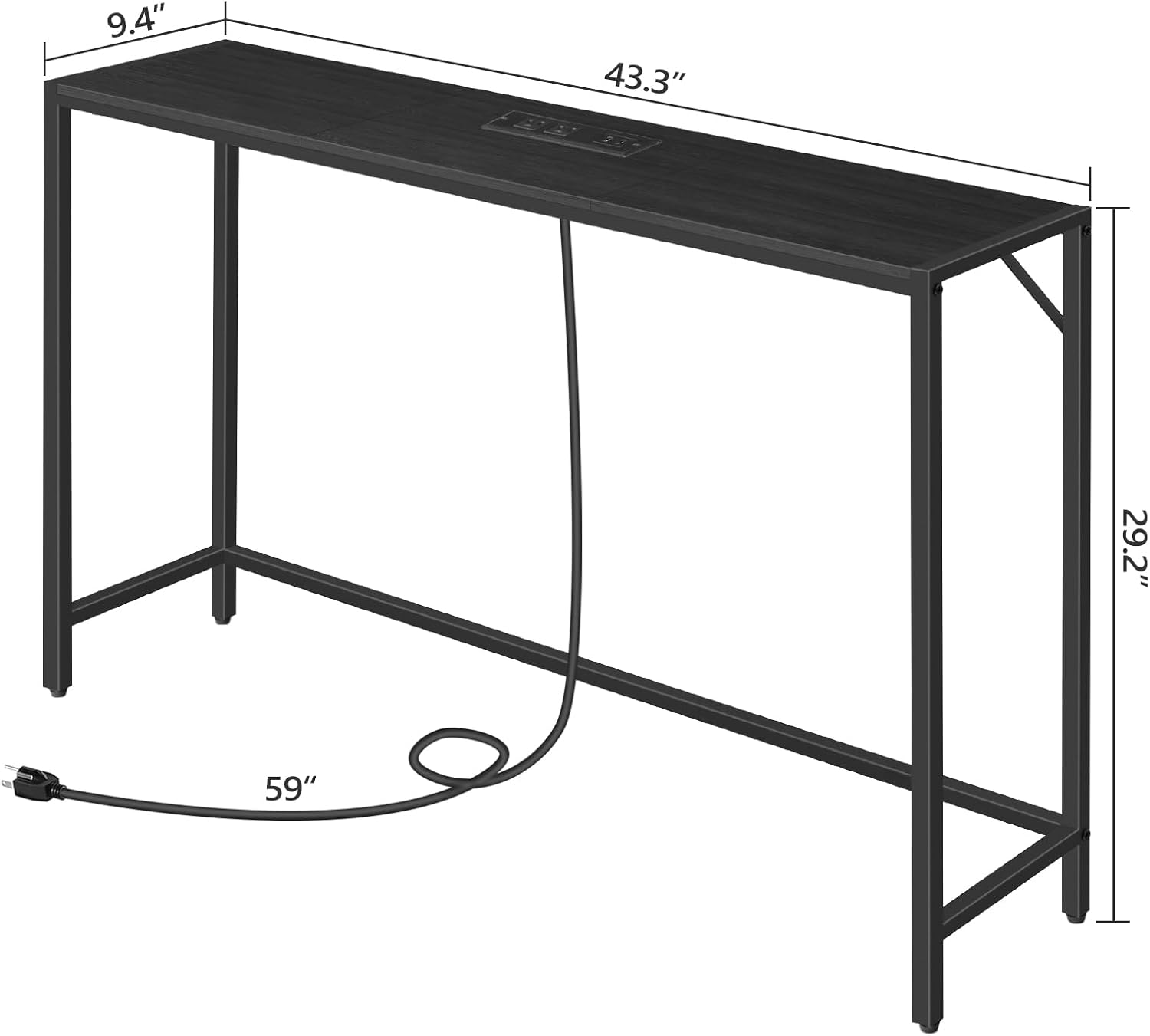

Image: Detailed dimensions of the console table, including depth, width, and height.

Warranty and Support

For any warranty claims, missing parts, or technical support, please contact MAHANCRIS customer service. Refer to your purchase documentation for specific warranty details and contact information.

We are committed to providing high-quality products and excellent customer service.
