Yaheetech Metal Bed Frame 140 x 200 cm Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Yaheetech Metal Bed Frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference. This bed frame is designed for a mattress size of 140 x 200 cm and has a maximum weight capacity of 272 kg.

Safety Information

• Ensure all parts are present and undamaged before assembly. Do not use if any parts are missing or broken.
• Assemble the bed frame on a soft, clean surface to prevent scratches.
• Tighten all bolts and screws securely. Periodically check and re-tighten fasteners to ensure stability.
• Do not exceed the maximum weight capacity of 272 kg.
• Keep small parts away from children during assembly to prevent choking hazards.
• Do not stand or jump on the bed frame.
• Use only the recommended mattress size (140 x 200 cm) to ensure proper fit and support.

Package Contents

Please verify that all the following components are included in your package:

• Headboard and Footboard sections
• Side Rails
• Center Support Bar(s)
• Support Legs (6 total)
• Bed Slats (metal tubes)
• Hardware Pack (bolts, washers, nuts, L-shaped plates, U-shaped corner plates, Allen key)

Setup and Assembly

Follow these steps for proper assembly of your bed frame. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a clean, soft surface. Refer to the parts list to ensure all pieces are present.
2. Assemble Headboard and Footboard: Connect the vertical and horizontal sections of the headboard and footboard using the provided bolts and Allen key. Do not fully tighten bolts until all sections are aligned.
3. Attach Side Rails: Connect the side rails to the assembled headboard and footboard. Use the U-shaped corner plates and L-shaped plates for enhanced structural stability. Ensure the plates are correctly oriented as shown in the diagram.


Image: U-shaped corner plates enhance structural stability, and built-in slats prevent mattress sliding.


Image: Fastening L-shaped plates for a more stable structure using an Allen key.
4. Install Support Legs: Attach the six support legs to the designated points on the bed frame, including the center support bar. Ensure they are firmly attached and provide even support.

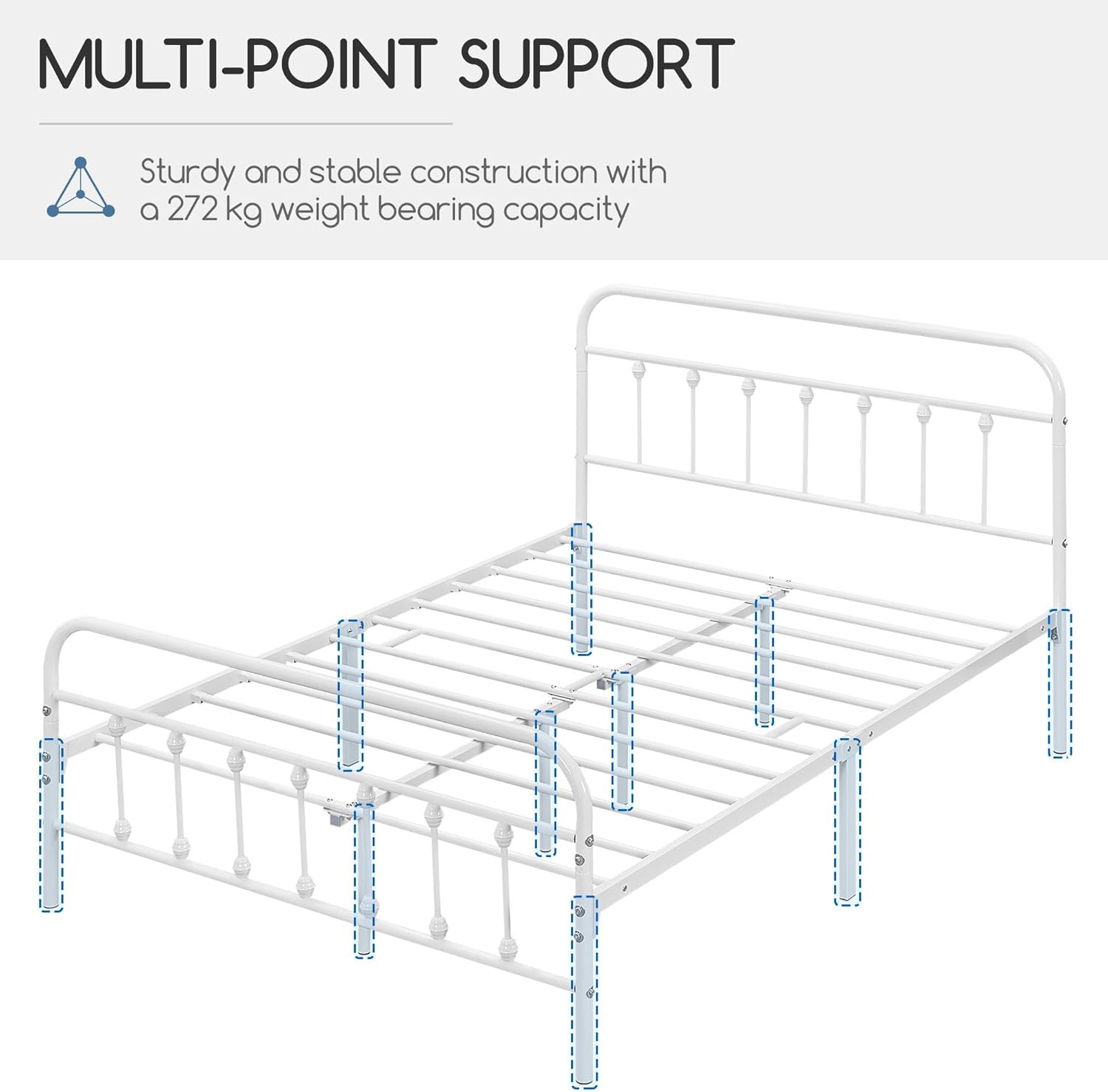

Image: Multi-point support system with six legs, ensuring sturdy and stable construction with a 272 kg weight bearing capacity.

5. Insert Bed Slats: Carefully insert the metal bed slats into the designated notches on the side rails. Aim the metal pipe at the notch and press firmly to secure it in place. The built-in slats are designed to prevent the mattress from sliding.


Image: Instructions for installing bed slats: Aim the metal pipe at the notch and press hard to fix it securely.

6. Final Tightening: Once all components are assembled and aligned, go back and fully tighten all bolts and screws. Do not overtighten.

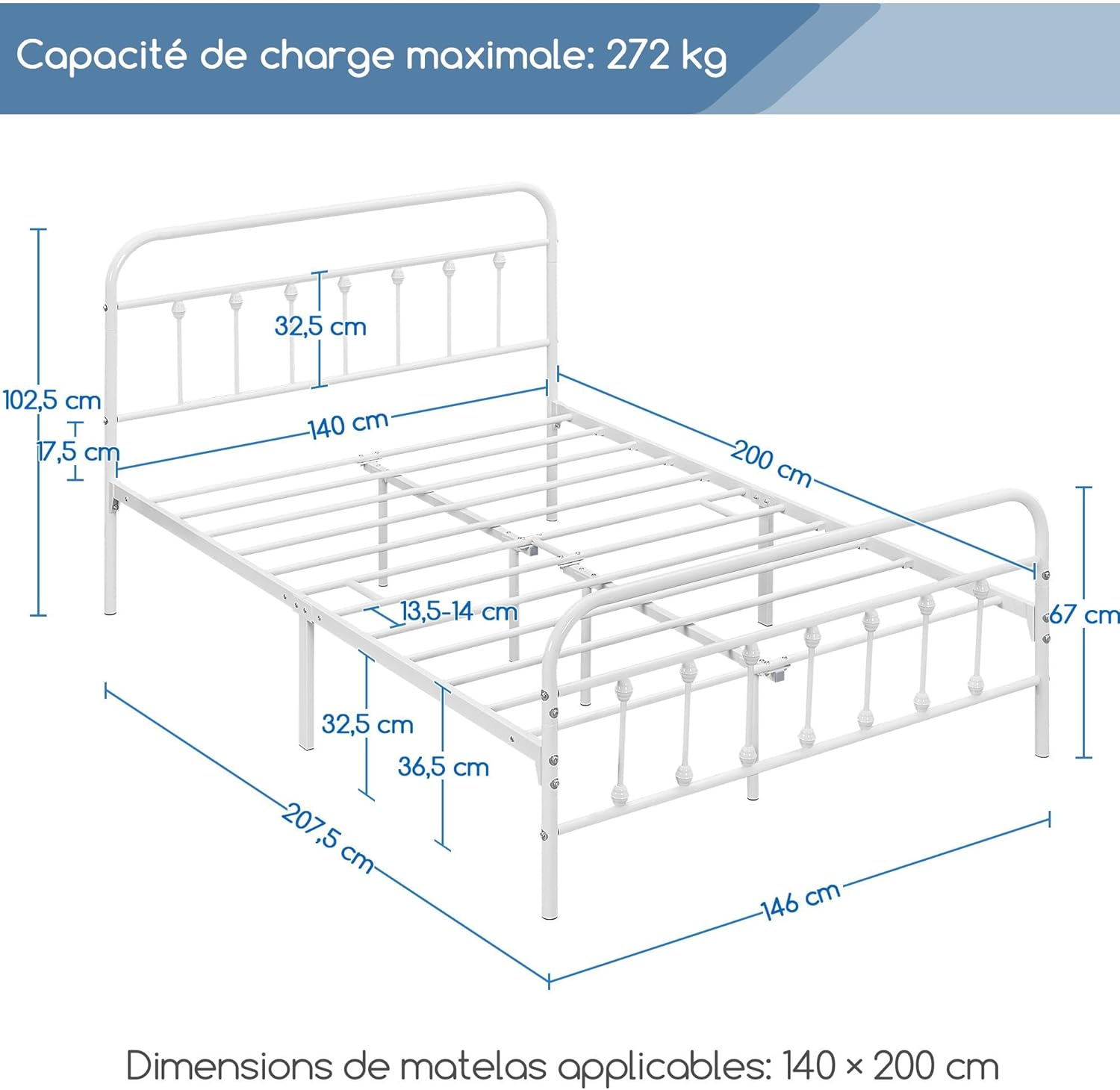

Image: Overall dimensions of the bed frame, including height, width, length, and ground clearance. Applicable mattress dimensions: 140 x 200 cm.

Operating and Usage

Once assembled, your Yaheetech Metal Bed Frame is ready for use. Place a 140 x 200 cm mattress directly onto the metal slats. The high headboard provides a comfortable backrest for sitting up in bed. The bed frame offers 32.5 cm of ground clearance, providing convenient storage space underneath for items like shoes, storage boxes, or clothes organizers.

Image: The Yaheetech Metal Bed Frame in a bedroom, showcasing its vintage design and functionality with a mattress and bedding.

Image: A measurement indicating 32.5 cm of ground clearance, highlighting the available storage space under the bed.

Maintenance

• Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as they may damage the finish.
• Inspection: Periodically check all bolts and connections to ensure they remain tight. Re-tighten as necessary to maintain stability and safety.
• Protective Pads: The bed frame is equipped with protective pads on the feet. Ensure these are intact to prevent scratching floors.

Image: A collage highlighting key features: simple style, durable metal tubes, convenient bottom storage space, and protective pads on the feet.

Troubleshooting

• Squeaking Noises: If the bed frame squeaks, check all bolts and connections. Tighten any loose fasteners. Ensure the bed slats are properly seated in their notches.
• Instability/Wobbling: Verify that all support legs are making firm contact with the floor. Ensure all assembly bolts are fully tightened. Check for any bent or damaged components.
• Mattress Sliding: The bed frame features built-in slats designed to prevent mattress sliding. If your mattress still slides, ensure it is the correct size (140 x 200 cm) and that the slats are properly installed.
• Missing Parts: If you find any parts missing upon unpacking, please contact customer support with your product model number and a description of the missing part.

Specifications

Customer Support

For any questions, concerns, or assistance with your Yaheetech Metal Bed Frame, please refer to the contact information provided with your purchase or visit the official Yaheetech website for support.
