Toysmith Electric Elevator Toy DIY Assembly Kit Instruction Manual

1. Introduction

Thank you for choosing the Toysmith Electric Elevator Toy DIY Assembly Kit. This educational kit allows you to build a functional electric elevator model, providing a hands-on experience to understand basic physics principles, mechanical engineering, and electrical circuits. It is designed to foster creativity and practical skills in children and teenagers.

2. Safety Information

Please read all safety instructions before assembly and operation. Keep this manual for future reference.

• Adult Supervision: This kit contains small parts and electrical components. Adult supervision is recommended, especially for younger children.
• Choking Hazard: Small parts are not suitable for children under 3 years old.
• Battery Safety: Ensure batteries are inserted with correct polarity. Do not mix old and new batteries, or different types of batteries. Remove batteries if the toy will not be used for an extended period.
• Electrical Components: Do not modify the electrical wiring. Ensure all connections are secure to prevent short circuits.
• Material Handling: Handle wooden pieces carefully to avoid splinters.

3. Package Contents

Before starting assembly, verify that all components listed below are present in your kit. Refer to the image for visual identification of parts.

Image: All components of the Toysmith Electric Elevator Toy DIY Assembly Kit, including wooden pieces, motor, remote control, and small parts.

• Pre-cut wooden pieces for the elevator structure and car
• Electric motor
• Battery box (requires 2 AA batteries, not included)
• Wired remote control with push buttons
• String/thread for the lift mechanism
• Small screws, nuts, and other fasteners
• Pulleys and gears
• Sandpaper (for smoothing edges if needed)

4. Assembly Instructions

Follow these steps carefully to assemble your electric elevator toy. It is recommended to lay out all parts and identify them before beginning.

1. Prepare Wooden Pieces: Gently detach all pre-cut wooden pieces from their frames. If any edges are rough, use the provided sandpaper to smooth them.
2. Assemble Base and Pillars: Connect the four vertical pillars to the base wooden piece using the designated slots and fasteners. Ensure they are stable and upright.
3. Construct Elevator Car: Assemble the smaller wooden pieces to form the elevator car. Pay attention to the orientation of the pieces to ensure the car can move freely within the main structure.
4. Install Motor and Top Plate: Attach the electric motor to the top wooden plate. Ensure the motor's shaft is aligned with the opening for the pulley system. Secure the top plate to the pillars.
5. Set Up Pulley System: Thread the string through the pulley on the motor shaft and attach it to the top of the elevator car. Adjust the string length so the car can travel from the bottom to the top of the structure.
6. Connect Electrical Components: Connect the motor wires to the battery box and the remote control according to the wiring diagram (if provided, or standard connections). Ensure the battery box has 2 AA batteries inserted correctly.
7. Final Checks: Verify all connections are secure and the elevator car moves smoothly without obstruction.

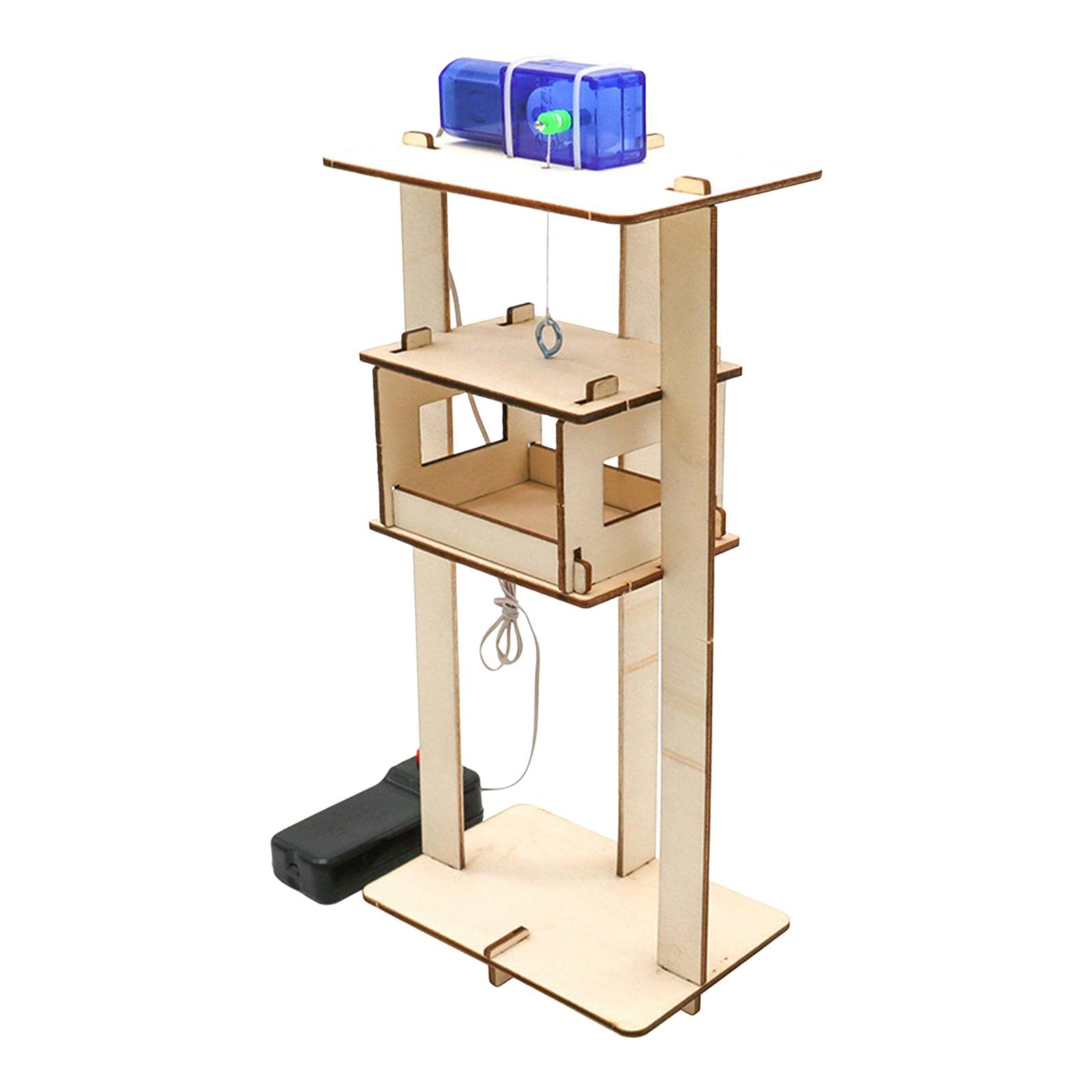

Image: Close-up view of the partially assembled elevator structure, showing the elevator car and the top motor housing.

Image: Fully assembled Toysmith Electric Elevator Toy with dimensions indicated: 25cm height, 10cm width, 5cm depth.

5. Operating Instructions

Once assembled, operating your electric elevator toy is simple:

1. Power On: Ensure batteries are correctly installed in the battery box.
2. Control the Elevator: Use the remote control buttons to move the elevator car up and down. Typically, one button will move it up, and the other will move it down.
3. Observe and Learn: Watch how the motor, pulleys, and string work together to lift and lower the elevator car. This demonstrates the principles of simple machines and electrical energy conversion.

Image: Angled view of the assembled Toysmith Electric Elevator Toy, with the remote control visible at the base.

6. Care and Maintenance

To ensure the longevity and proper functioning of your Toysmith Electric Elevator Toy, follow these maintenance guidelines:

• Cleaning: Wipe the wooden parts with a dry, soft cloth. Avoid using water or cleaning solutions, as they may damage the wood or electrical components.
• Storage: Store the toy in a cool, dry place away from direct sunlight and moisture.
• Battery Replacement: Replace batteries when the elevator's movement becomes slow or inconsistent. Always replace all batteries at once.
• Check Connections: Periodically check all screws, fasteners, and electrical connections to ensure they are tight and secure.
• String Condition: Inspect the lift string for any signs of wear or fraying. Replace if necessary to prevent the elevator car from falling.

7. Troubleshooting

If you encounter any issues with your electric elevator toy, refer to the following common problems and solutions:

8. Product Specifications

• Brand: Toysmith
• Model Number: 6106022680690505
• Materials: Wood, Metal, Electrical components
• Dimensions (Assembled): Approximately 25 cm (Height) x 10 cm (Width) x 5 cm (Depth)
• Power Source: 2 x AA Batteries (not included)
• Recommended Minimum Age: 36 Months
• Educational Objective: Creative Skills, Physics Discovery
• Country of Origin: China

Image: Side view of the assembled Toysmith Electric Elevator Toy, highlighting the wooden frame and elevator car.

9. Warranty Information

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. Please retain your proof of purchase. For specific warranty terms and conditions, refer to the product packaging or contact Toysmith customer support.

10. Customer Support

If you have any questions, require assistance with assembly, or need to report a missing/defective part, please contact Toysmith customer support. Contact information can typically be found on the product packaging or the official Toysmith website.
