Dirt Devil DD2503-800W Bagless Vacuum Cleaner Instruction Manual

1. Introduction

Thank you for choosing the Dirt Devil DD2503-800W Bagless Vacuum Cleaner. This manual provides essential information for the safe and efficient use, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

The Dirt Devil bagless vacuum cleaner is designed to minimize respiratory irritation and reduce the risk of asthma or allergy attacks. Its bagless design and integrated HEPA-12 filter make it suitable for individuals sensitive to dust and dirt. Weighing 4.3 kilograms and offering a total operating range of 7.5 meters, this vacuum cleaner is easy to maneuver throughout your home. The telescopic handle, combination brush, and adjustable suction power allow for efficient cleaning across various floor types. Utilize the crevice tool and furniture attachment for cleaning hard-to-reach areas, upholstery, or vehicle interiors.

Image 1.1: Dirt Devil DD2503-800W Bagless Vacuum Cleaner main unit with hose and floor nozzle.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or injury.

• Read all instructions before using the appliance.
• Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children. This appliance is not suitable for children under 8 years of age.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Do not pick up toxic material, such as chlorine bleach, ammonia, or drain cleaner.
• Do not use without dust cup and/or filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.

3. Package Contents

Verify that all components are present in the packaging:

• Dirt Devil DD2503-800W Main Vacuum Unit
• Flexible Hose
• Telescopic Metal Tube
• Combination Floor Brush
• Crevice Tool
• Furniture Attachment

Image 3.1: Main unit with included accessories.

4. Setup and Assembly

Follow these steps to assemble your vacuum cleaner:

1. Attach the Flexible Hose: Insert the end of the flexible hose into the suction inlet on the main vacuum unit until it clicks securely into place.
2. Connect the Telescopic Tube: Attach the telescopic metal tube to the handle end of the flexible hose.
3. Attach the Floor Nozzle: Connect the combination floor brush to the other end of the telescopic tube. Ensure it is firmly attached.
4. Attach Accessories (Optional): For specific cleaning tasks, you can directly attach the crevice tool or furniture attachment to the handle end of the flexible hose or the telescopic tube.

Image 4.1: Front view of the vacuum cleaner, showing the hose connection point.

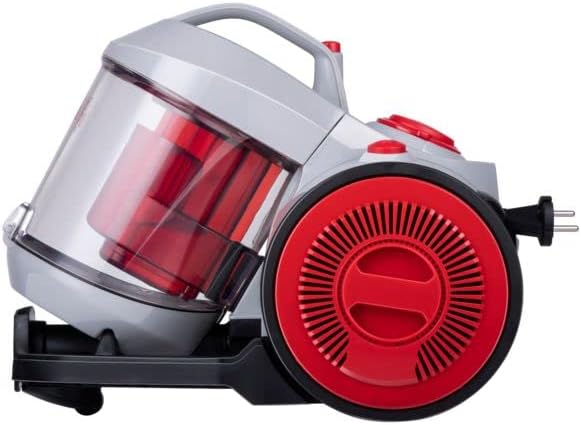

Image 4.2: Side view of the vacuum cleaner, illustrating overall design.

5. Operating the Vacuum Cleaner

Before operating, ensure the dustbin and filters are correctly installed.

1. Power Connection: Extend the power cord from the integrated cord rewind system and plug it into a suitable electrical outlet (220-240V AC, 50/60Hz).
2. Power On/Off: Press the power button located on the main unit to turn the vacuum cleaner on or off.
3. Adjustable Suction Power: Use the suction control dial or slider on the main unit or handle to adjust the suction power according to the surface being cleaned. Lower suction is suitable for delicate fabrics or rugs, while higher suction is for hard floors and heavily soiled areas.
4. Using the Combination Floor Brush: This brush is versatile for both hard floors and carpets. Adjust the brush setting (usually via a foot pedal on the brush head) to retract bristles for carpets or extend them for hard floors.
5. Using the Crevice Tool: Attach the crevice tool to clean narrow gaps, corners, and edges.
6. Using the Furniture Attachment: Attach the furniture attachment to clean upholstery, curtains, and other delicate surfaces.
7. Cord Rewind: After use, press the cord rewind button to automatically retract the power cord into the unit.

Image 5.1: The vacuum cleaner in operation, demonstrating its use on a floor surface.

Image 5.2: The crevice tool, designed for cleaning tight spaces.

Image 5.3: The furniture attachment, suitable for upholstery and delicate surfaces.

6. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

6.1 Emptying the Dustbin

The 2.2-liter dust container should be emptied regularly, especially when the 'MAX' fill line is reached, to maintain suction power.

1. Ensure the vacuum cleaner is unplugged from the power outlet.
2. Locate the dustbin release button or lever on the main unit.
3. Press the release mechanism and carefully lift the dustbin away from the main unit.
4. Position the dustbin over a trash receptacle. Open the bottom lid of the dustbin (if applicable) or twist to unlock and empty the collected dirt and debris.
5. Close the dustbin lid securely and reattach the dustbin to the main unit until it clicks into place.

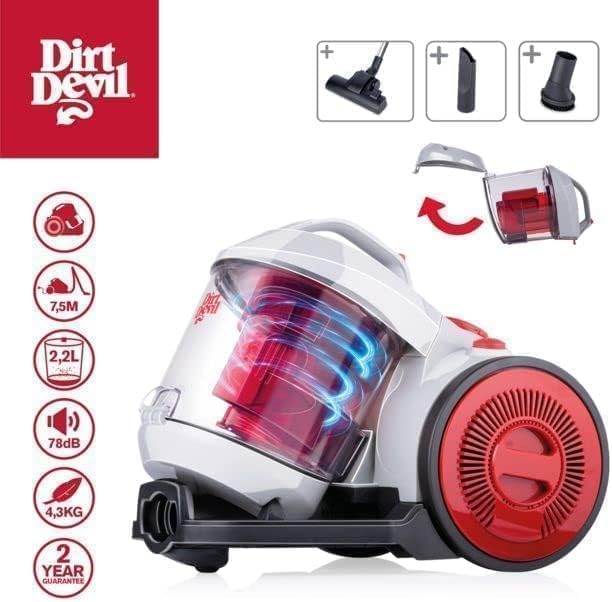

Image 6.1: Detaching the dustbin for emptying.

6.2 Cleaning the HEPA 12 Filter

The washable HEPA 12 filter captures 99.5% of fine dust particles. Clean it periodically to ensure efficient filtration and prevent loss of suction.

1. Unplug the vacuum cleaner.
2. Remove the dustbin as described above.
3. Locate and carefully remove the HEPA filter from the dustbin assembly.
4. Rinse the filter under cool running water until the water runs clear. Do not use detergents or hot water.
5. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use a hairdryer or other heating devices.
6. Once completely dry, reinsert the filter into the dustbin assembly and reattach the dustbin to the main unit.

Image 6.2: Visual representation of the cyclone technology separating dust from air.

7. Troubleshooting

If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions:

8. Specifications

• Model: DD2503
• Power Source: Mains Power
• Input Voltage: 220 - 240 V AC, 50/60 Hz
• Power: 800 W
• Technology: Single Cyclone
• Dustbin Capacity: 2.2 Liters
• Filter Type: Washable HEPA 12 Filter
• Noise Level: 78 dB
• Cord Length: 5 m
• Operating Range: 7.5 m
• Tube Length: 74.5 cm
• Material: ABS Plastic, Metal (tube)
• Weight: 4.3 kg
• Dimensions (L x W x H): 39 x 31 x 28 cm
• Special Features: Bagless, Adjustable Suction Control, Automatic Cord Rewind
• Compliance: European directives 2014/30/CE, 2014/35/CE, 2011/65/UE

9. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or visit the official Dirt Devil website. If you require technical support or have questions not covered in this manual, please contact Dirt Devil customer service through their official channels.
