Introduction
This manual provides comprehensive instructions for the safe and efficient use, installation, and maintenance of your EaseLiving 3 Tier Wall Mount Cloth Dryer Stand, model CDR189. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of the product.
Product Features
- Space-Saving Design: Wall-mounted and foldable for efficient use of space, particularly in balconies.
- Adjustable: Designed to be adjustable to suit various drying needs.
- Durable Construction: Made from iron with a dual powder-coated finish for durability and rust resistance, suitable for outdoor use.
- High Capacity: Supports a weight capacity of up to 120 kg.
- Easy Folding Mechanism: Allows for convenient storage when not in use.
Package Contents
Verify that all components listed below are present in your package before beginning installation.

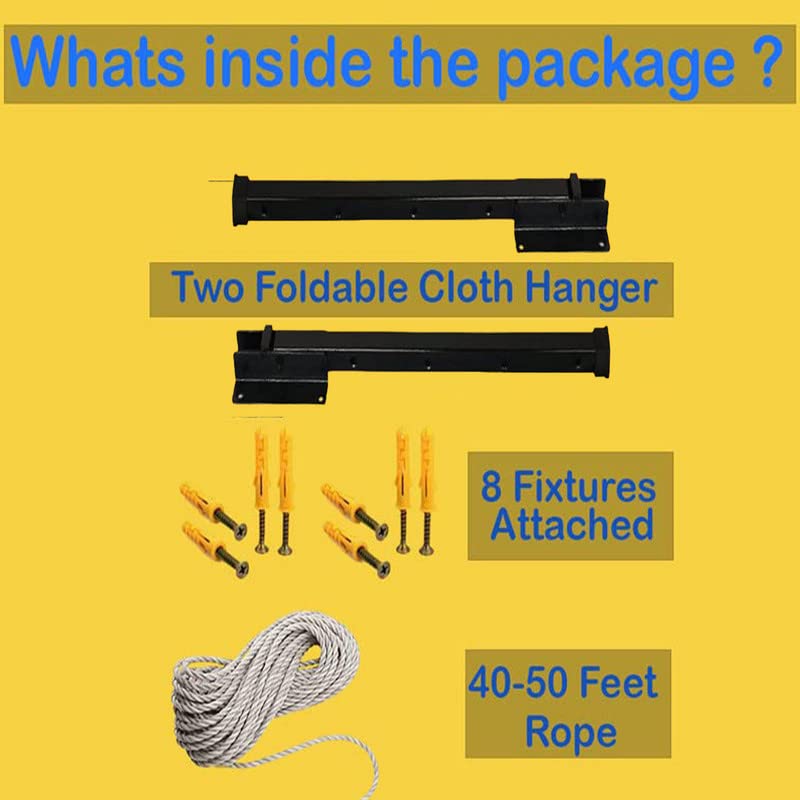

Image: Contents of the EaseLiving 3 Tier Wall Mount Cloth Dryer Stand package. It shows two foldable cloth hanger brackets, eight fixtures (screws and wall plugs), and a coil of 40-50 feet rope.
- 2 x Foldable Brackets (Iron, Black, Powder Coated)
- 1 x 50 feet Rope
- Hardware Accessories (8 x Screws, 8 x Wall Plugs)
Safety Information
- Ensure the mounting surface is structurally sound and can support the weight of the dryer stand and wet laundry.
- Do not exceed the maximum weight capacity of 120 kg.
- Keep children and pets away from the dryer stand during installation and operation.
- Regularly inspect the ropes and mounting hardware for wear or damage.
- Install in a location where it will not obstruct pathways or doors when extended.
Setup and Installation
Follow these steps carefully for proper installation.
- Choose Location: Select a suitable wall in your balcony or laundry area. Ensure there is enough space for the stand to extend fully.
- Mark Drilling Points: Hold one bracket against the wall at the desired height. Use a pencil to mark the positions for the mounting holes. Repeat for the second bracket, ensuring they are level and at an appropriate distance for the rope length.
- Drill Holes: Use an appropriate drill bit for your wall type (e.g., masonry bit for concrete/brick) to drill holes at the marked points. Insert the wall plugs (fixtures) into the drilled holes.
- Mount Brackets: Align the brackets with the drilled holes and secure them firmly to the wall using the provided screws. Ensure they are tightly fastened and stable.
- Attach Rope: Thread the 50-foot rope through the designated holes or hooks on the brackets. Create three tiers by looping the rope back and forth between the two brackets. Ensure the rope is taut and securely tied at the ends.
Image: An EaseLiving 3 Tier Wall Mount Cloth Dryer Stand installed on a concrete wall, holding various items of clothing for drying. The stand is extended, showing the three tiers of rope.

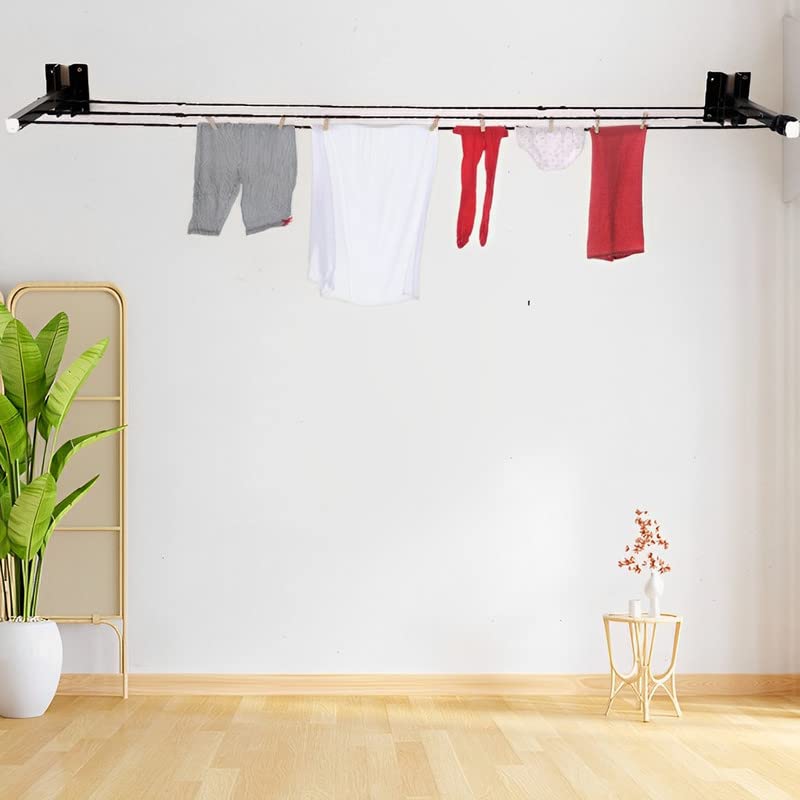

Image: An EaseLiving 3 Tier Wall Mount Cloth Dryer Stand installed on an indoor white wall, with a few items of laundry hanging on the ropes. The image demonstrates its use in an indoor setting.
Operating Instructions
- Extending the Stand: Gently pull the foldable arms of the brackets outwards until they lock into their extended position.
- Hanging Laundry: Distribute laundry evenly across the three tiers of rope to prevent excessive strain on one section. Avoid overloading.
- Folding the Stand: When not in use, gently push the foldable arms inwards until they are flush against the wall. This mechanism saves space.

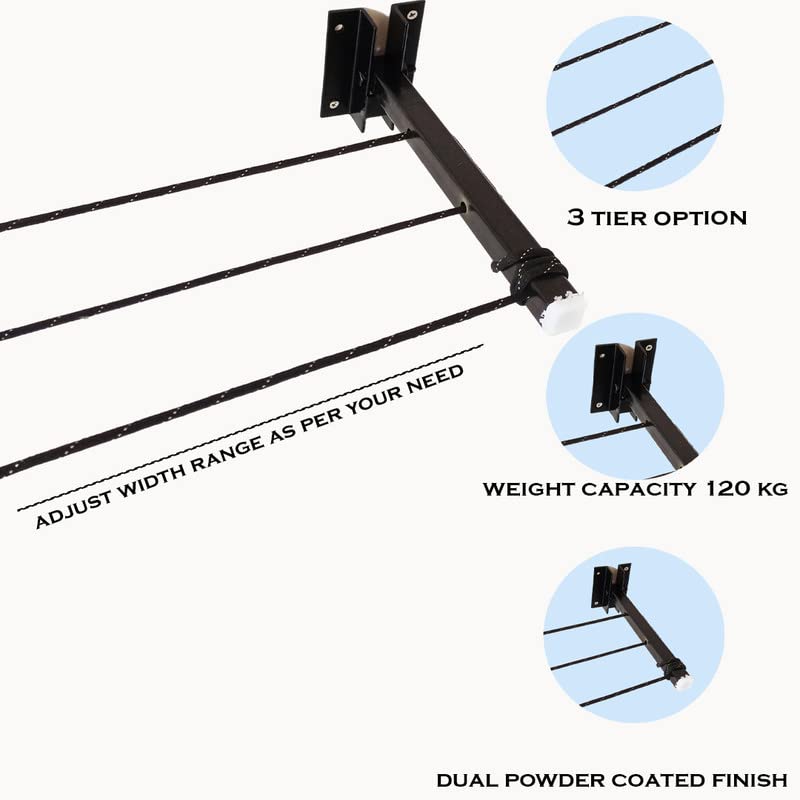

Image: A close-up view of the EaseLiving 3 Tier Wall Mount Cloth Dryer Stand, highlighting its features: "3 Tier Option," "Weight Capacity 120 KG," "Dual Powder Coated Finish," and "Adjust Width Range as per your need." The image shows the robust construction and design details.
Maintenance
- Cleaning: Wipe the metal parts with a damp cloth periodically to remove dust and dirt. Avoid abrasive cleaners.
- Rope Inspection: Regularly check the rope for fraying, knots, or damage. Replace the rope if significant wear is observed.
- Hardware Check: Periodically inspect all screws and mounting hardware to ensure they remain tight. Tighten if necessary.
- Rust Prevention: While the stand is powder-coated for rust resistance, prolonged exposure to harsh weather conditions may eventually affect the finish. Consider covering it during extreme weather if installed outdoors.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Stand feels unstable after installation. | Loose mounting screws or unsuitable wall material. | Ensure all screws are tightened. If the wall material is weak, consider reinforcing the mounting area or relocating. |
| Rope sags excessively. | Rope not taut enough or overloaded. | Re-tie the rope to increase tension. Distribute laundry more evenly and ensure total weight does not exceed 120 kg. |
| Difficulty folding/extending the arms. | Mechanism might be stiff or obstructed. | Apply a small amount of lubricant (e.g., silicone spray) to the pivot points. Check for any obstructions. |
Specifications
- Model: CDR189
- Material: Iron
- Color: Black
- Mounting Type: Wall Mount
- Special Features: Adjustable, Expandable, Foldable, Rust Resistant (Dual Powder Coated)
- Product Dimensions: 10D x 10W x 30H Centimeters (Folded/Bracket dimensions, actual drying width is adjustable)
- Weight Capacity: 120 kg
- Rope Length: Approximately 50 feet
- Manufacturer: Easeliving
Warranty and Support
For warranty information or technical support, please contact Easeliving directly. Contact details may be found on your purchase receipt or the product packaging.
Manufacturer Contact: Easeliving, Jaipur Rajasthan (8824-478310)
