Jyving SN-0325 Crimping Pliers Jaw Instruction Manual

1. Introduction

Thank you for choosing the Jyving SN-0325 Crimping Pliers Jaw. This manual provides essential information for the safe and effective use of your new crimping jaw. Please read these instructions carefully before installation and operation to ensure proper function and longevity of the product. This product is designed for crimping various terminals when used with compatible crimping pliers.

Package Contents:

• 1x Jyving SN-0325 Crimping Pliers Jaw

Note: Pliers handles are not included and must be purchased separately. This jaw is compatible with crimping pliers having a length of 190mm and a clamping port installation width of 4mm.

2. Safety Information

Always observe the following safety precautions when using this product:

• Always wear appropriate personal protective equipment, such as safety glasses, to protect against flying debris.
• Ensure the crimping jaw is securely installed in the pliers before use.
• Do not use the jaw for purposes other than its intended use (crimping terminals).
• Keep hands and fingers clear of the crimping area during operation.
• Inspect the jaw for any damage or wear before each use. Do not use if damaged.
• Store the jaw in a dry, safe place, out of reach of children.

3. Product Overview

The Jyving SN-0325 crimping pliers jaw is a precision-engineered accessory made from durable carbon steel, designed for reliable crimping of various terminals. It is specifically designed for use with crimping pliers that have a 190mm length and a 4mm clamping port width.

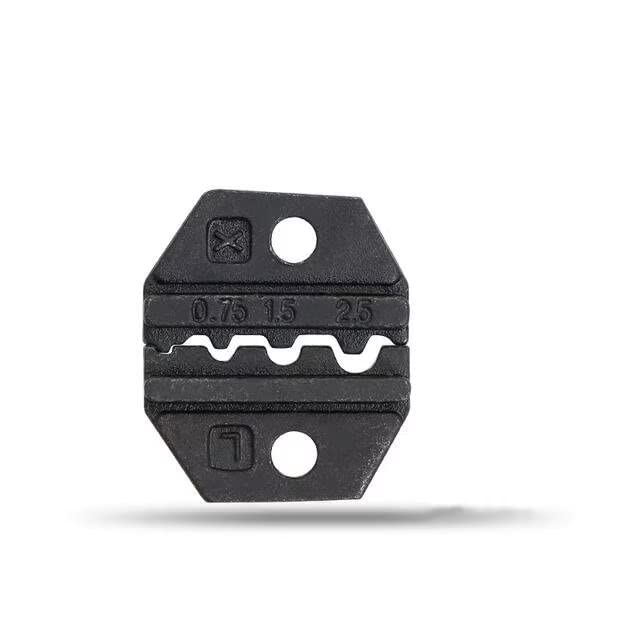

Image 3.1: The Jyving SN-0325 crimping pliers jaw, showing its design for 0.75-2.5mm² (18-13AWG) terminals and a 4mm jaw width.

This jaw is part of a series of interchangeable jaws, each designed for specific terminal types and wire gauges. The SN-0325 is optimized for 0.75-2.5mm² (18-13AWG) wire sizes.

Image 3.2: A comparison table illustrating different crimping jaw models, their structures, compatible terminals, and crimping effects. The SN-0325 model is highlighted for 0.75-2.5mm² (18-13AWG) applications.

4. Setup and Installation

To install the SN-0325 crimping jaw into compatible pliers, follow these steps:

1. Ensure Pliers Compatibility: Verify that your crimping pliers are designed to accept interchangeable jaws and have a clamping port installation width of 4mm. The pliers should typically be 190mm in length for optimal fit.
2. Prepare Pliers: Open the pliers fully to expose the jaw mounting area.
3. Align Jaw: Carefully align the SN-0325 jaw with the mounting slots on the pliers. Ensure the jaw is oriented correctly, with the crimping profiles facing the appropriate direction.
4. Secure Jaw: Insert the jaw into the slots. Most pliers use screws or a quick-release mechanism to secure the jaws. Tighten any screws firmly but do not overtighten.
5. Test Installation: Gently close and open the pliers a few times to ensure the jaw is seated correctly and operates smoothly without obstruction.

Image 4.1: An illustration showing a pair of crimping pliers with an SN series handle, indicating a total length of 190mm and a 4mm jaw width, suitable for the SN-0325 jaw. This image demonstrates the type of pliers compatible with this jaw.

5. Operating Instructions

Once the SN-0325 jaw is securely installed, you can proceed with crimping terminals:

1. Select Correct Terminal: Choose a terminal that matches the wire gauge (0.75-2.5mm² or 18-13AWG) and the crimping profile of the SN-0325 jaw.
2. Prepare Wire: Strip the insulation from the end of the wire to the appropriate length, ensuring no stray strands.
3. Insert Wire and Terminal: Place the terminal into the correct crimping slot on the jaw. Insert the stripped wire into the terminal.
4. Perform Crimping: Squeeze the pliers handles firmly and evenly until the crimping cycle is complete (the pliers typically release automatically or require full closure).
5. Inspect Crimped Connection: After crimping, visually inspect the connection. The terminal should be securely fastened to the wire, and the insulation should be properly seated. Gently tug on the wire to ensure a strong mechanical connection.
6. Repeat: For multiple crimps, repeat steps 1-5.

6. Maintenance

Proper maintenance will extend the life of your crimping jaw:

• Cleaning: After each use, wipe the jaw clean with a dry cloth to remove any debris, dust, or residue. For stubborn grime, a small amount of mild solvent on a cloth can be used, ensuring it is completely dry afterward.
• Lubrication: Periodically apply a light coat of machine oil to the moving parts of the pliers (not directly on the jaw's crimping surfaces) to ensure smooth operation.
• Inspection: Regularly inspect the jaw for signs of wear, deformation, or damage. Replace the jaw if any significant wear or damage is observed to maintain crimping quality and safety.
• Storage: Store the jaw in a dry environment to prevent rust. If storing for extended periods, a light coat of rust-preventative oil can be applied.

7. Troubleshooting

If you encounter issues while using your crimping jaw, consider the following:

• Poor Crimp Quality:
  • Ensure the correct terminal and wire gauge are being used for the SN-0325 jaw (0.75-2.5mm² / 18-13AWG).
  • Verify the wire is stripped to the correct length and fully inserted into the terminal.
  • Check if the jaw is securely installed in the pliers and not loose.
  • Inspect the jaw for wear or damage; a worn jaw may not crimp effectively.
• Jaw Not Fitting Pliers:
  • Confirm your pliers have a 4mm clamping port installation width.
  • Ensure the jaw is oriented correctly during installation.
• Pliers Sticking/Difficult to Operate:
  • Check for debris or foreign objects obstructing the pliers mechanism.
  • Apply lubrication to the pliers' pivot points (refer to pliers manual for specific instructions).

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided with your original crimping pliers or contact the retailer where you purchased this Jyving product. Please retain your proof of purchase for any warranty claims.

For general inquiries, you may visit the Jyving brand page on Amazon.
