Klimaire 3-Zone 23.1 SEER2 Mini-Split Heat Pump Air Conditioner Instruction Manual

1. Introduction and Overview

The Klimaire 3-Zone Wall Mounted Ductless Mini-Split system is designed to provide efficient cooling and heating for three independent indoor zones. This advanced system features a durable KMIR436-H217-2 outdoor unit and three quiet indoor units: two KSIE012-H220-IW-2 (12,000 BTU each) and one KSIE024-H220-IW-2 (24,000 BTU). It offers heating, cooling, fan, and dehumidification modes for year-round comfort. The system is pre-charged with R410A Refrigerant and includes comprehensive installation kits.

2. Safety Information

Important Safety Instructions:

• Installation must be performed by qualified and certified HVAC professionals. Improper installation can lead to electric shock, fire, or serious injury.
• Always disconnect power to the unit before performing any maintenance or service.
• Ensure proper grounding to prevent electric shock.
• Do not attempt to repair or service the unit yourself. Contact a professional technician.
• Ensure the installation area is well-ventilated and free from flammable or explosive gases.
• Keep children and pets away from the outdoor unit during operation.
• Do not block the air intake or outlet of either the indoor or outdoor units.

3. Package Contents

The Klimaire 3-Zone Mini-Split system includes all necessary components for a complete setup:

• 1x KMIR436-H217-2 Smart DC Inverter Outdoor Condenser (pre-charged with R410A Refrigerant)
• 2x KSIE012-H220-IW-2 Indoor Fan Coil Units (12,000 BTU each)
• 1x KSIE024-H220-IW-2 Indoor Fan Coil Unit (24,000 BTU)
• 3x Remote Controls with Wall Bracket Holders
• 1x 16 ft and 25 ft 1/4 x 1/2 Maxwell Pre-Flared Refrigerant Line Installation Kit
• 1x 25 ft 3/8 x 5/8 Maxwell Pre-Flared Refrigerant Line Installation Kit
• 3x Communication Cables
• 1x Maxwell Flexible Electrical Whip
• 1x 60A Maxwell Fusible Disconnect Switch
• 1x Maxwell Wall Mounting Bracket

4. Installation

4.1. Preparation Before Installation

Before beginning installation, ensure you have the necessary tools and materials. The installation area should be hard, flat, and firm to avoid vibration and noise. Avoid installing near heat sources, steam sources, smoke, oil, or flammable/explosive gases. Ensure no obstructions around the inlet and outlet of the units.

4.2. Indoor Unit Installation

1. Remove the mounting bracket pre-installed on the back of the indoor unit.
2. Using a paper pattern, identify the exact location for drilling screw holes for the mounting bracket.
3. Drill the screw holes in the corresponding positions.
4. Insert expansion tubes for expansion screws and securely mount the bracket on the wall.
5. Drill a wall hole with a hole punch, ensuring a certain angle of inclination (high on the inside, low on the outside) for proper drainage.
6. Confirm the direction of placing the air conditioning ducts and use tools to remove the duct boards.
7. Remove the protective film from the surface of the indoor unit.
8. Lift the cover, remove the two screws of the power cord cover and the internal screws that hold the cord in place.
9. Thread the 5.9ft communication cable through the hole on the back of the indoor unit. According to the color, unscrew the screws and fix the wires in the corresponding position.
10. Connect the refrigerant pipes to the indoor unit, ensuring the joints fit snugly and are tightened with a wrench.
11. Connect the thicker end of the drain hose to the drain pipe of the indoor unit.
12. Line up all the wires and pipes neatly, turn them to the position of the corresponding holes, and wrap them together with plastic tapes.
13. Hang the indoor unit on the mounting bracket, run the pipes and wires through the previously punched wall hole, and cover them with pipe protection rings inside and outside the walls. Plug the excess holes using putty.

4.3. Outdoor Unit Installation

1. Leave out the drain pipe and tape off the remaining pipes, ensuring proper insulation.
2. Place the outdoor unit in a suitable location (outside the wall bracket or on the ground). The equipment will need to be purchased separately.
3. Connect the two pipes to the outdoor unit, ensuring that the joints fit snugly and are tightened.
4. Remove the 3 screws from the cover and use a tool to open the two holes at the lower end of the cover.
5. Pass the wires through the cover hole (usually the right-hand hole).
6. Fix the 3 wires of the power cable one by one according to the color.
7. Secure the fixing plate.
8. Fix the 4 wires of the communication cable one by one according to the color.
9. Install the other end of the power cord in the power supply (green - ground wire, black - fire wire, white - zero wire).

4.4. Vacuuming and Refrigerant Charging

1. Unscrew the three nuts circled on the outdoor unit's valves.
2. Connect the stop valve, charging hose, manifold valve, and vacuum pump as shown in the diagram.
3. Vacuumize for at least 15 minutes, ensuring the pressure gauge value is ≤ -0.1MPa (-76cmHg / 500µm). Keep the pressure for 35 minutes after vacuumizing; make sure springback is ≤ 0.05MPa.
4. Open the 1/4 liquid valve, then remove the charging hose.
5. Using an allen wrench, open all the liquid valves and gas valves, and finally retighten the three caps.

4.5. Water Drain Test

1. Pour in 500ml water along the evaporator for about 20 seconds.
2. Check to see if water is flowing from the pipe outside the wall.

4.6. Electrical Leakage Test

1. If there is electricity leakage, turn off power immediately to check where the leakage of electricity is occurring.

5. Operating Instructions

The Klimaire Mini-Split system offers advanced features for optimal comfort and control:

• 4-in-1 Features: Heating, cooling, dehumidifying, and fan modes.
• Precise Temperature Control: Utilize the Follow Me function for personalized comfort.
• Rapid Heating/Cooling: Use Turbo mode for quick temperature adjustments.
• Adjustable Airflow: Multi-speed fan allows you to customize airflow.
• Sleep Mode: Adjusts temperature for comfortable sleep and energy saving.
• Auto Restart: Automatically resumes operation after a power outage.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your Klimaire Mini-Split system:

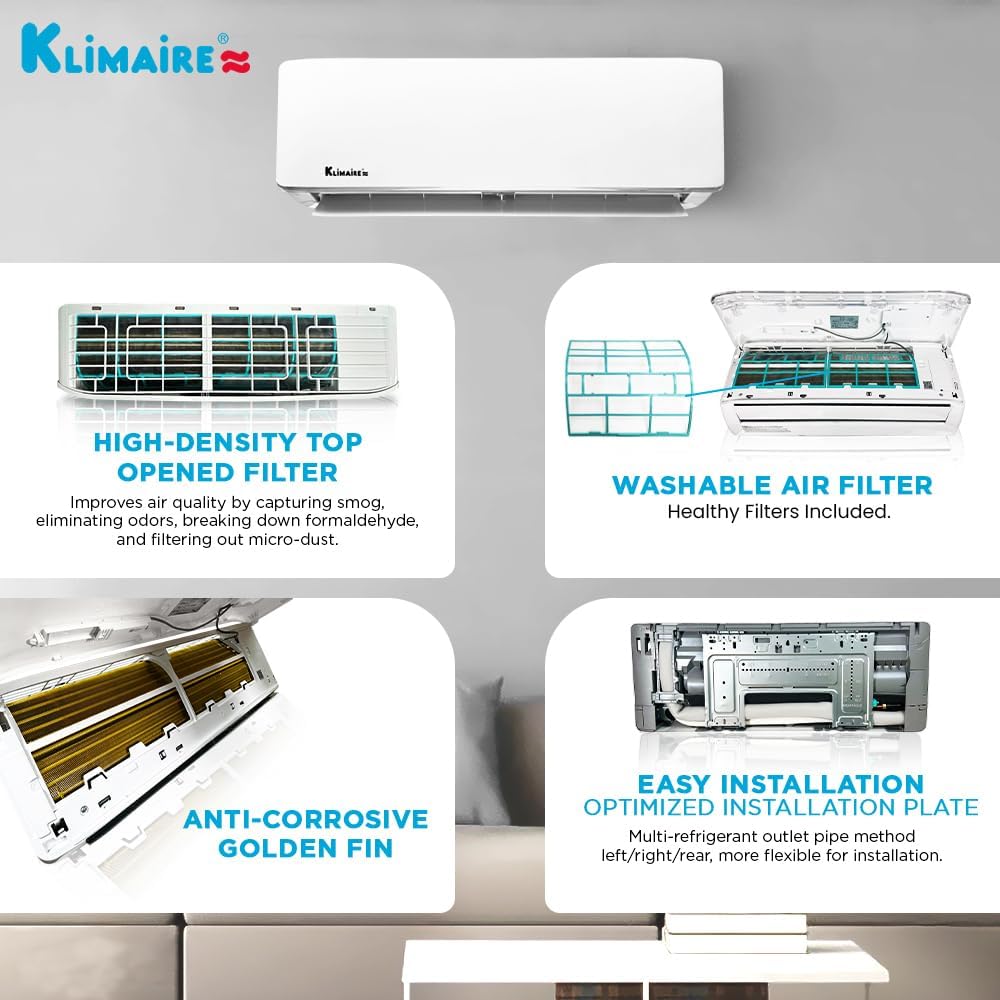

• Filter Cleaning: The indoor units feature high-density top-opened filters and washable air filters. Clean these regularly (every 2-4 weeks, depending on usage) to maintain air quality and efficiency.
• Coil Cleaning: Periodically inspect and clean the indoor and outdoor coils. For the anti-corrosive golden fin coils, gentle cleaning is recommended.
• Drainage System: Ensure the drain pipe is free from blockages to prevent water leakage. Perform a water drain test periodically.
• Outdoor Unit Inspection: Check the outdoor unit for any debris or obstructions that might hinder airflow.
• Professional Service: Schedule annual professional maintenance to check refrigerant levels, electrical connections, and overall system health.

7. Troubleshooting

If you encounter issues with your Klimaire Mini-Split, consider the following common troubleshooting steps:

• Unit Not Turning On: Check power supply, circuit breaker, and ensure the remote control batteries are functional.
• Insufficient Cooling/Heating: Verify thermostat settings, ensure filters are clean, and check for any obstructions to airflow. Low refrigerant levels may require professional service.
• Water Leakage: Inspect the drain hose for kinks or blockages. Ensure the indoor unit is properly sloped for drainage.
• Unusual Noises: Minor noises during operation are normal. Excessive or unusual noises may indicate a loose part or a fan issue, requiring professional inspection.
• Error Codes: Refer to the detailed troubleshooting section in the full owner's manual for specific error code interpretations.

8. Specifications

9. Warranty and Support

The Klimaire 3-Zone Mini-Split system is backed by a 7-year manufacturer warranty, ensuring protection and reliability. For any support or warranty claims, please refer to the contact information provided in your product packaging or visit the official Klimaire website.
