1. Safety Information
Before operating the ARXP BOX5 160DTS high-pressure washer, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or property damage.
- Electrical Safety: Always connect the unit to a properly grounded outlet. Do not operate with damaged cords or plugs. Keep electrical connections dry.
- Water Pressure: The unit generates high-pressure water streams. Never direct the spray at people, animals, or electrical devices. Maintain a safe distance from the cleaning surface.
- Personal Protective Equipment (PPE): Always wear appropriate eye protection (safety goggles), hearing protection, and protective clothing when operating the pressure washer.
- Chemicals: Use only detergents approved for pressure washers. Follow detergent manufacturer's instructions for use and safety.
- Stability: Ensure the unit is placed on a stable, level surface during operation to prevent tipping.
- Children and Pets: Keep children and pets away from the operating area.
2. Product Overview
The ARXP BOX5 160DTS is a compact, high-performance cold water pressure washer designed for domestic use. It features a Dualtech System with two pump-motor units, offering enhanced cleaning power and efficiency. Its innovative design allows for significant space-saving and organized storage of accessories.
Figure 2.1: The ARXP BOX5 160DTS high-pressure washer unit, its spray gun, an 8-meter super flexible hose, and a high-pressure foam kit. All components are designed for compact storage within the unit.
Key Features:
- Dualtech System: Two internal pump-motor units provide up to 50% higher performance compared to traditional home & garden pressure washers.
- Compact Design: Significantly reduced plastic volume and up to 85% smaller footprint than classic pressure washers.
- Eco-Friendly Packaging: Entirely made from recycled, FSC-certified paper, without plastic.
- Self-Priming Function: Capable of drawing water from an external tank if a direct water supply connection is not possible.
- Integrated Accessory Storage: All accessories fit neatly inside the unit for organized and easy access.
3. Components and Accessories
The ARXP BOX5 160DTS comes equipped with a comprehensive set of accessories to handle various cleaning tasks:
- Pistol (Spray Gun)
- 2 Lances
- Twin Nozzle adapter (allows simultaneous use of two nozzles for wider coverage)
- 2 Rotating Jet Nozzles
- Adjustable Jet Nozzle
- Expandable High-Pressure Foam Kit
- 8-meter Super Flexible Hose
- Inspectable Water Filter
Figure 3.1: A detailed view of the ARXP BOX5 160DTS accessories, including the spray gun, high-pressure hose, and various nozzles.
4. Setup
Follow these steps to set up your ARXP BOX5 160DTS for operation:
- Positioning: Place the pressure washer on a firm, level surface near a water source and an electrical outlet.
- Water Connection:
- Direct Water Supply: Connect a garden hose (not included) to the water inlet on the unit (refer to Figure 4.1). Ensure the water supply is turned on fully.
- Self-Priming (External Tank): If using an external water tank, connect a suitable hose to the water inlet and immerse the other end in the tank. The unit will self-prime (refer to Figure 4.2).
- High-Pressure Hose Connection: Connect the 8-meter super flexible high-pressure hose to the high-pressure outlet on the unit and to the spray gun. Ensure connections are secure.
- Lance and Nozzle Attachment: Attach the desired lance and nozzle (e.g., adjustable jet nozzle, rotating jet nozzle, or Twin Nozzle) to the spray gun.
- Electrical Connection: Plug the power cord into a grounded electrical outlet.
Figure 4.1: The rear of the ARXP BOX5 160DTS unit, highlighting the water inlet and outlet ports for hose connection.
Figure 4.2: An illustration demonstrating the self-priming capability of the ARXP BOX5 160DTS, allowing it to draw water from an external reservoir.
5. Operating Instructions
The ARXP BOX5 160DTS features two operating modes via its Dualtech System:
- ECO MODE (1 Power Unit): Ideal for delicate cleaning tasks. This mode uses one pump unit, providing sufficient pressure for surfaces like wood, bicycles, vehicles, garden furniture, and outdoor fabrics.
- FAST MODE (2 Power Units): Activates both pump units for maximum power and flow rate (up to 850 l/h). This mode is recommended for stubborn dirt on large, hard surfaces such as stone, concrete, and bricks. The jet's range can reach up to 5 meters.

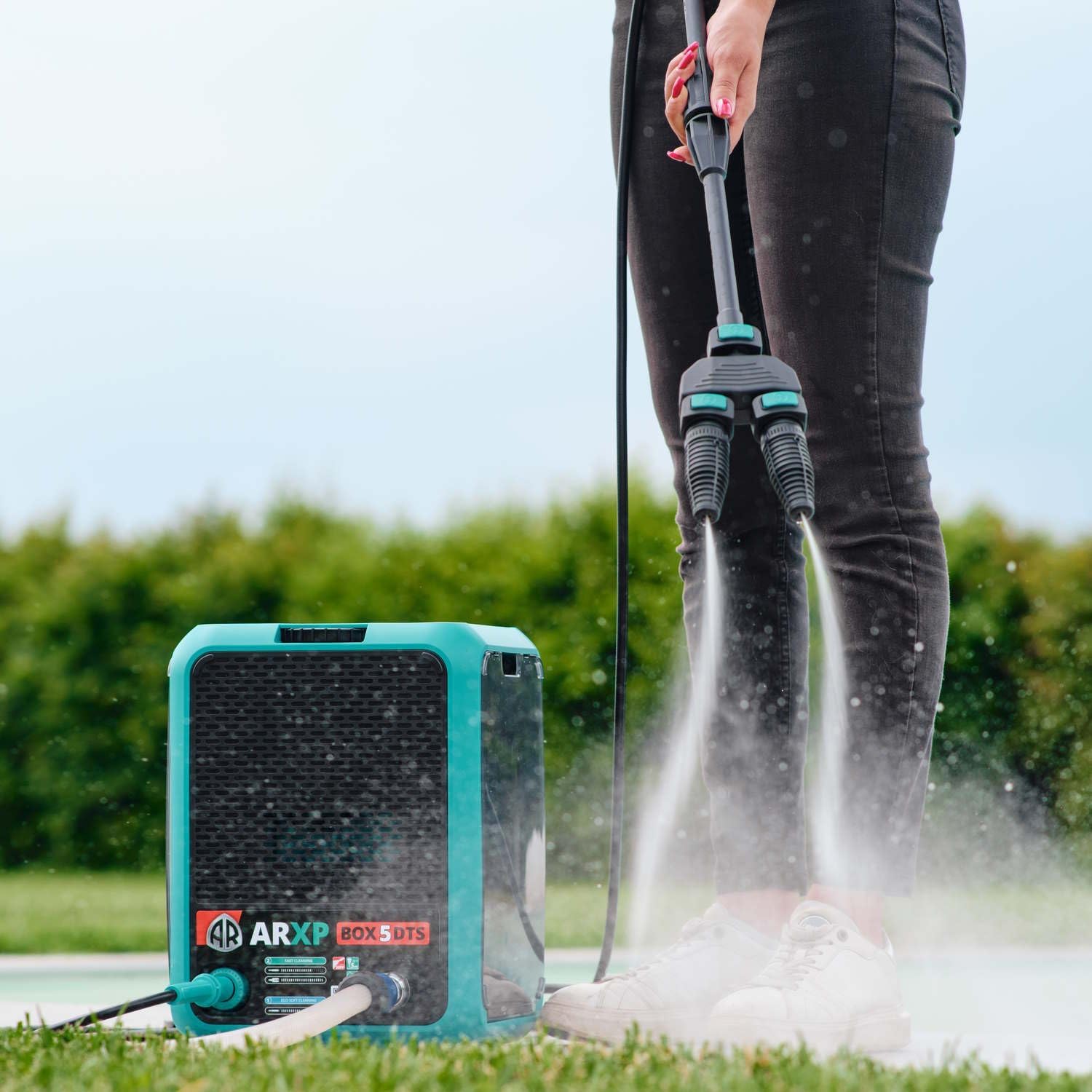

Figure 5.1: A user operating the ARXP BOX5 160DTS with the Twin Nozzle accessory, which allows for a wider spray and faster cleaning of large surfaces.
Figure 5.2: This image shows the ARXP BOX5 160DTS in use, with a person cleaning a car, demonstrating the effective spray pattern.
General Operation:
- Ensure all connections are secure and the water supply is open.
- Turn on the pressure washer using the power switch.
- Select the desired cleaning mode (ECO or FAST) on the unit.
- Squeeze the trigger on the spray gun to begin spraying. Release the trigger to stop the flow.
- Adjust the nozzle or use different accessories as needed for the cleaning task.
- For detergent application, fill the high-pressure foam kit with appropriate detergent and attach it according to its instructions.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ARXP BOX5 160DTS.
- After Each Use:
- Turn off the unit and disconnect from power.
- Turn off the water supply and squeeze the spray gun trigger to release any remaining pressure.
- Disconnect hoses and accessories.
- Drain any remaining water from the unit and hoses to prevent freezing in cold weather.
- Filter Inspection: Regularly inspect the inspectable water filter for debris. Clean or replace if necessary to ensure proper water flow and prevent damage to the pump.
- Nozzle Cleaning: If the nozzle becomes clogged, use the included nozzle cleaning tool (if applicable) or a thin wire to clear any obstructions.
- Storage: Store the unit and all accessories in a dry, frost-free environment. Utilize the integrated storage compartments within the unit to keep accessories organized and protected.
Figure 6.1: The internal compartment of the ARXP BOX5 160DTS, demonstrating how accessories like the spray gun and nozzles are neatly stored within the unit for convenience and organization.
7. Troubleshooting
This section provides solutions to common issues you might encounter with your ARXP BOX5 160DTS.
| Problem | Possible Cause | Solution |
|---|---|---|
| No pressure or low pressure |
|
|
| Motor not starting |
|
|
| Water leaks |
|
|
| No detergent suction |
|
|
8. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | ARXP BOX5 160DTS |
| Maximum Pressure | 160 Bar |
| Power Absorbed | 2.7 kW |
| Maximum Flow Rate | 850 Liters/hour |
| Maximum Water Temperature | 50 °C |
| Hose Length | 8 Meters |
| Item Weight | 11.85 kg |
| Product Dimensions (L x W x H) | 29.9 x 28.2 x 39.5 cm |
| Power Source | Corded Electric |
9. Warranty and Support
ARXP offers an extended warranty for private consumers. In addition to the standard 2-year legal warranty, you have the possibility to extend the warranty for an additional 3 years, totaling 5 years of coverage. This extended warranty is valid for residents in Italy, France, Germany, Spain, Portugal, Austria, Belgium, Czech Republic, Switzerland, Ireland, and Poland.
Figure 9.1: An image depicting a smartphone screen with a notification confirming the extension of the ARXP product warranty, highlighting the ease of managing warranty details.
For technical support, warranty claims, or further assistance, please refer to the contact information provided with your product packaging or visit the official ARXP website. Always provide your product model number and purchase date when seeking support.
