Introduction
This manual provides essential information for the safe and efficient use of your Parkside 20V 2Ah PAP 20 B1 rechargeable battery and PLG 20 C1 charger. This battery and charger set is designed for use with all tools in the Parkside X 20V Team Series. Please read these instructions carefully before first use and keep them for future reference.
General Safety Instructions
WARNING! Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
Battery and Charger Safety
- Charging: Charge only with the charger specified by the manufacturer. A charger suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Tool Compatibility: Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Storage: Keep the battery pack away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- Liquid Leakage: Liquid may be ejected from the battery during improper use; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help immediately. Liquid ejected from the battery may cause irritation or burns.
- Damaged Batteries: Do not use a damaged or modified battery pack with the tool. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.
- Temperature Exposure: Do not expose the battery pack or tool to fire or excessive temperature. Exposure to fire or temperatures above 130°C (265°F) may cause an explosion.
- Charging Environment: Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
- Charger Instructions: Observe the safety instructions of compatible chargers.
Service and Repair
- Have your power tool serviced by a qualified repair technician using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
- Never attempt to repair a damaged battery pack. Repair of battery packs should only be performed by the manufacturer or authorized service providers.
Additional Warnings
- CAUTION! RISK OF EXPLOSION!
- Never charge non-rechargeable batteries.
- Protect the battery from heat, e.g., from continuous sunlight, fire, water, and moisture. Risk of explosion.
Image: Detailed safety instructions for the Parkside battery and charger.
Product Overview
The Parkside PAP 20 B1 battery and PLG 20 C1 charger are integral components of the Parkside X 20V Team Series, offering reliable power for a wide range of compatible tools.
Key Features
- Powerful Lithium-Ion battery with 3-stage charge indicator.
- Cell Balancing technology for longer battery runtime and increased battery life.
- Higher battery runtime and lifespan due to evenly stressed cells.
- Optimized power delivery for consistent performance.
- Compatible with all devices of the PARKSIDE X 20 V Team series.
- Equipped with automatic charge indicator and LED on both battery and charger.
- Battery features rubber nubs for slip resistance.
Image: The Parkside 20V PAP 20 B1 battery and PLG 20 C1 charger.
Image: The Parkside 20V battery and charger shown separately.
Image: Diagram illustrating the wide compatibility of the Parkside X 20V Team Series battery with various tools.
Setup
Before using your Parkside battery and charger, ensure all components are present and undamaged.
Initial Charging
- Connect the PLG 20 C1 charger to a suitable power outlet. The charger's LED indicator will illuminate, typically green, to show it is ready.
- Insert the PAP 20 B1 battery pack into the charger. Ensure it clicks securely into place.
- The charger's LED indicator will change, usually to red or flashing green, to indicate that charging is in progress.
- Allow the battery to charge fully. The LED indicator will typically turn solid green when charging is complete. A full charge takes approximately 60 minutes.
- Once fully charged, remove the battery from the charger. Disconnect the charger from the power outlet when not in use.
Image: The Parkside PAP 20 B1 battery correctly inserted into the PLG 20 C1 charger for charging.

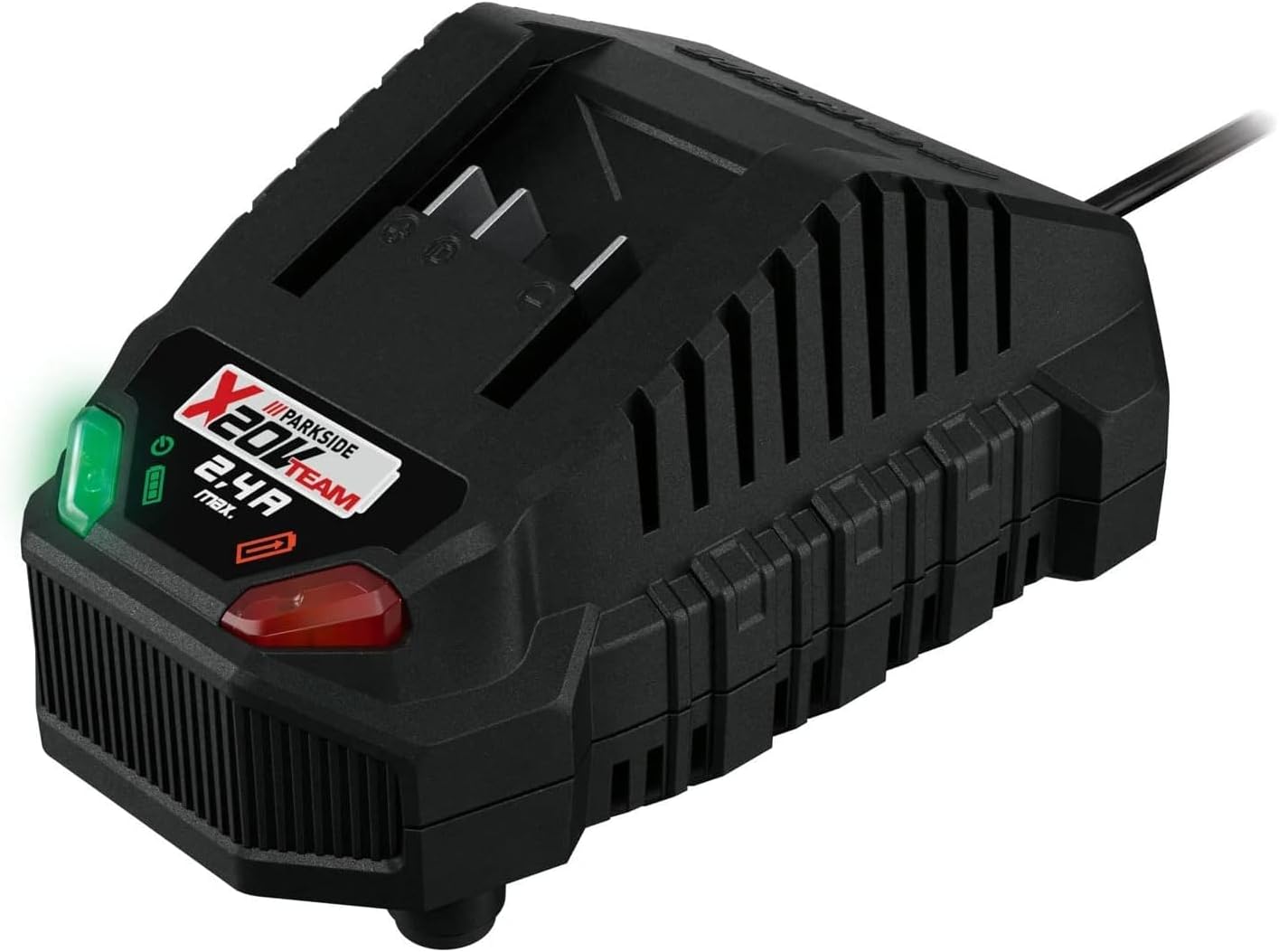

Image: A close-up view of the Parkside PLG 20 C1 charger, showing its indicator lights.
Operating
The Parkside 20V battery is designed for easy integration with compatible X 20V Team Series tools.
Inserting the Battery into a Tool
- Ensure the tool is switched off before inserting or removing the battery.
- Align the battery with the battery slot on your Parkside X 20V Team Series tool.
- Slide the battery into the slot until it clicks firmly into place. Ensure it is fully seated and secure.
Checking Battery Charge Level
The PAP 20 B1 battery features a 3-stage charge indicator:
- Press the battery's charge indicator button.
- Three LEDs illuminated: Full charge.
- Two LEDs illuminated: Medium charge.
- One LED illuminated: Low charge, recharge soon.
- No LEDs illuminated: Battery is empty or faulty.
Image: A close-up of the Parkside PAP 20 B1 battery, highlighting its 3-stage charge indicator.
Image: Side view of the Parkside PAP 20 B1 battery, showing its robust design.
Maintenance
Proper maintenance ensures the longevity and performance of your Parkside battery and charger.
Cleaning
- Always disconnect the charger from the power supply before cleaning.
- Use a dry, soft cloth to clean the battery and charger. Do not use any liquids or abrasive cleaning agents.
- Keep the ventilation openings on the charger clear of dust and debris.
Storage
- Store the battery and charger in a cool, dry place, away from direct sunlight and moisture.
- For long-term storage, it is recommended to charge the battery to approximately 50-70% capacity. Do not store fully discharged or fully charged for extended periods.
- Store the battery and charger out of reach of children.
Troubleshooting
If you encounter issues with your Parkside battery or charger, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging | Charger not plugged in; faulty power outlet; battery not properly inserted; faulty battery or charger. | Check power connection; try a different outlet; re-insert battery firmly; contact support if issue persists. |
| Charger LED not indicating charge | Battery fully charged; battery or charger too hot/cold; faulty charger. | Check battery charge level; allow battery/charger to reach room temperature; contact support. |
| Battery not powering tool | Battery discharged; battery not properly inserted; tool fault; incompatible battery. | Charge battery; re-insert battery firmly; check tool manual; ensure battery is Parkside X 20V Team Series compatible. |
| Battery overheating during charge/use | Overuse; faulty battery/charger; poor ventilation. | Stop use/charging immediately; allow to cool down in a well-ventilated area; contact support if issue recurs. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Parkside |
| Model Number | PAP 20 B1 / PLG 20 C1 |
| Battery Type | Lithium-Ion |
| Battery Voltage | 20 Volts |
| Battery Capacity | 2 Ah |
| Charger Output Current | 2 A |
| Charging Time | Approx. 60 minutes |
| Compatible Devices | All Parkside X 20 V Team Series devices |
| Connector Type | PLG 20 |
| Number of Ports | 1 |
| Product Dimensions (P x W x H) | 10P x 15W x 10H centimeters |
| Compliance | CE Compliant |
Warranty and Support
Warranty Information
This Parkside product is covered by a Legal Warranty. Please retain your proof of purchase for any warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized repairs, or normal wear and tear.
Customer Support
For technical assistance, warranty claims, or to order replacement parts, please contact Parkside customer service. Refer to your product packaging or the official Parkside website for the most up-to-date contact information in your region.
