1. Introduction
Thank you for choosing the Braun MultiGrill 9 Contact Grill. This appliance is designed to provide versatile cooking options, including contact grilling, open grilling, and oven-style cooking. With its powerful heating elements and precise temperature control, you can achieve excellent results for a variety of dishes. Please read this manual carefully before first use to ensure safe operation and optimal performance.
2. Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons:
- Read all instructions.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
3. Product Overview
The Braun MultiGrill 9 (Model CG 9043) is a versatile electric grill designed for various cooking needs. It features interchangeable plates and intuitive controls.
Figure 1: Included Components. The box contains the MultiGrill 9 unit, a spatula, two grill plates, and two flat griddle plates.
Components:
- Main Unit: The base of the grill housing the heating elements and controls.
- Grill Plates: Two ribbed plates for searing and grilling.
- Flat Plates: Two smooth plates for griddling, pancakes, or delicate foods.
- Grease Tray: Collects excess fat and juices during cooking.
- Control Panel: Features a digital display, temperature dials, and timer controls.
- Spatula: A heat-resistant spatula for use with the non-stick plates.
4. Setup
Before using your MultiGrill 9 for the first time, follow these steps:
- Unpack: Remove all packaging materials, stickers, and labels from the grill and its accessories.
- Clean Plates: Wash the grill and flat plates, as well as the grease tray, in warm soapy water. Rinse thoroughly and dry completely. The plates are dishwasher safe.
- Install Plates: Ensure the grill is unplugged. Insert the desired plates (grill or flat) into the upper and lower heating positions until they click securely into place.
- Position Grease Tray: Slide the grease tray into its designated slot at the front or side of the grill.
- Placement: Place the grill on a stable, heat-resistant, and level surface, away from walls or flammable materials. Ensure adequate ventilation around the appliance.
- First Use Pre-heating: For the first use, it is recommended to pre-heat the grill for approximately 10 minutes without food to burn off any manufacturing residues. A slight odor or smoke may be present; this is normal.
5. Operating Instructions
The Braun MultiGrill 9 offers three primary cooking modes and precise temperature control for optimal results.
Figure 2: Three Grilling Modes. The MultiGrill 9 can be used as a contact grill, an open BBQ/griddle, or in an oven-style position.
5.1 Grilling Modes
- Contact Grill Mode: Use with the lid closed. Ideal for sandwiches, paninis, burgers, and thinner cuts of meat. Food is cooked simultaneously from both sides, ensuring even cooking and reduced cooking time.
- Open BBQ/Griddle Mode: Open the grill completely to lay it flat, creating two large, independent cooking surfaces. This mode is perfect for larger quantities of food, delicate items like fish, or for cooking different foods at different temperatures simultaneously.
- Oven Mode: Position the top plate to hover above the food without making contact. This is suitable for melting cheese, warming items, or cooking thicker foods that require indirect heat.
5.2 Temperature Control
The MultiGrill 9 features independent temperature control for the upper and lower plates, allowing for precise cooking.

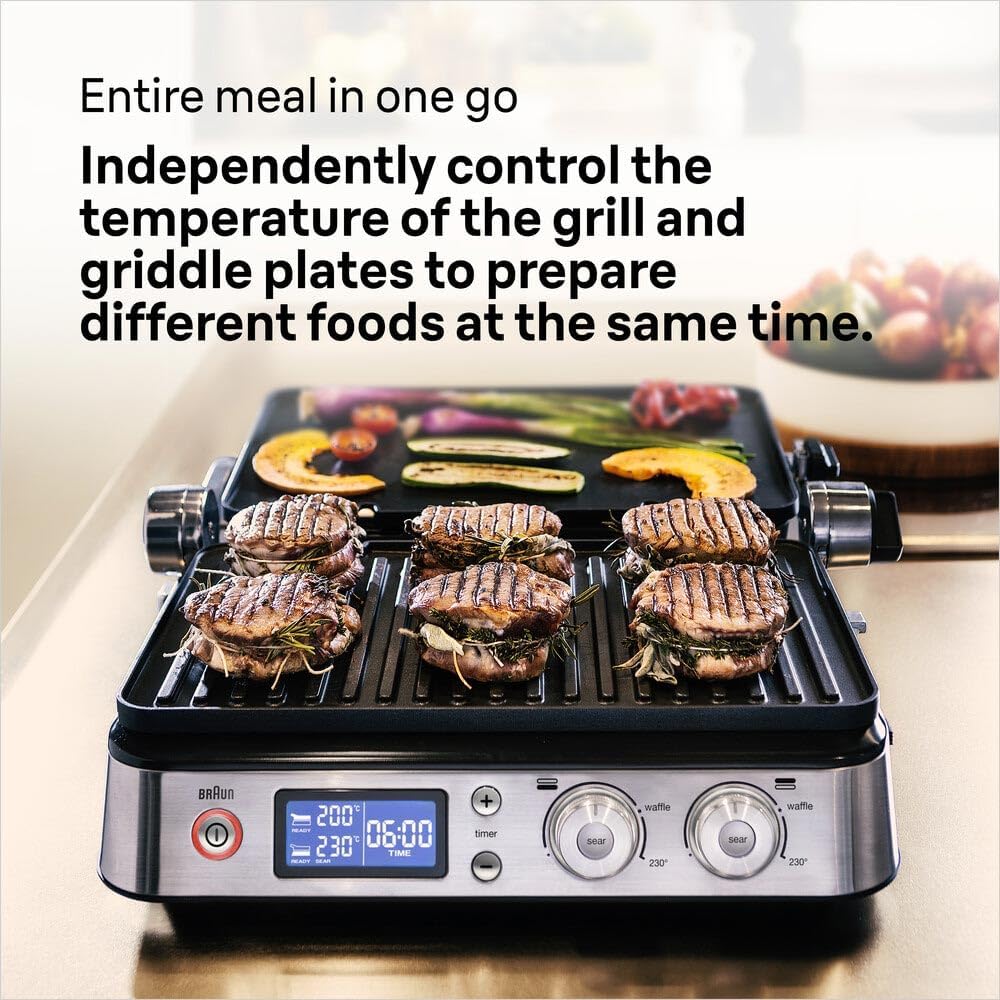

Figure 3: Independent Temperature Control. Cook different foods at their ideal temperatures simultaneously.
- Individual Dials: Use the dedicated temperature dials for the upper and lower plates to set your desired cooking temperature.
- Digital Display: The integrated digital display shows the current and target temperatures for each plate, along with a timer.
- Preheating: Allow the grill to preheat until the indicator light or display confirms it has reached the set temperature. This ensures even cooking and proper searing.
5.3 Sear Function (Boost)
The sear function provides a short, intense burst of heat for perfect browning and crust development.
Figure 4: Sear Function. Achieve a rich brown crust with a temperature boost up to 250°C.
- Activate the sear function to rapidly heat the plates up to 250°C.
- Use this function for a short period at the beginning of cooking to create a flavorful crust on meats, or at the end for extra browning.
Figure 5: Large Cooking Surface. The grill offers a large cooking surface, suitable for preparing meals for up to 8 people.
Figure 6: Versatile Use. The MultiGrill 9 is suitable for a wide range of dishes, from sandwiches to meats and vegetables.
6. Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your MultiGrill 9.
Figure 7: Easy Cleaning. The grill plates and grease tray are dishwasher safe for convenient cleaning.
- Always Unplug: Ensure the grill is unplugged from the power outlet and completely cooled before cleaning.
- Remove Plates: Press the plate release buttons to detach the grill or flat plates.
- Dishwasher Safe: The grill plates and the grease tray are dishwasher safe. Alternatively, they can be washed by hand with warm soapy water and a non-abrasive sponge.
- Clean Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
- Stubborn Residue: For stubborn food residue on plates, soak them in warm soapy water for a few minutes before cleaning. Do not use metal scouring pads or abrasive cleaners, as these can damage the non-stick coating.
- Grease Tray: Empty and clean the grease tray after each use.
- Storage: Store the clean and dry grill in a cool, dry place.
7. Troubleshooting
If you encounter issues with your MultiGrill 9, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Grill does not turn on. | Not plugged in; power outlet malfunction; appliance fault. | Ensure the power cord is securely plugged into a working outlet. Check circuit breaker. If problem persists, contact customer support. |
| Food not cooking evenly. | Insufficient preheating; uneven food thickness; plates not properly installed. | Allow grill to fully preheat. Ensure food is of uniform thickness. Check that plates are securely clicked into place. |
| Excessive smoke. | Food with high fat content; grease tray full or missing; food residue on plates. | Ensure grease tray is in place and empty. Clean plates thoroughly before use. Trim excess fat from food. |
| Plates are difficult to remove. | Food residue stuck; plates not fully cooled. | Ensure grill is completely cool. Press release buttons firmly. If residue is present, clean thoroughly. |
If the problem persists after trying these solutions, please contact Braun customer service.
8. Specifications
Key technical specifications for the Braun MultiGrill 9 (Model CG 9043):
Figure 8: Product Dimensions and Power.
- Model Number: CG 9043
- Brand: Braun
- Color: Black
- Material: Stainless Steel
- Power/Wattage: 2000 Watts
- Voltage: 240 Volts
- Product Dimensions (L x W x H): Approximately 49 cm x 36.5 cm x 19 cm
- Item Weight: 9.6 Kilograms
- Special Features: Dishwasher safe plates, individually adjustable temperatures, integrated heating elements.
- Included Components: 2 Grill Plates, 2 Flat Plates, Instruction Manual, Spatula.
9. Warranty and Support
Braun products are manufactured to the highest quality standards. This product is covered by a manufacturer's warranty, details of which can typically be found in a separate warranty booklet included with your purchase or on the official Braun website.
For warranty claims, technical support, or spare parts, please contact your local Braun service center or visit the official Braun website for assistance. Keep your proof of purchase for warranty purposes.
