1. Introduction
The TOPTES TS-710 is a versatile digital light meter designed for precise measurement of visible light sources. It provides readings in both Lux and Foot Candles, and also measures ambient temperature and humidity. Its 180-degree rotating sensor and backlit LCD make it suitable for various applications, from optimizing plant growth to assessing lighting in homes, offices, and industrial settings.
2. Safety Information
- Do not expose the device to extreme temperatures or high humidity.
- Avoid dropping or subjecting the device to strong impacts.
- Keep the sensor clean and free from dust or debris to ensure accurate readings.
- Remove batteries if the device will not be used for an extended period to prevent leakage.
- Do not attempt to disassemble or modify the device. Refer all servicing to qualified personnel.
3. Package Contents
Verify that all items listed below are present in your package:
- 1x TOPTES TS-710 Digital Light Meter
- 1x Sensor Cover
- 1x Soft Case / Storage Bag
- 3x AAA Batteries
- 1x User Manual (this document)
Image: Contents of the TOPTES TS-710 package, including the light meter, sensor cover, three AAA batteries, user manual, and a soft carrying case.
4. Product Features and Components
The TS-710 light meter is designed for ease of use and accuracy. Familiarize yourself with its key components and features:
- 180° Rotating Sensor: Allows for precise light measurements from various angles without repositioning the entire device.
- 2.25" Backlit LCD: Provides clear and easy-to-read measurements even in low-light conditions.
- Dual Measurement Units: Measures light in both Lux (0.1 to 200,000) and Foot Candles (0.1 to 20,000).
- Ambient Temperature & Humidity: Integrated sensors for environmental monitoring.
- MAX/MIN Value Recording: Captures the highest and lowest readings during a measurement session.
- Data Hold Function: Freezes the current reading on the display for easy recording.
- Auto Shut-off: Conserves battery life by automatically turning off after 10 minutes of inactivity.
- Low-Battery Indicator: Alerts you when batteries need replacement.
Image: Front view of the TOPTES TS-710 Digital Light Meter, showcasing its display, buttons, and the rotating sensor head, alongside three AAA batteries.

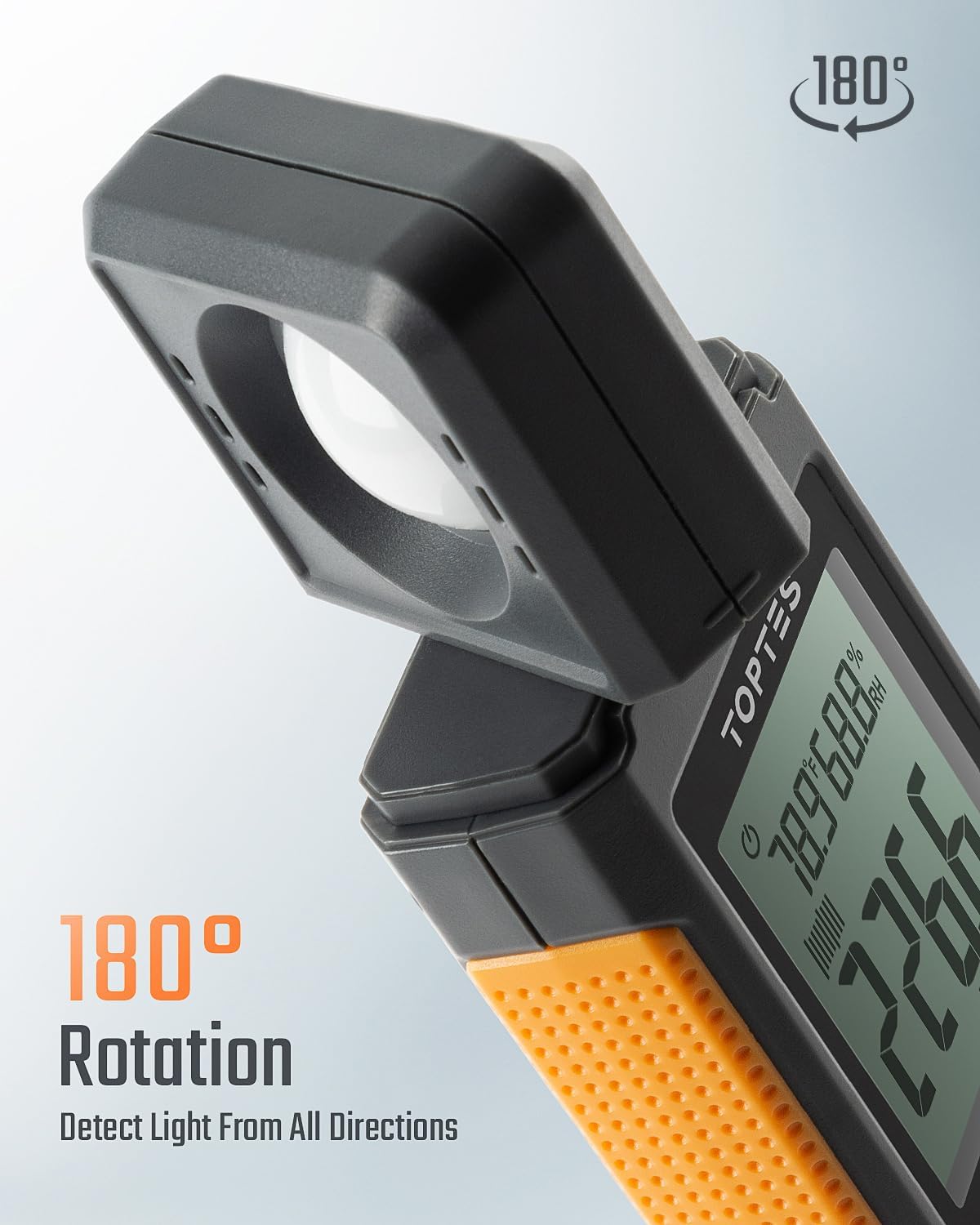

Image: Close-up view of the TOPTES TS-710's sensor head, illustrating its 180-degree rotation capability for detecting light from various directions.
Image: The TOPTES TS-710 light meter displaying a clear reading on its 2.25-inch LCD screen, highlighting its readability in various environments.
5. Setup
5.1 Battery Installation
The TS-710 requires three AAA batteries (included). To install or replace batteries:
- Locate the battery compartment cover on the back of the device.
- Slide the cover open in the direction indicated by the arrow.
- Insert three AAA batteries, ensuring correct polarity (+/-) as marked inside the compartment.
- Close the battery compartment cover securely until it clicks into place.
6. Operating Instructions
6.1 Power On/Off
- To power on the device, press the Power button (
). - To power off the device, press and hold the Power button for approximately 2 seconds. The device will also auto shut-off after 10 minutes of inactivity.
6.2 Unit Selection (Lux/FC, °C/°F)
- To switch between Lux and Foot Candle (FC) measurement units, press the UNIT button.
- To switch between Celsius (°C) and Fahrenheit (°F) for temperature display, press the °C/°F button.
Image: The TOPTES TS-710 light meter displaying both Lux and Foot-Candle measurement units, indicating its dual functionality.
6.3 Backlight Function
- To activate the display backlight, long press the H/
button. - Press the same button again to turn off the backlight.
6.4 Data Hold Function
- To freeze the current reading on the display, short press the H/
button. The 'H' icon will appear on the display. - Press the button again to release the data hold and resume live measurements.
6.5 MAX/MIN Measurement
- To view the maximum recorded value, press the MAX/MIN button once. The 'MAX' icon will appear.
- Press the MAX/MIN button again to view the minimum recorded value. The 'MIN' icon will appear.
- Press the MAX/MIN button a third time to exit MAX/MIN mode and return to live measurement.
Image: The TOPTES TS-710 light meter highlighting its various functions, including Data Hold, MAX/MIN value recording, Backlight Display, and unit switching for temperature and light.
7. Applications
The TOPTES TS-710 light meter is suitable for a wide range of applications:
- Plant Growth Optimization: Measure light levels for indoor plants, grow rooms, and greenhouses to ensure optimal growth conditions.
- Home & Office Lighting: Assess and adjust lighting in living spaces, offices, and workshops for comfort and productivity.
- Automotive: Diagnose and fix issues such as dim car headlights.
- Photography & Cinematography: Determine appropriate lighting for shoots.
- Industrial & Commercial: Evaluate lighting in factories, warehouses, and stages for safety and efficiency.
- Educational Settings: Use in schools for science experiments and demonstrations.
Image: A collage demonstrating the wide range of applications for the TOPTES TS-710 light meter, including use in greenhouses, warehouses, for interior lighting, and with table lamps.
8. Maintenance
8.1 Cleaning
Wipe the device with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the sensor lens is clean for accurate readings.
8.2 Storage
When not in use, store the device in its soft case in a cool, dry place, away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.
8.3 Battery Replacement
When the low-battery indicator appears on the display, replace all three AAA batteries as described in Section 5.1.
Image: Icon representing the low battery indication on the device's display, prompting battery replacement.
9. Troubleshooting
If you encounter issues with your TS-710 light meter, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Dead or incorrectly installed batteries. | Check battery polarity; replace with new AAA batteries. |
| Inaccurate readings. | Dirty sensor lens; device not calibrated; external interference. | Clean the sensor lens. Ensure no obstructions. If issues persist, contact support. |
| Display is dim or flickering. | Low battery; backlight issue. | Replace batteries. Activate backlight function. |
| Device shuts off unexpectedly. | Auto shut-off activated; low battery. | This is normal behavior after 10 minutes of inactivity. Replace batteries if it happens frequently during use. |
10. Specifications
| Feature | Detail |
|---|---|
| Model Number | TS-710 |
| Measurement Range (Lux) | 0.1 to 200,000 Lux |
| Measurement Range (Foot Candles) | 0.1 to 20,000 FC |
| Accuracy | 3%rdg+5dgt |
| Display | 2.25-inch Backlit LCD |
| Sensor Rotation | 180 degrees |
| Sampling Rate | 0.5 seconds |
| Power Source | 3 x AAA Batteries (included) |
| Auto Shut-off | After 10 minutes of inactivity |
| Item Weight | 10.2 ounces |
| Package Dimensions | 7.17 x 3.58 x 2.32 inches |
| Country of Origin | China |
11. Warranty and Support
TOPTES products are manufactured to high quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official TOPTES website. Please retain your proof of purchase for any warranty claims.
