Introduction
The Philex Robotic Security Light is an advanced outdoor security solution featuring a motorized light with a motion sensor and a high-resolution camera. It automatically rotates across 210° to track detected movement, allowing you to monitor your property visually via a free smartphone or tablet application. This system provides enhanced security through active tracking and remote control capabilities.

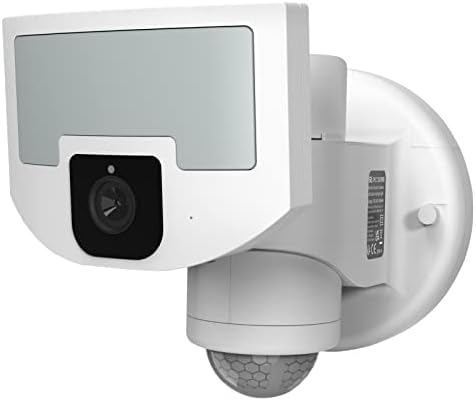

Figure 1: Philex Security Light Motion Outdoor
Setup
The Philex Security Light is designed for easy plug-and-play installation. Ensure you have a suitable outdoor power outlet within 1.5 meters of your desired mounting location. The unit is IP65 rated, making it suitable for outdoor conditions.
Installation Steps:
- Choose a Location: Select an outdoor location that provides optimal coverage for the 210° field of vision and has access to a power source.
- Mount the Device: Use the included mounting kit to securely attach the security light to a wall or ceiling. Ensure it is firmly fixed to prevent movement.
- Connect Power: Plug the 1.5m power adaptor into a standard UK 3-pin plug connection. For wired installations, the plug can be removed by a qualified electrician.
- Download the App: Download the free Philex security app from your device's app store (compatible with iOS and Android).
- Pair with App: Follow the in-app instructions to pair your security light with your smartphone or tablet. This typically involves scanning a QR code on the device or entering a serial number.
Figure 2: Easy Plug and Play Installation
Video 1: SLx Robotic LED Security Flood Light Camera Overview. This video demonstrates the features and ease of installation of the security light.
Operating Instructions
The Philex Security Light offers advanced features for comprehensive property monitoring and security.
Key Features:
- Patented Robotic Technology: The motorized lighthead automatically rotates across 210° to follow any detected movement, providing active tracking.
- 1700 Lumen Security Light: An infrared PIR sensor detects heat signatures up to 12m away, illuminating your outdoor space with a bright 1700 lumen LED floodlight.
- App Control: Receive motion detection alerts directly to your mobile device. Watch a live feed at any time, record footage onto the included 32GB memory card, and control light and camera settings remotely via the app.
- Two-Way Communication: Utilize the built-in speaker and microphone for two-way communication, useful for interacting with visitors or deterring intruders.
- Color Night Vision: The high-resolution camera provides clear color vision day and night, ensuring detailed monitoring even in low-light conditions.
- IP65 Weatherproof: Designed to withstand harsh outdoor conditions, ensuring reliable operation year-round.

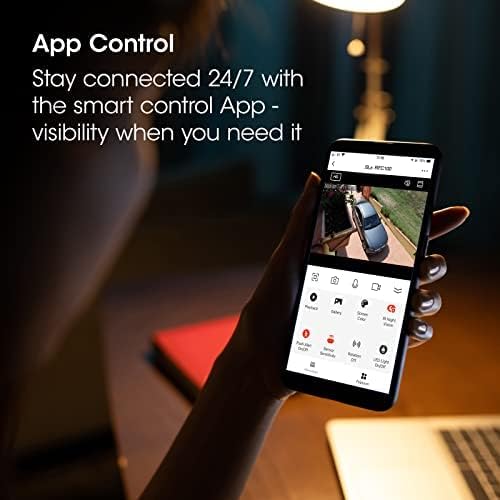

Figure 3: App Control for Remote Monitoring and Settings

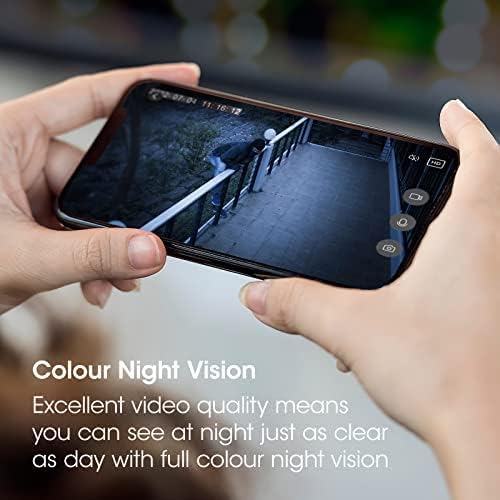

Figure 4: Clear Color Night Vision for Enhanced Monitoring

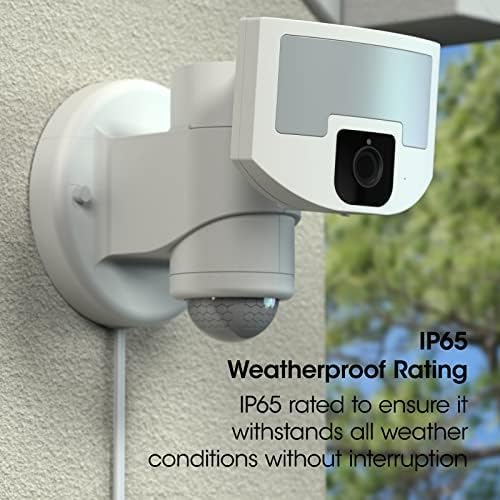

Figure 5: IP65 Weatherproof Rating for Outdoor Durability

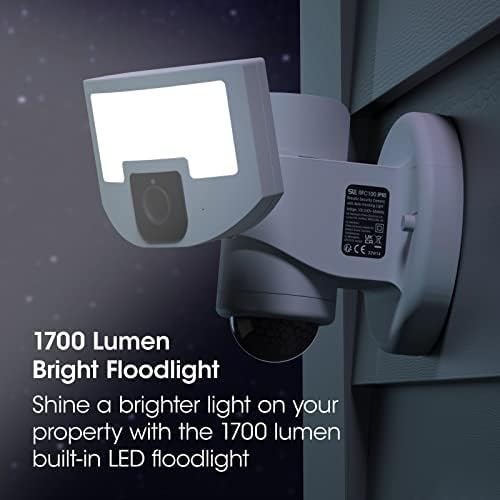

Figure 6: Powerful 1700 Lumen Floodlight
Maintenance
To ensure optimal performance and longevity of your Philex Security Light, regular maintenance is recommended.
- Cleaning: Periodically wipe the camera lens and light surface with a soft, damp cloth to remove dust, dirt, or debris. Avoid using harsh chemicals or abrasive materials.
- Check Connections: Ensure all power connections are secure and free from damage.
- Software Updates: Check the app regularly for any available firmware or software updates for your device to ensure you have the latest features and security enhancements.
- Environmental Factors: While IP65 weatherproof, extreme weather conditions (e.g., heavy snow, ice buildup) may temporarily affect performance. Clear any obstructions from the sensor and camera as needed.
Troubleshooting
If you encounter issues with your Philex Security Light, refer to the following common troubleshooting steps:
- No Power/Light Not Turning On:
- Verify the power cable is securely plugged into a working outlet.
- Check your home's circuit breaker to ensure power is supplied to the outlet.
- Motion Detection Not Working:
- Ensure the motion sensor is clean and unobstructed.
- Adjust the sensor sensitivity settings within the mobile app.
- Confirm the detection zones are correctly configured in the app.
- Poor Video Quality/No Live Feed:
- Check your Wi-Fi connection strength at the device's location. A weak signal can affect streaming quality.
- Ensure the camera lens is clean.
- Restart the device by unplugging it for a few seconds and plugging it back in.
- App Connectivity Issues:
- Ensure your smartphone/tablet has a stable internet connection.
- Restart the app or reinstall it if problems persist.
- Check if your Wi-Fi router is functioning correctly.
Specifications
| Feature | Detail |
|---|---|
| Brand | PHILEX |
| Power Source | Corded Electric |
| Maximum Range (Motion Sensor) | 12 Meters |
| Mounting Type | Ceiling Mount |
| Compatible Devices | Smartphone (iOS & Android) |
| Recommended Uses | Outdoor Security |
| Item Weight | 2.75 pounds |
| Package Dimensions | 9.13 x 7.44 x 7.13 inches |
| Style | +WiFi Camera & App (White) |
| Special Features | Motion Sensor, Night Vision, Two-Way Communication, Robotic Tracking |
| Weatherproof Rating | IP65 |
| Floodlight Lumen Output | 1700 Lumen |
| Field of Vision | 210° |
Warranty and Support
Philex Electronic Ltd, a UK manufacturer with over 40 years of experience, stands behind the quality of its products. The SLx Robotic Security Light is developed in Britain, and dedicated full-time local support staff are available to assist with any inquiries or issues you may have.
For specific warranty details and to access support, please refer to the documentation included with your product or visit the official Philex website. Additional protection plans may be available for purchase to extend coverage beyond the standard warranty.
