Introduction
Thank you for choosing the Sekey 300L Extended Collapsible Wagon. This manual provides essential information for the safe and efficient use of your wagon. Please read it thoroughly before assembly and operation, and retain it for future reference.
This heavy-duty, collapsible utility wagon is designed for transporting various items, offering a large capacity and robust construction for diverse outdoor and indoor tasks. Its foldable design ensures convenient storage and portability.
Safety Information
- Maximum Load Capacity: Do not exceed the maximum load capacity of 660 lbs (300 kg). Overloading can cause damage to the wagon and potential injury.
- Not for Children: This product is not designed to transport children. Always ensure children are kept away from the wagon during loading, unloading, and operation.
- Secure Load: Always secure items within the wagon to prevent shifting or falling during transport.
- Even Distribution: Distribute weight evenly across the wagon bed to maintain stability.
- Brake Usage: Engage the wheel brakes when the wagon is stationary, especially on inclines, to prevent unintended movement.
- Terrain: Exercise caution when operating on uneven, soft, or steep terrain. The wagon is designed for all-terrain use but extreme conditions may affect stability.
- Maintenance: Regularly inspect the wagon for any signs of wear or damage. Do not use if any components are broken or compromised.
- Pinch Points: Be aware of pinch points during folding and unfolding operations. Keep hands and fingers clear of moving parts.
Package Contents
Verify that all components are present and in good condition:
- 1 x Sekey 300L Extended Collapsible Wagon (Pre-assembled)
- 1 x Removable Bottom Pad
- 1 x Carry Bag (for storage)
Setup Instructions
1. Unfolding the Wagon
- Remove the wagon from its carry bag.
- Place the folded wagon on a flat, stable surface.
- Gently pull the sides of the wagon outwards until it begins to expand.
- Push down firmly on the center of the wagon's base until it fully extends and locks into place.
2. Inserting the Bottom Pad
- Once the wagon is fully unfolded, place the removable bottom pad inside the wagon bed. This provides a stable and flat surface for your items.
Operating Instructions
1. Loading the Wagon
- Place items evenly within the wagon bed, ensuring the weight does not exceed 660 lbs.
- Utilize the two mesh cup holders for beverages or small items.
2. Adjusting the Handle
The wagon features an adjustable handle for comfortable pulling. Press the button on the handle to extend or retract it to your desired length.
3. Using the Brakes
Each wheel is equipped with a brake. To engage, press down on the red lever located above each wheel. To release, lift the lever. Always engage brakes when the wagon is stationary.
4. Maneuvering the Wagon
The wagon features 360-degree rotating all-terrain wheels for smooth movement across various surfaces, including road, beach, grass, and rough terrain. The upgraded triangular structure enhances stability and prevents slipping.

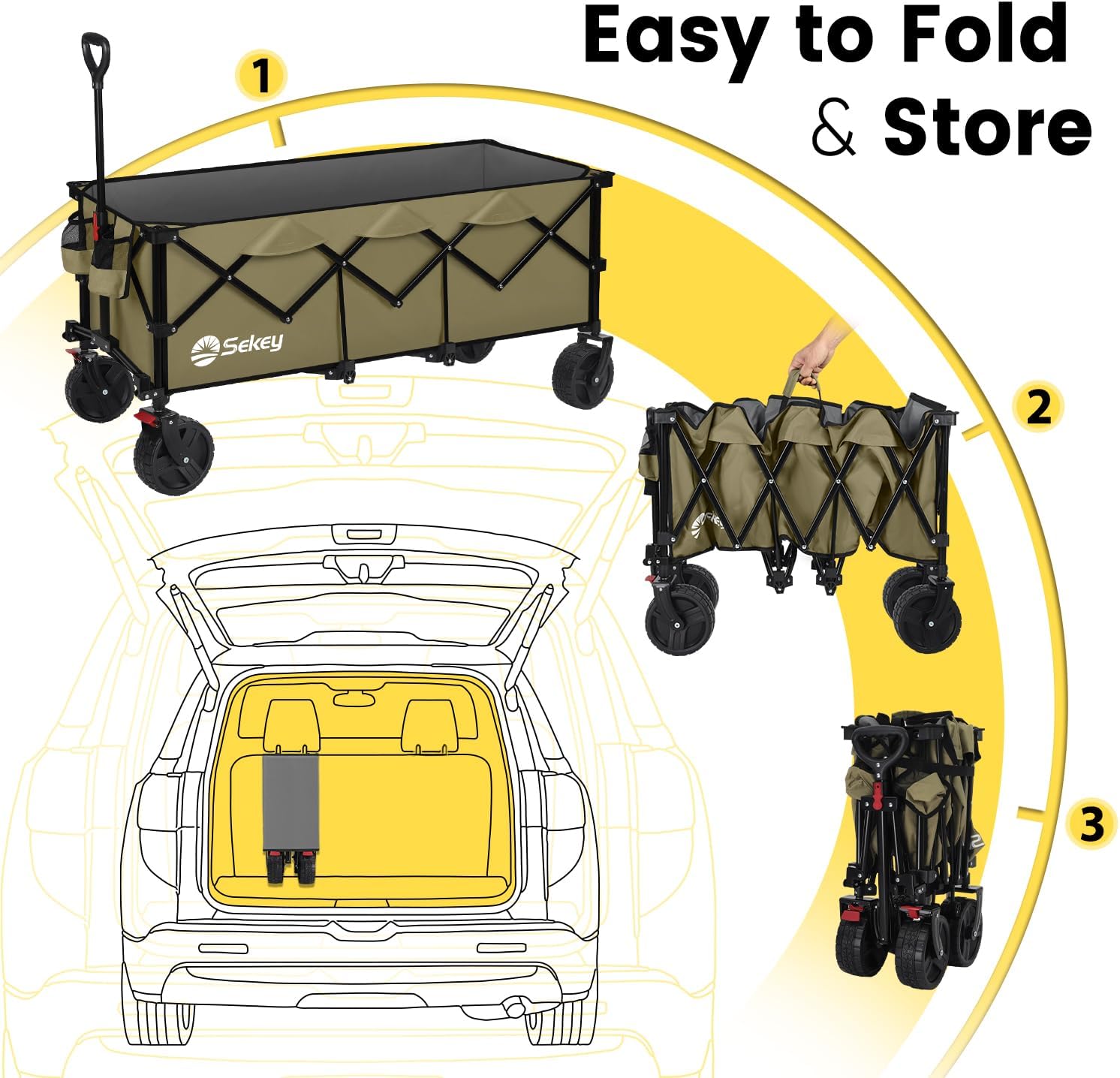

5. Folding for Storage
To fold the wagon, remove the bottom pad. Pull up on the fabric loop located in the center of the wagon bed. The wagon will collapse inwards. Secure it with the integrated strap or clip, and place the bottom pad around it for compact storage in the carry bag.
Maintenance
- Cleaning: The Oxford fabric can be spot cleaned with mild soap and water. Allow to air dry completely before folding and storing. Do not machine wash.
- Wheel Care: Periodically check the wheels for debris and ensure they rotate freely. Clean any accumulated dirt or sand.
- Frame Inspection: Regularly inspect the metal frame for any signs of rust, bends, or damage. Ensure all joints and fasteners are secure.
- Storage: Store the wagon in a dry, cool place away from direct sunlight when not in use to prolong its lifespan.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Wagon difficult to unfold/fold. | Mechanism is stiff or obstructed. | Ensure no debris is caught in the folding mechanism. Apply gentle, even pressure. Refer to setup instructions. |
| Wheels not rolling smoothly. | Debris in wheels or brakes engaged. | Check for and remove any debris (sand, dirt, hair) from the wheels and axles. Ensure brakes are fully disengaged. |
| Wagon feels unstable. | Uneven load distribution or not fully unfolded. | Redistribute the load evenly. Ensure the wagon is fully unfolded and the bottom pad is correctly inserted. |
| Brakes not holding. | Brake mechanism worn or not fully engaged. | Ensure the brake levers are pressed down completely. If the issue persists, contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | FW43 |
| Brand | Sekey |
| Expanded Dimensions (L x W x H) | 48.43" x 22.44" x 38.19" |
| Folded Dimensions (L x W x H) | Approx. 12.2" x 14.57" x 24" (based on image) |
| Weight Capacity | 660 lbs (300 kg) |
| Internal Storage Volume | 300 Liters |
| Item Weight | 29.5 lbs |
| Material | Oxford Fabric, PVC, Carbon Steel (Handle), Metal (Frame) |
| Wheels | 4 x 3" All-Terrain Wheels with 360° Rotation and Brakes |
| Special Features | Adjustable Handle, Bold Bracket, Extra Storage, Foldable, Upgraded Triangular Structure |
Warranty
Sekey wagons come with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Customer Support
If you have any questions, concerns, or require assistance with your Sekey 300L Extended Collapsible Wagon, please do not hesitate to contact our customer support team. For the quickest service, please refer to the contact information provided on the Sekey official website or your purchase platform.
We are committed to providing excellent service and support for your product.
