Introduction
This manual provides instructions for the Toptekits UK BS1363 to US NEMA 1-15P Power Adapter Cord. This product is designed to allow devices with a US 2-prong NEMA 1-15P plug to connect to a UK BS1363 3-pin wall socket. It is suitable for use by individuals traveling or working in the UK and Commonwealth countries that utilize the BS1363 standard.
Product Overview
The adapter cord features a UK BS1363 male plug on one end and a US NEMA 1-15P female socket on the other. The cable length for this specific model is 0.3 meters (1 foot). It is rated for 13 Amperes at 250 Volts. The UK plug includes a fuse for enhanced safety.

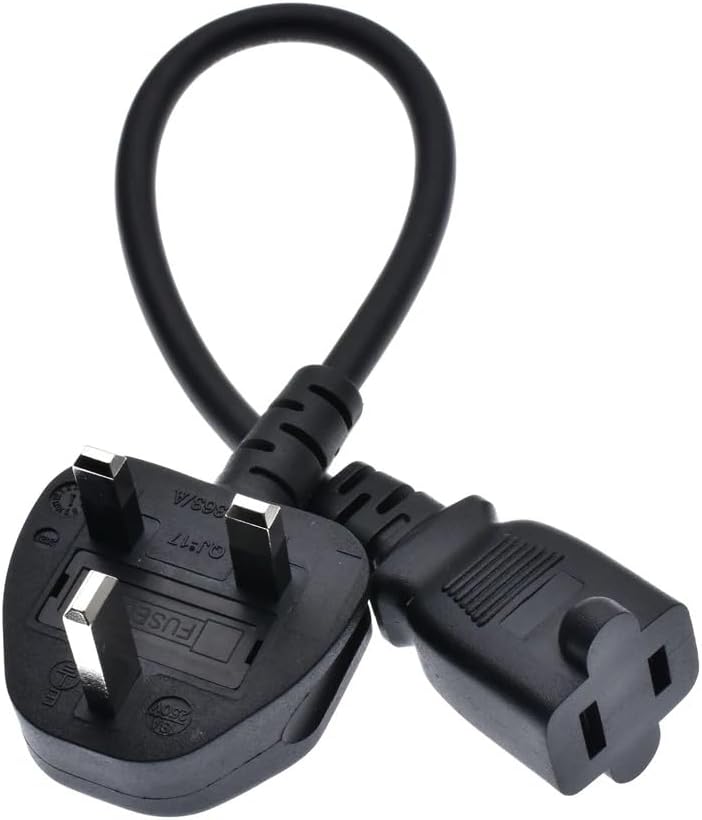

Image: Overall view of the Toptekits UK BS1363 to US NEMA 1-15P Power Adapter Cord, highlighting its plug and socket types.
Image: Detailed view of the UK BS1363 male plug, showing the integrated fuse for circuit protection.

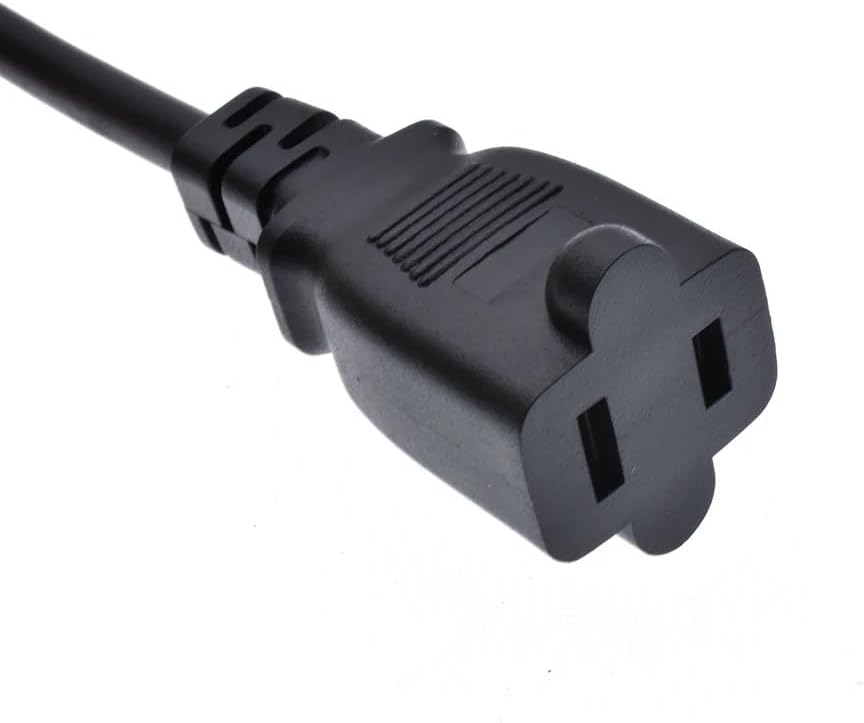

Image: Detailed view of the US NEMA 1-15P female socket, designed to accept standard US 2-prong plugs.
Setup Instructions
- Ensure the device you intend to power is compatible with the adapter's voltage and current ratings (13A, 250V). This adapter does not convert voltage.
- Connect your US 2-prong NEMA 1-15P device plug firmly into the female socket of the adapter cord.
- Insert the UK BS1363 male plug of the adapter cord into a standard UK 3-pin wall socket.
- Verify all connections are secure before powering on your device.
Operating Instructions
Once properly connected, the adapter cord facilitates the power transfer from a UK wall outlet to your US 2-prong device. No additional operational steps are required beyond plugging in the device and the adapter. Ensure the device's power switch is in the 'On' position if applicable.
Maintenance
- Keep the adapter cord clean and dry.
- Avoid bending or kinking the cord sharply, as this can damage internal wiring.
- Do not expose the cord to extreme temperatures, direct sunlight, or corrosive substances for prolonged periods.
- Regularly inspect the cord and plugs for any signs of damage, such as frayed wires, cracks, discoloration, or loose connections. Discontinue use immediately if damage is observed.
- The UK plug contains a fuse. If the adapter stops working, the fuse may need replacement. Ensure to replace it with a fuse of the correct rating (13A).
Troubleshooting
| Problem | Possible Cause / Solution |
|---|---|
| No power to device |
|
| Loose connection |
|
Specifications
- Model: UK BS1363 Male to US NEMA 1-15P Female Power Cord
- Input Plug: UK BS1363 3-pin Male
- Output Socket: US NEMA 1-15P 2-prong Female
- Rated Voltage: 250V
- Rated Current: 13A
- Wire Gauge: VDE H05VV-F 2X1.0mm² (17AWG)
- Conductor Material: Pure Copper
- Length: 0.3m (1ft)
- Item Weight: Approximately 2.12 ounces
- Connector Gender: Male-to-Female
Image: Dimensional drawings illustrating the measurements of the US NEMA 1-15P socket and the UK BS1363 plug.
Image: Illustration of the internal pure copper wire construction, indicating robust conductivity and durability.
Safety Information
- This adapter is for converting plug types only; it does not convert voltage. Ensure your device is rated for 250V or is dual voltage compatible before use. Using a 120V device with a 250V supply without a voltage converter will damage the device.
- Do not overload the adapter or the wall socket. The maximum rated current for this adapter is 13A.
- Do not use the adapter in wet conditions or near water.
- Keep out of reach of children.
- Always unplug the adapter from the wall socket before disconnecting your device or performing any maintenance.
- If the cord or plugs become unusually hot during use, immediately unplug the adapter and discontinue use.
Warranty and Support
No specific warranty information is provided with this product in the available documentation. For product support, technical assistance, or inquiries, please contact the manufacturer, Toptekits, through their official customer service channels or the retailer where the product was purchased. Please retain your proof of purchase for any support requests.
