Briggs & Stratton 19 HP 540cc Vertical Engine Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and installation of your Briggs & Stratton 19 HP 540cc Vertical Engine, Model 33S877-0043. This genuine single-cylinder engine is designed to deliver dependable power for various equipment needs, featuring a premium Dual Clean air filtration system, electric starter, and maintenance-free Magnetron electronic ignition. It includes a Dura-Bore cast iron cylinder sleeve for extended life and comes with an installed muffler and a 9 amp charging system.

2. Safety Information

Always prioritize safety when working with internal combustion engines. Failure to follow safety instructions can result in serious injury or property damage.

• Read the Entire Manual: Understand all instructions and warnings before operating or servicing the engine.
• Ventilation: Operate the engine in a well-ventilated area to avoid carbon monoxide poisoning.
• Fuel Safety: Handle fuel with extreme care. Fuel is highly flammable. Store in approved containers, away from ignition sources. Do not refuel a hot or running engine.
• Hot Surfaces: The engine and muffler become very hot during operation and remain hot for a period afterward. Avoid contact to prevent burns.
• Moving Parts: Keep hands, feet, and clothing away from moving parts such as the flywheel and fan.
• Electrical Safety: Disconnect the spark plug wire before performing any maintenance to prevent accidental starting.
• Eye Protection: Always wear appropriate eye protection when working on or around the engine.

3. Package Contents

Verify that all components are present upon unpacking:

• Briggs & Stratton 19 HP 540cc Vertical Engine (Model 33S877-0043)
• Installed Muffler
• Owner's Manual (this document)

4. Setup and Installation

Proper installation is crucial for engine performance and safety. This engine is a common replacement for riding mowers.

4.1 Mounting the Engine

The engine's mounting holes are not threaded. It is essential to use existing self-threading bolts from your old engine or acquire appropriate self-tapping bolts for secure installation. Ensure the engine is firmly seated and all mounting bolts are tightened to the manufacturer's specifications for your equipment.

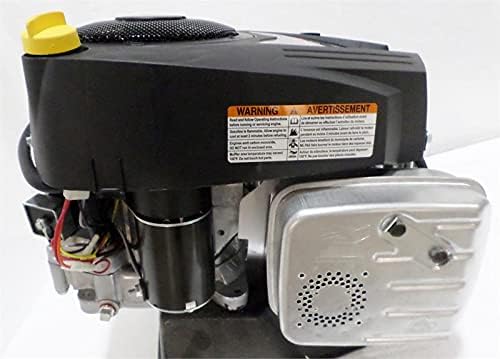

Image: Side view of the engine, highlighting the mounting area.

4.2 Shaft and Keyway

The engine features a 1-inch diameter shaft with a length of 3-5/32 inches. It is tapped 7/16 inch with a 1/4-inch keyway. Ensure compatibility with your equipment's drive system.

4.3 Electrical Connections

Connect the electric starter wiring and the 9 amp charging system according to your equipment's wiring diagram. Ensure all connections are secure and insulated.

4.4 Fuel System Connections

Connect the fuel line from your equipment's fuel tank to the engine's carburetor. Ensure all fuel lines are properly routed, secured, and free from leaks. Use appropriate fuel clamps.

4.5 Initial Fluid Fills

• Engine Oil: Fill the engine crankcase with the recommended type and amount of engine oil. Refer to the 'Maintenance' section for oil specifications. Do not overfill.
• Fuel: Fill the fuel tank with fresh, clean gasoline. Refer to the 'Operating' section for fuel type recommendations.

5. Operating Instructions

Follow these steps for starting and operating your Briggs & Stratton engine.

5.1 Pre-Start Checklist

• Check engine oil level.
• Ensure fuel tank is adequately filled.
• Verify all connections (electrical, fuel) are secure.
• Clear the area around the equipment of any obstructions.

5.2 Starting the Engine (Electric Start)

1. Ensure the equipment's safety interlocks are engaged (e.g., brake on, PTO disengaged).
2. Set the throttle control to the 'FAST' or 'CHOKE' position as required for cold starting.
3. Turn the ignition key to the 'START' position. Release the key once the engine starts.
4. Allow the engine to warm up for a few minutes before engaging any loads. Adjust the throttle to the desired operating speed.

5.3 Stopping the Engine

1. Reduce engine speed to idle.
2. Turn the ignition key to the 'OFF' position.

6. Maintenance

Regular maintenance ensures optimal performance and extends the life of your engine. Always refer to your equipment's specific maintenance schedule.

6.1 Engine Oil

Check the oil level before each use. Change the engine oil after the first 5 hours of operation, then every 50 hours or annually, whichever comes first. Use high-quality detergent oil classified for service SF, SG, SH, SJ, SL, or higher. Refer to the engine's dipstick for recommended oil type and capacity.

6.2 Air Filter (Dual Clean System)

The engine is equipped with a premium Dual Clean air filtration system. Inspect the air filter regularly, especially in dusty conditions. Clean or replace the filter elements as needed to prevent dirt from entering the engine, which can cause significant wear.

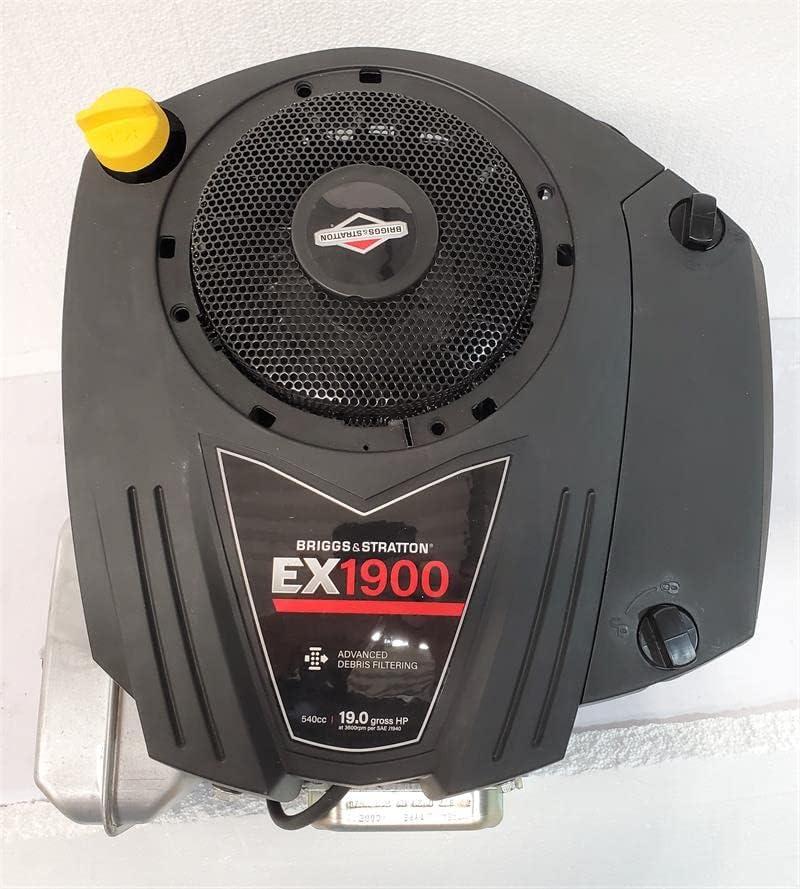

Image: Top view of the engine, showing the air filter cover.

6.3 Spark Plug

Inspect the spark plug annually or every 100 hours. Clean or replace if necessary. Use the recommended spark plug type and ensure proper gap setting.

6.4 Fuel System

Keep the fuel system clean. If the engine will be stored for an extended period, drain the fuel tank and carburetor or use a fuel stabilizer to prevent fuel degradation.

6.5 Muffler

The engine includes an installed muffler. Periodically check the muffler for damage or blockages. Replace if necessary. The muffler can become very hot; exercise caution.

Image: Side view of the engine, highlighting the muffler.

7. Troubleshooting

This section provides solutions to common engine problems. For issues not listed here, consult a qualified service technician.

7.1 Engine Will Not Start

• No Fuel: Check fuel level in the tank.
• Stale Fuel: Drain old fuel and refill with fresh gasoline.
• Spark Plug: Inspect spark plug for fouling or damage. Ensure spark plug wire is securely connected.
• Battery: For electric start, ensure the battery is charged and connections are clean and tight.
• Choke: Ensure choke is properly set for cold starting.

7.2 Engine Runs Poorly or Lacks Power

• Air Filter: Clean or replace the air filter if it is dirty or clogged.
• Fuel Quality: Use fresh, clean fuel.
• Spark Plug: Inspect and clean or replace the spark plug.
• Oil Level: Ensure proper oil level.

8. Specifications

9. Warranty and Support

This Briggs & Stratton engine comes with a manufacturer limited warranty of 2 years for consumer use and 1 year for commercial use. For warranty claims, technical assistance, or to locate an authorized service dealer, please contact Briggs & Stratton customer support directly. Keep your proof of purchase for warranty validation.

For further assistance, visit the official Briggs & Stratton website or contact their customer service department.
