Toastmaster Air Frying Toaster Oven with Convection

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before operating.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plug, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the toaster oven is covered or touching flammable material, including curtains, drapes, walls, and the like, when in operation.
• Do not place any materials other than manufacturer's recommended accessories in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.
• Extreme caution should be exercised when removing tray or disposing of hot grease.

Product Overview

The Toastmaster Air Frying Toaster Oven with Convection is a versatile kitchen appliance designed for multiple cooking functions including Air Fry, Bake, Broil, Convection, Toast, and Warm. It features a large 22L capacity, accommodating up to 6 slices of bread or a 4-pound chicken.

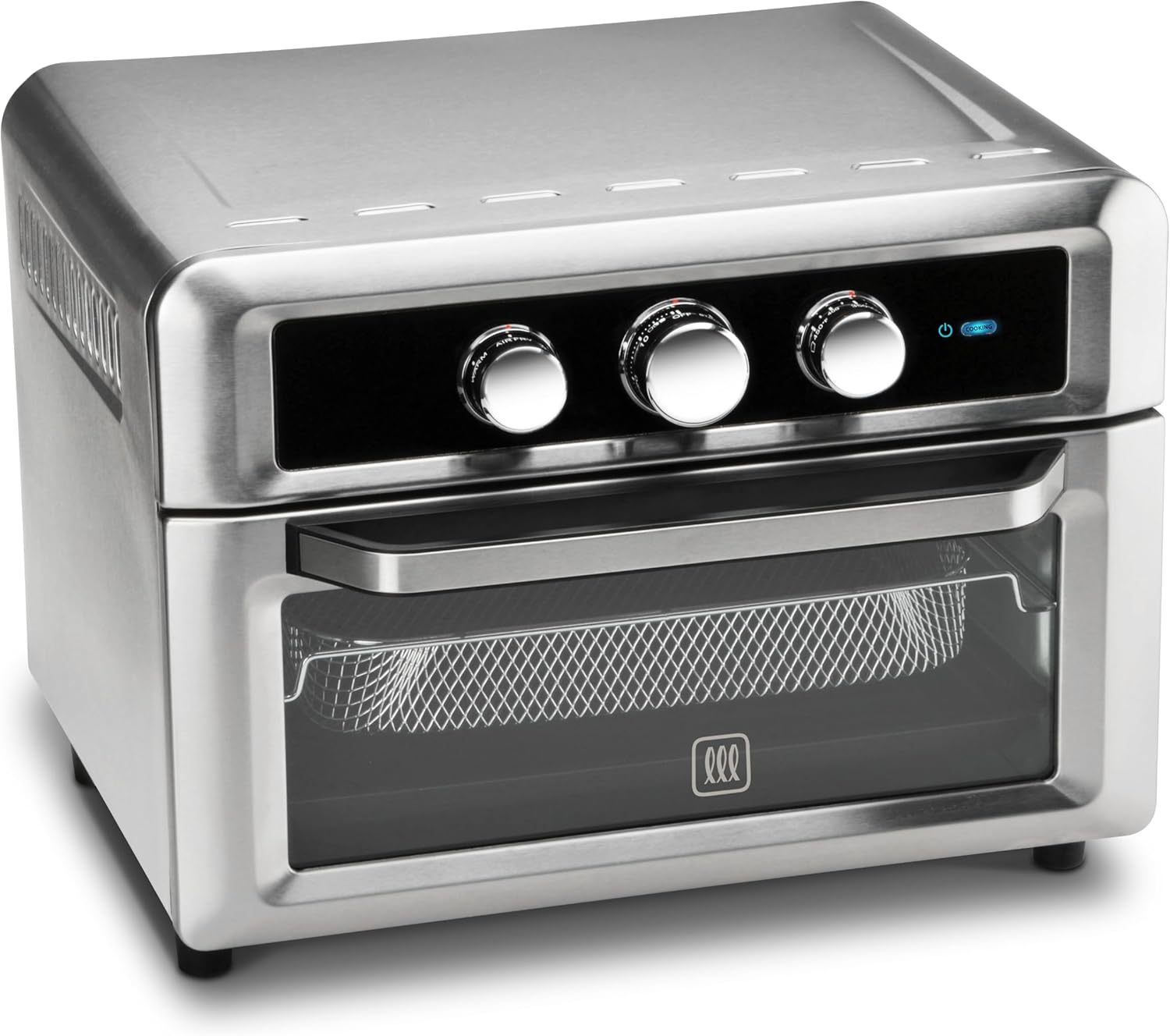

Figure 1: Front view of the Toastmaster Air Frying Toaster Oven, showcasing its stainless steel finish, control knobs, and glass door with an air frying basket visible inside.

Components and Controls

• Temperature Control Knob: Adjusts cooking temperature up to 450°F.
• Function Selector Knob: Selects cooking modes (Air Fry, Bake, Broil, Convection, Toast, Warm).
• Timer Knob: Sets cooking time up to 60 minutes, with a "Stay On" option.
• Power Indicator Light: Illuminates when the oven is in operation.
• Glass Oven Door: Allows for easy monitoring of cooking progress.
• Heating Elements: Features 4 upper and 2 lower heating elements for optimal cooking.

Figure 2: Diagram highlighting key features such as adjustable temperature control, rapid heat convection, heating elements, and the glass oven door.

Included Accessories

• Baking Rack: For baking and roasting.
• Nonstick Coated Baking Pan: For baking and catching drips.
• Flow-Through Air Fryer Basket: Specifically designed for air frying.
• Basket Removal Tool: For safe handling of hot accessories.

Figure 3: The included accessories: baking rack, nonstick coated baking pan, and flow-through air fryer basket.

Setup

1. Unpacking: Carefully remove the toaster oven and all accessories from the packaging. Remove any packing materials, stickers, or protective films.
2. Initial Cleaning: Before first use, wipe the interior and exterior of the oven with a damp cloth. Wash the baking rack, baking pan, and air fryer basket in warm, soapy water. Rinse and dry thoroughly.
3. Placement: Place the oven on a stable, heat-resistant, and level surface. Ensure there is adequate clearance (at least 4 inches) on all sides and above the oven for proper ventilation. Do not place near flammable materials.
4. First Use (Burn-Off): It is recommended to run the oven empty for about 15 minutes on the "Bake" setting at 400°F (200°C) before cooking food. This helps to burn off any manufacturing residues and odors. A slight odor or smoke may be present during this initial operation; this is normal. Ensure the area is well-ventilated.

Operating Instructions

This appliance offers multiple cooking functions. Always ensure the crumb tray is in place before operation.

Figure 4: The control panel displaying the various cooking functions: Air Fry, Bake, Broil, Convection, Toast, and Warm.

General Operation Steps:

1. Place food on the appropriate accessory (baking rack, baking pan, or air fryer basket).
2. Insert the accessory into the desired rack position inside the oven.
3. Close the oven door.
4. Turn the Function Selector knob to the desired cooking mode.
5. Turn the Temperature Control knob to the desired temperature.
6. Turn the Timer knob to the desired cooking time. The power indicator light will illuminate.
7. When cooking is complete, the timer will ding, and the oven will turn off.
8. Carefully remove food using oven mitts and the basket removal tool if applicable.

Specific Cooking Functions:

• Air Fry: Ideal for crispy foods like fries, chicken wings, and vegetables with little to no oil. Use the air fryer basket for best results. The convection fan operates in this mode.
• Bake: For traditional baking of cakes, cookies, casseroles, and more. Use the baking pan or a suitable oven-safe dish on the baking rack.
• Broil: For browning, toasting, or cooking thin cuts of meat. Place food on the baking rack with the baking pan underneath to catch drips. Monitor closely to prevent burning.
• Convection: Utilizes a fan to circulate hot air, providing faster and more even cooking. Suitable for roasting meats and baking. The convection fan operates in this mode.
• Toast: For toasting bread, bagels, and waffles. Adjust the timer for desired toast shade. Use the baking rack.
• Warm: Keeps cooked food warm without further cooking. Use the baking rack or baking pan.

Note: Cooking times may vary based on food type, quantity, and desired doneness. It is recommended to monitor food closely, especially during initial uses, and adjust cooking times and temperatures as needed.

Maintenance and Cleaning

Regular cleaning will ensure optimal performance and extend the life of your toaster oven.

1. Always Unplug: Before cleaning, always unplug the oven from the electrical outlet and allow it to cool completely.
2. Crumb Tray: Pull out the crumb tray from the bottom of the oven. Discard crumbs and wipe the tray with a damp cloth. It can also be washed in warm, soapy water. Dry thoroughly before replacing. Clean frequently to prevent grease buildup.
3. Accessories: Wash the baking rack, baking pan, and air fryer basket in warm, soapy water. For stubborn food residue, soak them before cleaning. Rinse and dry thoroughly. These are not dishwasher safe unless specified by the manufacturer.
4. Interior: Wipe the interior walls with a damp cloth and mild detergent. For baked-on food, a non-abrasive cleaner designed for oven interiors can be used. Avoid abrasive pads or metal scouring pads as they can damage the surface.
5. Exterior: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or polishes.
6. Glass Door: Clean the glass door with a glass cleaner or a damp cloth. Avoid harsh chemicals that could damage the door seal.
7. Do Not Immerse: Never immerse the main unit, cord, or plug in water or any other liquid.

Troubleshooting

Before contacting customer service, please refer to the following common issues and solutions:

Specifications

Figure 5: Visual representation of the oven's dimensions and key electrical specifications.

Warranty and Support

For warranty information and customer support, please refer to the documentation included with your product or visit the official Toastmaster website. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: Toastmaster

Website: www.toastmaster.com (This is a placeholder link, please refer to actual manufacturer website for support)
