1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your AEG FFB64627ZW freestanding dishwasher. Please read these instructions carefully before using the appliance and keep them for future reference.

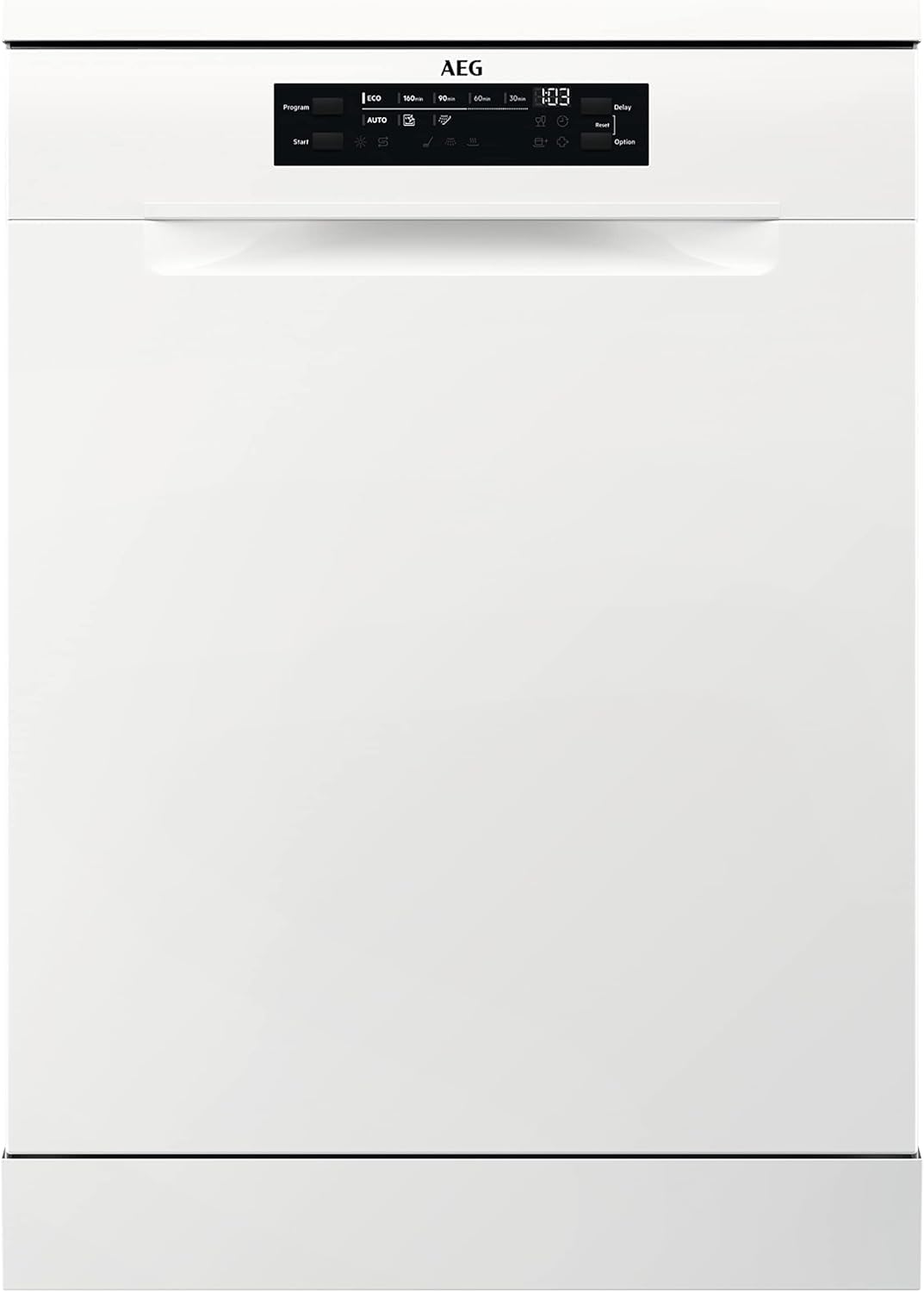

Image 1: Front view of the AEG FFB64627ZW freestanding dishwasher.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is intended for domestic use only.
- Ensure the dishwasher is properly grounded.
- Do not operate the dishwasher if it is damaged.
- Keep children away from the dishwasher, especially when it is operating.
- Use only detergents and rinse aids specifically designed for dishwashers.
- Sharp items should be loaded with points down to prevent injury.
3. Setup and Installation
Proper installation is crucial for the performance and longevity of your dishwasher. Refer to the separate installation guide for detailed instructions. Below are general guidelines.
3.1 Unpacking and Positioning
Carefully remove all packaging materials. Position the freestanding dishwasher on a level, stable surface in your kitchen. Ensure there is adequate space for the door to open fully.
Image 2: The AEG FFB64627ZW dishwasher seamlessly integrated into a kitchen setting.
3.2 Water and Drain Connection
Connect the water inlet hose to a cold water supply tap. Ensure the drain hose is securely connected to a suitable drain point, preventing kinks or blockages.
3.3 Electrical Connection
Connect the power cord to a properly grounded electrical outlet. Verify that the voltage and frequency match the specifications on the appliance rating plate.
3.4 Initial Use
Before the first wash cycle, fill the salt dispenser with dishwasher salt and the rinse aid dispenser with rinse aid. This ensures optimal cleaning and drying performance.
4. Operating Instructions
Familiarize yourself with the control panel and loading procedures for effective dishwashing.
4.1 Control Panel Overview
The dishwasher features an intuitive control panel with a display and push-button controls for program selection, options, and start/pause functions.
4.2 Loading the Dishwasher
Load dishes efficiently to allow water to reach all surfaces. Scrape off large food particles before loading.
- QuickLift Basket: The upper basket can be easily adjusted in height, even when fully loaded, to accommodate larger items in either the upper or lower basket.
Image 3: The QuickLift basket allows for easy height adjustment to fit various dish sizes.
- SoftGrips and SoftSpikes: The upper basket is equipped with SoftGrips and SoftSpikes to securely hold delicate glassware, preventing damage during the wash cycle.
Image 4: SoftSpikes and SoftGrips provide secure support for delicate items like wine glasses.
4.3 Adding Detergent, Salt, and Rinse Aid
Ensure the detergent dispenser is filled with the appropriate amount of dishwasher detergent. Regularly check and refill the salt and rinse aid dispensers as indicated by the control panel indicators.
4.4 Selecting a Program
Choose the appropriate wash program based on the type and soil level of your dishes. Available programs typically include:
- Auto Program: Automatically adjusts water consumption, temperature, and cycle time based on the soil level detected.
- ECO Program: Energy-efficient program for normally soiled dishes.
- Other programs for various durations (e.g., 160min, 90min, 60min, 30min) and a Rinse & Hold option.
4.5 Special Functions
- AirDry Technology: This feature automatically opens the dishwasher door by approximately 10 cm during the final drying phase. This allows natural air to circulate, improving drying performance and reducing energy consumption.
Image 5: AirDry technology enhances drying results by allowing natural air circulation.
- ExtraHygiene Function: This option performs a final rinse at 69 °C and maintains this temperature for at least 10 minutes, providing a sanitizing effect for your dishes.
- Satellite Spray Arm: The unique double-rotating Satellite Spray Arm provides up to three times better spray coverage than a standard spray arm, ensuring water reaches every corner for a thorough and quiet clean.
Image 6: The Satellite Spray Arm's advanced design ensures comprehensive water distribution.
4.6 Starting and Ending a Program
Press the Start button to begin the selected program. The dishwasher will indicate the remaining time on the display. Once the program is complete, the appliance will signal its finish, and the AirDry function may activate.
5. Maintenance and Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your dishwasher.
5.1 Cleaning the Filters
The filter system should be cleaned regularly to prevent blockages and ensure efficient washing. Remove the coarse and fine filters, rinse them under running water, and reassemble them correctly.
Image 7: Regular cleaning of the dishwasher filter is essential for hygiene and performance.
5.2 Cleaning the Spray Arms
Periodically check the spray arm nozzles for any blockages. If necessary, remove the spray arms and clear any debris from the holes using a thin object.
5.3 Exterior and Interior Cleaning
Wipe the exterior of the dishwasher with a soft, damp cloth. Clean the interior periodically with a dishwasher cleaner to remove grease and limescale buildup.
6. Troubleshooting
If you encounter issues with your dishwasher, consult this section for common problems and solutions. For more complex issues, contact customer service.
- Dishwasher does not start: Check power supply, door closure, and selected program.
- Dishes are not clean: Ensure proper loading, correct detergent dosage, and clean filters/spray arms.
- Water remains in the dishwasher: Check for drain hose kinks or blockages in the filter system.
- Unusual noises: Verify that dishes are not obstructing spray arms or other internal components.
7. Specifications
| Feature | Specification |
|---|---|
| Model Name | FFB64627ZW |
| Product Weight | 41 Kilograms |
| Voltage | 220 V |
| Recommended Use | Household dishwashing, energy saving, low noise, deep cleaning |
| Style | SatelliteClean - 8 programs - Class C |
| Interior Material | Stainless Steel |
| Manufacturer | AEG |
| Product Dimensions (L x W x H) | 62 x 60 x 85 cm |
| Country of Origin | Germany |
| Installation Type | Freestanding |
| Capacity | 13 Place Settings |
| Special Function | Automatic Program |
| Color | White |
| Control Type | Push Button |
| Noise Level | 44 dB |
| Included Components | Cutlery Basket |
8. Warranty and Support
Your AEG FFB64627ZW dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details.
For technical assistance, spare parts, or service requests, please contact AEG customer support. Contact information can typically be found on the manufacturer's website or in the documentation provided with your appliance.
