Andoer V-Lock V Mount Battery Plate to BP-U Dummy Battery Adapter

Introduction

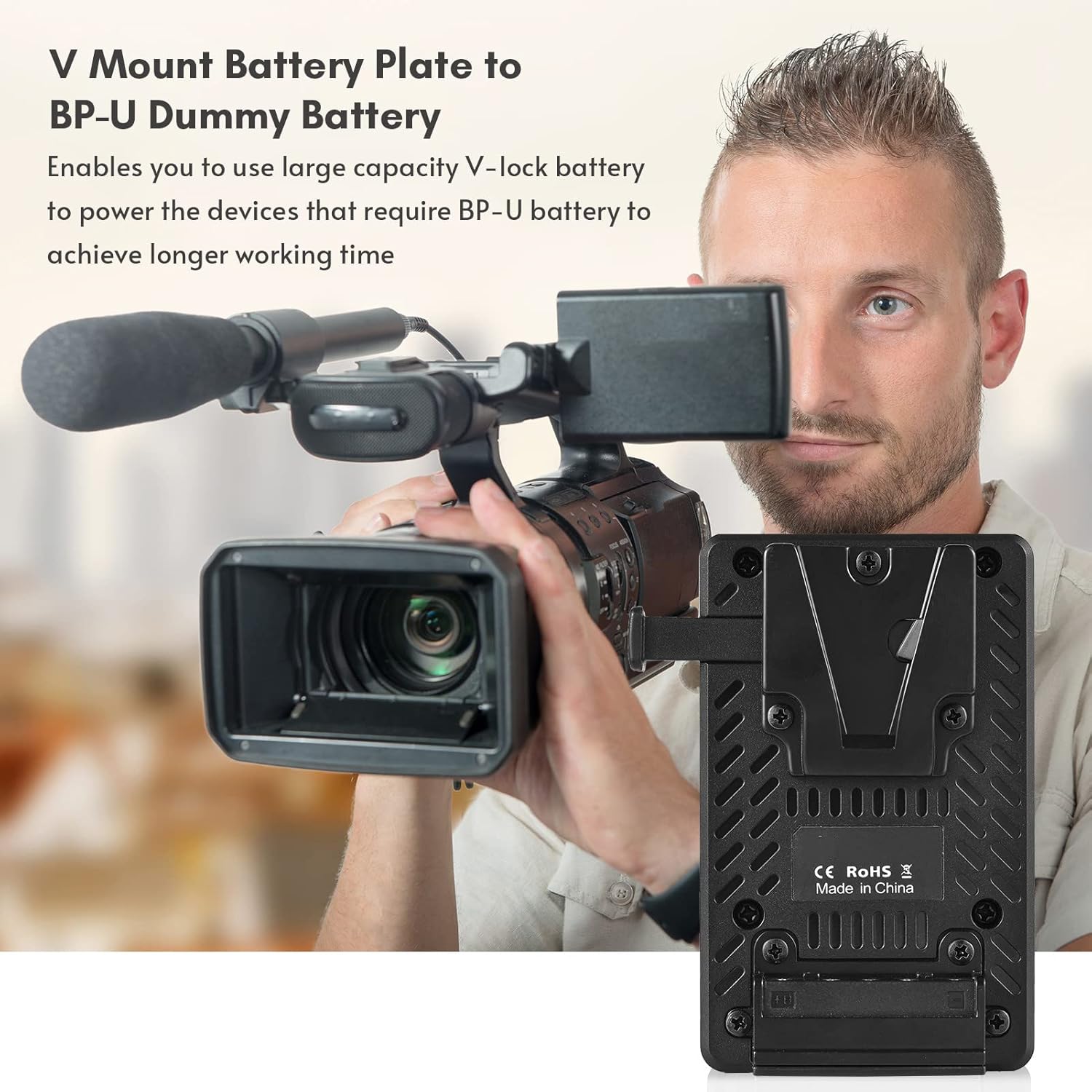

This manual provides instructions for the safe and effective use of your Andoer V-Lock V Mount Battery Plate to BP-U Dummy Battery Adapter. This device allows you to power compatible camcorders using a high-capacity V-lock battery, extending operational time for your equipment.

Key Features

• Enables use of large-capacity V-lock batteries to power devices requiring BP-U batteries for extended working time.
• Built-in battery decoder chip in the BP-U dummy battery ensures safe and reliable operation.
• Supports 11-16.8V input voltage and provides 14.4V output voltage.

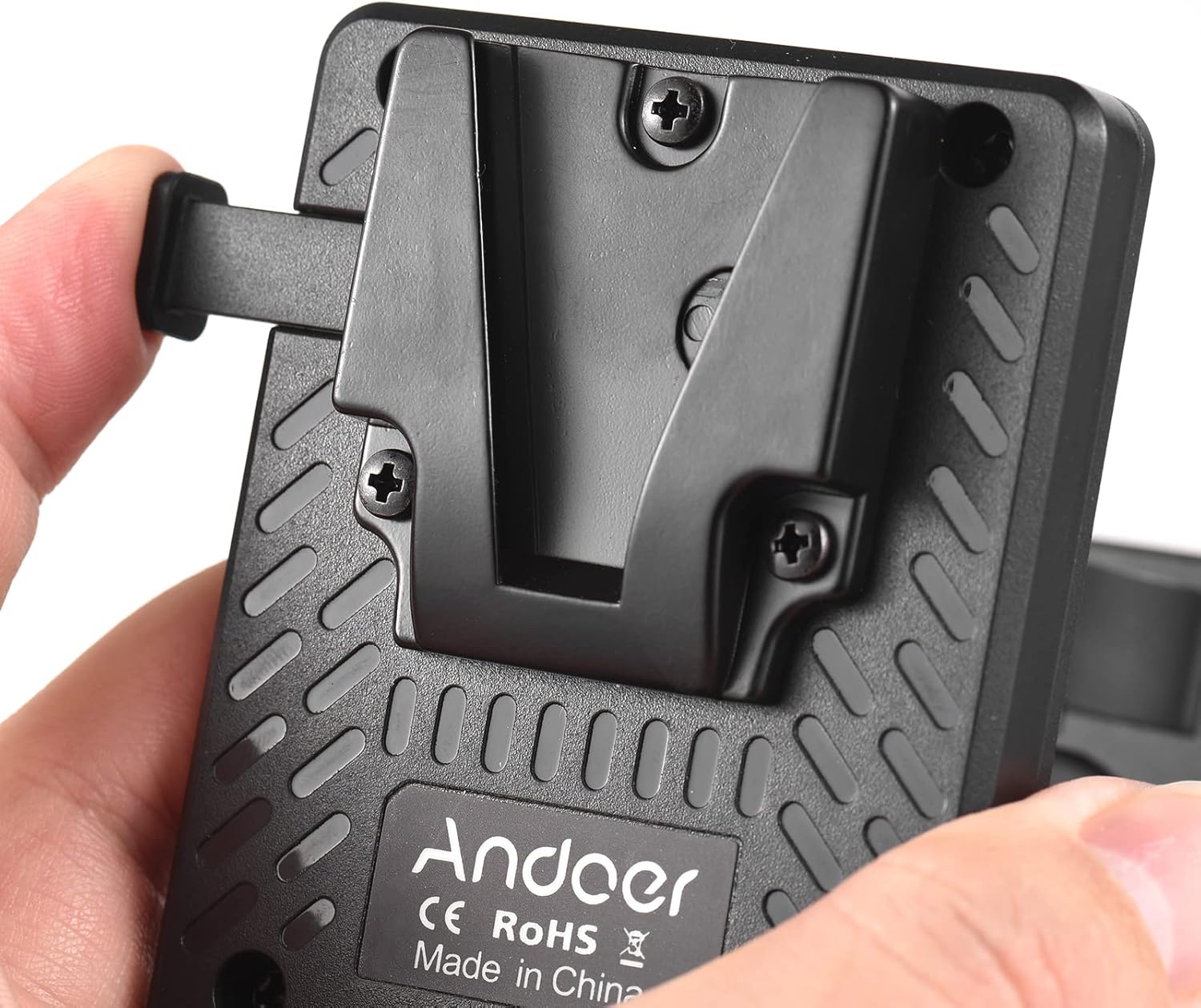

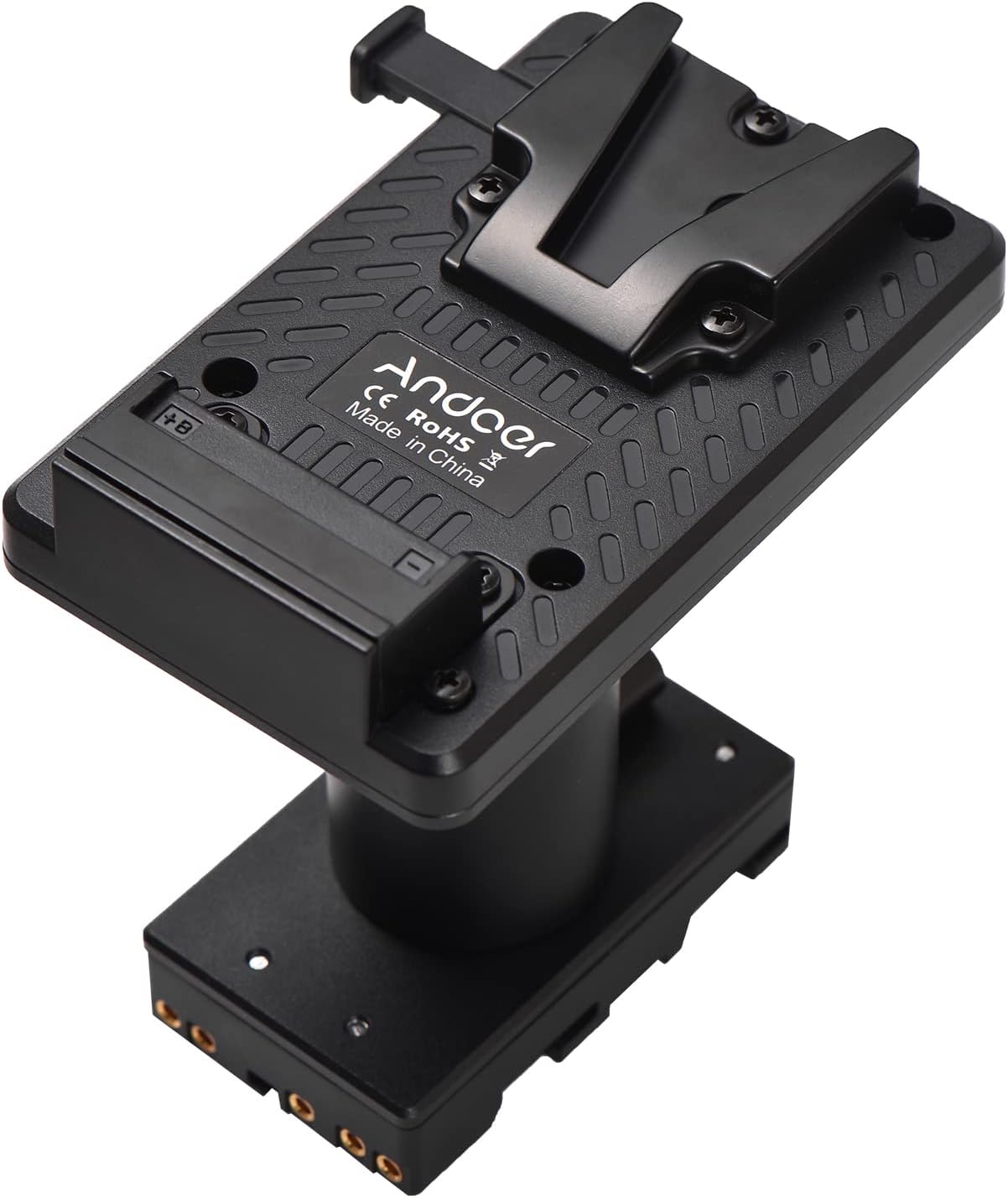

• V-mount battery plate features a safety lock for easy assembly and disassembly of batteries.
• Constructed from high-quality, durable, and lightweight plastic material.

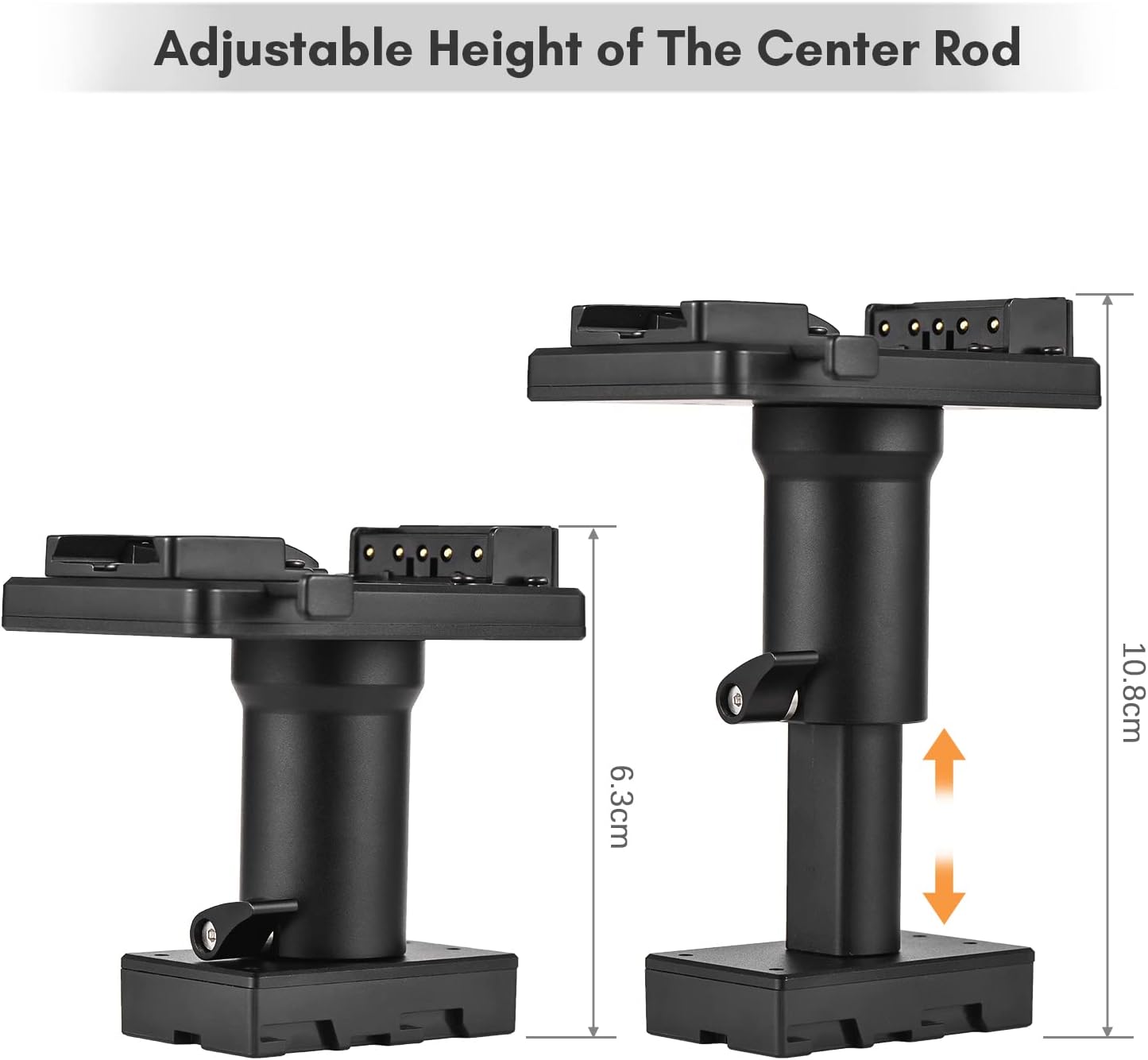

• Adjustable center rod height from 2.5 inches (6.3 cm) to 4.3 inches (10.8 cm).

Compatibility

This adapter is compatible with a range of Sony camcorders, including:

• Sony PMW-100, PMW-150, PMW-160, PMW-200, PMW-300
• Sony PMW-EX1, EX160, EX260, EX280
• Sony PMW-F3, PXW-FS5, PXW-FS7, PXW-FX6, PXW-FX9

It serves as a replacement for BP-U90, BP-U96, BP-U60, and BP-U30 batteries.

Package Contents

• 1 x Andoer V-Lock V Mount Battery Plate to BP-U Dummy Battery Adapter

Setup

Assembling the Adapter

The V-lock battery plate is designed for straightforward attachment and detachment of V-mount batteries. Ensure all components are securely fastened before use.

Adjusting Rod Height

The height of the center rod can be adjusted to accommodate various camera setups and rigs. Loosen the locking mechanism, extend or retract the rod to the desired height, and then secure the lock.

Attaching to Camera Rig

Securely attach the adapter to your camera rig using the integrated rod. Ensure it is stable and will not interfere with camera operation or balance.

Operating Instructions

Connecting a V-Lock Battery

1. Align your V-lock battery with the V-mount plate on the adapter.
2. Slide the battery downwards into place until you hear a click, indicating it is securely locked.

To remove the battery, press the safety lock release button and slide the battery upwards off the plate.

Powering Your Device

Once a charged V-lock battery is securely attached, the integrated BP-U dummy battery will automatically provide 14.4V output to your compatible camcorder. Ensure your camcorder is correctly connected and powered on.

Maintenance

• Keep the adapter clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning.
• Store the adapter in a cool, dry place when not in use, away from direct sunlight and extreme temperatures.
• Avoid dropping or subjecting the adapter to strong impacts, which could damage internal components.
• Do not attempt to disassemble or modify the unit, as this will void the warranty and could cause malfunction.

Troubleshooting

Device Not Powering On

• Ensure the V-lock battery is fully charged and properly seated on the V-mount plate.
• Verify that your camcorder is compatible with BP-U type batteries and the adapter's output voltage.
• Check for any visible damage to the adapter, dummy battery, or connecting cables.

Loose Connection

• Ensure the V-lock battery is securely locked onto the plate. A distinct click should be heard upon proper attachment.
• If the adapter feels unstable on your rig, re-adjust the rod height and ensure all mounting points are tightened.

Specifications

Warranty and Support

This product comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Andoer customer support directly.

For technical assistance, troubleshooting, or any other support inquiries, please visit the official Andoer website or contact their customer service department through the provided channels.
