Introduction
Thank you for choosing the VANBAR D300 Trail Camera. This device is designed for capturing high-quality images and videos of wildlife and for security monitoring in outdoor environments. Please read this manual carefully to ensure proper setup and operation of your camera.
Image: The VANBAR D300 Trail Camera in an outdoor setting, showcasing its camouflage design and primary use for wildlife observation.
Product Overview
The VANBAR D300 Trail Camera is a compact and robust device featuring a 20MP camera for still images and 1080P Full HD video recording. It is equipped with a 120° wide-angle lens and a rapid 0.2-second trigger speed to capture fast-moving subjects. Its IP66 waterproof rating ensures durability in various weather conditions, making it suitable for hunting, wildlife monitoring, and property security.
Image: A hand holding the VANBAR D300 Trail Camera, illustrating its mini and portable design.
Package Contents
Please verify that all items are present in your package:
- VANBAR D300 Trail Camera
- User Manual
- Mounting Belt
- USB Cable
- Base of Stand
- Body of Stand
- Hex Key
- Screws and Wall Plugs

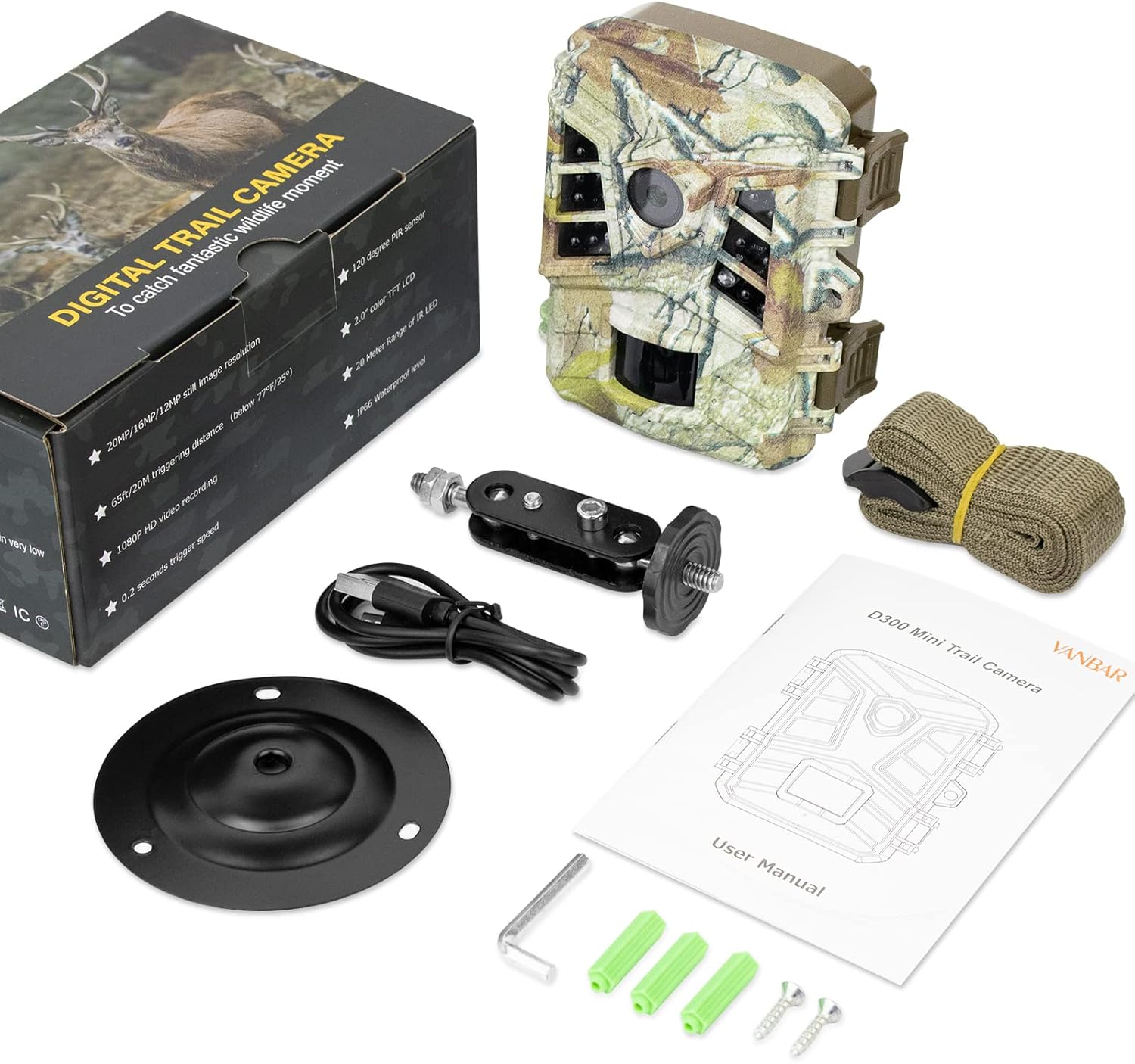

Image: All components included in the VANBAR D300 Trail Camera package, laid out for inspection.
Setup
1. Battery Installation
- Open the camera's casing by unlatching the side clips.
- Locate the battery compartment.
- Insert 4 AA batteries (not included) according to the polarity markings (+/-) inside the compartment.
- Ensure the battery compartment is securely closed to maintain the IP66 waterproof seal.
2. Micro SD Card Installation
- With the camera open, locate the Micro SD card slot.
- Insert a Micro SD card (up to 32GB, not included) into the slot until it clicks into place. Ensure the card is inserted in the correct orientation.
- To remove, gently push the card until it springs out.
Image: A visual reminder that the Micro SD card and batteries are separate purchases.
3. Mounting the Camera
The camera can be mounted using the provided strap or the adjustable stand and screws.
- Strap Mounting: Thread the mounting belt through the slots on the back of the camera and secure it around a tree or pole.
- Stand Mounting: Attach the camera to the body of the stand, then secure the base of the stand to a flat surface using the screws and wall plugs. Adjust the camera angle as needed.
Image: The trail camera discreetly mounted amidst green foliage, demonstrating its camouflage and placement flexibility.
Operating Instructions
1. Powering On/Off
- To power on, slide the mode switch to the "ON" position. The camera will enter test mode or start recording based on settings.
- To power off, slide the mode switch to the "OFF" position.
2. Menu Navigation and Settings
The camera features a multi-language menu for easy configuration. Use the navigation buttons to browse options and confirm selections.
- Mode Selection: Choose between Photo, Video, or Photo+Video modes.
- Photo Resolution: Select up to 20MP for still images.
- Video Resolution: Select 1080P Full HD for video recording.
- Trigger Interval: Set the delay between detections.
- Time-Lapse: Configure the camera to capture images at set intervals.
- Timer: Set specific times for the camera to be active.
- Continuous Shooting: Adjust the number of photos taken per trigger.
Image: A visual demonstration of the superior detail captured by the 20MP resolution compared to 12MP.
Image: A kingfisher in motion, demonstrating the camera's fast 0.2-second trigger speed for capturing dynamic moments.
3. Night Vision
The camera utilizes low-glow infrared technology for invisible night vision, ensuring that animals are not disturbed and footage is captured clearly in low-light conditions. Nighttime images and videos will be in black and white.
Image: A deer and its fawn visible in a forest at night, captured using the camera's invisible infrared night vision feature.
Maintenance
1. Waterproofing
The VANBAR D300 is IP66 waterproof, protecting it from rain, dust, and fog. To maintain this protection, ensure the camera casing is always securely closed and the rubber seals are free from debris before deployment.
Image: The trail camera mounted on a tree during rainfall, demonstrating its IP66 waterproof capability.
2. Cleaning
Regularly clean the camera lens and PIR sensors with a soft, dry cloth to ensure clear images and optimal motion detection. Avoid using abrasive cleaners or solvents.
3. Battery Life
The camera operates on 4 AA batteries. Battery life can vary based on usage, temperature, and battery quality. Consider using high-quality alkaline or rechargeable batteries for extended operation. The camera also supports external solar panels (not included) for continuous power.
Troubleshooting
| Problem | Possible Cause / Solution |
|---|---|
| Camera not powering on | Check battery orientation and charge level. Ensure the mode switch is in the "ON" position. |
| Poor image/video quality | Clean the camera lens. Ensure settings are configured for 20MP photos and 1080P video. Check for condensation inside the lens. |
| No night vision / Dark night images | Ensure the camera is in an area with sufficient ambient light for the IR sensors to activate. Check battery level as low power can affect IR performance. |
| Camera not triggering | Verify motion sensor sensitivity settings. Ensure the camera is positioned correctly to detect movement within its field of view. Check for obstructions in front of the PIR sensor. |
| Water ingress / Moisture inside | Ensure the camera casing is fully closed and latched. Inspect the rubber seals for damage or debris. Avoid submerging the camera. |
| SD card error | Ensure the Micro SD card is correctly inserted and formatted. Try a different, compatible Micro SD card. |
Specifications
| Effective Still Resolution | 20 MP |
| Video Capture Resolution | 1080p Full HD |
| Trigger Speed | 0.2 seconds |
| Viewing Angle | 120 Degrees |
| International Protection Rating | IP66 (Waterproof) |
| Power Source | Battery Powered (4 AA batteries), Solar (external panel not included) |
| Low Light Technology | Night Color (Infrared) |
| Connectivity Technology | Wireless (Wi-Fi) - Note: Product specifications mention Wi-Fi, but feature bullets do not elaborate on direct Wi-Fi connectivity for data transfer. Refer to the product's specific Wi-Fi functionality in the user manual for details. |
| Recommended Uses | Game & Trail, Outdoor Security |
| Item Weight | 13.4 ounces |
| Package Dimensions | 6.46 x 4.06 x 2.91 inches |
Warranty and Support
VANBAR offers a ONE-YEAR after-sale service for this product. If you encounter any issues or have questions regarding your VANBAR D300 Trail Camera, please do not hesitate to contact our customer service team.
For product support, please refer to the contact information provided in the user manual included with your product or visit the official VANBAR store:
