1. Product Overview
The 9imod 35KG Waterproof High Torque Digital Servo (Model: DS35MG-270) is a high-performance steering servo designed for various remote control applications, including 1/8, 1/10, and 1/12 scale RC cars, robots, and DIY models. It features a robust metal gear construction, a coreless motor for quick response, and an IP67 waterproof rating, ensuring reliable operation in challenging environments.
Image 1.1: The 9imod 35KG Waterproof High Torque Digital Servo with included accessories.
2. Key Features
- High Voltage & High Torque: Operates at 7.4V, providing strong torque output (35kg-cm at 7.4V) suitable for demanding applications like Traxxas TRX4/4x4 slash, Axial Capra 1/10, and HPI Savage Xs flux.
- Quick Response High Speed: Coreless motor design ensures fast response speed for accurate and smooth steering control.
- IP67 Waterproof Rating: Designed to function reliably in damp, dusty, and muddy conditions, protecting the servo from water and dust ingress.
- Efficient Heat Dissipation: Features an aluminum alloy casing to prevent overheating during prolonged high-load operations, maintaining optimal performance.
- All Metal Gear Construction: Utilizes high-precision strength steel gears for enhanced durability and a longer service life.
- Wide Application: Ideal for RC cars (1/8, 1/10, 1/12 scale), robotic parts, quadcopter drones, and other remote control equipment.
- Compact Size: Dimensions of 40 x 20 x 40.5 mm (1.57 x 0.78 x 1.57 inches) and a weight of 80g (2.7oz).
- Includes 25T Metal Servo Horn: Comes with a 25T metal servo arm for direct installation.
Image 2.1: Internal view highlighting the full high-precision steel gears for durability.
3. Setup and Installation
Proper installation is crucial for optimal servo performance. Follow these general guidelines:
- Mounting: Securely mount the servo to your RC vehicle or robot chassis using the provided screws and mounting brackets. Ensure there is no excessive play or movement.
- Servo Horn Attachment: Attach the appropriate servo horn (25T metal servo horn included) to the servo output shaft. Ensure it is aligned correctly with your steering linkage or robotic arm.
- Wiring: Connect the servo's three-wire cable (typically brown/black for ground, red for positive voltage, and orange/yellow for signal) to the corresponding channels on your receiver or flight controller. This servo uses a Futaba/JR connector.
- Power Supply: Ensure your power supply (e.g., BEC or battery) provides the recommended voltage of 7.4V for optimal performance. The servo supports a voltage range up to 8.4V.
- Calibration: After installation, calibrate the servo with your remote control system to set the neutral position and end-points. Refer to your RC system's manual for specific calibration procedures.

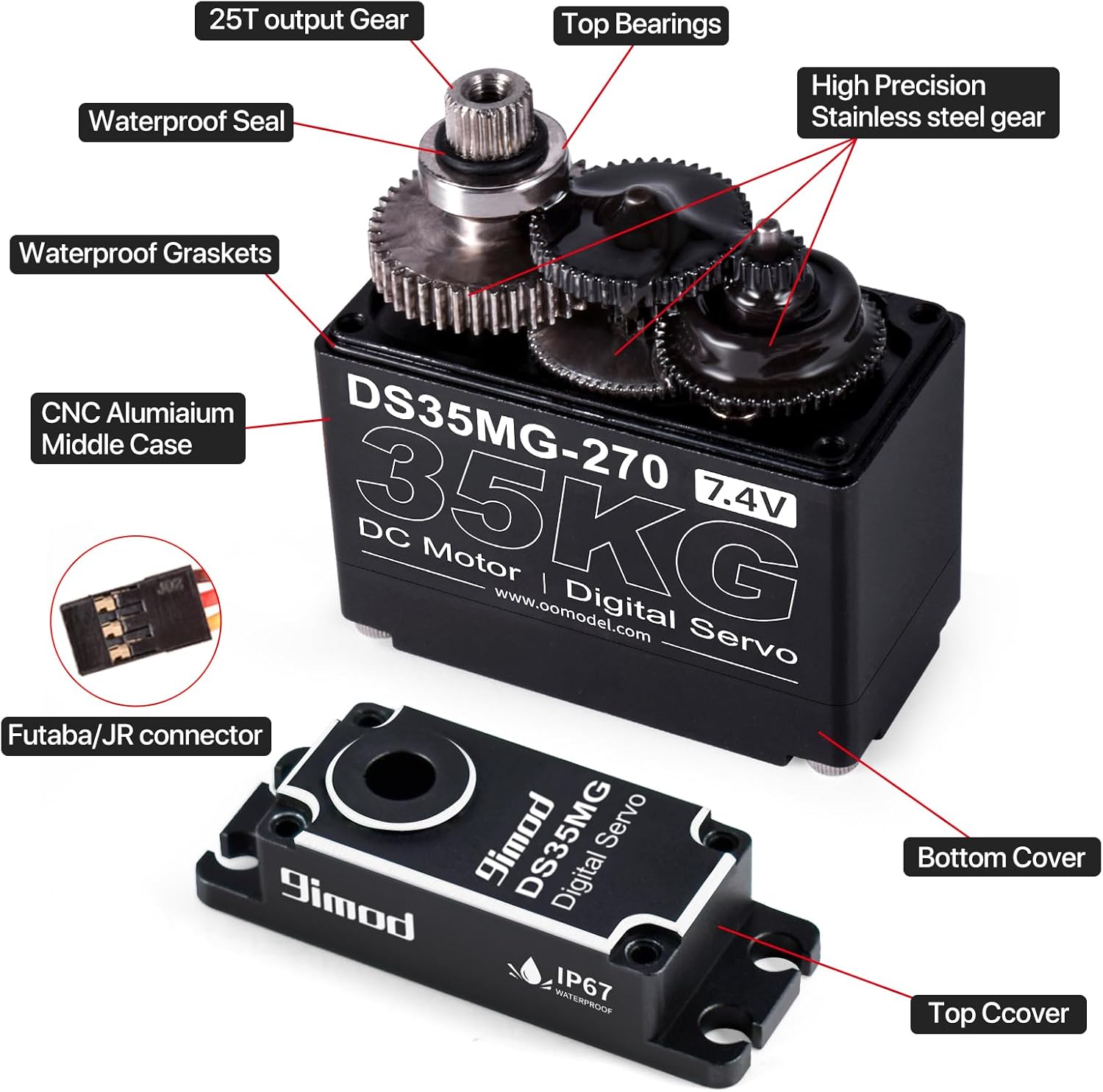

Image 3.1: Exploded view showing internal components, waterproof seals, and Futaba/JR connector.
3.1 Compatibility
This servo is compatible with a wide range of RC vehicles, including:
- Traxxas TRX4/4x4 Slash
- Axial Capra 1/10
- HPI Savage Xs Flux
- Other 1/8, 1/10, and 1/12 scale RC crawler short course trucks.
Image 3.2: The 9imod servo installed in an RC crawler, demonstrating its fit and application.
4. Operating Instructions
Once installed and calibrated, the 9imod 35KG Digital Servo provides precise and powerful control. Its coreless design ensures rapid response to commands, making it suitable for applications requiring quick and accurate movements.
4.1 Basic Operation
- The servo receives pulse width modulation (PWM) signals from your receiver to determine its position.
- Moving the control stick on your transmitter will send signals to the servo, causing it to rotate to the commanded angle.
- The 270-degree rotation capability allows for a wide range of motion, ideal for steering and other articulated movements.
Image 4.1: Diagram showing PWM signal interpretation for 180 and 270-degree control.
4.2 Operational Videos
Video 4.1: Demonstration of the 9imod High Torque Steering Servo in a 1/10 RC Crawler during an upgrade process.
Video 4.2: Showcase of the Waterproof High Torque RC Servo Motor's capabilities for robotic DIY and RC car applications.
Video 4.3: A brief overview of the 9imod 35kg RC servo motor in action.
Video 4.4: Demonstration of the 1/10 RC Steering Servo's high torque and waterproof features.
5. Maintenance
To ensure the longevity and optimal performance of your 9imod 35KG Digital Servo, follow these maintenance guidelines:
- Regular Cleaning: Periodically clean the exterior of the servo to remove dirt, dust, and debris. Use a soft, dry cloth.
- Waterproof Integrity: While the servo is IP67 rated, avoid prolonged submersion in water or exposure to harsh chemicals. After operating in wet conditions, allow the servo to dry thoroughly.
- Gear Inspection: Occasionally inspect the metal gears for any signs of wear or damage. If excessive wear is observed, consider replacing the gears to maintain precision.
- Connection Check: Ensure all electrical connections (servo to receiver/controller, power supply) are secure and free from corrosion.
- Avoid Overloading: Do not exceed the servo's specified torque limits, as this can lead to premature wear or damage to the motor and gears.
- Heat Management: The aluminum casing provides efficient heat dissipation. Ensure adequate airflow around the servo, especially during intense operation, to prevent overheating.
Video 5.1: A waterproof test of the 9imod servo motors, demonstrating their resilience to water exposure.
Image 5.1: The 9imod servo undergoing a waterproof test, highlighting its IP67 rating.
6. Troubleshooting
If you encounter issues with your 9imod 35KG Digital Servo, consider the following troubleshooting steps:
- Servo Not Responding:
- Check all wiring connections to ensure they are secure and correctly plugged into the receiver/controller and power source.
- Verify that the receiver/controller is powered on and functioning correctly.
- Ensure the power supply (BEC/battery) is providing sufficient voltage and current.
- Erratic Movement or Glitching:
- Check for radio interference. Try operating the servo in a different location or away from other electronic devices.
- Inspect the servo horn and linkage for any obstructions or binding that might impede smooth movement.
- Ensure the servo is securely mounted and not vibrating excessively.
- Limited Rotation Angle (e.g., not 270 degrees):
- Verify your remote control system's end-point adjustments (EPA) or travel settings are correctly configured for the servo's full range of motion.
- Some controllers may require specific signal configurations to achieve the full 270-degree rotation. Consult your controller's manual.
- Weak or Slow Response:
- Confirm that the servo is receiving the recommended voltage (7.4V). Lower voltage can reduce torque and speed.
- Check for any mechanical binding in the linkage that could be putting excessive load on the servo.
- Ensure the servo is not overheating. Allow it to cool down if it feels excessively warm.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | 9imod |
| Model | DS35MG-270 |
| Stall Torque (6.0V) | 30kg-cm |
| Stall Torque (7.4V) | 35kg-cm |
| Stall Torque (8.4V) | 38kg-cm |
| Speed (6.0V) | 0.14 sec/60° |
| Speed (7.4V) | 0.13 sec/60° |
| Speed (8.4V) | 0.11 sec/60° |
| Operating Travel | 270° ± 1° |
| Dead Band | 2 μSec |
| Neutral/Refresh Rate | 1500μs |
| Motor Type | DC Motor (Coreless) |
| Gear Material | Strength Steel |
| Case Material | AL6061T6 (Aluminum Alloy) |
| Bearing | Double Ball Bearings |
| Waterproof Rating | IP67 |
| Operating Temperature | -20°C ~ +60°C |
| Pulse Width | 500 to 2500 μSec |
| Size | 40 x 20 x 40.5 mm (1.57 x 0.78 x 1.57 inches) |
| Net Weight | 80g (2.7oz) |
| Horn Gear Spline | 25T-Φ5.92mm |
Image 7.1: Detailed specifications of the 9imod 35KG Waterproof Digital Servo.

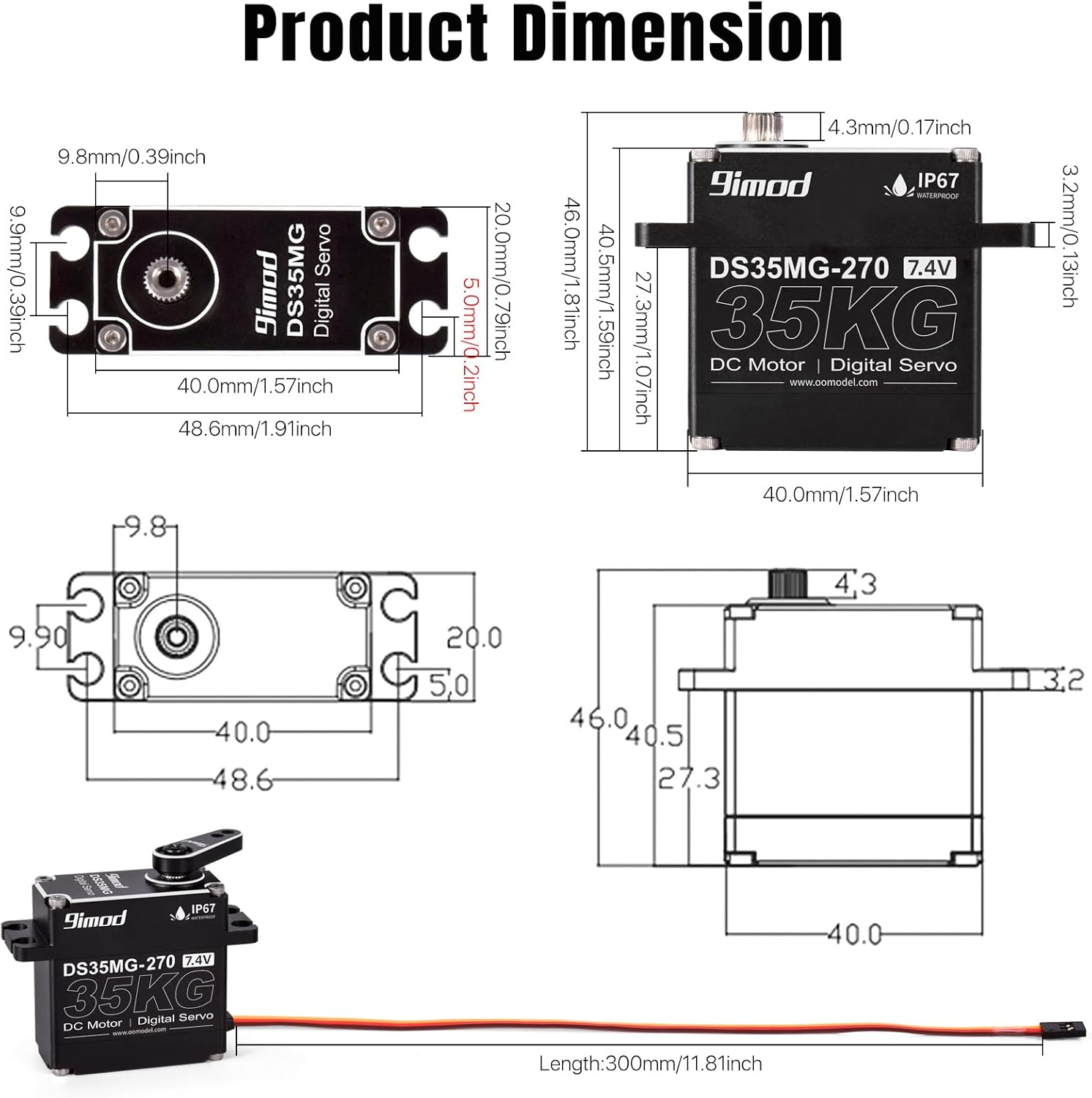

Image 7.2: Dimensional drawing providing precise measurements of the servo.
8. What's in the Box
The product package includes the following items:
- 1 x 9imod 35KG Waterproof High Torque Digital Servo (DS35MG-270)
- 1 x 25T Metal Servo Horn
- Assorted mounting screws and accessories
Image 8.1: The 9imod 35KG Digital Servo and its accompanying accessories.
9. Warranty and Support
For warranty information and technical support, please refer to the official 9imod website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
For additional resources and product information, you may visit the 9imod Store on Amazon.
