ChongXiao 36V-72V Universal Brushless Controller Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your ChongXiao Universal Brushless Controller. This controller is designed for electric scooters and e-bikes, offering versatile voltage compatibility and robust performance. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Product Features

• Brushless Design: Ensures stable operation and extended service life for brushless motors.
• Versatile Application: Suitable for electric bicycle scooters, controlling rotational speed and direction.
• Broad Compatibility: Designed to be compatible with various brands and models of electric bicycle scooters.
• Advanced Technology: Incorporates advanced technology for excellent performance, durability, safety, and stability.
• Simple Wiring: Features complete functions and straightforward wiring. Users can connect only the necessary functions, leaving unused wires unwired.

3. Specifications

4. Component Overview and Wiring Identification

The ChongXiao Universal Brushless Controller features a robust aluminum casing for heat dissipation and a comprehensive wiring harness for various connections. Below are images illustrating the controller and its labeled wires.

Image: The ChongXiao Universal Brushless Controller, showcasing its main body and the array of colored wires extending from it, ready for connection.

Image: A close-up view of the product label on the controller, detailing specifications such as battery voltage, current limit, brake type, and phase angle.

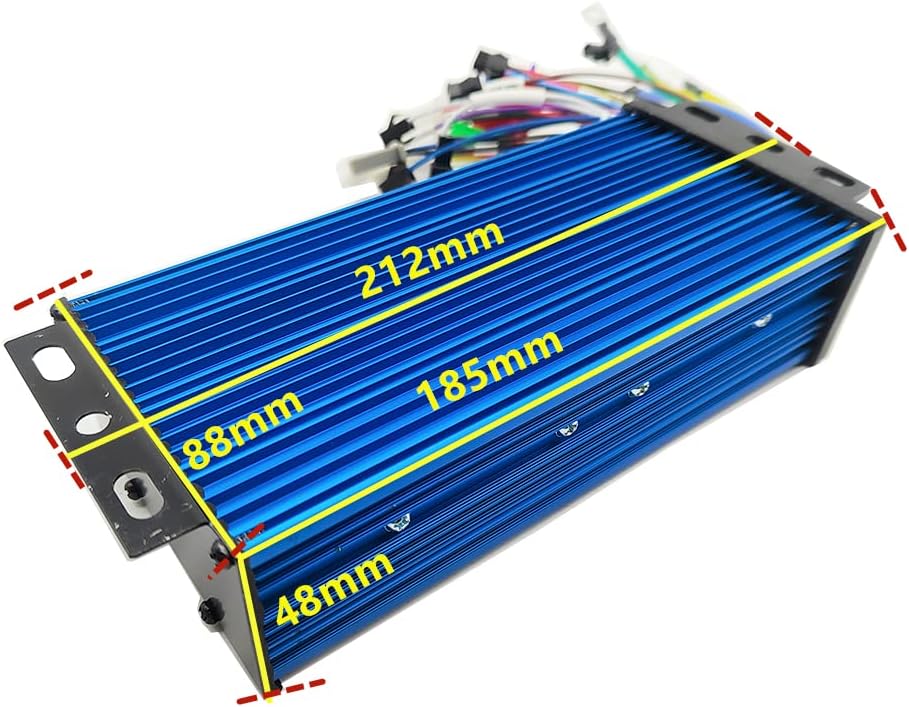

Image: The controller with overlaid measurements indicating its length (212mm), width (88mm), and height (48mm), providing a clear understanding of its physical size.

Image: A detailed diagram showing the controller's wiring harness with each wire and connector clearly numbered and labeled for identification and connection purposes.

For a visual guide to the controller and its wiring, please refer to the video below:

Wiring List:

1. Hall Sensor Wires
2. Cruise Function Wire
3. Hall Meter Wire
4. Intelligent Recognition (Self-Learning) Wires
5. High Level Brake Wire
6. Phase Meter Wire
7. PAS (Pedal Assist System) Wire
8. Reverse Function Wire
9. Multiple Data Meter Wire
10. Low Level Brake Wire
11. Speed Control Handle (Throttle) Wires
12. Electric Door Lock Wire
13. Three Speed Control Wires
14. Anti-Theft Alarm Signal Wire
15. Anti-Theft Alarm Power Wire
16. Motor Phase Lines (3 wires)
17. Battery Power Lines (Red: Battery+, Black: Battery-)

5. Installation Guide

Follow these steps carefully to connect your brushless controller. Ensure all power is disconnected before beginning installation.

1. Connect Motor Phase Lines: Connect the three motor phase lines from the controller to the corresponding motor phase lines. Ensure color-to-color matching (e.g., blue to blue, green to green, yellow to yellow).
2. Connect Battery Lines: Connect the main battery power lines. The red wire from the controller connects to the battery positive (+) terminal, and the black wire connects to the battery negative (-) terminal.
3. Connect Throttle and Electric Door Lock: Connect the controller's throttle wires to the throttle unit, ensuring color-to-color matching. Connect the controller's electric door lock wire to the throttle's electric door lock wire. If your throttle does not have an electric door lock, ensure the controller's electric door lock wires are connected (e.g., looped or connected to a power source as required by the specific setup).
4. Connect Hall Sensor Wires: Connect the Hall sensor wires from the controller to the motor's Hall sensor wires. If your motor does not have Hall sensor wires, this connection is not required.
5. Perform Self-Learning (Intelligent Recognition): Connect the two self-learning wires (often labeled for intelligent recognition). The wheel will either move forward or reverse.
   • If the wheel moves forward correctly, disconnect the self-learning wires.
   • If the wheel moves in reverse, disconnect the self-learning wires, then reconnect them again. The wheel should now move forward. Once it moves forward, disconnect the self-learning wires.
6. Connect Other Functions: Connect other functional wires as needed, such as brake wires (low or high level), PAS (pedal assist), cruise, three-speed, anti-theft alarm, and meter connections. Functions not in use do not need to be wired.

For a visual demonstration of connecting a controller, please watch the video below:

6. Operating Instructions

Once the controller is correctly installed and all connections are secure, you can operate your electric scooter or e-bike. The controller manages power delivery to the motor based on your input from the throttle and other connected accessories.

• Power On: Ensure the battery is charged and connected. Turn on the electric door lock or main power switch.
• Throttle Control: Gently twist the speed control handle (throttle) to accelerate. The controller will regulate motor speed accordingly.
• Braking: Apply the brakes. The controller supports both low and high-level brake signals, which will cut power to the motor when activated.
• PAS (Pedal Assist): If connected, the pedal assist system will provide motor power when you pedal, enhancing your riding experience.
• Three-Speed Function: If connected, use the three-speed switch to select different speed modes (e.g., low, medium, high) for varied riding conditions.
• Cruise Function: If connected, activate the cruise function to maintain a constant speed without continuous throttle input.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your controller.

• Keep Dry: Protect the controller from water and excessive moisture. While the aluminum casing offers some protection, it is not fully waterproof.
• Clean Regularly: Periodically clean the exterior of the controller to prevent dust and dirt buildup, which can affect heat dissipation. Use a dry, soft cloth.
• Check Connections: Regularly inspect all wire connections to ensure they are secure and free from corrosion or damage. Loose connections can lead to intermittent operation or component failure.
• Avoid Overheating: Ensure the controller has adequate airflow, especially during prolonged use or high-power demands. The ribbed aluminum design aids in heat dissipation.
• Handle with Care: Avoid dropping or subjecting the controller to strong impacts, which can damage internal components.

8. Troubleshooting

If you encounter issues with your controller, consider the following common troubleshooting steps:

• No Power: Check battery connections and ensure the electric door lock/power switch is engaged. Verify battery voltage is within the controller's operating range.
• Motor Not Responding: Ensure all motor phase lines and Hall sensor wires (if applicable) are correctly connected. Re-perform the self-learning procedure. Check throttle connections.
• Intermittent Operation: Inspect all wiring for loose connections, frayed wires, or corrosion. Ensure the controller is not overheating.
• Incorrect Wheel Direction: If the wheel spins in the wrong direction, re-perform the self-learning procedure as described in the installation guide.
• Brakes Not Working: Verify brake lever connections and ensure the brake signal wires are properly connected to the controller.

If problems persist after attempting these steps, consult a qualified technician.

9. Warranty and Support

This product does not come with a manufacturer's warranty. For any technical inquiries or support, please refer to the retailer or platform where the product was purchased.
