HUIOP 48V 500W 10-Inch E-Scooter Hub Motor Wheel Instruction Manual

1. Product Overview

This manual provides essential information for the HUIOP 48V 500W 10-inch E-Scooter Hub Motor Wheel, designed as a replacement part for Kugoo M4 and M4PRO electric scooters. This motor wheel features a 48V 500W motor for high strength and efficiency, an aluminum alloy frame for good heat dissipation, and a 10-inch inflatable rubber tire for a smooth ride and shock absorption.

Figure 1: The HUIOP 48V 500W 10-inch E-Scooter Hub Motor Wheel, featuring a robust design with an inflatable tire and integrated motor.

2. Specifications

Figure 2: Detailed dimensions of the motor wheel, showing its height and width for compatibility assessment.

3. Setup and Installation

This motor wheel is designed as a direct replacement for the rear wheel motor of Kugoo M4/M4PRO electric scooters. Installation involves removing the existing motor wheel and connecting the new unit. Due to the electrical components and mechanical requirements, professional installation is recommended to ensure proper function and safety.

3.1 Pre-Installation Checks

• Ensure the scooter is powered off and disconnected from any charging source.
• Verify that the replacement motor wheel specifications (voltage, power, size) match your scooter's requirements.
• Inspect the new motor wheel for any visible damage before installation.

3.2 Installation Steps (General Guidance)

1. Carefully remove the existing rear wheel motor from your scooter. This typically involves disconnecting electrical wires and unbolting the axle.
2. Position the new HUIOP motor wheel into the scooter's rear fork.
3. Secure the motor wheel by tightening the axle nuts to the manufacturer's specified torque.
4. Connect the electrical wires from the motor wheel to the scooter's controller. Ensure all connections are secure and correctly matched (refer to your scooter's wiring diagram if available).
5. Once installed, perform a functional check before riding.

Figure 3: The HUIOP motor wheel positioned alongside an electric scooter, illustrating its intended application as a replacement part.

Figure 4: An electric scooter highlighting the rear wheel motor area, indicating where the HUIOP replacement part is installed.

4. Operating Considerations

Once installed, the HUIOP motor wheel contributes to the overall performance of your electric scooter. The 500W motor provides ample power for various riding conditions, including climbing and acceleration. The inflatable rubber tire is designed to absorb shocks, enhancing riding comfort and stability.

4.1 Performance Features

• High Efficiency: The 48V 500W motor delivers strong and consistent power output.
• Smooth Ride: The 10-inch inflatable rubber tire provides excellent shock absorption, reducing impact from road surfaces.
• Quiet Operation: Designed for noise control, the motor runs quietly, contributing to a pleasant riding experience.

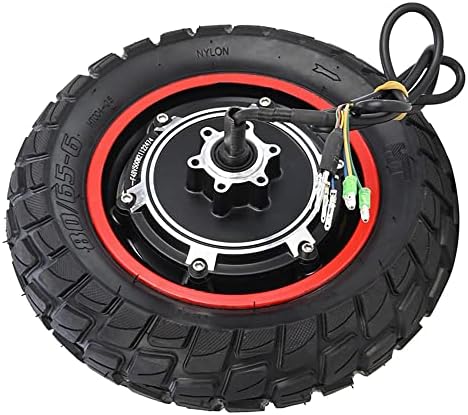

Figure 5: A detailed view of the motor wheel's electrical connections, illustrating the wiring for power and control signals.

5. Maintenance

Regular maintenance of your motor wheel ensures longevity and optimal performance. Pay attention to the tire and motor housing.

5.1 Tire Maintenance

• Tire Pressure: Regularly check and maintain the recommended tire pressure for the 10-inch inflatable tire. Proper inflation is crucial for ride comfort, efficiency, and preventing punctures.
• Tread Inspection: Periodically inspect the tire tread for wear, cuts, or embedded debris. Replace the tire if significant wear or damage is observed.

Figure 6: A close-up of the tire's valve stem, indicating the point for inflation and pressure checks.

5.2 Motor Housing Care

• Cleaning: Keep the motor housing clean from dirt and debris. Use a damp cloth for cleaning; avoid direct water spray.
• Water Resistance: The motor wheel is designed to withstand use in rainy conditions without damage from water. However, avoid submerging the motor or exposing it to high-pressure water jets.
• Connection Check: Periodically inspect all electrical connections for tightness and signs of corrosion.

Figure 7: Top-down view of the motor wheel, highlighting the robust motor housing and the patterned tread of the inflatable tire.

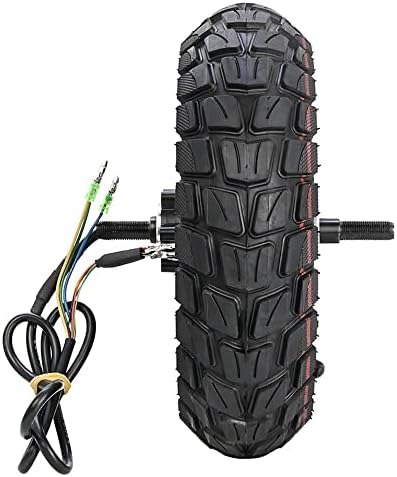

Figure 8: Side profile of the motor wheel, emphasizing the tire's structure and the axle components.

6. Troubleshooting

This section addresses common issues that may arise with the motor wheel. For complex problems, consult a qualified technician.

6.1 Common Issues and Solutions

• Loss of Power or Intermittent Operation:
  • Check all electrical connections to ensure they are secure and free from corrosion.
  • Verify the scooter's battery charge level.
  • Inspect wiring for any visible damage or pinches.
• Unusual Noises from Motor:
  • Ensure the motor wheel is securely mounted and all bolts are tightened.
  • Check for any foreign objects lodged near the motor or wheel.
  • If noises persist, professional inspection is recommended.
• Flat Tire or Rapid Air Loss:
  • Inspect the tire for punctures or valve stem damage.
  • Repair or replace the inner tube/tire as necessary.

7. Warranty and Support

For warranty information regarding your HUIOP 48V 500W 10-inch E-Scooter Hub Motor Wheel, please refer to the documentation provided at the time of purchase or contact the seller directly. Support for installation, troubleshooting, or general inquiries should also be directed to the seller or the manufacturer, HUIOP.
