Vive Hydraulic Patient Lift Instruction Manual

Introduction

This manual provides essential instructions for the safe and effective use of your Vive Hydraulic Patient Lift. Designed for home use, this portable medical transfer system assists in moving individuals between various surfaces such as wheelchairs, beds, and chairs, reducing strain on caregivers. Please read all instructions carefully before assembly and operation.

The Vive Hydraulic Patient Lift features a robust design capable of supporting up to 400 pounds, ensuring secure transfers. Its heavy-duty hydraulic pump allows for effortless operation, eliminating the need for significant physical strength during lifting and lowering. The lift is constructed from corrosion-resistant alloy steel for long-lasting durability and includes premium safety features such as durable wheels and a strong, adjustable base.

Setup and Assembly

The Vive Hydraulic Patient Lift requires minimal assembly. Follow the steps below to ensure proper setup.

Unpacking: Carefully remove all components from the packaging. Verify that all parts are present according to the packing list.
Base Assembly: Attach the main column to the base. Ensure all bolts are securely fastened. Two people may be required for easier assembly.
Lifting Arm Installation: Connect the lifting arm to the main column.
Hydraulic Pump Attachment: Secure the hydraulic cylinder pump to its designated position.
Sling Attachment: If a sling is included, attach it to the cradle bar according to the sling's specific instructions. Ensure all attachment points are secure.

Caregiver operating Vive Hydraulic Patient Lift with patient in sling, next to a wheelchair. — Image: A caregiver demonstrates the ease of use of the Vive Hydraulic Patient Lift, maneuvering a patient from a wheelchair. The image highlights the lift's intuitive design and the presence of a detailed instruction manual.

Diagram of Vive Hydraulic Patient Lift components: Lifting Arm, Hydraulic Cylinder Pump, Transport Handle, 4 inch Rear Caster with Brake. — Image: A detailed diagram illustrating the key components of the Vive Hydraulic Patient Lift, including the lifting arm, hydraulic cylinder pump, transport handle, and 4-inch rear caster with brake, emphasizing its durable and long-lasting design.

Dimensions diagram of Vive Hydraulic Patient Lift: Adjustable Height 30.7-74 inches, Adjustable Base Width 24.4-31.5 inches, Length 43 inches, Base Height 4.5 inches. — Image: A diagram displaying the critical dimensions of the Vive Hydraulic Patient Lift, including its adjustable height (30.7"-74"), adjustable base width (24.4"-31.5"), length (43"), and base height (4.5"). This helps users ensure compatibility with their space.

Video: Vive Hydraulic Patient Lift Overview

Video: This video provides a comprehensive overview of the Vive Hydraulic Patient Lift, demonstrating its features, assembly, and general operation for safe patient transfers.

Operating Instructions

Lifting and Lowering

To Lift: Position the patient in the sling. Ensure the hydraulic pump control lever is fully clockwise (towards the pump handle). Pump the hydraulic handle to gently raise the patient.
To Lower: Slowly turn the hydraulic pump control lever counter-clockwise (away from the pump handle). The patient's weight will assist in a gradual and controlled descent.

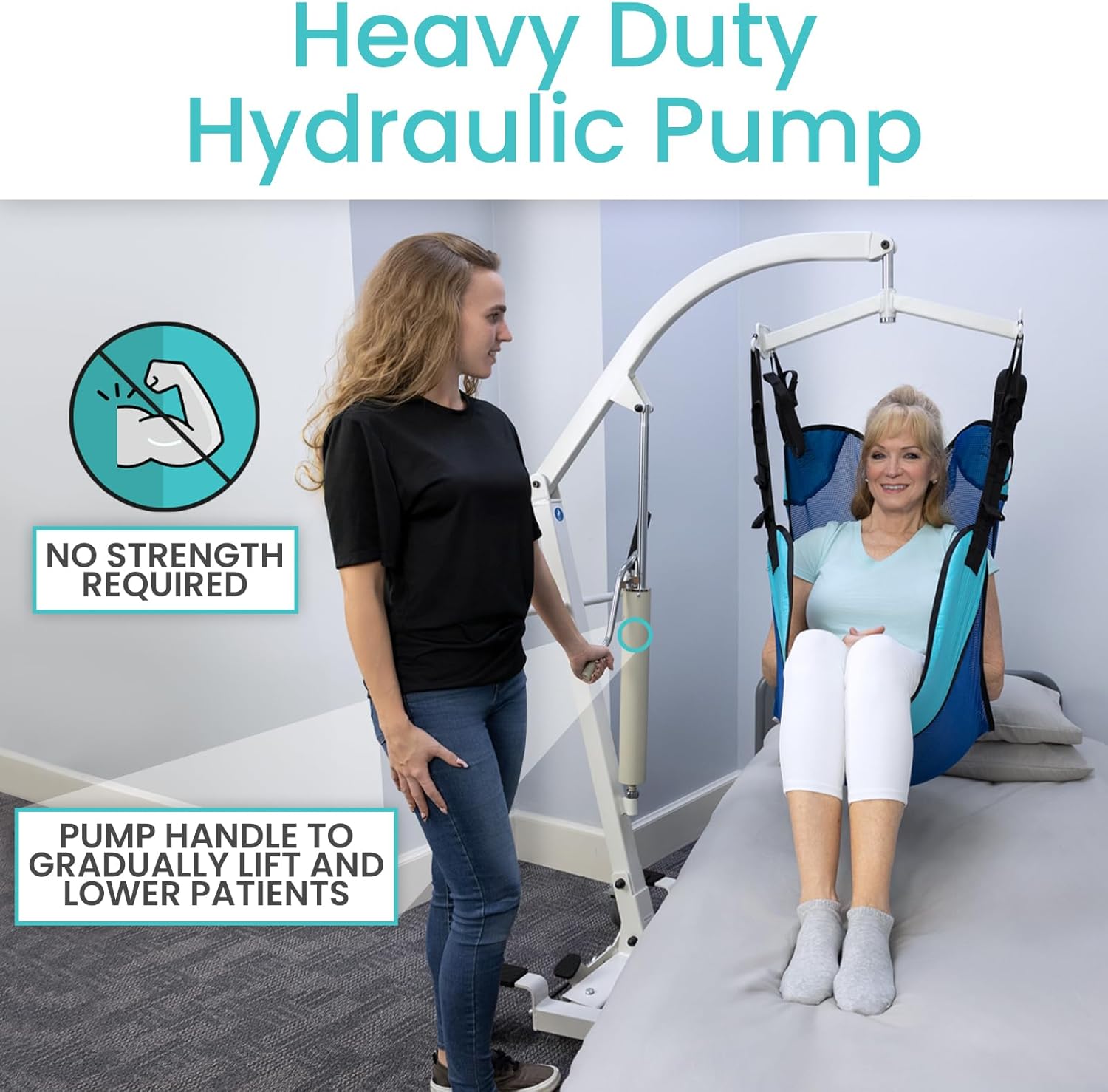

Caregiver operating the heavy-duty hydraulic pump of the Vive Patient Lift to raise a patient in a sling. — Image: A caregiver operates the heavy-duty hydraulic pump, demonstrating how the lift requires no significant physical strength to gradually lift and lower patients, ensuring smooth transfers.

Base Width Adjustment

The adjustable base provides stability and maneuverability. Press the left and right pedal adjusters with your foot to widen or narrow the base. This allows the lift to navigate through doorways and around furniture with ease, or to fit around commodes.

Close-up of a foot pressing the pedal adjuster to change the base width of the Vive Hydraulic Patient Lift. — Image: A close-up view of a foot pressing the pedal adjuster to modify the base width of the patient lift, illustrating how this feature provides stability and maneuverability for navigating various spaces.

Patient Transfer

The 360-degree rotation cradle bar and multiple sling attachment points offer maximum flexibility and comfort during transfers, regardless of the patient's position. Always ensure the patient is securely positioned in the sling before initiating any movement.

Caregiver assisting a patient in a sling with the Vive Hydraulic Patient Lift, showing transfers from bed to wheelchair. — Image: A caregiver uses the Vive Hydraulic Patient Lift to safely transfer a patient from a bed to a wheelchair, highlighting the lift's utility for various home transfer needs.

Caregiver operating the Vive Hydraulic Patient Lift with a patient in a sling, demonstrating its 400 lb capacity. — Image: A caregiver operates the Vive Hydraulic Patient Lift, showcasing its strong and sturdy construction that supports up to 400 lbs, ensuring secure patient transfers.

Patient in a sling being lifted by the Vive Hydraulic Patient Lift, highlighting the 360-degree rotation cradle bar and sling attachment points. — Image: A patient is shown in a sling, suspended by the Vive Hydraulic Patient Lift, illustrating the 360-degree rotation cradle bar and multiple sling attachment points for versatile and comfortable transfers.

Video: About Vive's Hydraulic Patient Lift

Video: This video details the operational aspects and benefits of the Vive Hydraulic Patient Lift, focusing on its ease of use and safety features during patient transfers.

Maintenance

Cleaning: Wipe down the frame with a damp cloth and mild detergent regularly. Avoid abrasive cleaners.
Hydraulic System: Periodically check the hydraulic pump for any leaks or signs of wear. Consult a professional if issues are detected.
Casters: Keep the casters clean and free of debris to ensure smooth movement. Check brakes for proper function.
Sling Care: Follow the washing instructions provided with your patient sling. Inspect slings for tears or damage before each use.

Troubleshooting

Lift Not Raising/Lowering: Ensure the hydraulic pump control lever is correctly positioned (clockwise for lifting, slowly counter-clockwise for lowering). Check for any obstructions.
Difficulty Moving Lift: Verify that the caster brakes are disengaged. Clean any debris from the wheels. Ensure the base width is appropriate for the pathway.
Sling Attachment Issues: Confirm that the sling straps are correctly attached to the cradle bar's attachment points. Ensure the sling is compatible with the lift.
Lift Does Not Go Low Enough: If the lift does not lower sufficiently to attach the sling from the floor, consider using a sling with longer straps or adjusting the patient's initial position if possible.

Product Specifications

Feature	Specification
Weight Capacity	Up to 400 lbs
Package Dimensions	46 x 27 x 13 inches
Product Weight	86 Pounds
Adjustable Height Range	30.7 - 74 inches
Adjustable Base Width	24.4 - 31.5 inches
Manufacturer	Vive Health

Warranty and Support

The Vive Hydraulic Patient Lift comes with the following guarantees:

Limited Lifetime Guarantee: On the frame.
1-Year Guarantee: On the hydraulic pump.
90-Day Guarantee: On the wheels, brakes, and other miscellaneous parts.

For customer support or further assistance, please visit the Vive Store or contact Vive Health Direct customer service.

This product is eligible for purchase with Health Savings Account (HSA) or Flexible Spending Account (FSA) funds.
