Introduction
Thank you for purchasing the Berlinger Haus Hand Mixer with Stand, model BH/9368. This appliance is designed to simplify your baking and cooking tasks with its powerful motor and versatile attachments. Please read this manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.
Safety Instructions
- Always unplug the mixer from the power outlet before cleaning or when not in use.
- Do not immerse the motor unit in water or any other liquid.
- Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury.
- Supervise children closely when the appliance is in use.
- Do not operate the mixer with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
- Use only attachments recommended or sold by the manufacturer.
- Ensure the appliance is placed on a stable, flat surface during operation.
Product Overview

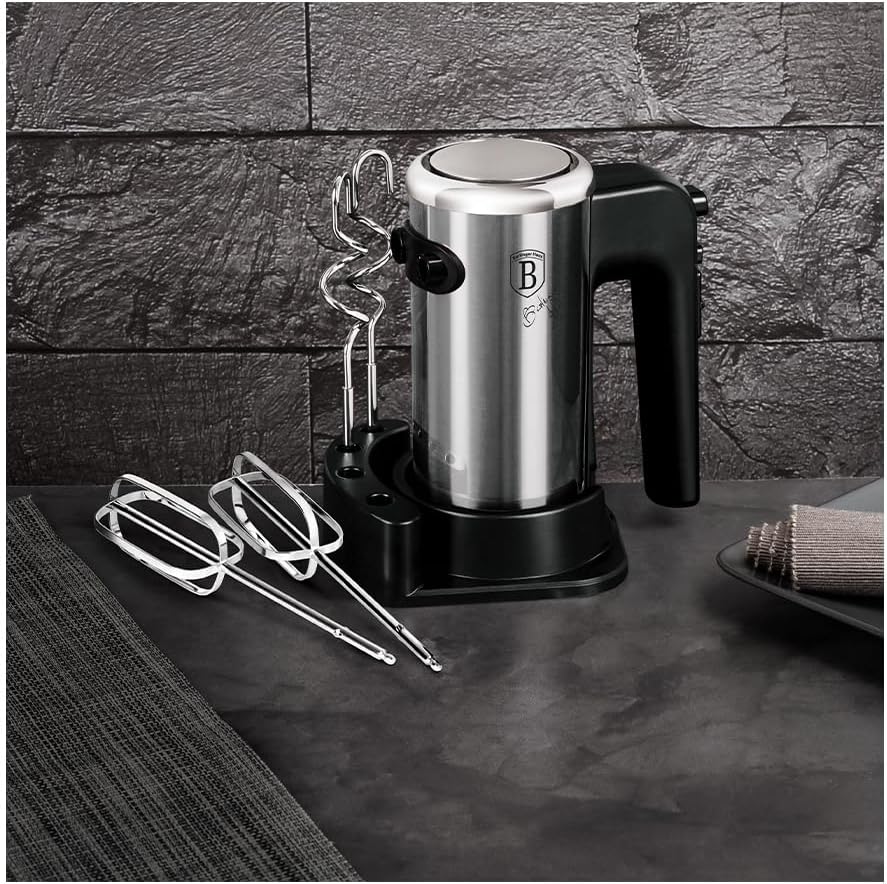

Figure 1: Berlinger Haus Hand Mixer with Stand, showing the main unit, mixing bowl stand, beaters, and dough hooks.
Figure 2: The hand mixer detached from its stand, with beaters and dough hooks laid out, ready for use.
The Berlinger Haus Hand Mixer (BH/9368) features a powerful motor with 5 adjustable speed settings and a turbo function for quick bursts of power. It comes with a convenient stand and mixing bowl, allowing for hands-free operation. The mixer includes two types of attachments: beaters for whisking and mixing, and dough hooks for kneading.
- A. Mixer Unit (Handheld)
- B. Speed Selector (0-5)
- C. Turbo Button
- D. Eject Button
- E. Stand Base
- F. Rotating Mixing Bowl (not explicitly shown in images, but implied by "with stand")
- G. Beaters
- H. Dough Hooks
Setup
- Unpacking: Carefully remove all components from the packaging. Retain the packaging for future storage or transport.
- Initial Cleaning: Before first use, wash the beaters, dough hooks, and mixing bowl (if included) in warm, soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water.
- Assembling the Stand: Place the stand base on a stable, flat surface. Ensure the mixer unit can be securely attached to the stand.
- Attaching Beaters/Dough Hooks:
- Insert the beaters or dough hooks into the appropriate openings on the underside of the mixer unit. Push firmly until they click into place. Ensure the correct attachment is inserted into the correct hole (one beater/hook has a collar, the other does not).
- For dough hooks, ensure they are inserted correctly to avoid tangling.
- Placing the Mixer on Stand: If using the stand, securely place the mixer unit onto the stand, ensuring it locks into position. Place the mixing bowl onto the stand's rotating platform.
Operating Instructions
Using as a Hand Mixer:
- Ensure the beaters/dough hooks are securely attached.
- Plug the mixer into a suitable power outlet.
- Hold the mixer firmly and immerse the beaters/dough hooks into the ingredients in your mixing bowl.
- Select the desired speed using the speed selector switch (0-5). Start with a low speed and gradually increase as needed to prevent splashing.
- For extra power, press and hold the TURBO button. Release to return to the selected speed.
- When finished, switch the speed selector to '0' and unplug the mixer.
- Press the EJECT button to release the beaters/dough hooks.
Using with the Stand:
- Ensure the mixer unit is securely placed on the stand and the mixing bowl is on its platform.
- Add ingredients to the mixing bowl.
- Plug the mixer into a suitable power outlet.
- Select the desired speed using the speed selector switch (0-5). The bowl will rotate automatically during mixing.
- Monitor the mixing process. You may need to scrape down the sides of the bowl occasionally.
- When finished, switch the speed selector to '0' and unplug the mixer.
- Carefully lift the mixer unit from the stand. Press the EJECT button to release the beaters/dough hooks.
Maintenance and Cleaning
- Always unplug the mixer before cleaning.
- Motor Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- Beaters and Dough Hooks: These attachments are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry immediately to prevent rust.
- Mixing Bowl and Stand: Wash the mixing bowl in warm, soapy water or place it in the dishwasher. Wipe the stand base with a damp cloth.
- Storage: Store the mixer and its attachments in a dry place. The stand is designed for easy storage of the attachments.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not turn on. | Not plugged in; power outlet faulty; speed selector not at '0' before turning on. | Ensure plug is fully inserted. Test outlet with another appliance. Turn speed selector to '0' then select desired speed. |
| Attachments do not eject. | Mixer is still running; eject button not fully pressed. | Ensure mixer is off and unplugged. Press the eject button firmly. |
| Motor sounds strained or slows down. | Too much load; mixture too thick; incorrect speed setting. | Reduce quantity of ingredients. Add liquid if mixture is too thick. Increase speed setting. |
| Attachments wobble during operation. | Attachments not inserted correctly. | Ensure attachments are fully inserted and clicked into place. |
Specifications
- Model: BH/9368
- Brand: Berlinger Haus
- Manufacturer: Home Impex KFT
- Power: 300W
- Speed Settings: 5 speeds + Turbo function
- Dimensions (Product): 7.68 x 5.31 x 6.3 inches
- Item Weight: 2.84 pounds
- Controls: Push Button
- Dishwasher Safe Parts: Yes (Beaters, Dough Hooks, Mixing Bowl)
Warranty and Support
Berlinger Haus products are manufactured with high-quality materials and undergo strict quality control. For warranty information and customer support, please refer to the warranty card included with your product or visit the official Berlinger Haus website. Keep your purchase receipt as proof of purchase for any warranty claims.
For further assistance or inquiries, please contact your local distributor or the manufacturer directly. You can find more information on the Berlinger Haus Store on Amazon.
