1. Product Overview
The Goeco Modern V-Shaped Dimmable LED Ceiling Light is a contemporary lighting fixture designed for indoor use. It features a unique V-shaped acrylic design and offers adjustable color temperature (3000K-6500K) and brightness (0%-100%) via a remote control. The light also includes a memory function to retain the last used settings.

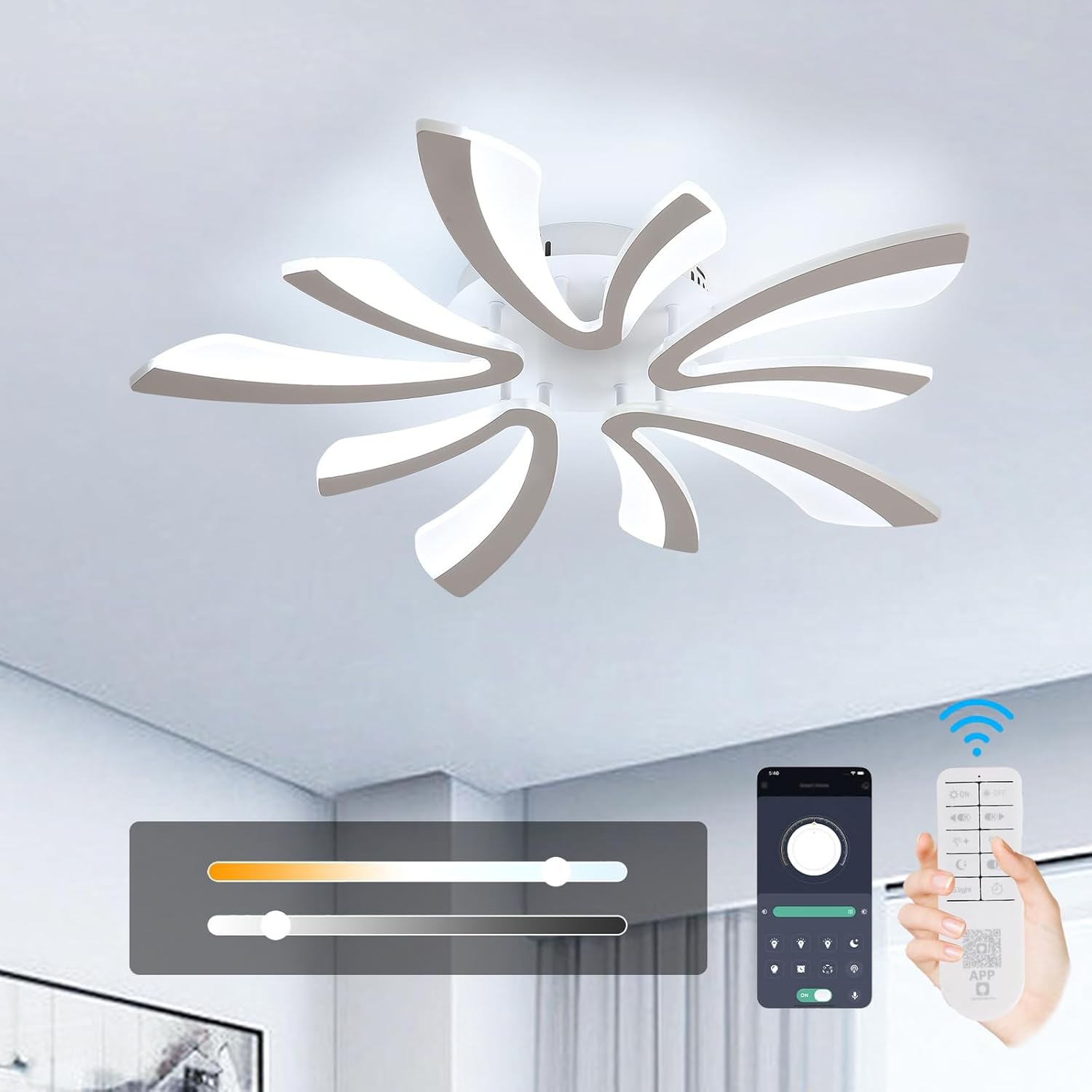

Image 1.1: Goeco Modern V-Shaped Dimmable LED Ceiling Light.
2. Package Contents
Verify that all components are present before beginning installation:
- 1x Modern Ceiling Light fixture
- 1x Remote Control
- 1x User Manual (this document)
- 1x Installation Package (includes mounting bracket, screws, wire nuts, etc.)
Image 2.1: Unpacked components of the ceiling light.
3. Specifications
| Feature | Detail |
|---|---|
| Brand | Goeco |
| Model Name | Acrylic Ceiling Light |
| Item Model Number | 30916506 |
| Dimensions (L x W x H) | 27.56" x 27.56" x 3.54" |
| Material | Acrylic |
| Light Source Type | LED |
| Wattage | 48 watts |
| Voltage | 110 Volts |
| Brightness | 4500 Lumens (Maximum) |
| Color Temperature | 3000K-6500K (Dimmable) |
| Control Method | Remote Control |
| Average Service Life | 50,000 hours |
| Installation Type | Flush Mount |
Image 3.1: Product dimensions and key features.
4. Safety Information
- Always turn off the main power supply at the circuit breaker before installation, maintenance, or cleaning.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all electrical connections are secure and comply with local electrical codes.
- Do not attempt to modify the light fixture.
- This product is for indoor use only and is not water resistant.
5. Installation Instructions
Follow these steps carefully to install your Goeco Modern V-Shaped Dimmable LED Ceiling Light. It is recommended to have two people for installation.
- Prepare for Installation: Turn off power at the circuit breaker. Gather your tools (screwdriver, wire strippers, ladder, etc.).
- Mount the Bracket: Attach the mounting bracket to the ceiling junction box using the provided screws. Ensure it is securely fastened.
- Assemble Light Arms: Connect each V-shaped light arm to the main base of the fixture. Ensure the wires are properly routed and secured.
- Connect Wiring: Connect the household electrical wires to the fixture's wires. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Use wire nuts to secure connections.
- Secure the Fixture: Carefully lift the assembled fixture and align it with the mounting bracket. Secure the fixture to the bracket using the provided screws.
- Restore Power: Once the fixture is securely mounted and all connections are made, restore power at the circuit breaker.
Installation Video Guide:
Video 5.1: Official installation guide for the Goeco Dimmable V-Shaped LED Ceiling Light. This video demonstrates the assembly of the light arms, wiring connections, and mounting process.
6. Operating Instructions
The Goeco Modern V-Shaped Dimmable LED Ceiling Light is operated using the included remote control.
Remote Control Functions:
- ON/OFF: Turns the light fixture on or off.
- Brightness Adjustment: Use the '+' and '-' buttons to increase or decrease the light brightness (0%-100%).
- Color Temperature Adjustment: Use the 'K' buttons (left/right arrows) to cycle through or adjust the color temperature (3000K warm white, 4000K neutral white, 6500K cool white).
- Night Light Mode: Activates a low-brightness, warm light setting for nighttime use.
- Memory Function: The light will automatically remember the last brightness and color temperature settings after three seconds of being turned off.
Image 6.1: Remote control for the ceiling light.
Image 6.2: Illustration of dimmable color temperature and brightness.
7. Maintenance and Care
- Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish or acrylic components.
- Bulb Replacement: The LED light source is integrated and not user-replaceable. The average service life is approximately 50,000 hours.
- Inspection: Periodically check the fixture for any loose connections or damage. If any issues are found, turn off the power and consult a qualified technician.
8. Troubleshooting
- Light does not turn on:
- Check if the power supply at the circuit breaker is on.
- Ensure all wiring connections are secure.
- Verify the remote control has working batteries and is pointed at the fixture.
- Remote control not working:
- Replace the batteries in the remote control.
- Ensure there are no obstructions between the remote and the light fixture.
- Light flickers or dims unexpectedly:
- Check for stable power supply.
- Ensure all connections are tight.
- If the issue persists, contact customer support.
Image 8.1: The light is designed to be flicker-free.
9. Warranty Information
This Goeco product comes with a limited warranty. Please refer to the product packaging or contact Goeco customer service for specific warranty terms and conditions.
