SOAR NFL Unisex XL ShockBox Wireless Bluetooth Speaker User Manual

1. Introduction

The SOAR ShockBox XL Wireless Bluetooth Speaker is designed to provide a high-quality audio experience for various occasions, including sports events and gatherings. This manual provides detailed instructions for the setup, operation, and maintenance of your speaker.

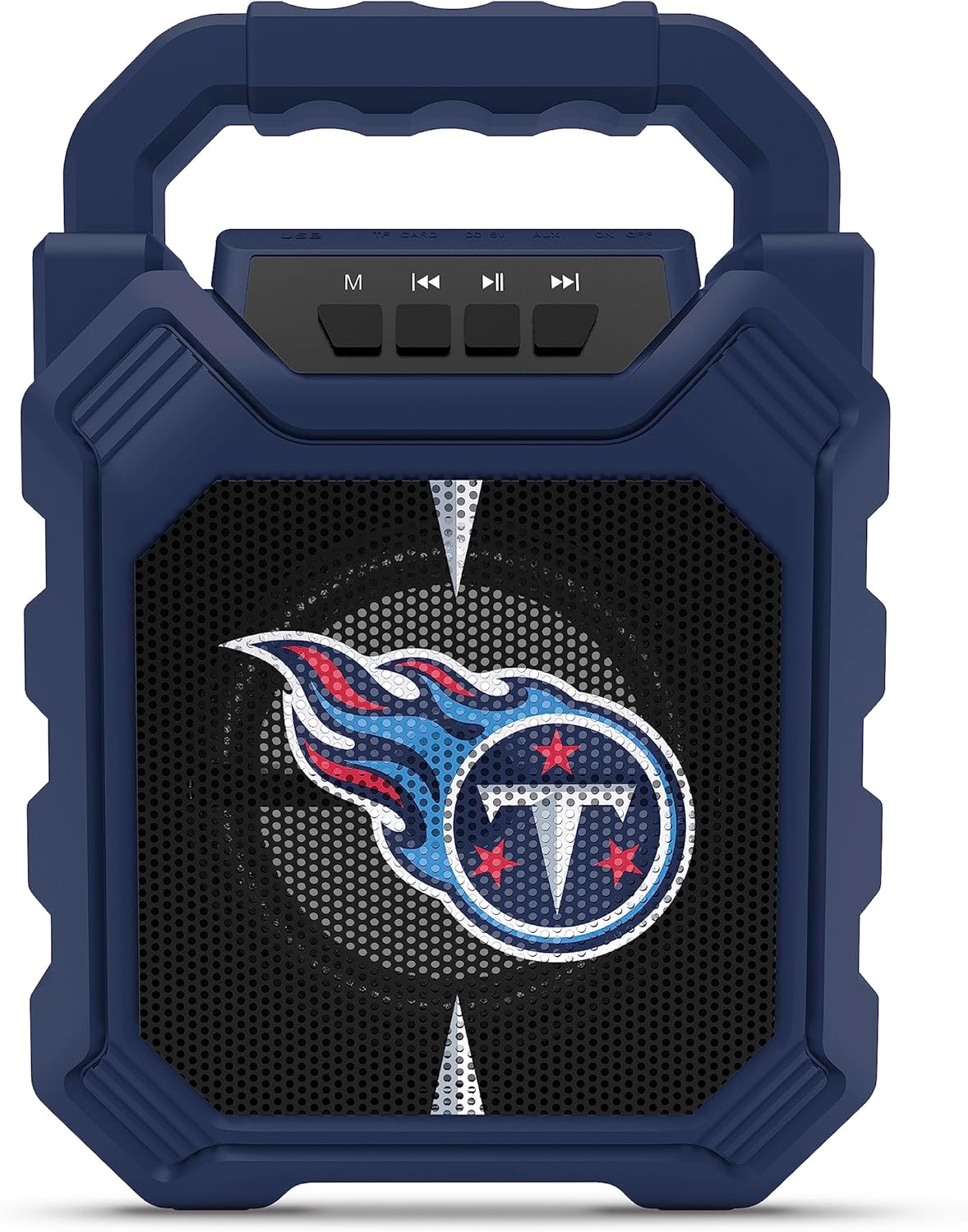

Figure 1: SOAR NFL XL ShockBox Wireless Bluetooth Speaker (Tennessee Titans edition).

2. Package Contents

Please verify that all items are present in the package:

• SOAR NFL XL ShockBox Wireless Bluetooth Speaker
• Micro-USB Charging Cable
• User Manual (this document)

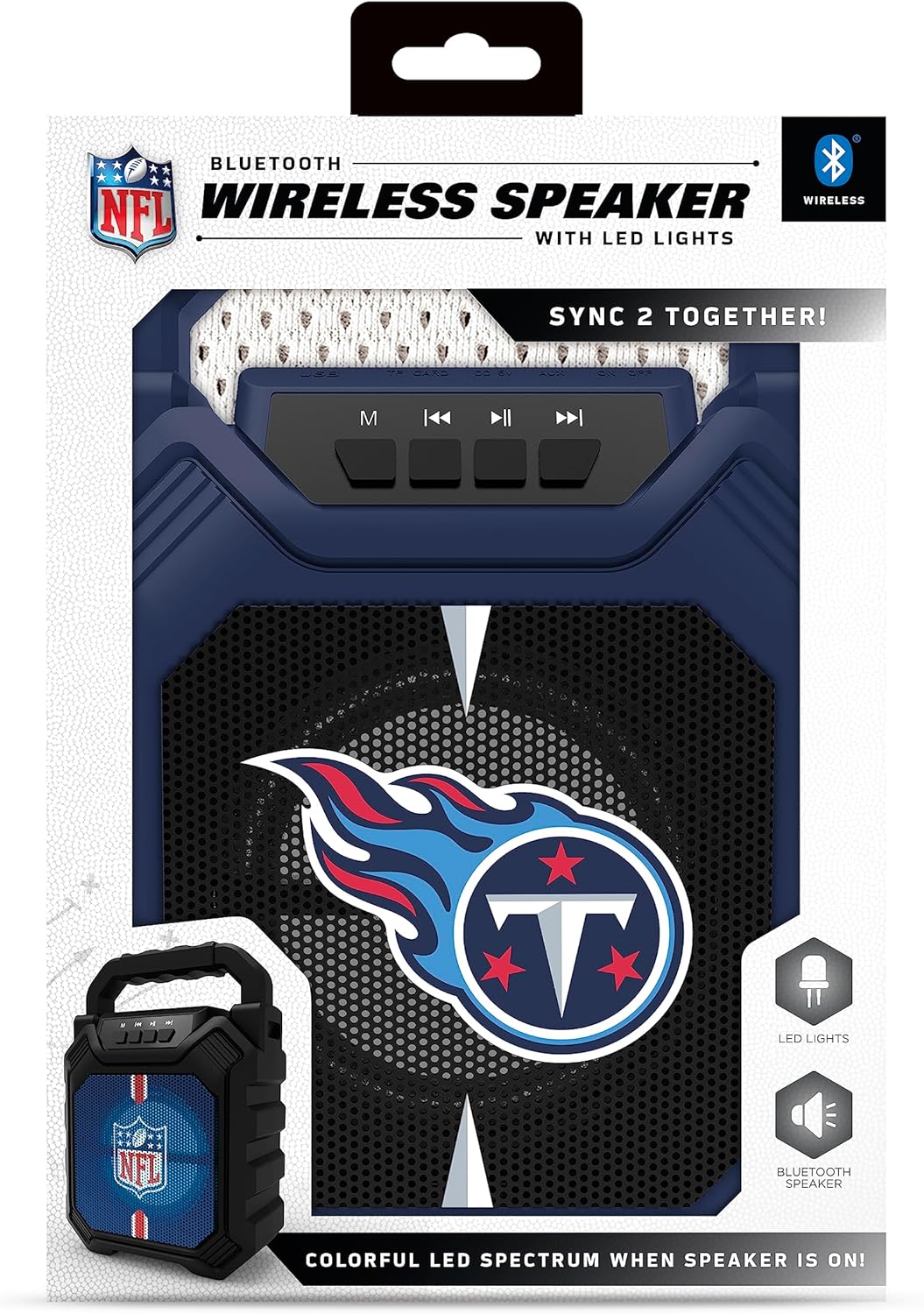

Figure 2: Speaker in its retail packaging, showing the product and its key features.

3. Product Features

• Bluetooth 5.0 Connectivity: Enables wireless audio streaming from compatible devices.
• Multiple Audio Inputs: Includes AM/FM radio, USB port, and Aux input for versatile playback options.
• Portable Design: Features a convenient top handle for easy transport and a shockproof construction for durability.
• Extended Playtime: Provides over 5 hours of continuous audio playback on a single charge.
• Dynamic LED Lighting: Multicolor LED lights synchronize with the music, enhancing the visual experience.
• Stereo Sound Pairing: Supports "Sync 2 Together" functionality, allowing two speakers to be paired for enhanced stereo audio.
• Audio Quality: Delivers deep bass and crystal clear sound.
• Voice Prompts: Features voice-over speaker prompts for operational guidance.
• Speaker Driver: Equipped with a 25W speaker driver for powerful sound output.

4. Controls and Ports

Familiarize yourself with the control panel and input ports located on the speaker:

Figure 3: Top panel of the speaker with control buttons and input ports.

5. Setup

5.1 Charging the Speaker

1. Connect the supplied micro-USB cable to the speaker's micro-USB charging port.
2. Connect the other end of the cable to a USB power adapter (not included) or a computer's USB port.
3. The LED indicator will illuminate during charging and turn off when fully charged.
4. A full charge provides over 5 hours of playtime.

5.2 Powering On/Off

• To power on, locate the power switch (usually on the back or side) and slide it to the "ON" position.
• To power off, slide the power switch to the "OFF" position.

6. Operating Instructions

6.1 Bluetooth Pairing

1. Ensure the speaker is powered on and in Bluetooth mode (press the 'M' button until you hear a Bluetooth prompt).
2. On your mobile device, enable Bluetooth and search for available devices.
3. Select "SOAR ShockBox XL" from the list of devices.
4. Once paired, the speaker will indicate a successful connection, and you can begin streaming audio.

6.2 FM Radio Operation

1. Press the 'M' button to switch to FM Radio mode.
2. Press and hold the Play/Pause button to automatically scan and save available FM stations.
3. Use the Previous/Next Track buttons to navigate between saved stations.

6.3 USB and AUX Input Usage

• USB Input: Insert a USB flash drive containing audio files into the USB port. The speaker will automatically switch to USB mode and begin playback.
• AUX Input: Connect one end of a 3.5mm audio cable (not included) to the speaker's AUX input and the other end to your external audio device. Press the 'M' button to switch to AUX mode.

6.4 Dynamic LED Lights

The speaker features multicolor LED lights that pulse to the rhythm of the music. These lights are automatically activated when the speaker is in use. There is no separate control for the LED lights mentioned in the product features.

Figure 4: Example of SOAR ShockBox XL speakers with dynamic LED lighting.

6.5 Sync 2 Together (True Wireless Stereo)

To pair two SOAR ShockBox XL speakers for true wireless stereo sound:

1. Ensure both speakers are powered on and in Bluetooth mode, but not yet connected to any device.
2. On one speaker (this will be the primary speaker), press and hold the 'M' button until you hear a pairing tone.
3. The two speakers will automatically connect to each other. Once connected, you will hear a confirmation tone.
4. Now, connect your mobile device to the primary speaker via Bluetooth as described in Section 6.1. Audio will play through both speakers in stereo.

7. Maintenance

• Cleaning: Use a soft, dry cloth to clean the speaker's exterior. Do not use abrasive cleaners or solvents.
• Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To prolong battery life, fully charge the speaker before long periods of inactivity. Avoid completely draining the battery frequently.
• Water Resistance: While the speaker has a shockproof design, specific water resistance ratings are not provided. Avoid exposing the speaker to water or excessive moisture.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For information regarding warranty coverage and customer support, please refer to the contact details provided by Prime Brands Group Inc., the manufacturer. Protection plans are available for purchase separately through the retailer.

For further assistance, please visit the official SOAR website or contact their customer service.
