Patriot Lighting Solar Integrated LED Rail Landscape Light - 4 Pack User Manual

1. Introduction

Thank you for purchasing the Patriot Lighting Solar Integrated LED Rail Landscape Light. This manual provides important information regarding the installation, operation, and maintenance of your new solar lights. Please read these instructions thoroughly before use and retain them for future reference.

These solar-powered lights are designed to enhance your outdoor spaces, providing accent lighting for railings, steps, and decks without the need for electrical wiring.

Figure 1: Front view of the Patriot Lighting Solar Integrated LED Rail Landscape Light, showing the solar panel on top and the LED light strip below.

2. Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Do not attempt to open or disassemble the light unit, except for battery replacement if applicable.
• Do not dispose of batteries in fire. Batteries may explode or leak.
• Ensure the solar panel is kept clean to allow for optimal charging.
• This product is designed for outdoor use and is water resistant. However, do not submerge the unit in water.
• Keep out of reach of children.

3. Package Contents

Your package should contain the following items:

• 4 x Patriot Lighting Solar Integrated LED Rail Landscape Lights
• Integrated Solar Panel (one per light unit)
• Mounting hardware (screws, anchors) - (Note: Specific hardware details not provided, assume standard for deck mounting)

4. Product Features

• Solar Powered: Collects sunlight to charge the internal battery during the day.
• Automatic Operation: Automatically turns on at dusk and off at dawn.
• Long Illumination: Provides up to 8 hours of nighttime illumination on a full charge.
• No Wiring Required: Ideal for locations without electrical supply.
• Water Resistant: Safe for outdoor use near water.
• Bright LED: Features a high-performance bright white LED bulb, generating 6 lumens of light.
• Compact Design: Measures approximately 2.08" x 3.26" x 2.12" (L x W x H).

5. Setup and Installation

Follow these steps to install your solar rail lights:

1. Unpack: Carefully remove all components from the packaging.
2. Location Selection: Choose a location for your lights that receives at least 6-8 hours of direct sunlight daily. This is crucial for the solar panel to fully charge the battery. Avoid areas under trees, eaves, or other obstructions that may block sunlight.
3. Initial Charge: Before first use, allow the lights to charge in direct sunlight for a full day (at least 8 hours) with the power switch in the "ON" position. The switch is typically located near the battery compartment or on the underside of the unit.
4. Mounting:
   • Position the light unit on the desired surface (e.g., deck rail, step edge). The light is designed for deck mounting.
   • Mark the positions for the mounting screws through the pre-drilled holes on the light unit.
   • Drill pilot holes if necessary, then secure the light using the provided screws. Ensure the light is firmly attached.

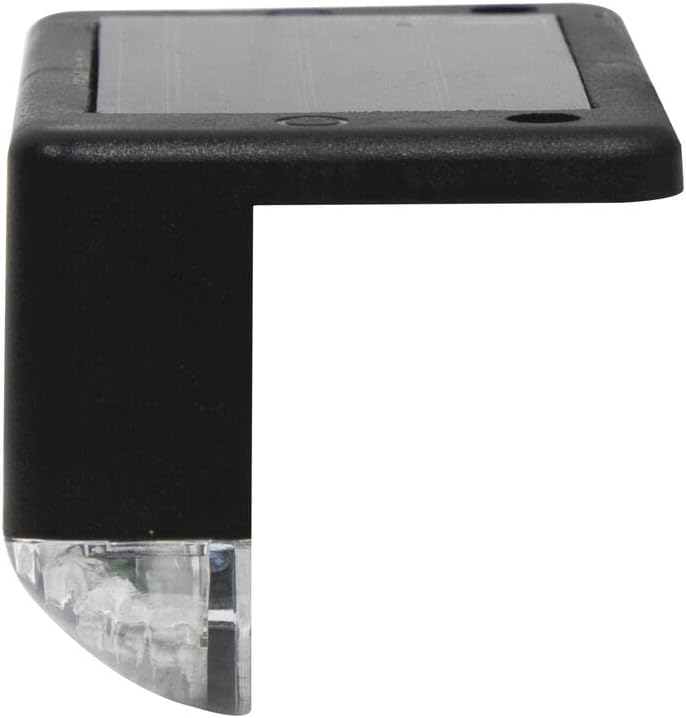

Figure 2: Side view of the light, showing the L-shaped design suitable for rail or step mounting.

Figure 3: Example installation of multiple lights along a deck railing, illuminating the path below.

6. Operating Instructions

The Patriot Lighting Solar Integrated LED Rail Landscape Lights are designed for simple, automatic operation:

• Power Switch: Ensure the power switch (usually located on the underside or inside the unit) is in the "ON" position.
• Daytime Charging: During daylight hours, the integrated solar panel will absorb sunlight and convert it into electrical energy to charge the internal battery.
• Automatic Illumination: As dusk approaches and ambient light levels decrease, the light sensor will automatically activate the LED, providing illumination for up to 8 hours.
• Automatic Shut-off: At dawn, or when the battery charge is depleted, the light will automatically turn off.

For optimal performance, ensure the solar panel is not obstructed by dirt, debris, or shadows.

7. Maintenance

Regular maintenance will help ensure the longevity and optimal performance of your solar lights:

• Clean Solar Panel: Periodically wipe the solar panel with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures efficient charging.
• Clear Obstructions: Ensure no new foliage or structures are blocking direct sunlight to the solar panel.
• Battery Replacement: The internal battery (visible in Figure 4) is rechargeable. Over time, rechargeable batteries may lose their capacity. If the light duration significantly decreases, the battery may need replacement. Refer to the manufacturer's guidelines for compatible battery types and replacement procedures.

Figure 4: Internal view of the light, showing the rechargeable battery and circuit board. This indicates the battery may be replaceable.

8. Troubleshooting

If your solar light is not functioning as expected, try the following steps:

• Light Does Not Turn On At Night:
  • Check Power Switch: Ensure the power switch is in the "ON" position.
  • Insufficient Charge: The light may not have received enough direct sunlight to charge the battery. Relocate the light to an area with more direct sun exposure for at least 8 hours.
  • Solar Panel Cleanliness: Clean the solar panel surface. Dirt or debris can reduce charging efficiency.
  • Ambient Light: The light sensor may be detecting ambient light (e.g., streetlights, porch lights), preventing the light from turning on. Move the light to a darker location.
• Light Duration is Short:
  • Insufficient Charge: The battery may not be fully charging due to limited sunlight or a dirty solar panel.
  • Battery Age: The rechargeable battery may be nearing the end of its lifespan and require replacement.

9. Specifications

10. Warranty Information

This Patriot Lighting product is covered by a 1-year manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.

Please retain your proof of purchase for warranty claims.

11. Customer Support

If you have any questions, require assistance, or need to make a warranty claim, please contact Patriot Lighting customer service. Refer to the product packaging or the official Patriot Lighting website for the most current contact information.
