1. Introduction
Thank you for choosing the MFSTUDIO 5-Piece Metal Patio Outdoor Dining Set. This manual provides essential information for the safe assembly, operation, and maintenance of your new patio furniture. Please read these instructions carefully before assembly and retain them for future reference.

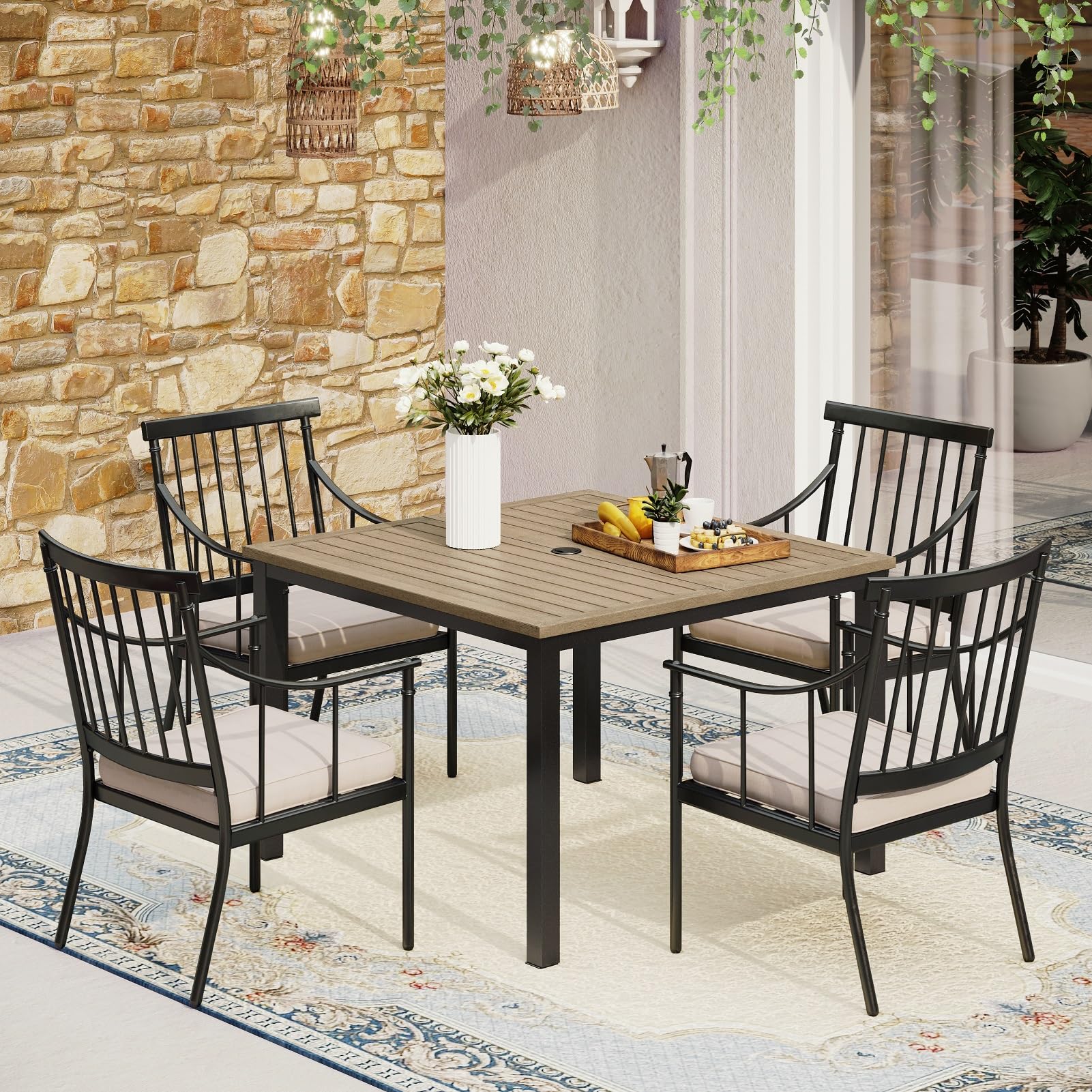

Image 1.1: The MFSTUDIO 5-Piece Patio Dining Set, featuring a 42-inch square table and four chairs with comfortable cushions, designed for outdoor use.
2. Important Safety Information
Always follow basic safety precautions when assembling and using this product to reduce the risk of injury. Keep all children and pets away from the assembly area. Ensure all parts are securely fastened before use. Do not stand on the table or chairs.
3. Package Contents
Your MFSTUDIO 5-Piece Patio Dining Set includes the following components:
- 1 x 42" x 42" Square Patio Table
- 4 x Metal Patio Dining Chairs
- 4 x Removable Seat Cushions
- Hardware Pack (screws, washers, Allen wrench)
Please verify all components are present and undamaged before beginning assembly. If any parts are missing or damaged, please contact customer support.
4. Setup and Assembly
Assembly is required for this dining set. It is recommended to assemble on a soft, clean surface to prevent scratching. Two adults are recommended for assembly.
4.1 Tools Required
- Included Allen Wrench
- Phillips Head Screwdriver (not included, optional)
4.2 Assembly Steps
- Assemble the Table Frame: Attach the table legs to the tabletop frame using the provided hardware. Do not fully tighten screws until all parts are aligned.
- Attach Tabletop Slats: Secure the tabletop slats to the frame. Ensure the umbrella hole mechanism is correctly positioned.
- Assemble Chairs: Attach the chair backs and seats to the chair frames. Ensure all connections are secure.
- Final Tightening: Once all components are assembled and aligned, fully tighten all screws on both the table and chairs.
- Attach Cushions: Place the removable cushions onto the chairs. The cushions feature ties to secure them to the chair frame.
Video 4.1: An official MFSTUDIO video demonstrating the assembly and features of a similar faux woodgrain metal patio table. This video highlights the table's design and functionality.
Video 4.2: An official MFSTUDIO video showcasing the features and design of MFSTUDIO patio dining chairs, including the metal frame and cushion details.
5. Operating Instructions
5.1 Using the Umbrella Hole
The table features an adjustable umbrella hole with a diameter ranging from 1.57 to 1.9 inches. To install an umbrella, remove the cap from the center of the table. Insert your patio umbrella pole and secure it. For prolonged outdoor use, especially in windy conditions, it is recommended to use a weighted umbrella base (not included) for added stability.
Image 5.1: This image illustrates the adjustable umbrella hole feature on the patio table, allowing for various umbrella pole sizes.
5.2 Stacking Chairs for Storage
The chairs are designed to be stackable, allowing for convenient storage when not in use. To stack, remove the seat cushions and carefully place one chair on top of another. This feature helps save space.
6. Cleaning and Maintenance
Proper care will extend the life and appearance of your patio dining set.
6.1 General Cleaning
- Wipe down the metal frame and tabletop with a soft cloth and mild soap and water. Rinse thoroughly and dry completely to prevent water spots.
- Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the E-coating finish.
Image 6.1: This diagram illustrates the multi-layer E-coating process applied to the metal frame, ensuring rust and corrosion resistance for durability.
6.2 Cushion Care
The removable cushions are made from water-repellent and oil-resistant fabric.
- Spot clean with a mild soap solution and a soft brush. Rinse thoroughly and allow to air dry completely before reattaching to chairs or storing.
- For best results and to prolong their lifespan, store cushions indoors during inclement weather or extended periods of non-use.
Image 6.2: A close-up view of the chair cushion, highlighting its soft, comfortable, water-repellent, and oil-resistant fabric.
6.3 Regular Checks
Periodically check the stability of the table and chairs. Screws may loosen over time and require tightening to ensure safety and structural integrity.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Table/Chair feels wobbly | Loose screws or uneven surface. | Tighten all assembly screws. Adjust the non-slip footcaps on the table legs if on an uneven surface. |
| Cushions slide off chairs | Cushions not secured. | Ensure cushion ties are securely fastened to the chair frame. |
| Water pooling on table | Table not level or debris in slats. | Ensure the table is on a level surface. Clear any debris from the table slats to allow for proper drainage. |
8. Specifications
- Table Dimensions: L42" x W42" x H28.7"
- Chair Dimensions: D21.3" x W22" x H35.4"
- Chair Weight Capacity: 350 LBS
- Umbrella Hole Diameter: 1.57" - 1.9" (Adjustable)
- Frame Material: Heavy-Duty Steel with E-coating
- Cushion Material: Water-repellent and Oil-resistant Fabric
- Assembly Required: Yes

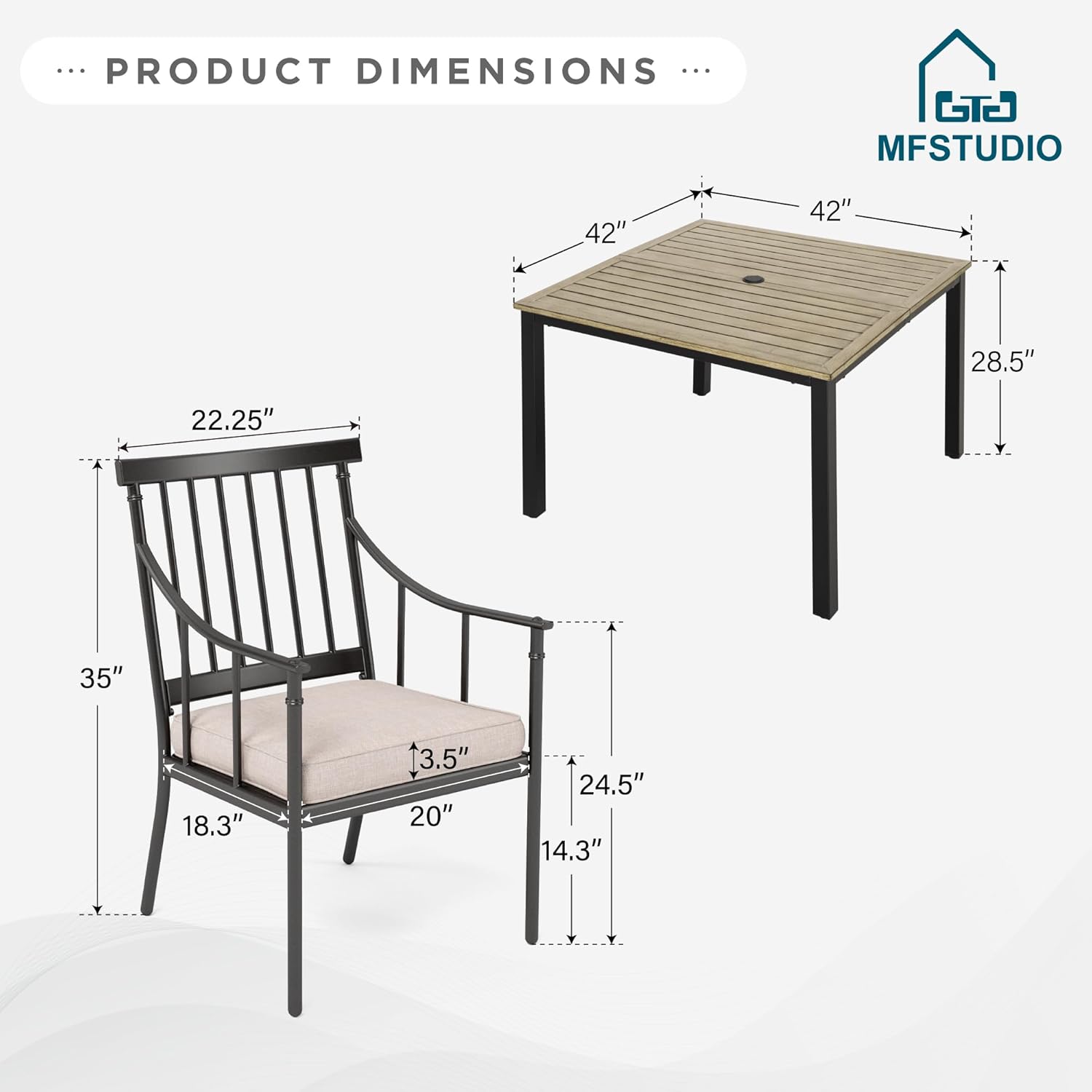

Image 8.1: This image provides a visual representation of the precise dimensions for both the patio table and the dining chairs.
9. Warranty and Support
9.1 Warranty Information
This MFSTUDIO product comes with a 1-year warranty from the date of purchase, covering manufacturing defects. This warranty does not cover damage due to misuse, improper assembly, neglect, or normal wear and tear.
9.2 Customer Support
If you have any questions, concerns, or require assistance with your product, please contact MFSTUDIO customer support. Please have your model number and purchase date available when contacting support.
For inquiries, please refer to the contact information provided with your purchase or visit the official MFSTUDIO website.
