Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your vidaXL Sliding Door. Please read all instructions carefully before installation and use to ensure safe and correct functioning of the product. Keep this manual for future reference.
The vidaXL Sliding Door features a durable black aluminum frame and transparent ESG glass with a 3x2 raster design, measuring 35.4 inches in width and 80.7 inches in height. It includes a soft stop mechanism for quiet operation.
Image: The vidaXL Sliding Door, model 3x2 Raster, installed in a home setting, showcasing its transparent design and black frame.
Safety Information
- Always follow local building codes and regulations during installation.
- Ensure the wall structure is capable of supporting the weight of the door and hardware.
- Wear appropriate safety gear, including gloves and eye protection, during assembly.
- Keep children and pets away from the work area during installation.
- Handle glass panels with extreme care to prevent breakage and injury.
- Do not attempt to modify the product in any way, as this may void the warranty and compromise safety.
Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- Sliding Door Panel (ESG Glass with Aluminum Frame)
- Mounting Accessories (screws, anchors, etc.)
- Note: Sliding door hardware kits (track, rollers, handle) are not included and must be purchased separately.
Setup and Assembly
Assembly requires basic tools and may require two people for safe handling of the glass door panel. Ensure you have the necessary sliding door hardware kit (not included) before starting.
Step 1: Prepare the Door Panel
Unpack the door panel and lay it on a clean, flat, and protected surface. Inspect the ESG glass and aluminum frame for any damage.
Image: Illustrated steps for door assembly. Step 1 shows the door panel and frame components.
Step 2: Install Sliding Hardware (Not Included)
Refer to the instructions provided with your separate sliding door hardware kit for installing the track and rollers onto the door panel and wall. Ensure the track is level and securely mounted.

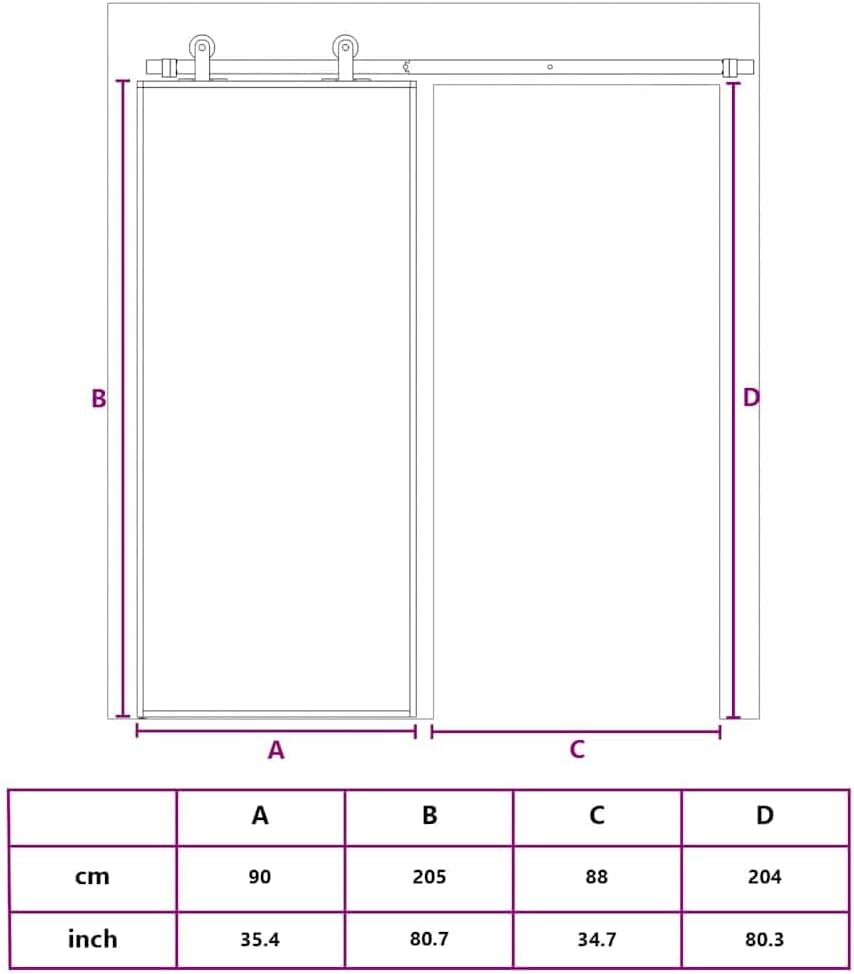

Image: Diagram showing key dimensions (A, B, C, D) for proper installation of the sliding door and its track system.
| Unit | A (Door Width) | B (Door Height) | C (Opening Width) | D (Opening Height) |
|---|---|---|---|---|
| cm | 90 | 205 | 88 | 204 |
| inch | 35.4 | 80.7 | 34.7 | 80.3 |
Step 3: Attach Rollers and Floor Guide
Attach the rollers to the top of the door panel as per your hardware kit instructions. Install the floor guide to prevent the door from swinging out.
Image: Illustrated steps for door assembly. Step 2 shows roller attachment, Step 3 shows floor guide installation.
Step 4: Hang the Door
Carefully lift the door panel and hook the rollers onto the installed track. Ensure the door slides smoothly and is properly seated in the floor guide.
Image: Illustrated steps for door assembly. Step 4 shows the door fully installed on the track.
Operating Instructions
Your vidaXL Sliding Door is designed for smooth and quiet operation. To open or close the door, gently push or pull the door panel along the track.
Soft Stop Mechanism
The integrated soft stop mechanism will engage as the door approaches its fully open or closed position, slowing it down to prevent slamming and ensure quiet functioning. Allow the mechanism to operate naturally; do not force the door past the soft stop point.
Maintenance
- Cleaning the Glass: Use a soft, lint-free cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive materials that could scratch the glass or damage the frame finish.
- Cleaning the Frame: Wipe the aluminum frame with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used, followed by wiping with a clean, dry cloth.
- Track and Rollers: Periodically inspect the sliding track and rollers for any debris or obstructions. Clean the track with a brush or vacuum cleaner. If the door does not slide smoothly, check for obstructions or wear on the rollers. Do not apply oil or grease to the track unless specifically recommended by the hardware kit manufacturer.
- Soft Stop Mechanism: Ensure the soft stop mechanism is free from obstructions and functioning correctly. If it appears to be malfunctioning, consult the hardware kit manual or contact customer support.
- General Inspection: Regularly check all screws and fasteners to ensure they remain tight. Tighten any loose connections as needed.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Door does not slide smoothly. | Debris in track, worn rollers, misaligned track. | Clean the track. Inspect and replace worn rollers. Check track alignment and adjust if necessary. |
| Door jams or gets stuck. | Obstruction in track, door off floor guide, loose hardware. | Remove any obstructions. Realign the door with the floor guide. Tighten all hardware. |
| Soft stop not engaging or door slams. | Soft stop mechanism obstructed or damaged, incorrect installation. | Check for obstructions. Refer to your hardware kit manual for soft stop adjustment or replacement. Ensure proper installation. |
| Door wobbles during operation. | Loose floor guide, loose rollers, uneven track. | Secure the floor guide. Tighten roller attachments. Verify track is level and secure. |
Specifications
Image: Detailed dimensions of the vidaXL Sliding Door, 3x2 Raster model.
- Model: 3x2 Raster
- Dimensions (Width x Height): 35.4" x 80.7" (90 cm x 205 cm)
- ESG Glass Thickness: 0.2" (approx. 5 mm)
- Door Thickness: 0.8" (approx. 20 mm)
- Frame Material: Aluminum
- Glass Type: ESG (Tempered Safety Glass)
- Color: Black Frame, Transparent Glass
- Item Weight: 56.8 pounds (25.83 kg)
- Assembly Required: Yes
- Included Components: Sliding Door, Mounting Accessories
- Note: Sliding door hardware kit (track, rollers, handle) sold separately.
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact vidaXL customer service. Keep your proof of purchase for any warranty claims.
You can visit the official vidaXL store for more information: vidaXL Store on Amazon
