1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and care of your ZÜNDAPP Z898 E-Bike. Please read this manual thoroughly before your first ride and keep it for future reference.

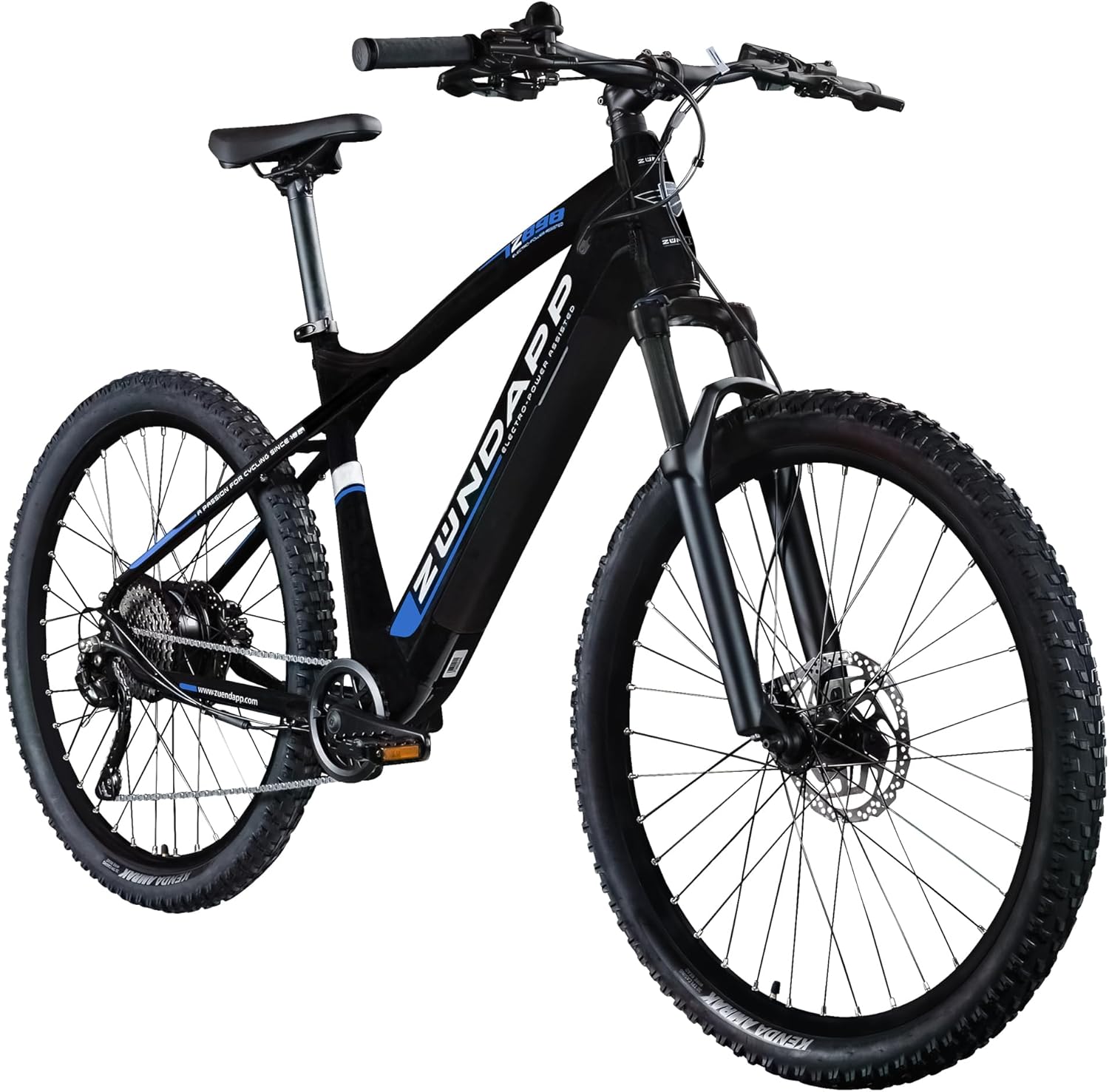

Image: The ZÜNDAPP Z898 E-Bike, a hardtail mountain bike in black and blue, featuring a robust frame, front suspension, disc brakes, and knobby tires suitable for various terrains.
2. Safety Information
Always prioritize safety when operating your e-bike. Failure to follow these guidelines may result in injury or damage to the bicycle.
- Wear a helmet that meets safety standards.
- Ensure all components, especially brakes and tires, are in good working order before each ride.
- Familiarize yourself with local traffic laws and regulations for e-bikes.
- Do not exceed the maximum load capacity of 120 kg (including rider and cargo).
- It is recommended to retrofit the bike with proper lighting for road use, as it does not come with integrated road-legal lighting.
- Avoid riding in adverse weather conditions or on excessively rough terrain if you are not experienced.
3. Setup and Initial Assembly
Your ZÜNDAPP Z898 E-Bike is delivered 98% pre-assembled. Follow these steps to complete the setup:
- Unpacking: Carefully remove the bicycle from its packaging.
- Handlebar Adjustment: Straighten and secure the handlebar. Ensure it is aligned with the front wheel and tightened securely.
- Pedal Installation: Attach the pedals. Note that pedals are typically marked 'L' for left and 'R' for right. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise.
- Seat Post Adjustment: Adjust the seat post height for a comfortable and safe riding position. Ensure the minimum insertion mark is not visible.
- Pre-Ride Check: Before your first ride, thoroughly check the shifting, brakes, and all screws to ensure they are properly tightened.

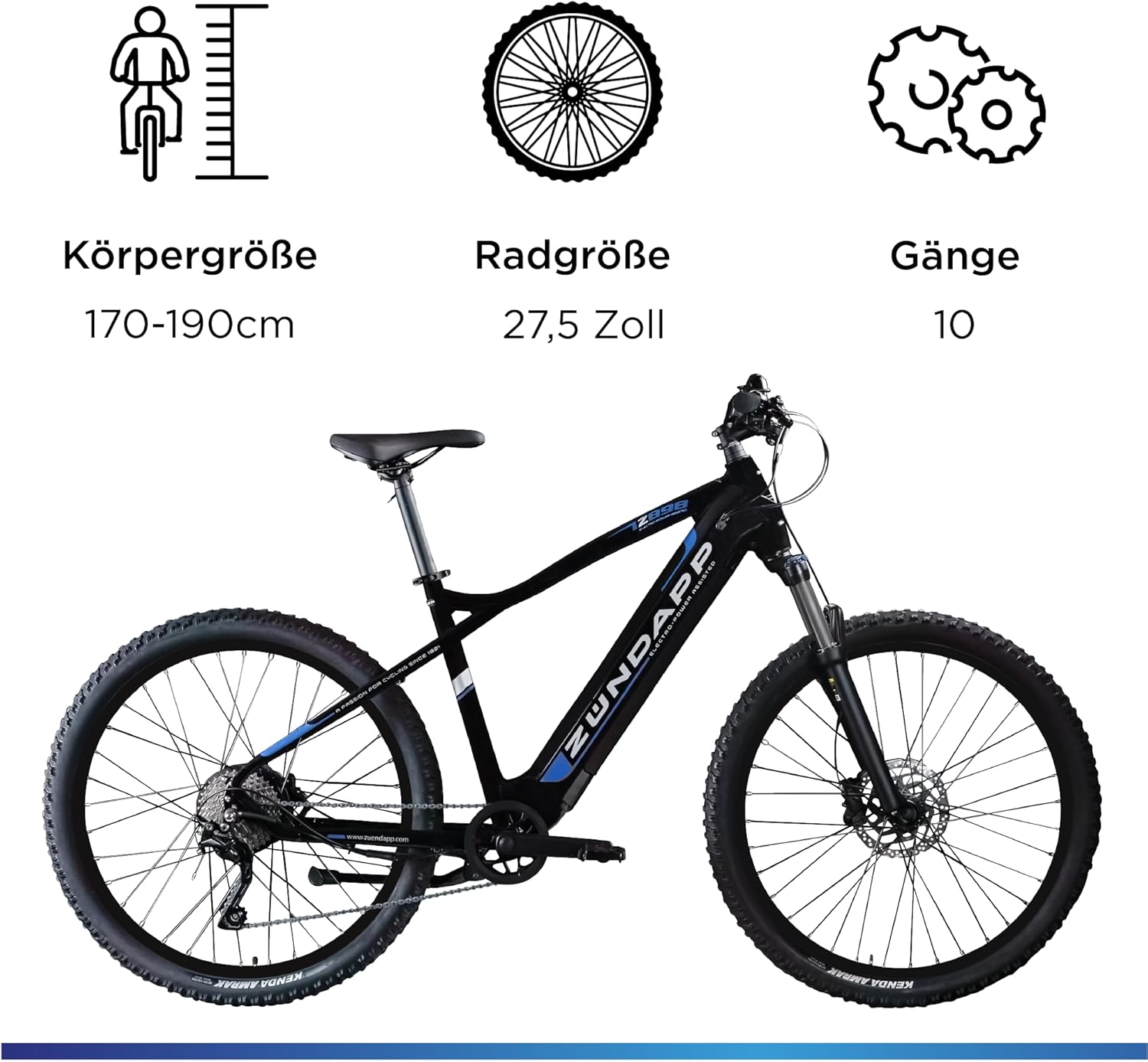

Image: An infographic illustrating key dimensions: recommended body height 170-190cm, wheel size 27.5 inches, and 10 gears.
4. Operating Your E-Bike
4.1. Electric Drive System
The ZÜNDAPP Z898 is equipped with an Ananda rear hub motor (250 Watt) providing pedal assistance up to 25 km/h. The system is controlled via a display and can be further managed using the Ananda Ride App.
- Power On/Off: Refer to the display unit's instructions for powering the system on and off.
- Assist Levels: Select your desired level of pedal assistance using the controls on the handlebar display. Higher levels provide more assistance but reduce battery range.
- Ananda Ride App: The Ananda Ride App allows for navigation, tracking ride statistics, and monitoring the bike's condition. Download the app from your smartphone's app store and connect via Bluetooth.
Image: The ZÜNDAPP Z898 E-Bike alongside a smartphone screen displaying the Ananda Ride App, which offers navigation, ride statistics, and bike status monitoring.
Image: A close-up of the Ananda D13 Boardcomputer display, showing battery level, current speed (24.6 km/h), trip distance (23.6 km), and selected assist mode (SPORT/STANDARD).
4.2. Battery and Charging
The 540 Wh Greenway frame battery provides a range of up to 130 km, depending on riding style and conditions. Charging time is approximately 5 to 6 hours.
- Charging: Connect the charger to the battery port and then to a power outlet. The indicator light on the charger will show charging status.
- Battery Care: Store the battery in a cool, dry place. Avoid fully discharging the battery regularly to prolong its lifespan.
Image: A rider enjoying the ZÜNDAPP Z898 E-Bike on a scenic forest path, with an illustration highlighting the impressive range of up to 135 km on a single battery charge.
4.3. Shifting and Brakes
- Shimano Deore 10-Speed Shifting: Use the trigger shifters to change gears smoothly. Shift gears proactively, especially before inclines, to maintain momentum and reduce strain on the motor.
- Hydraulic Shimano MT200 Disc Brakes: The bike features 160mm (rear) and 180mm (front) disc brakes for precise and reliable stopping power. Apply both brakes simultaneously for optimal control.
- Suspension Fork: The Zoom AMS HLO suspension fork with 80mm travel is adjustable and can be locked out for more efficient power transfer on uphill climbs or smooth surfaces.
Image: An infographic detailing key comfort and safety features: precise and weather-resistant disc brakes, a comfortable MTB saddle for pressure relief, and a suspension fork with 80mm shock absorption.
Image: A detailed view of the bike's rear wheel and drivetrain, highlighting the easy-to-operate trigger shifter and the high-quality, reliable Shimano Deore chain shifting system.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ZÜNDAPP Z898 E-Bike.
- Cleaning: Clean your bike regularly with mild soap and water. Avoid high-pressure washers directly on electrical components.
- Lubrication: Keep the chain clean and lubricated. Apply chain lubricant regularly, especially after riding in wet conditions.
- Tire Pressure: Check tire pressure before each ride. The Kenda MTB tires (2.35 inch width) require appropriate pressure for optimal grip and ride comfort.
- Brake Inspection: Periodically check brake pads for wear and ensure brake levers have proper tension.
- Bolt Tightness: Regularly inspect and tighten all bolts and fasteners, especially on the handlebars, seat post, and wheels.
- Battery Storage: If storing the bike for an extended period, charge the battery to 50-70% and store it in a cool, dry place. Recharge every few months to prevent deep discharge.
6. Troubleshooting
This section addresses common issues you might encounter with your ZÜNDAPP Z898 E-Bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not assisting | Battery low or off; assist level too low; loose connection. | Charge battery; turn on system; increase assist level; check all cables. |
| Short battery range | High assist level; hilly terrain; heavy load; low tire pressure; cold weather. | Use lower assist levels; ensure tires are properly inflated; avoid excessive loads. |
| Brakes squealing | Dirty brake pads/rotors; worn pads; misaligned caliper. | Clean pads/rotors; replace worn pads; adjust caliper alignment. |
| Gears not shifting smoothly | Dirty or dry chain; misaligned derailleur; bent hanger. | Clean and lubricate chain; adjust derailleur; consult a bike mechanic if hanger is bent. |
For issues not listed here or if solutions do not resolve the problem, please contact ZÜNDAPP customer support or a qualified bicycle mechanic.
7. Specifications
| Feature | Detail |
|---|---|
| Model | Z898 |
| Brand | ZÜNDAPP |
| Bike Type | E-Mountainbike (Hardtail) |
| Frame Material | Aluminum |
| Frame Size | 48 cm |
| Wheel Size | 27.5 inches |
| Motor | Ananda Rear Hub Motor, 250 Watt |
| Max Assist Speed | 25 km/h |
| Battery | Greenway Frame Battery, 540 Wh |
| Range | Up to 130 km (depending on conditions) |
| Charging Time | Approx. 5-6 hours |
| Gears | Shimano Deore 10-Speed |
| Brakes | Hydraulic Shimano MT200 Disc Brakes (160mm/180mm) |
| Suspension | Zoom AMS HLO Suspension Fork, 80mm travel |
| Tires | Kenda MTB Tires, 2.35 inch width |
| Weight | 22.5 Kilograms |
| Max Load Capacity | 120 kg (including rider) |
| Included Components | Kickstand, Bell, Reflectors |
8. Warranty and Support
ZÜNDAPP stands behind the quality of its products. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official ZÜNDAPP website.
For technical support, spare parts, or any inquiries regarding your ZÜNDAPP Z898 E-Bike, please contact ZÜNDAPP customer service. You can often find contact information on the brand's official website or through your point of purchase.
Image: A customer support representative wearing a headset, symbolizing available assistance for product inquiries and support.
ZÜNDAPP: Reliable since 1917. Visit www.zuendapp.com for more information.
