Introduction
This manual provides essential information for the installation, operation, and maintenance of your AURLANE Shower Enclosure with a fixed panel and a 180° pivoting panel. Designed for modern bathrooms, this enclosure features a brushed gold aluminum profile and support bar, offering both functionality and aesthetic appeal. Please read these instructions carefully before proceeding with installation or use.

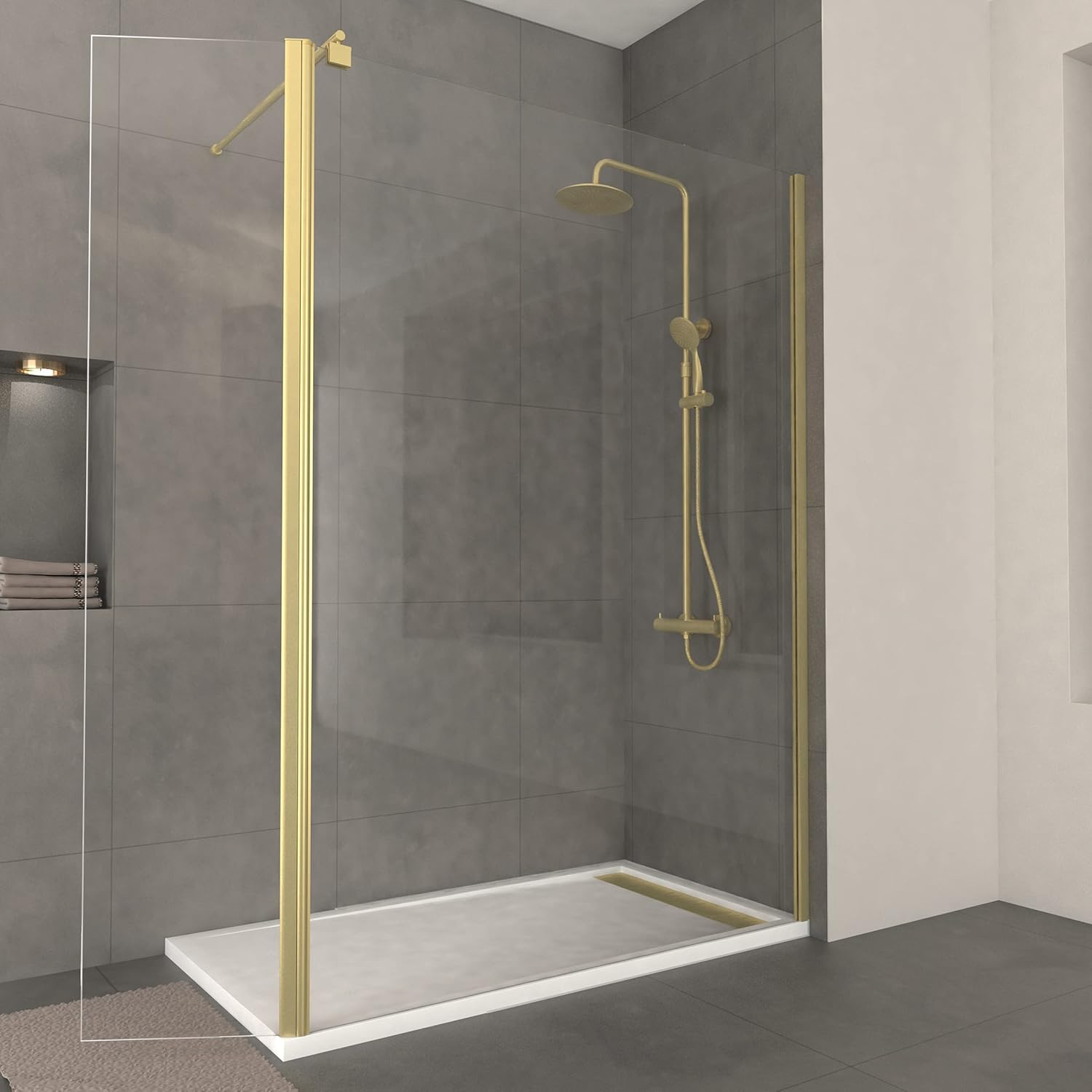

Image: The AURLANE Shower Enclosure, featuring a fixed glass panel and a pivoting glass panel, with elegant brushed gold profiles and support bar, installed in a contemporary bathroom setting.
Product Features
- Fixed Panel: 140x200 cm, constructed from 8 mm transparent tempered glass for durability and safety.
- Pivoting Panel: 40x200 cm, constructed from 6 mm transparent tempered glass, designed to pivot 180° to prevent water splashes.
- Adjustable Wall Profile: Aluminum profile with a brushed gold finish, offering 1 cm of adjustment for precise installation.
- Extensible Support Bar: Aluminum support bar with a brushed gold finish, adjustable from 70 to 100 cm for enhanced stability.
- Reversible Installation: The enclosure can be installed to open from either the left or right side, adapting to various bathroom layouts.
Image: A detailed view of the brushed gold aluminum profile, highlighting the quality finish and construction of the shower enclosure components.
Specifications
| Brand | AURLANE |
| Model Number | PACF431 |
| Fixed Panel Dimensions | 140 x 200 cm |
| Fixed Panel Glass Thickness | 8 mm (Tempered Glass) |
| Pivoting Panel Dimensions | 40 x 200 cm |
| Pivoting Panel Glass Thickness | 6 mm (Tempered Glass) |
| Material | Aluminum (Profiles, Support Bar), Tempered Glass (Panels) |
| Finish | Brushed Gold |
| Support Bar Extensibility | 70 - 100 cm |
| Wall Profile Adjustment | +/- 1 cm |
| Number of Panels | 2 |
| Installation Type | Wall-mounted, Reversible |
| ASIN | B0C1F7KS88 |
| EAN/UPC | 03700710265450 |
Setup and Installation
The AURLANE Shower Enclosure is designed for reversible installation, allowing flexibility for your bathroom layout. Due to the nature of glass and the precision required, professional installation is recommended. If you choose to install it yourself, ensure you have the necessary tools and follow all safety precautions.
Key Installation Considerations:
- Wall Preparation: Ensure the wall where the enclosure will be mounted is structurally sound and capable of supporting the weight of the glass panels.
- Adjustable Wall Profile: The wall profile allows for approximately 1 cm of adjustment to compensate for slight wall irregularities, ensuring a plumb and secure fit.
- Extensible Support Bar: The support bar can be adjusted between 70 cm and 100 cm to provide optimal stability for the fixed glass panel.
- Reversibility: Determine the desired orientation (left or right opening) before beginning assembly.
- Delivery Information: Please note that these are voluminous packages. Delivery is typically to the ground floor only, and drivers are not authorized to carry merchandise upstairs. Ensure your delivery address is accessible by a heavy goods vehicle.
For detailed, step-by-step installation instructions, diagrams, and safety guidelines, please refer to the official AURLANE manufacturer's website or the specific installation guide included with your product packaging. The product reference for this model is PACF431.

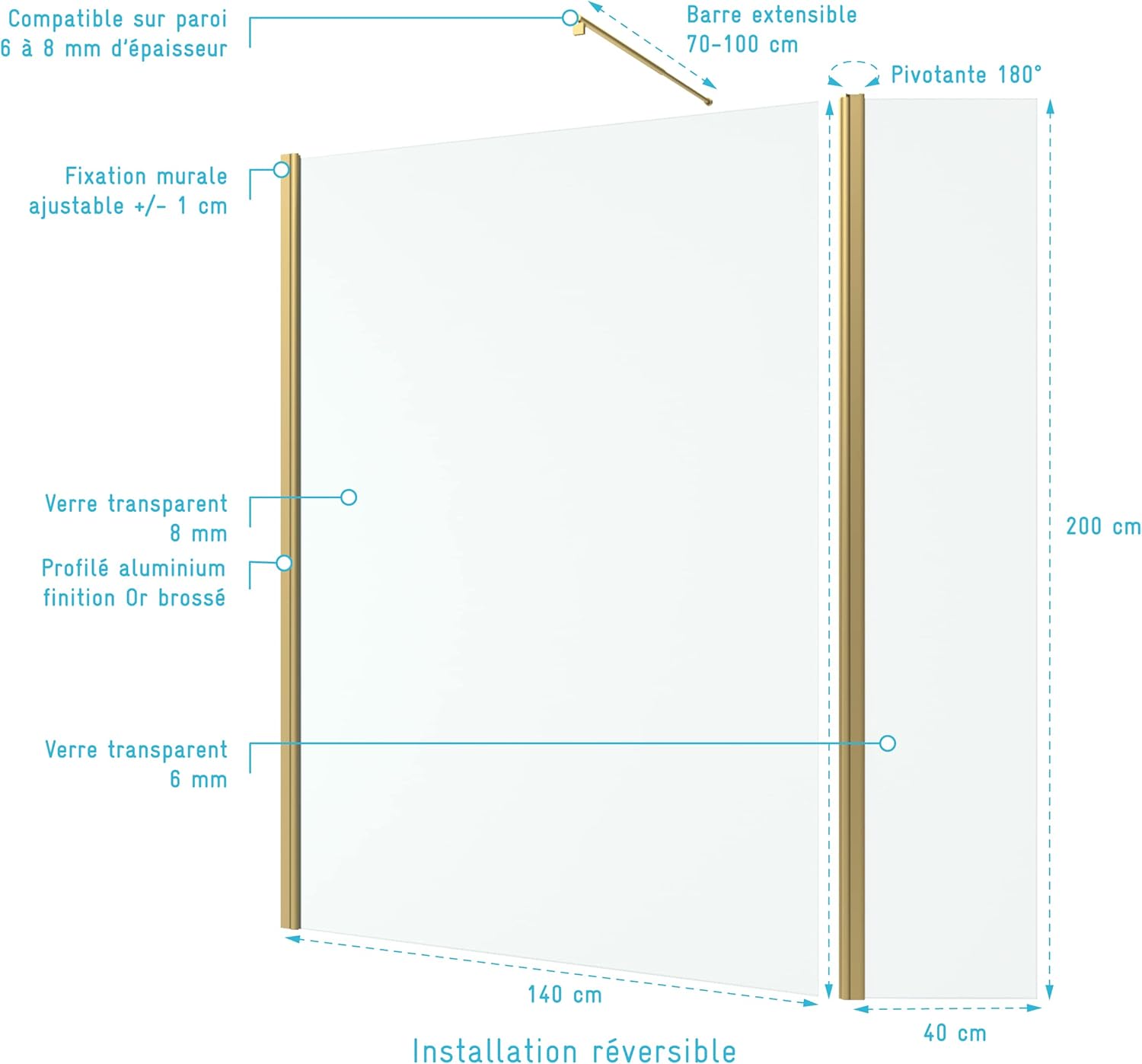

Image: Technical diagram illustrating the dimensions (140 cm fixed, 40 cm pivoting, 200 cm height), glass thicknesses (8 mm and 6 mm), and adjustable features (wall profile, extensible support bar) of the AURLANE shower enclosure. It also indicates 180° pivoting and reversible installation.
Operating Instructions
The AURLANE Shower Enclosure is designed for straightforward operation. The primary functional component is the 180° pivoting panel.
Using the Pivoting Panel:
- The 40 cm pivoting panel can be rotated up to 180 degrees. This allows for flexible access to the shower area.
- During showering, position the pivoting panel to effectively contain water splashes within the shower area, protecting the rest of your bathroom floor.
- Gently push or pull the panel to adjust its position. Avoid forceful movements to prevent damage to the hinges or glass.
Maintenance
Regular cleaning and maintenance will ensure the longevity and pristine appearance of your AURLANE Shower Enclosure.
Glass Panels:
- Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner or a mixture of water and white vinegar.
- To prevent water spots and limescale buildup, wipe down the glass after each use with a squeegee or microfiber cloth.
- Avoid using abrasive sponges, harsh chemicals, or scouring powders, as these can scratch the glass or damage any protective coatings.
Brushed Gold Profiles and Support Bar:
- Clean the brushed gold aluminum profiles and support bar with a soft, damp cloth and mild soap.
- Dry immediately with a soft, clean cloth to prevent water spots.
- Do not use abrasive cleaners, ammonia-based products, or harsh chemicals, as these can damage the brushed gold finish.
Seals and Hinges:
- Periodically check the seals around the glass panels for any signs of wear or damage. Replace them if necessary to maintain water tightness.
- Ensure hinges operate smoothly. If they become stiff, a small amount of silicone-based lubricant can be applied, avoiding contact with glass.
Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, please contact AURLANE customer support.
- Water Leakage:
- Check that all seals are properly seated and free from damage.
- Ensure the shower tray or floor is correctly sloped towards the drain.
- Verify that the pivoting panel is positioned correctly during showering to deflect water.
- Panel Not Pivoting Smoothly:
- Inspect hinges for debris or buildup. Clean gently if necessary.
- Ensure no objects are obstructing the panel's movement.
- Scratches or Damage to Finish:
- Avoid using abrasive cleaning tools or harsh chemicals.
- For minor cosmetic issues, consult with a specialist for appropriate repair options.
Warranty Information
The AURLANE Shower Enclosure (Model PACF431) comes with a 2-year warranty. This warranty covers parts only. Please retain your proof of purchase for any warranty claims.
For specific terms and conditions of the warranty, or to initiate a claim, please contact AURLANE customer service or visit their official website.
Support and Contact
For further technical information, assembly advice, or customer support regarding your AURLANE Shower Enclosure (Model PACF431), please visit the official AURLANE website:
Visit AURLANE Official Website
When contacting support, please have your product model number (PACF431) and ASIN (B0C1F7KS88) ready.
