Sokany Garment Iron SK-2110 User Manual

Important Safety Instructions

Please read all instructions carefully before using the appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the voltage indicated on the rating label corresponds to your mains voltage.
• Do not immerse the iron, power cord, or plug in water or any other liquid.
• Keep the iron out of reach of children and pets.
• Do not leave the iron unattended while it is switched on or connected to the power supply.
• Always unplug the iron from the power outlet before filling or emptying the water tank, and when not in use.
• Use the iron on a stable, heat-resistant surface.
• Do not touch the hot soleplate or allow it to come into contact with the power cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Product Overview

Familiarize yourself with the components of your Sokany SK-2110 Garment Iron.

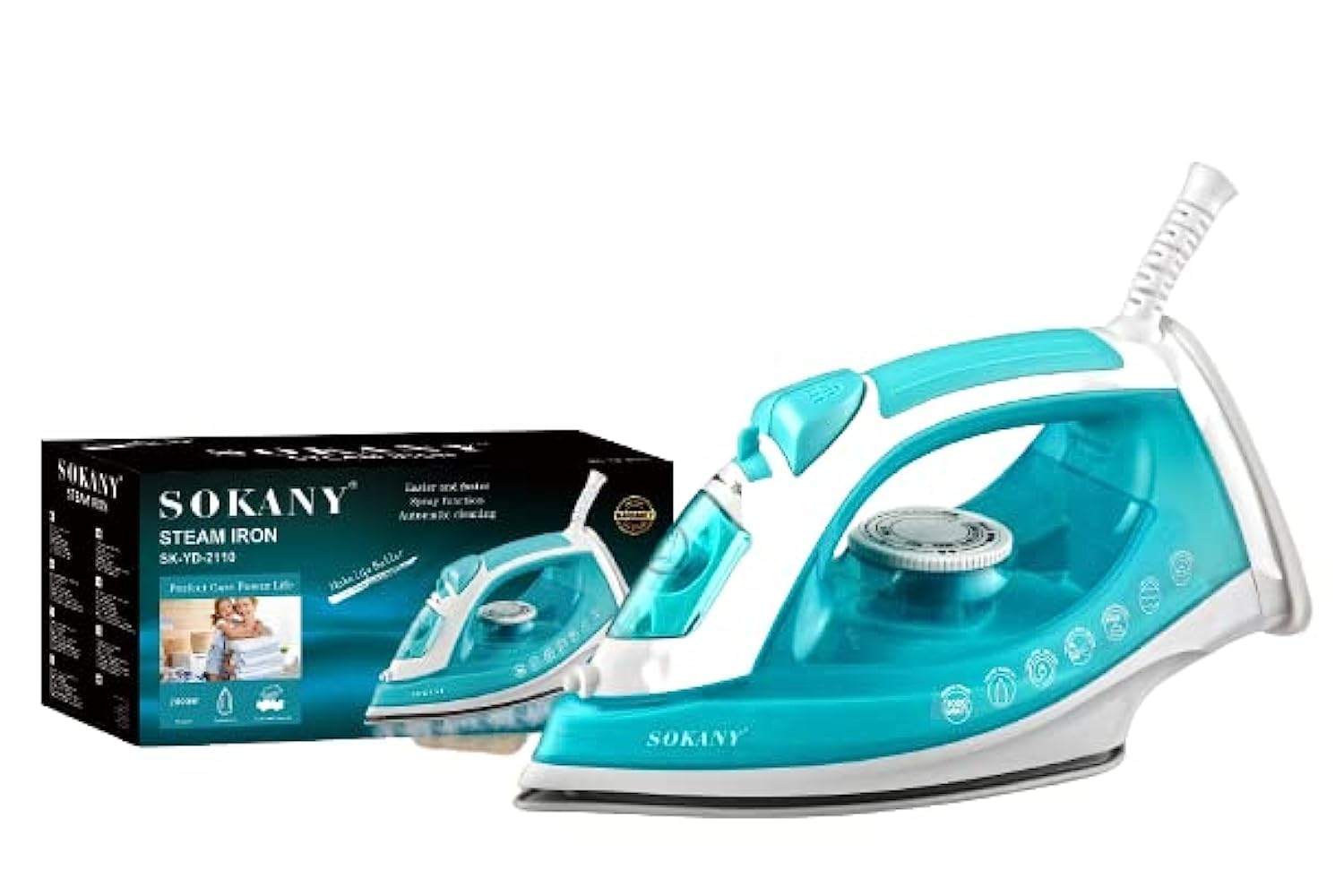

Figure 1: The Sokany SK-2110 Garment Iron. This image displays the overall design of the iron, including its handle, soleplate, and control dials.

1. Spray Nozzle: For moistening stubborn creases.
2. Water Filling Inlet: For adding water to the tank.
3. Steam Control Slider: Adjusts steam output (Dry, Low Steam, High Steam).
4. Spray Button: Activates the spray function.
5. Steam Shot Button: Provides a burst of steam.
6. Temperature Control Dial: Selects the appropriate temperature for different fabrics.
7. Indicator Light: Illuminates when the iron is heating and turns off when the set temperature is reached.
8. Soleplate: The heated surface that comes into contact with fabric.
9. Water Tank: Reservoir for water used in steam functions.
10. Power Cord: Connects the iron to the electrical outlet.

Setup

Unpacking

• Carefully remove the iron from its packaging.
• Remove any labels or protective film from the soleplate.
• Inspect the iron for any signs of damage. Do not use if damaged.

First Use Preparation

• Before first use, fill the water tank and heat the iron to its maximum temperature.
• Operate the steam function several times over an old cloth to remove any manufacturing residues.
• It is normal for a slight odor or smoke to be emitted during the first use; this will dissipate quickly.

Operating Instructions

Filling the Water Tank

1. Ensure the iron is unplugged from the power outlet.
2. Set the steam control slider to the "Dry" position.
3. Open the water filling inlet cover.
4. Using a measuring cup, carefully pour tap water into the water tank up to the "MAX" fill line. Do not overfill.
5. Close the water filling inlet cover securely.

Setting Temperature and Ironing

1. Plug the iron into a suitable power outlet.
2. Turn the temperature control dial to the desired setting based on the fabric type (refer to garment care labels).
3. The indicator light will illuminate, indicating the iron is heating.
4. Once the indicator light turns off, the iron has reached the set temperature and is ready for use.
5. For dry ironing, ensure the steam control slider is in the "Dry" position.
6. For steam ironing, set the steam control slider to the desired steam level (Low or High Steam) once the iron has reached the appropriate temperature (usually higher settings).
7. To use the spray function, press the spray button. Ensure there is water in the tank.
8. For a powerful burst of steam, press the steam shot button. This is useful for stubborn creases or vertical steaming.

After Use

• Turn the temperature control dial to the "MIN" position.
• Unplug the iron from the power outlet.
• Allow the iron to cool down completely before storing.
• Empty any remaining water from the tank to prevent mineral buildup.

Maintenance and Cleaning

Regular maintenance ensures optimal performance and extends the life of your iron.

Cleaning the Soleplate

• Ensure the iron is unplugged and completely cool.
• Wipe the soleplate with a damp cloth and a non-abrasive cleaner if necessary.
• Do not use abrasive scouring pads or metal cleaners, as these can scratch the soleplate.

Descaling (Self-Clean Function)

To remove mineral deposits and maintain steam performance, use the self-clean function periodically (e.g., monthly, depending on water hardness).

1. Fill the water tank to the "MAX" line.
2. Plug in the iron and set the temperature dial to maximum.
3. Once the indicator light turns off, unplug the iron.
4. Hold the iron horizontally over a sink.
5. Press and hold the self-clean button (if available, otherwise use steam shot repeatedly) to flush hot water and steam through the soleplate holes.
6. Gently shake the iron back and forth until the water tank is empty.
7. Plug the iron back in, heat it up, and iron an old cloth to dry the soleplate.

Storage

• Ensure the iron is cool and empty of water.
• Store the iron upright on its heel rest in a safe, dry place.
• Do not wrap the power cord tightly around the iron.

Troubleshooting

Specifications

• Model: SK-2110
• Brand: Sokany
• Power: 2000 Watts
• Frequency: 60 Hz
• Main Material: Stainless Steel (Soleplate)
• Item Weight: 1 Kilogram
• Shipping Dimensions: 30 x 30 x 30 cm
• Style: Modern

Warranty and Support

This Sokany SK-2110 Garment Iron is designed for reliable performance. For specific warranty details, please refer to the warranty card included with your purchase or contact your retailer.

For technical support, service, or spare parts, please contact the authorized Sokany service center in your region. Keep your purchase receipt as proof of purchase for warranty claims.

Manufacturer: Sokany
