WANAI 3.5 Cu.Ft Dual Door Mini Refrigerator User Manual

1. Important Safety Information

Please read all instructions carefully before using your new WANAI refrigerator. Keep this manual for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury.

• Ensure the appliance is properly grounded.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• Unplug the refrigerator before cleaning or performing any maintenance.
• Do not damage the refrigerant circuit.
• Keep ventilation openings clear of obstruction.
• This appliance is intended for household use only.

2. Product Overview

The WANAI 3.5 Cu.Ft Dual Door Mini Refrigerator is designed for compact spaces, offering both refrigeration and freezing capabilities. It features a spacious dual-door design, adjustable shelves, a crisper drawer, and quiet operation, making it suitable for bedrooms, dorms, offices, or garages.

Image: The WANAI 3.5 Cu.Ft Dual Door Mini Refrigerator in black, showcasing its compact size and sleek design.

Key Features:

• Spacious Dual Door Design: Separate freezer and refrigerator compartments for organized storage.
• Adjustable Shelves & Crisper Drawer: Customize storage space and preserve freshness for fruits and vegetables.
• Bright LED Lighting: Illuminates the interior for easy visibility.
• Quiet Operation: Designed to operate with minimal noise, ideal for quiet environments.
• Energy Efficient: Low annual energy consumption.

3. Setup Instructions

3.1 Unpacking and Placement

1. Remove all packaging materials, including the foam base and adhesive tape.
2. Place the refrigerator upright in its desired location. It is crucial to allow the appliance to stand upright for at least 24 hours before plugging it in. This allows the refrigerant fluids to settle, preventing potential damage to the cooling system.
3. Ensure adequate ventilation around the unit. Leave at least 4 inches (10 cm) of space on the sides and back, and 8 inches (20 cm) on top for proper air circulation.

3.2 Leveling the Refrigerator

The refrigerator is equipped with adjustable legs and movable wheels for easy positioning and leveling.

• Use the adjustable feet at the front to level the unit. Turn clockwise to raise and counter-clockwise to lower.
• The rear wheels allow for easy movement. Once in place, ensure the front feet are adjusted to stabilize the unit.

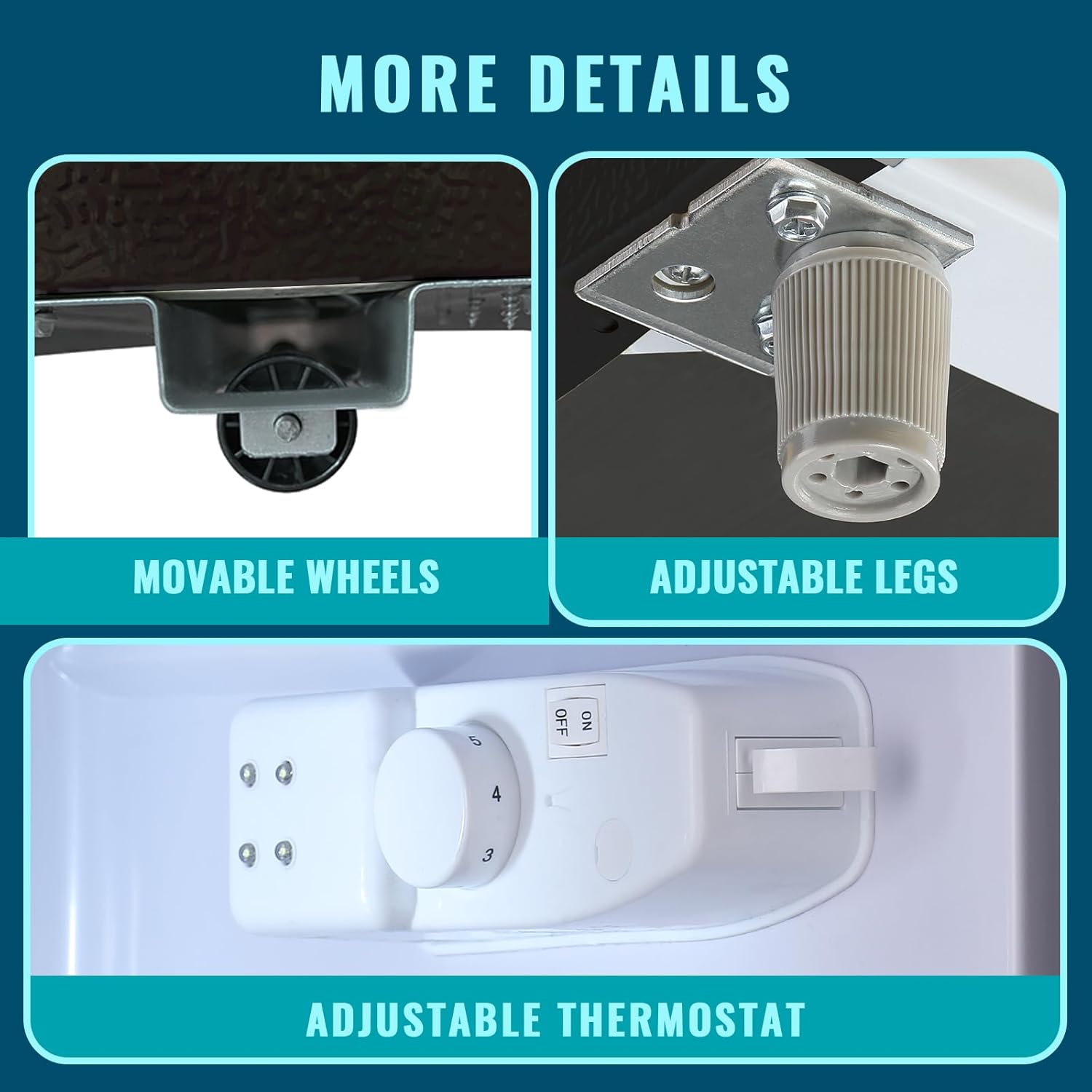

Image: Detailed view of the refrigerator's base with movable wheels and adjustable leveling feet, alongside the internal adjustable thermostat.

3.3 Power Connection

Connect the refrigerator to a dedicated, grounded electrical outlet. Do not use extension cords or adapter plugs.

4. Operating Instructions

4.1 Temperature Control

The refrigerator features an adjustable thermostat located inside the fresh food compartment. It has 7 temperature settings, allowing you to customize the cooling level.

• Turn the dial to adjust the temperature. Higher numbers indicate colder settings.
• The refrigerator compartment typically operates between 32°F (0°C) and 50°F (10°C).
• The freezer compartment can reach temperatures as low as -0.4°F (-18°C).

Image: Diagram illustrating the 7 adjustable temperature control settings, with recommended temperature ranges for the freezer (1.0 Cu.Ft, -0.4-32°F) and refrigerator (2.5 Cu.Ft, 32-50°F).

4.2 LED Lighting

The interior of the refrigerator is equipped with bright LED lighting to help you easily locate items, even in low-light conditions.

4.3 Adjustable Shelves and Crisper Drawer

The refrigerator includes removable glass shelves and a crisper drawer to help organize your food and maintain freshness.

• The glass shelves can be adjusted to different heights to accommodate various item sizes.
• The crisper drawer is ideal for storing fruits and vegetables to keep them fresh longer.

Image: Interior features of the refrigerator, highlighting the crisper drawer, integrated beverage and egg tray, and the flexibility of removable glass shelves.

4.4 Freezer Compartment

The top compartment functions as a dedicated freezer, suitable for storing frozen foods and making ice.

5. Maintenance

5.1 Cleaning

• Always unplug the refrigerator before cleaning.
• Clean the interior with a solution of mild soap and warm water. Wipe dry thoroughly.
• Clean the exterior with a soft cloth and mild detergent. Avoid abrasive cleaners.
• Regularly clean the condenser coils at the back of the unit to ensure efficient operation.

5.2 Defrosting

This refrigerator features manual defrost. Frost buildup in the freezer compartment can reduce cooling efficiency.

• When frost accumulates to about 1/4 inch (6 mm) thick, unplug the unit and remove all food.
• Allow the frost to melt naturally. Do not use sharp objects to remove ice.
• Wipe away melted water and dry the interior thoroughly before plugging the unit back in and returning food.

5.3 Power Outage

In case of a power outage, keep the refrigerator doors closed to maintain internal temperature for as long as possible. Avoid opening the doors unnecessarily.

5.4 Moving the Appliance

When moving the refrigerator, ensure it is unplugged and empty. Secure all loose parts, such as shelves and drawers, with tape. Lift the unit carefully to avoid damage to the cooling system.

6. Troubleshooting

7. Specifications

Image: U.S. Government EnergyGuide label for the WANAI Compact Refrigerator, indicating an estimated yearly energy cost of $15 and 153 kWh annual electricity use.

8. Warranty and Support

WANAI products are designed for reliability and performance. For specific warranty details and customer support, please refer to the warranty card included with your product or visit the official WANAI website. Keep your purchase receipt as proof of purchase for any warranty claims.
