Universal Audio Del-Verb Ambience Companion Instruction Manual

Model: GPM-DLVRB

Introduction

The Universal Audio Del-Verb Ambience Companion is a stereo guitar pedal designed to provide authentic vintage reverb and delay effects. This manual provides essential information for setting up, operating, and maintaining your device to ensure optimal performance.

Key Features

  • Authentic vintage reverb and delay effects in a single pedal.
  • Includes a "Golden unit" spring reverb tank from a classic '60s American guitar amp, and Vintage German studio plate reverb sourced from The Plant (Sausalito, CA).
  • Features bit-for-bit vintage '80s studio digital reverb algorithms and definitive emulation of iconic tape echo units and legendary preamps.
  • Classic bucket-brigade analog delay with the color, texture, and tone of the original hardware, alongside pristine, studio-grade digital delays with dynamic, inspiring modulation textures.
  • UAFX Control app allows for tap tempo, downloadable custom effect voicings, and more.
  • Silent switching, buffered bypass, analog dry through, optional spillover/trails, and stereo/dual mono operation.

Setup

Power Requirements

The Del-Verb Ambience Companion requires an isolated 9VDC, center-negative power supply with a minimum of 400 mA (sold separately). Ensure your power supply meets these specifications for proper operation.

Connections

The pedal features 2 x ¼” TS inputs and 2 x ¼” TS outputs, supporting both mono and stereo/dual mono configurations. Connect your instrument to the input(s) and your amplifier or audio interface to the output(s).

A USB Type-C port is provided for firmware updates via computer.

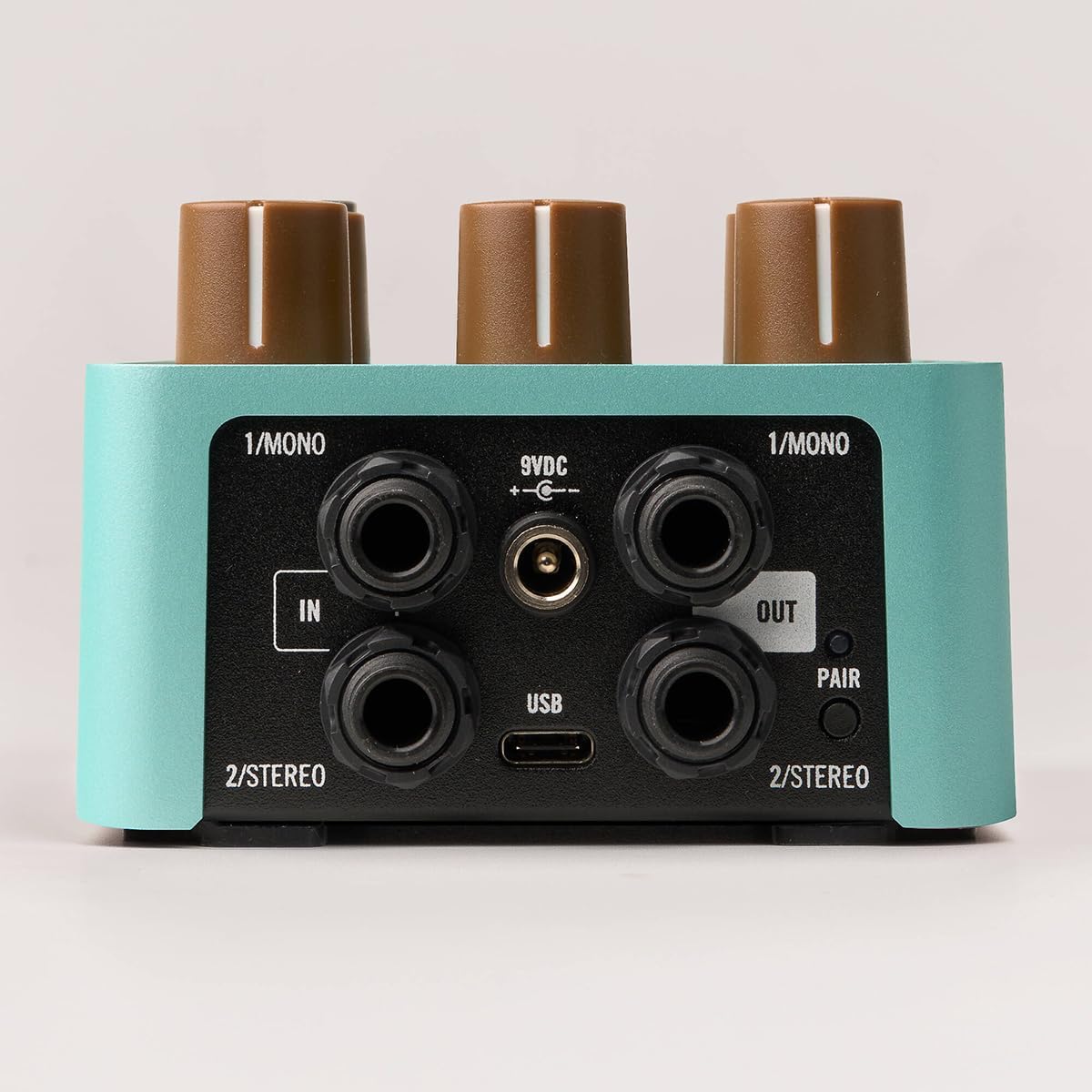

Rear view of the Universal Audio Del-Verb Ambience Companion pedal showing input/output jacks, power input, and USB-C port.
Image: Rear view of the Universal Audio Del-Verb Ambience Companion pedal. This image highlights the input and output jacks, the 9VDC power input, and the USB-C port for connectivity and updates. The jacks are labeled 1/MONO and 2/STEREO for flexible setup options.

Operating Instructions

Controls Overview

The Del-Verb Ambience Companion features intuitive controls for shaping your sound:

  • Delay Time: Adjusts the duration of the delay repeats.
  • Feedback: Controls the number of delay repeats.
  • Mix: Balances the wet (effected) and dry (unaffected) signals.
  • Color: Adjusts the tone of the delay effect.
  • Mod: Controls the modulation depth for the delay effect.
  • Reverb: Adjusts the decay time of the reverb effect.

Effect Types

Use the toggle switches to select your desired delay and reverb types:

  • Delay Types: Tape EP-III, Analog DMM, Precision.
  • Reverb Types: Spring '65, Plate 140, Hall 224.
Close-up view of the Universal Audio Del-Verb Ambience Companion pedal's control knobs and toggle switches.
Image: Close-up view of the Universal Audio Del-Verb Ambience Companion pedal. This image details the various control knobs for Delay Time, Feedback, Mix, Color, Mod, and Reverb, along with the toggle switches for selecting different delay and reverb algorithms.

Footswitch Functionality

The pedal features two footswitches:

  • The left footswitch activates/bypasses the Delay effect.
  • The right footswitch activates/bypasses the Reverb effect. Holding this footswitch down can engage Tap Tempo functionality, depending on the app settings.
Close-up of the footswitches on a UAFX pedal, illustrating different footswitch options like Live Mode, Bypass, and Tap Tempo.
Image: A close-up of the footswitches on a UAFX pedal, similar to the Del-Verb. The image shows options for Live Mode, Bypass, and Tap Tempo, indicating customizable functionality via the UAFX Control app.

UAFX Control App

Connect your Del-Verb pedal to the UAFX Control app via USB for advanced features:

  • Download custom effect voicings.
  • Configure Tap Tempo functionality.
  • Access additional settings and customization options.
A smartphone displaying the UAFX Control app interface, showing options for Trails, Footswitch Mode, and other pedal settings.
Image: A smartphone screen showing the UAFX Control app. The interface displays options for 'Trails' (On/Off) and 'Footswitch Mode' (Bypass/Tap Tempo), indicating the app's capability to customize pedal behavior and access advanced features.
A USB icon, representing USB MIDI Control for the UAFX pedal.
Image: A simple USB icon, symbolizing the USB MIDI Control feature available for the UAFX Del-Verb Ambience Companion pedal, allowing for advanced connectivity and control.

Official Product Video

Video: This video provides a detailed overview and demonstration of a Delay Reverb 2-in-1 Guitar Effects Pedal, showcasing its features and sound capabilities. It is relevant for understanding the combined delay and reverb functionalities similar to the Del-Verb Ambience Companion.

Maintenance

To ensure the longevity and optimal performance of your Del-Verb Ambience Companion, follow these maintenance guidelines:

  • Keep the pedal clean by wiping it with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
  • Protect the pedal from extreme temperatures, humidity, and direct sunlight.
  • Avoid dropping the pedal or subjecting it to strong impacts.
  • When not in use for extended periods, disconnect the power supply.

Troubleshooting

No Power / Device Not Functioning

If your pedal is not powering on or functioning correctly, ensure you are using an isolated 9VDC, center-negative power supply with a minimum current output of 400 mA. Insufficient power can prevent the device from operating or updating properly.

Specifications

  • Brand: Universal Audio
  • Model Name: Del-Verb Ambience Companion
  • Model Number: GPM-DLVRB
  • Product Dimensions: 5.55"L x 3.62"W x 2.52"H
  • Item Weight: 680 Grams
  • Voltage: 9 Volts
  • Amperage: 400 Milliamps (minimum)
  • Audio Output Effects: Reverb, Delay
  • Controls Type: Knob, Toggle Switches, Footswitches
  • Power Source: Corded Electric (adapter sold separately)
  • Hardware Interface: USB Type-C
  • Signal Format: Analog
  • UPC: 819937003585

What's in the Box

The product package includes:

  • Universal Audio Del-Verb Ambience Companion Pedal
  • Manual

Note: Power supply and cables are sold separately.

Warranty and Support

This product is covered by a 1-year manufacturer's warranty. For technical support or warranty claims, please refer to the contact information provided in the included manual or visit the Universal Audio website.
