Raysfung 10 x 12ft Hardtop Gazebo Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Raysfung 10 x 12ft Hardtop Gazebo. This outdoor pavilion features a galvanized steel double roof, aluminum frame, and includes nettings and curtains for enhanced comfort and privacy. Please read these instructions carefully before beginning assembly and retain for future reference.

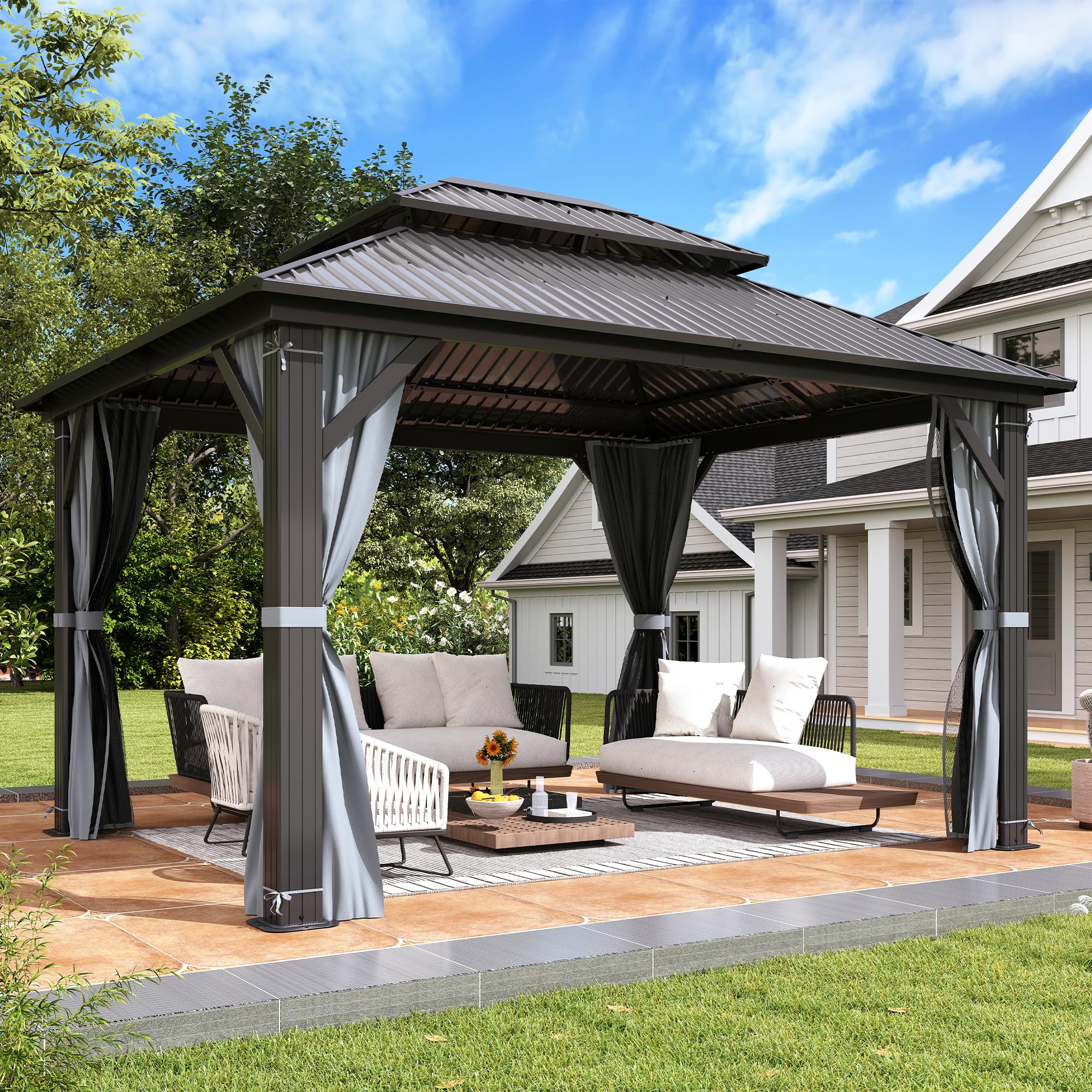

Image: The Raysfung 10x12ft Hardtop Gazebo, showcasing its overall design and size.

Important Safety Warnings

• Anchoring: Always ensure the gazebo is securely anchored to the ground using appropriate stakes or bolts. Failure to do so may result in structural instability and potential damage or injury, especially in windy conditions.
• Weather Conditions: Do not use the gazebo during extreme weather conditions such as heavy winds, snow, or thunderstorms. Disassemble or secure the roof and curtains if severe weather is anticipated.
• Fire Hazard: Keep all heat sources, including grills, fire pits, and heaters, away from the gazebo structure and fabric components to prevent fire.
• Assembly: Assembly requires at least two adults. Follow all steps precisely to ensure structural integrity.
• Maintenance: Regularly inspect all components for wear, damage, or loose connections. Address any issues promptly.

Package Contents

Verify that all parts are present and undamaged before beginning assembly. Refer to the detailed parts list in your included paper manual for specific component identification.

• Galvanized Steel Double Roof Panels
• Aluminum Frame Components (posts, beams, connectors)
• Nettings with Zippers
• Privacy Curtains with Velcro Straps
• Hardware Kit (bolts, screws, washers, ground stakes)
• Assembly Tools (basic wrench, hex keys)

Setup and Assembly

Assembly of the Raysfung Hardtop Gazebo typically requires two individuals and can take several hours. Organize all parts and hardware before starting. Follow the step-by-step instructions provided in the physical manual for best results.

1. Site Preparation

Choose a level area for installation. Clear any debris or obstacles. Ensure adequate space around the gazebo for assembly and future use.

2. Frame Assembly

Begin by assembling the main aluminum frame. Connect the posts and beams according to the diagrams. The frame features a reinforced triangular structure for enhanced stability.

Image: Illustration of the durable triangular structure within the gazebo frame for stability.

3. Roof Installation

Install the galvanized steel double roof panels. Ensure proper alignment for the double-vented design, which promotes airflow and drainage.

Image: Detail of the galvanized steel double roof, highlighting the ventilation design.

4. Nettings and Curtains Attachment

Attach the high-density nettings and privacy curtains to the dual rail system. The nettings feature smooth zippers, and curtains have Velcro straps for securing.

Image: Components of the detachable nettings and curtains, including the dual rail system.

5. Anchoring

Secure the gazebo to the ground using the provided ground stakes or other suitable anchoring methods through the pre-drilled holes in the support plates at the base of each post.

Image: Diagram illustrating the pre-drilled holes in the gazebo's base for secure anchoring.

Assembly Video

Video: An overview of the Raysfung 10 x 12ft hardtop gazebo, demonstrating its features and structure. This video provides a visual guide to the assembled product.

Operating Your Gazebo

Ventilation and Drainage

The double-vented hardtop roof is designed to allow for excellent airflow, reducing heat buildup and providing stability in moderate winds. The vertical striped roof design facilitates better water drainage, preventing accumulation.

Image: Visual representation of the double-vented roof system for optimal airflow and drainage.

Using Nettings and Curtains

The gazebo is equipped with high-density nettings and privacy curtains on a dual rail system. The nettings provide protection from insects while maintaining ventilation. The curtains offer privacy and additional shade. Both can be easily opened, closed, or tied back using the integrated Velcro straps.

Image: The gazebo configured with nettings for insect protection and curtains for privacy.

Ceiling Hooks

Integrated ceiling hooks are available for hanging lights or decorative items, enhancing the ambiance of your outdoor space.

Image: Detail of the ceiling hook design, suitable for hanging lights or decorations.

Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

• Cleaning the Frame: Wipe the aluminum frame with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners.
• Cleaning the Roof: The galvanized steel roof can be cleaned with a soft brush or cloth and water. For stubborn dirt, use a mild detergent. Ensure proper drainage to prevent debris buildup.
• Cleaning Nettings and Curtains: The fabric components can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.
• Hardware Check: Periodically check all bolts and screws to ensure they are tight. Re-tighten as necessary.
• Winter Storage: In areas with heavy snow or ice, it is recommended to remove the roof panels, nettings, and curtains for winter storage to prevent damage from heavy loads.

Troubleshooting

Issue: Gazebo feels unstable after assembly.

Solution: Ensure all frame connections are securely tightened. Verify that the gazebo is properly anchored to a level surface using all available ground stakes or alternative anchoring methods. Re-check the reinforced triangular frame connections.

Issue: Water pooling on the roof.

Solution: Confirm that the roof panels are installed correctly, allowing for proper vertical striped drainage. Clear any debris (leaves, branches) from the roof surface that might obstruct water flow.

Issue: Nettings or curtains do not slide smoothly.

Solution: Inspect the dual rail system for any obstructions or bent sections. Ensure the fabric is not caught or twisted. Clean the rails if dirt or debris is present.

Issue: Missing or damaged parts upon arrival.

Solution: If you receive bent, damaged, or missing parts, please contact Raysfung customer service immediately with your purchase details and a description of the issue. Do not attempt to force damaged parts during assembly.

Issue: Gazebo dimensions appear incorrect.

Solution: Double-check your measurements against the product specifications. Ensure all parts are correctly oriented and fully seated during assembly, as incorrect assembly can affect overall dimensions.

Specifications

Warranty and Support

Warranty Information

Specific warranty details are typically provided with your purchase documentation. Please refer to the warranty card or contact Raysfung customer service for information regarding coverage and terms.

Customer Support

If you have any questions regarding assembly, missing parts, operation, or maintenance of your Raysfung Hardtop Gazebo, please do not hesitate to contact our customer service team. We aim to provide a response within 24 hours.

Contact Information: Please refer to the contact details provided in your product packaging or visit the official Raysfung website for support options.
