Blooy 3117126 Presser Foot User Manual

Introduction

This manual provides instructions for the proper installation, operation, and maintenance of the Blooy 3117126 Presser Foot. This presser foot is specifically designed for use with Yamato VC3611 and VC3711-D Interlock Coverstitch Sewing Machines, featuring a 6.4mm needle distance. Adhering to these guidelines will ensure optimal performance and longevity of the product.

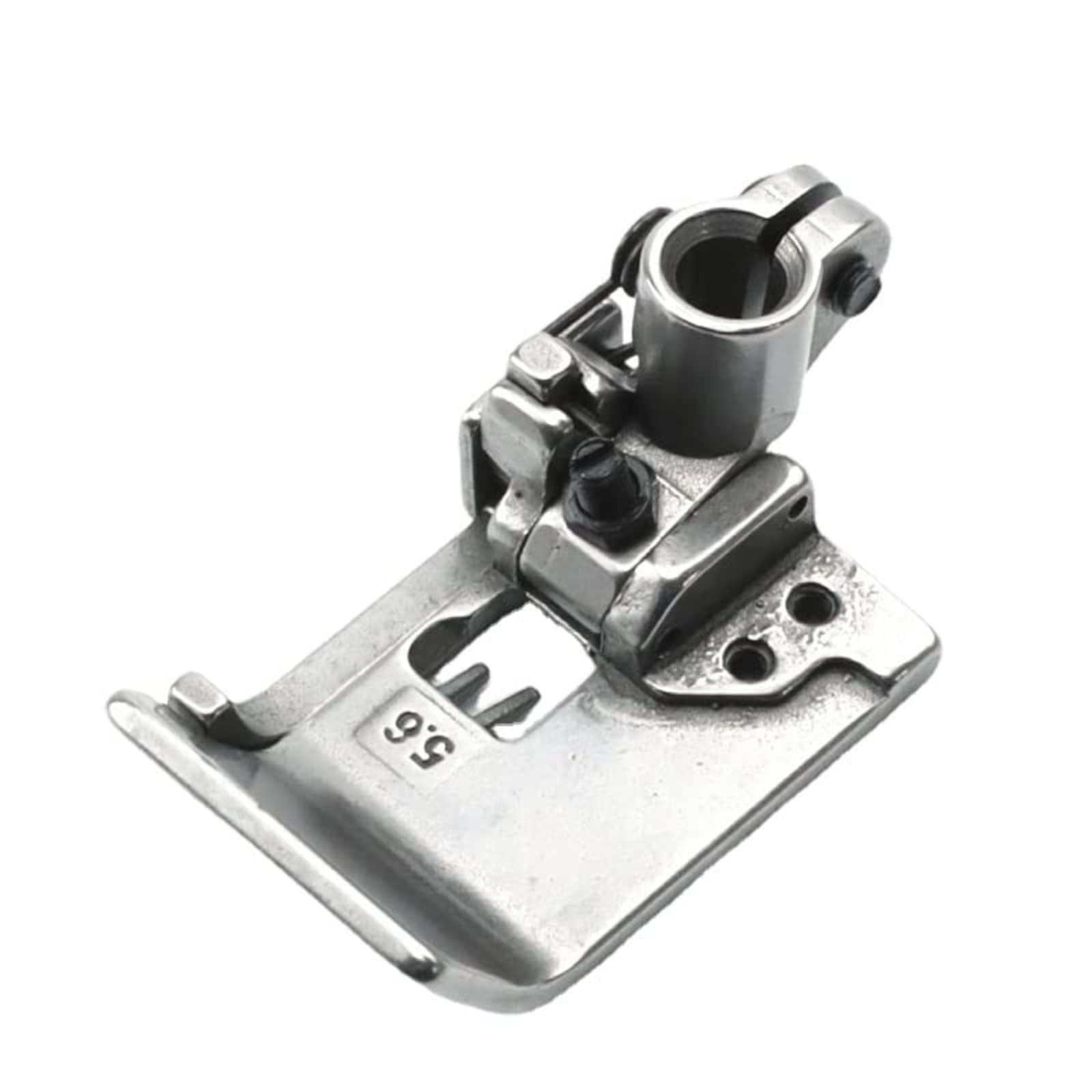

Figure 1: Side view of the Blooy 3117126 Presser Foot, showing its general construction and attachment point.

Setup and Installation

Before installing the presser foot, ensure your sewing machine is turned off and unplugged for safety. This presser foot is compatible with Yamato VC3611 and VC3711-D Interlock Coverstitch Sewing Machines that require a 6.4mm needle distance.

1. Remove Existing Presser Foot: Carefully lift the presser foot lever. Loosen the screw that secures the current presser foot to the presser bar and remove it.
2. Align New Presser Foot: Position the Blooy 3117126 Presser Foot under the presser bar, aligning the hole on the presser foot with the screw hole on the presser bar.
3. Secure Presser Foot: Insert the screw through the presser foot and into the presser bar. Tighten the screw firmly but do not overtighten, as this may damage the components.
4. Verify Installation: Gently lower the presser foot lever to ensure the foot is securely attached and moves freely up and down with the lever.

Figure 2: Top view of the presser foot, highlighting the attachment mechanism and needle clearance area.

Operating Instructions

Once the Blooy 3117126 Presser Foot is correctly installed, you can begin using your Yamato interlock coverstitch machine. This presser foot is designed to facilitate precise stitching for coverstitch applications, maintaining the specified 6.4mm needle distance.

• Fabric Placement: Place your fabric under the presser foot, ensuring it is flat and properly aligned with the needle plate markings.
• Lower Presser Foot: Lower the presser foot lever to hold the fabric securely in place.
• Begin Sewing: Start your machine and guide the fabric smoothly. The design of this presser foot helps maintain consistent fabric feed and stitch quality for coverstitch operations.
• Needle Distance: The 6.4mm needle distance is fixed by the design of the presser foot and the machine's setup, ensuring consistent stitch width for specific coverstitch requirements.

Figure 3: Angled view of the presser foot, illustrating the foot's contact surface with the fabric.

Maintenance

Regular maintenance will extend the life of your presser foot and ensure consistent sewing performance.

• Cleaning: Periodically remove the presser foot and use a soft brush or cloth to clean any lint, dust, or thread buildup from its surfaces and the surrounding area of the needle plate.
• Inspection: Inspect the presser foot for any signs of wear, damage, or bending. A damaged presser foot can affect stitch quality and potentially harm your machine.
• Storage: When not in use, store the presser foot in a clean, dry place to prevent corrosion or damage.

Figure 4: Bottom view of the presser foot, showing the feed dog clearance and needle openings.

Troubleshooting

If you encounter issues while using the Blooy 3117126 Presser Foot, consider the following common solutions:

• Uneven Stitching: Ensure the presser foot is securely attached and not loose. Check for any lint buildup under the foot or around the feed dogs. Verify that the fabric is being fed evenly.
• Skipped Stitches: This is often related to needle issues (bent, dull, or incorrect type) or tension settings, rather than the presser foot itself. However, ensure the presser foot is not obstructing needle movement.
• Fabric Not Feeding: Check if the presser foot is lowered correctly. Ensure the feed dogs are engaged and clean.
• Presser Foot Damage: If the presser foot appears bent or damaged, replace it immediately to prevent further issues with your sewing machine.

Specifications

Warranty and Support

For warranty information or technical support regarding your Blooy 3117126 Presser Foot, please refer to the documentation provided with your purchase or contact the seller directly. Ensure you have your purchase details and model number (3117126) available when seeking support.
