Kuvings REVO830 Whole Slow Juicer Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your Kuvings REVO830 Whole Slow Juicer. Please read all instructions carefully before use and retain this manual for future reference.

The Kuvings REVO830 is a cold press masticating juicer designed to extract juice from various fruits and vegetables with minimal oxidation, preserving nutrients and flavor. Its dual-sized chutes and auto-cutting screw are engineered for convenience and efficiency.

2. Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions.

• Read all instructions before operating the appliance.
• Do not immerse the motor base in water or other liquids.
• Keep hands and utensils out of the feed chute during operation to prevent injury.
• Ensure all parts are correctly assembled before turning on the juicer.
• Unplug the appliance from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• This appliance is for household use only.

3. Product Overview and Components

Familiarize yourself with the various parts of your Kuvings REVO830 Whole Slow Juicer.

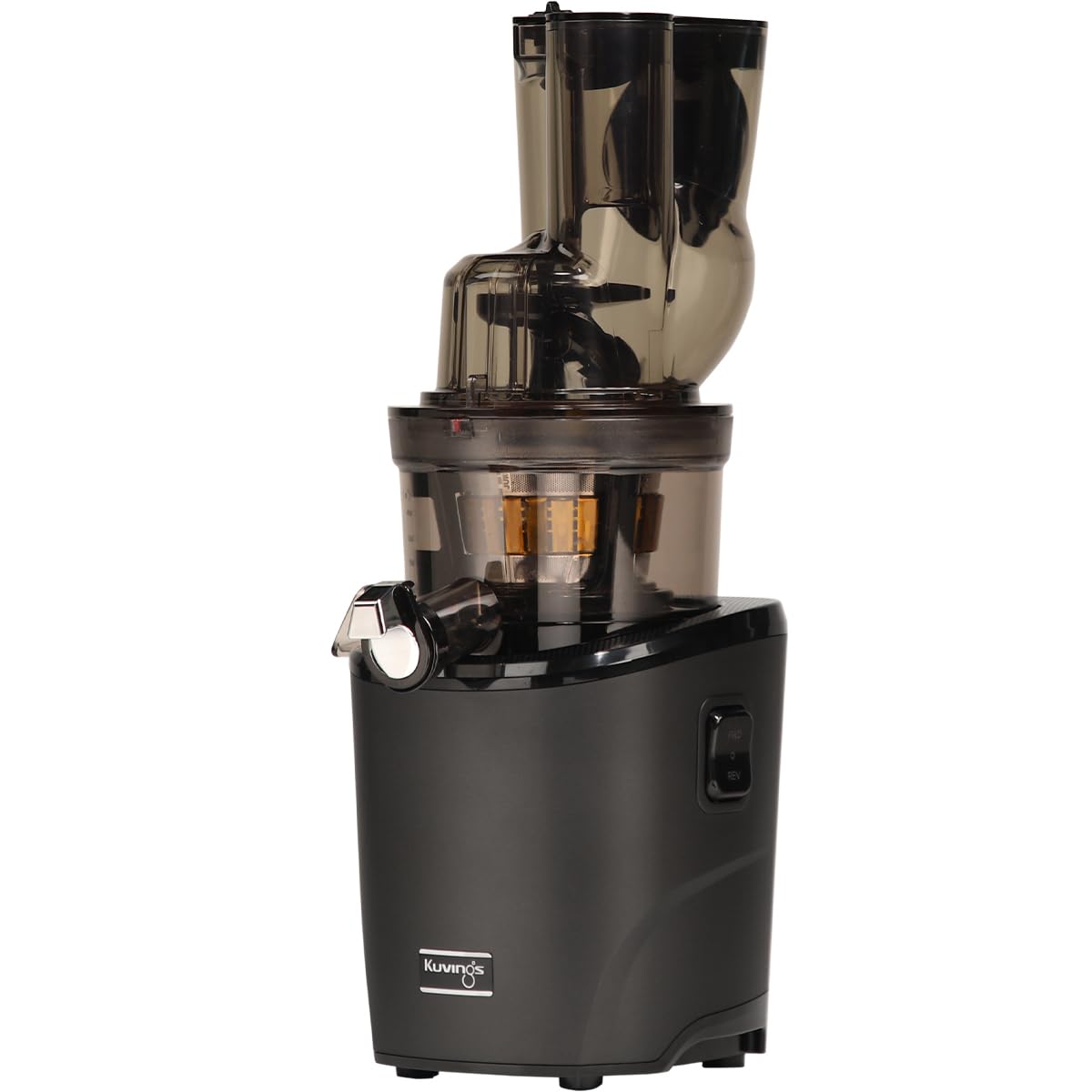

Figure 3.1: Assembled Kuvings REVO830 Whole Slow Juicer.

Figure 3.2: All components of the Kuvings REVO830 Whole Slow Juicer.

Included Components:

• Motor Base
• Juicing Bowl
• Auger (Auto-cutting screw)
• Juicing Strainer (for juice)
• Smoothie/Sorbet Attachment (blank strainer)
• Lid with Dual Feed Chutes (88mm & 48mm)
• Pulp Cup
• Juice Cup
• Cleaning Tool Set (brushes)

4. Setup and Assembly

Before first use, wash all removable parts with warm, soapy water. Rinse thoroughly and dry.

Assembly Steps:

1. Place the Juicing Bowl onto the Motor Base, aligning the red dots on both parts. Turn clockwise until it locks into place.
2. Insert the Juicing Strainer (or Smoothie/Sorbet Attachment) into the juicing bowl. Ensure it sits firmly.
3. Place the Auger into the center of the strainer, twisting it gently until it drops into position.
4. Position the Lid onto the juicing bowl, aligning the red dot on the lid with the red dot on the juicing bowl. Turn clockwise until it locks securely.
5. Place the Pulp Cup under the pulp outlet and the Juice Cup under the juice outlet.

5. Operating Instructions

Preparation:

• Wash all fruits and vegetables thoroughly.
• For best results and to prevent clogging, cut fibrous ingredients (like celery or kale) into smaller pieces. Harder ingredients like carrots or apples can often be fed whole into the larger chute.
• Remove hard pits from fruits (e.g., peaches, plums) and thick peels (e.g., citrus, pineapple).

Juicing Process:

1. Ensure the juice cap on the juice outlet is closed if you wish to mix juices within the bowl before dispensing.
2. Plug in the juicer and press the 'FORWARD' button to start.
3. Slowly feed prepared ingredients into either the 88mm or 48mm feed chute. The auto-cutting screw will process the ingredients.
4. For leafy greens or softer fruits, alternate with harder ingredients to help push them through and maximize extraction.
5. If ingredients become jammed, press the 'REVERSE' button for a few seconds, then release and press 'FORWARD' again. Repeat if necessary.
6. Once juicing is complete, open the juice cap to dispense the juice into the juice cup.

Using Smoothie/Sorbet Attachment:

Replace the juicing strainer with the Smoothie/Sorbet Attachment during assembly. This attachment is designed for making thicker concoctions like smoothies or sorbets from frozen fruits. Follow the general operating instructions, ensuring the juice cap is open for continuous dispensing.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your juicer. It is recommended to clean the juicer immediately after each use.

Disassembly for Cleaning:

1. Unplug the juicer from the power outlet.
2. Turn the lid counter-clockwise to unlock and remove it.
3. Remove the auger, then the strainer, and finally the juicing bowl from the motor base.

Cleaning Steps:

• Rinse all removable parts (lid, auger, strainer, juicing bowl, pulp cup, juice cup) under running water.
• Use the provided cleaning brushes to remove any pulp residue from the strainer and other components. The specialized brush is particularly effective for the fine mesh of the strainer.
• Wash parts with warm, soapy water.
• Rinse thoroughly and allow all parts to air dry completely before reassembling or storing.
• The motor base should be wiped clean with a damp cloth. Never immerse the motor base in water.
• The juicer parts are not dishwasher safe. Hand wash only.

7. Troubleshooting

If you encounter issues with your Kuvings REVO830, refer to the following common problems and solutions:

8. Specifications

• Brand: Kuvings
• Model: REVO830
• Color: Matte Black
• Special Feature: Powerful Motor
• Product Dimensions: 10"D x 19"W x 8"H
• Material: ULTEM, ECOZEN, Stainless Steel
• Maximum Power: 240 Watts
• Power Source: Corded Electric
• Voltage: 120 Volts
• Product Care Instructions: Hand Wash Only
• Blade Material: Stainless Steel
• Capacity: 3.5 Cubic Feet
• Item Weight: 18 Pounds
• Recommended Uses: Apple, Beetroot, Carrot, Celery, Fruits, Nuts, Vegetables
• UPC: 853447004908

9. Warranty & Support

Warranty Information:

Your Kuvings REVO830 Whole Slow Juicer comes with a 15-Year Limited Warranty. This warranty covers defects in materials and workmanship under normal household use. Please refer to the warranty card included with your product for full terms and conditions.

Customer Support:

For any questions, technical assistance, or warranty claims, please contact Kuvings customer service. Contact information can typically be found on the Kuvings official website or on the product packaging.
