1. Introduction
This manual provides essential information for the safe and efficient operation of your VEVOR 12-inch EC Shutter Exhaust Fan. Please read these instructions carefully before installation and use, and retain them for future reference.
The VEVOR 12-inch EC Shutter Exhaust Fan (Model EF-12-ECG) is designed for effective air circulation and ventilation in various indoor environments, including garages, workshops, greenhouses, and attics. It features an energy-efficient EC motor, smart programming for temperature and humidity control, and durable all-metal construction.
Figure 1: VEVOR 12-inch EC Shutter Exhaust Fan installed in a greenhouse setting.
2. Safety Instructions
WARNING: Failure to follow these safety instructions may result in electric shock, fire, or serious injury.
- Always disconnect power before installing, servicing, or cleaning the fan.
- Ensure the power supply voltage matches the fan's requirements (120 Volts).
- Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Do not operate the fan with a damaged cord or plug.
- Keep hands, hair, and loose clothing away from moving parts during operation.
- Wear protective gloves during installation to prevent injury from sharp edges, as the steel grille is removable.
- Do not use this fan in environments with explosive or flammable gases.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Product Overview
The VEVOR EC Shutter Exhaust Fan is constructed with durable alloy steel and aluminum, designed for longevity and performance. Key features include:
- EC Motor: Provides high efficiency, low energy consumption, and quiet operation. Features thermal overload protection and is permanently lubricated.
- Automatic Shutters: Gravity-activated shutters close automatically when the fan is off, helping to maintain indoor temperature and prevent drafts.
- Removable Steel Grille: Protects against external elements and can be installed or removed based on user preference.
- Smart Controller: Allows for precise control over temperature and humidity settings, with various operating modes.
Figure 2: Main components of the VEVOR EC Shutter Exhaust Fan, including the fan unit and smart controller.
Figure 3: Internal view of the sealed EC motor, highlighting its low-energy operation and protective features.
4. Setup and Installation
The VEVOR EC Shutter Exhaust Fan is designed for wall-mounted installation. Ensure the installation location provides adequate space for airflow and maintenance.
4.1 Unpacking
- Carefully remove all components from the packaging.
- Verify that all included parts are present: fan unit, smart controller, steel grille, and gloves.
- Inspect the fan for any signs of damage during transit.
4.2 Mounting the Fan
- Choose a suitable wall location with appropriate thickness for secure mounting.
- Mark the mounting points on the wall using the fan's frame as a template.
- Drill pilot holes if necessary and secure the fan unit to the wall using appropriate fasteners (not included).
- If desired, attach the removable steel grille to the exterior side of the fan. Wear the provided gloves during this step to avoid injury.
Figure 4: Installation examples and the 'Plug and Play' power connection.
4.3 Electrical Connection
The fan operates on a standard 120 Volt household plug. Connect the fan's power cord to a compatible electrical outlet. The 'Plug and Play' design simplifies the electrical setup.

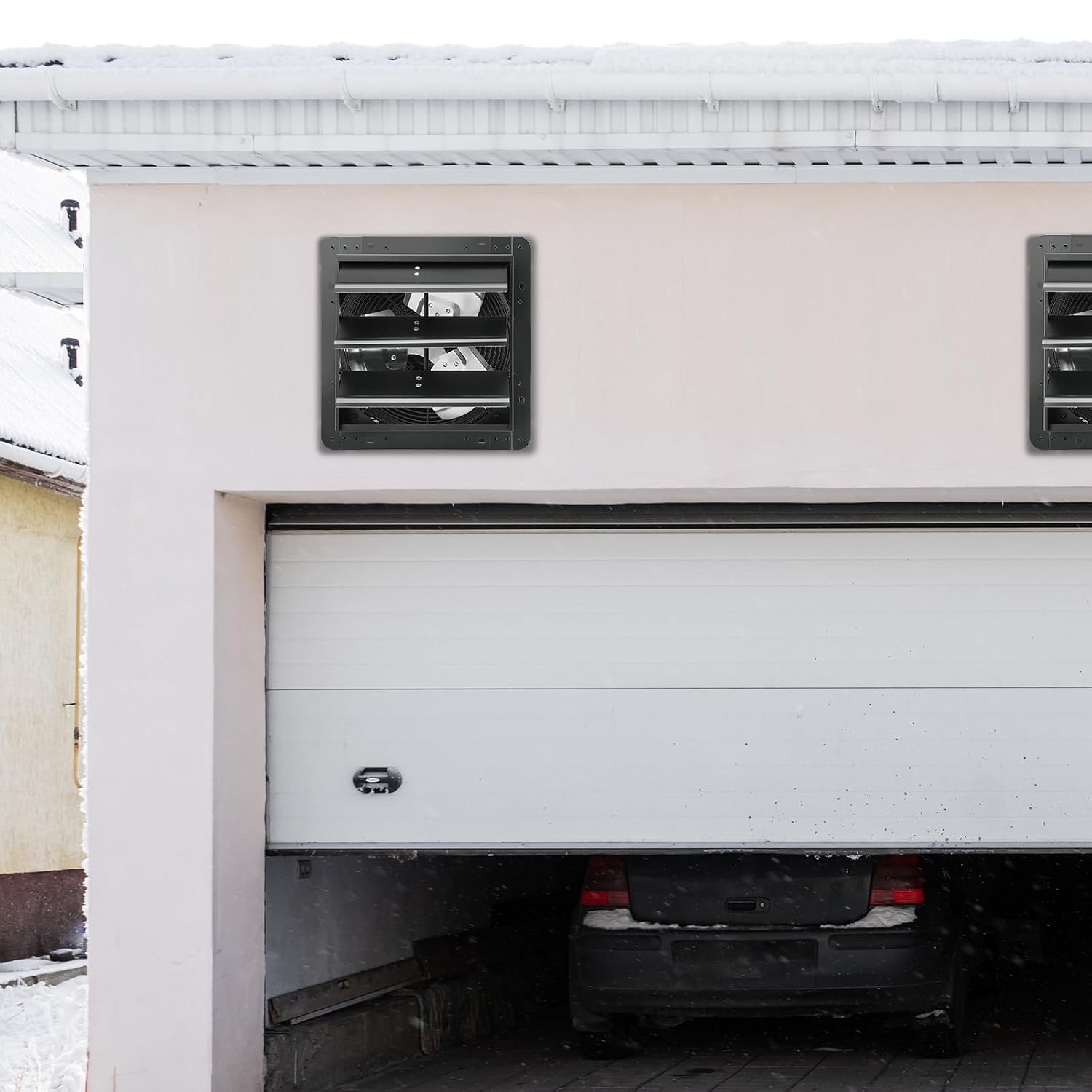

Figure 5: Fan installed in a garage wall, demonstrating a typical application.
5. Operating Instructions
The smart controller allows you to manage the fan's operation based on your specific ventilation needs.
Figure 6: Smart controller interface with mode settings and display.
5.1 Controller Functions
- Mode Setting: Press to cycle through available operating modes (Timer Mode, Alarm Mode, Trigger Mode, ON/OFF).
- Up/Down Buttons: Adjust temperature, humidity, speed, or timer settings.
- ECO Mode: Activates energy-saving operation.
- Automatic Shut-off: The fan's shutters close automatically when not in use to help maintain indoor temperatures, especially in colder conditions.
5.2 Smart Programming
The fan can automate airflow in response to detected temperature and humidity levels. Use the controller to set desired thresholds for high temperature, low temperature, high humidity, and low humidity. The fan will activate or adjust its speed to maintain these conditions.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your VEVOR EC Shutter Exhaust Fan.
- Cleaning: Periodically clean the fan blades, motor housing, and shutters to prevent dust and debris buildup. Disconnect power before cleaning. Use a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Grille: If the steel grille is installed, clean it regularly to ensure unobstructed airflow.
- Motor: The EC motor is permanently lubricated and requires no additional lubrication.
- Inspection: Annually inspect the power cord for any signs of damage or wear.
7. Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply; controller setting. | Check power connection and outlet. Ensure the controller is set to ON or an active mode. |
| Low airflow. | Blocked grille/blades; incorrect speed setting. | Clean the grille and fan blades. Adjust the fan speed setting on the controller. |
| Fan makes unusual noise. | Debris in fan; loose components. | Disconnect power and inspect for foreign objects. Ensure all mounting screws are tight. |
| Automatic shutters not closing. | Obstruction; mechanism issue. | Check for any debris blocking the shutters. Ensure the fan is properly mounted and level. |
8. Specifications
Technical specifications for the VEVOR EC Shutter Exhaust Fan 12-inch (Model EF-12-ECG):
| Feature | Detail |
|---|---|
| Model Name | EF-12-ECG |
| Air Volume | 904 CFM (1500 m³/h) |
| Rotating Speed | 1650 rpm |
| Power | 40 W |
| Voltage | 120 Volts |
| Noise Level | 67 Decibels |
| Blade Length | 12 inches (30.5 cm) |
| Dimensions (L x W x H) | 38.1 x 38.1 x 15.6 cm (5.1gł. x 38.1szer. x 38.1wys. cm) |
| Weight | 3.66 kg (8.07 lbs) |
| Color | Black |
| Material | Alloy Steel, Aluminum |
| Mounting Type | Wall-mounted |
| Control Type | Remote (Physical Controller) |
| Special Features | Temperature and Humidity Controller, Automatic Shut-off |
| Included Components | Steel grille, gloves |
| Certifications | ETL Listed |
Figure 7: Dimensional drawing and key specifications of the fan.
9. Warranty and Support
For warranty information or technical support, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
Manufacturer: VEVOR
Seller: VEVOR Store PL
For further assistance, please visit the official VEVOR website or contact their customer service.
