EYLM Dimmable LED Pendant Light User Manual

1. Introduction

Thank you for choosing the EYLM Dimmable LED Pendant Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new lighting fixture. Please read this manual thoroughly before installation and keep it for future reference.

The EYLM Dimmable LED Pendant Light is crafted from high-quality wood, acrylic, and aluminum iron, offering both beauty and durability. Available in 80 cm, 100 cm, and 120 cm lengths, it features low energy consumption and a long lifespan to meet various lighting needs. Its minimalist linear design provides essential illumination while adding a touch of modern style and sophistication to any dining area. The lamp emits soft, uniform light through an acrylic light guide plate, ensuring accurate color reproduction. Brightness (10%-100%) and color temperature (3000-6000K) are adjustable via remote control, allowing customization for different scenarios and atmospheric requirements. With two adjustable cables, the height can be easily set between 10 cm and 120 cm by pressing a button, making it versatile for various spaces. Ideal for bars, living rooms, study rooms, kitchens, bedrooms, and offices.

2. Safety Instructions

WARNING: To avoid electric shock, always disconnect power at the main circuit breaker before installation or servicing.

• Installation must be performed by a qualified electrician in accordance with all local electrical codes.
• Do not connect this fixture to an ungrounded electrical system.
• Ensure the mounting surface can support the weight of the fixture.
• Do not attempt to modify the fixture in any way.
• Keep packaging materials away from children.
• Clean only with a soft, dry cloth. Do not use abrasive cleaners or solvents.

3. Package Contents

Verify that all components are present and undamaged before beginning installation.

• LED Pendant Light Fixture (1)
• Mounting Bracket (1)
• Remote Control (1)
• Mounting Hardware (Screws, Wall Anchors)
• User Manual (This document)

Image: The EYLM Dimmable LED Pendant Light, showcasing its sleek black linear design and the included remote control for operation.

4. Product Overview

Familiarize yourself with the main components and features of your pendant light.

• Fixture Body: Linear design, available in 80cm, 100cm, and 120cm lengths.
• Ceiling Canopy: Houses electrical connections and mounting hardware.
• Adjustable Cables: Two cables allow for height adjustment from 10cm to 120cm.
• LED Light Source: Integrated LED for energy-efficient illumination.
• Remote Control: For dimming, color temperature adjustment, and on/off functions.

Image: Diagram illustrating the adjustable height range of 10cm to 120cm and the total length of the 120cm model. A close-up shows the lock wire clip for height adjustment.

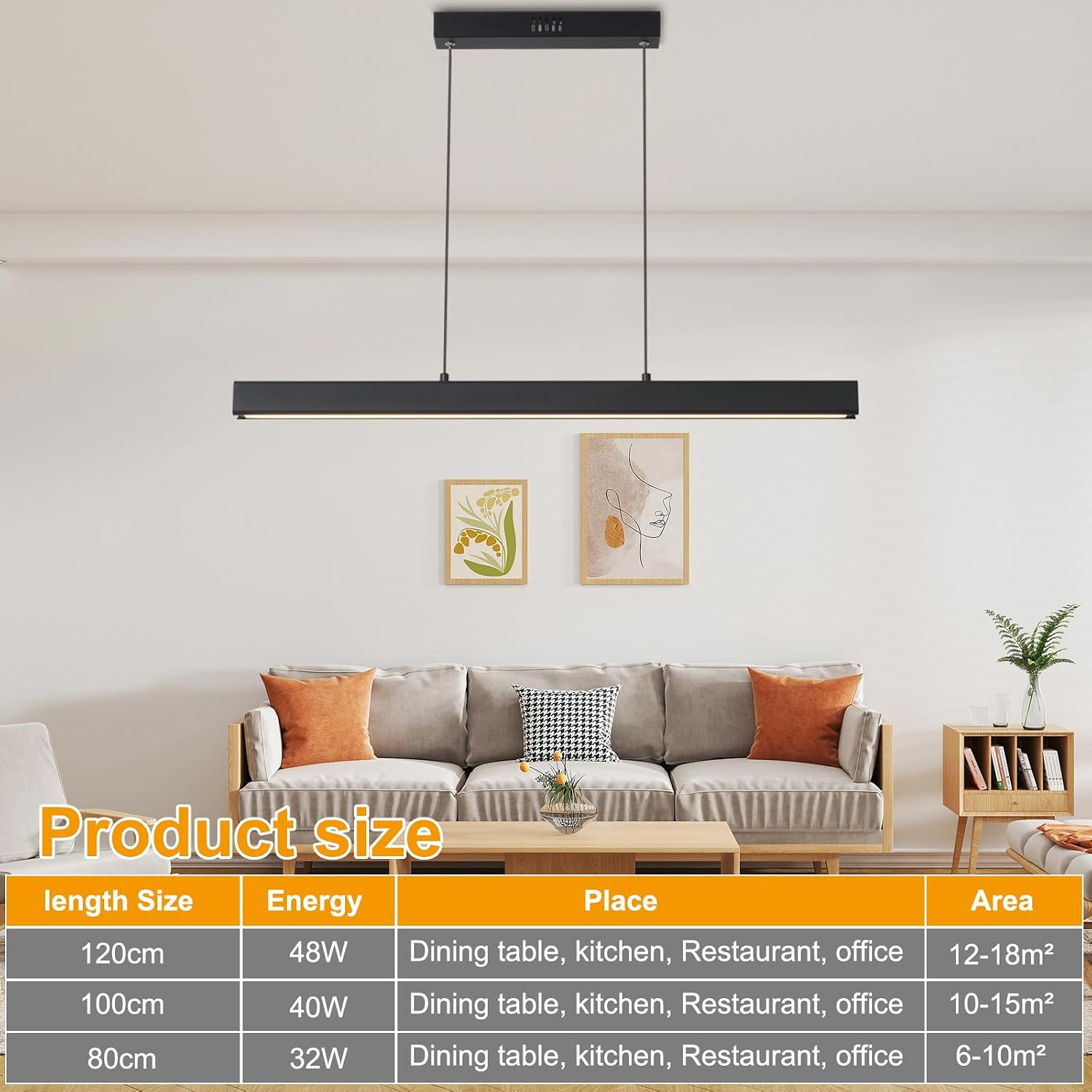

Image: A table detailing the different product sizes (80cm, 100cm, 120cm), their respective wattages (32W, 40W, 48W), and recommended application areas (6-10m², 10-15m², 12-18m²).

5. Installation Guide

Follow these steps carefully for proper installation. Professional installation is recommended.

1. Turn Off Power: Before starting, ensure the power supply to the installation area is turned off at the circuit breaker.
2. Prepare Mounting Surface: Mark the drilling points for the mounting bracket on the ceiling. Drill holes and insert wall anchors if necessary.
3. Attach Mounting Bracket: Secure the mounting bracket to the ceiling using the provided screws.
4. Make Electrical Connections: Connect the fixture's wires to the household electrical wires (Live to Live, Neutral to Neutral, Ground to Ground). Ensure all connections are secure.
5. Mount Fixture: Carefully lift the fixture and attach it to the mounting bracket, securing it with the canopy screws.
6. Adjust Height: Press the lock wire clips on the canopy to adjust the length of the suspension cables. Adjust both cables evenly to achieve the desired height (10cm to 120cm from the ceiling). Release the clips to lock the cables in place.
7. Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

6. Operating Instructions

Your EYLM pendant light comes with a remote control for convenient operation.

Remote Control Functions:

• ON/OFF: Power the light on or off.
• Brightness Adjustment: Increase or decrease light brightness (10% to 100%).
• Color Temperature Adjustment: Cycle through different color temperatures (e.g., Warm White, Natural White, Cool White/Daylight). The range is typically 3000K (warm) to 6000K (cool).
• Memory Function: The light will typically remember the last brightness and color temperature setting when turned off and on again.

Image: Visual representation of the intelligent stepless dimming feature, demonstrating brightness adjustment from 5% to 100% and three adjustable color temperatures: White light, Natural light, and Warm light.

7. Maintenance

Proper care will ensure the longevity and performance of your pendant light.

• Cleaning: Always turn off the light and disconnect power before cleaning. Use a soft, dry, lint-free cloth to wipe the fixture. Do not use harsh chemicals, abrasive cleaners, or polishes as they may damage the finish.
• Bulb Replacement: This fixture uses integrated LED lights and does not require bulb replacement. If the LEDs fail, contact customer support.
• Inspection: Periodically check the fixture for any loose connections or signs of wear. If any issues are found, consult a qualified electrician.

8. Troubleshooting

If you encounter issues, try these common solutions before contacting support.

9. Specifications

10. Warranty and Support

EYLM products are designed for quality and durability. For warranty information or technical support, please contact your retailer or the manufacturer directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the EYLM official website or contact their customer service department. Contact details are usually provided on the product packaging or the retailer's website.

Note: Warranty terms may vary by region and retailer.
