Introduction
This manual provides essential information for the installation, operation, and maintenance of your Aquaguard UTC Inline UV Water Purifier. Please read these instructions carefully before using the appliance to ensure safe and efficient operation. This inline purifier is designed to fit under your kitchen sink, providing access to pure drinking water with the added benefits of copper and zinc.
Image: The Aquaguard UTC Inline UV Water Purifier discreetly installed under a kitchen sink, demonstrating its compact design and integration into a modern kitchen environment. A woman is shown holding a glass of purified water.
Safety Information
Always follow basic safety precautions when using electrical appliances.
- Ensure the power supply matches the specifications listed on the appliance.
- Do not operate the purifier if the power cord or plug is damaged.
- Keep the appliance away from direct sunlight and heat sources.
- Do not attempt to repair the appliance yourself. Contact authorized service personnel for any repairs.
- Ensure proper ventilation around the unit.
- This appliance is intended for indoor use only.
Product Overview and Features
The Aquaguard UTC Inline UV Water Purifier is designed to provide safe and healthy drinking water. Key features include:
- Under-Sink Design: Compact unit that fits discreetly under your kitchen sink.
- UV e-Boiling Technology: Delivers water as safe and pure as water boiled for over 20 minutes.
- Copper & Zinc Infusion: Infuses the right amount of copper and zinc ions into the water for added health benefits.
- 5th Gen UV LED: Features advanced UV LED technology for faster purification, longer life (10 years), safer operation (zero harmful mercury), and stronger purification (intense beam technology).
- Low TDS Suitability: Ideal for municipal water with TDS levels up to 200 PPM.
- Consistent Water Supply: Provides a seamless supply of water even with low water pressure.
Purification Process: 4 Stages of Water Purification
The purifier employs a multi-stage purification process to ensure clean and safe drinking water:
- I-Filter: Removes fine suspended particles such as dust, dirt, mud, and sand from the water.
- Chemi-Block: Reduces excess chlorine and organic impurities while absorbing bad taste and odor.
- UV e-Boiling: Makes your water as safe and pure as water boiled for over 20 minutes.
- Patented Active Copper with Zinc Booster Technology: Infuses copper and zinc ions into the water.
Image: A visual representation of the four-stage water purification process, detailing the function of each filter component from I-Filter to the Copper and Zinc infusion stage.
Advanced UV LED Technology

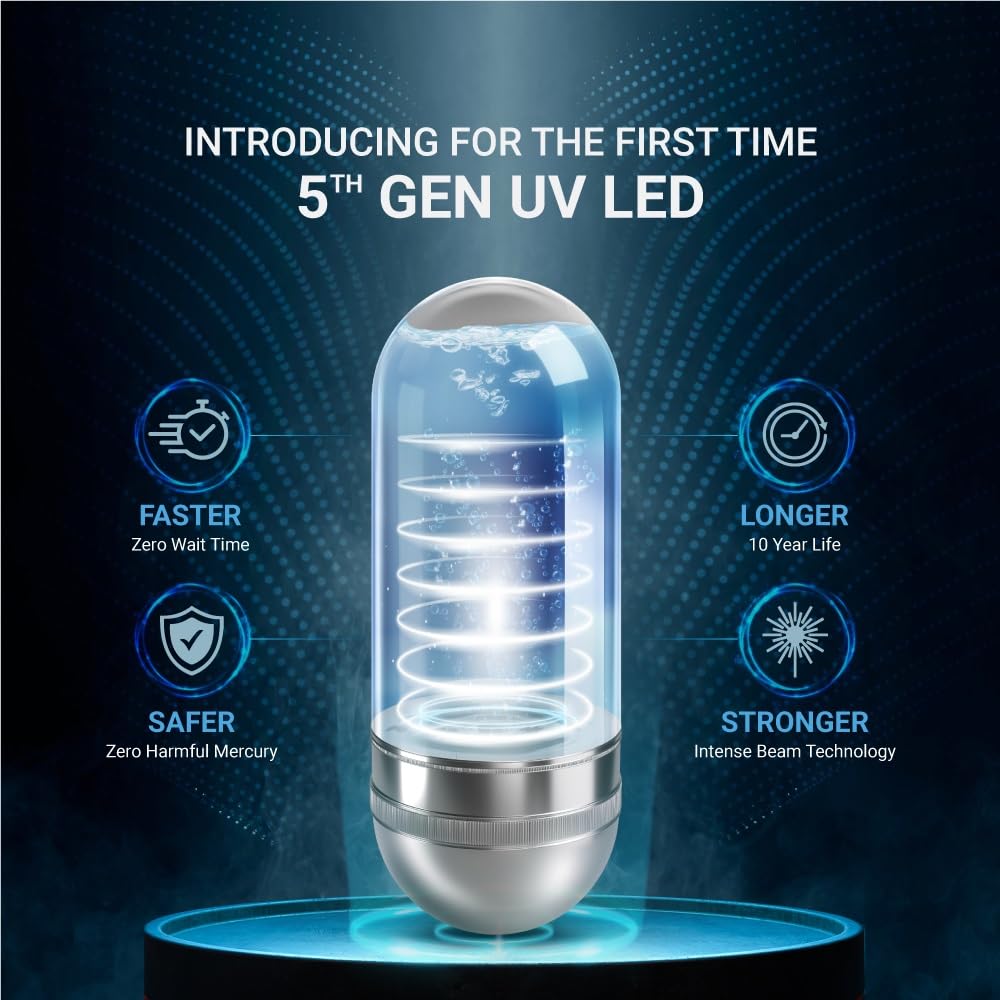

Image: An illustration highlighting the features of the 5th Generation UV LED, including its speed, extended lifespan, mercury-free operation, and intense purification capability.
Copper & Zinc Infusion

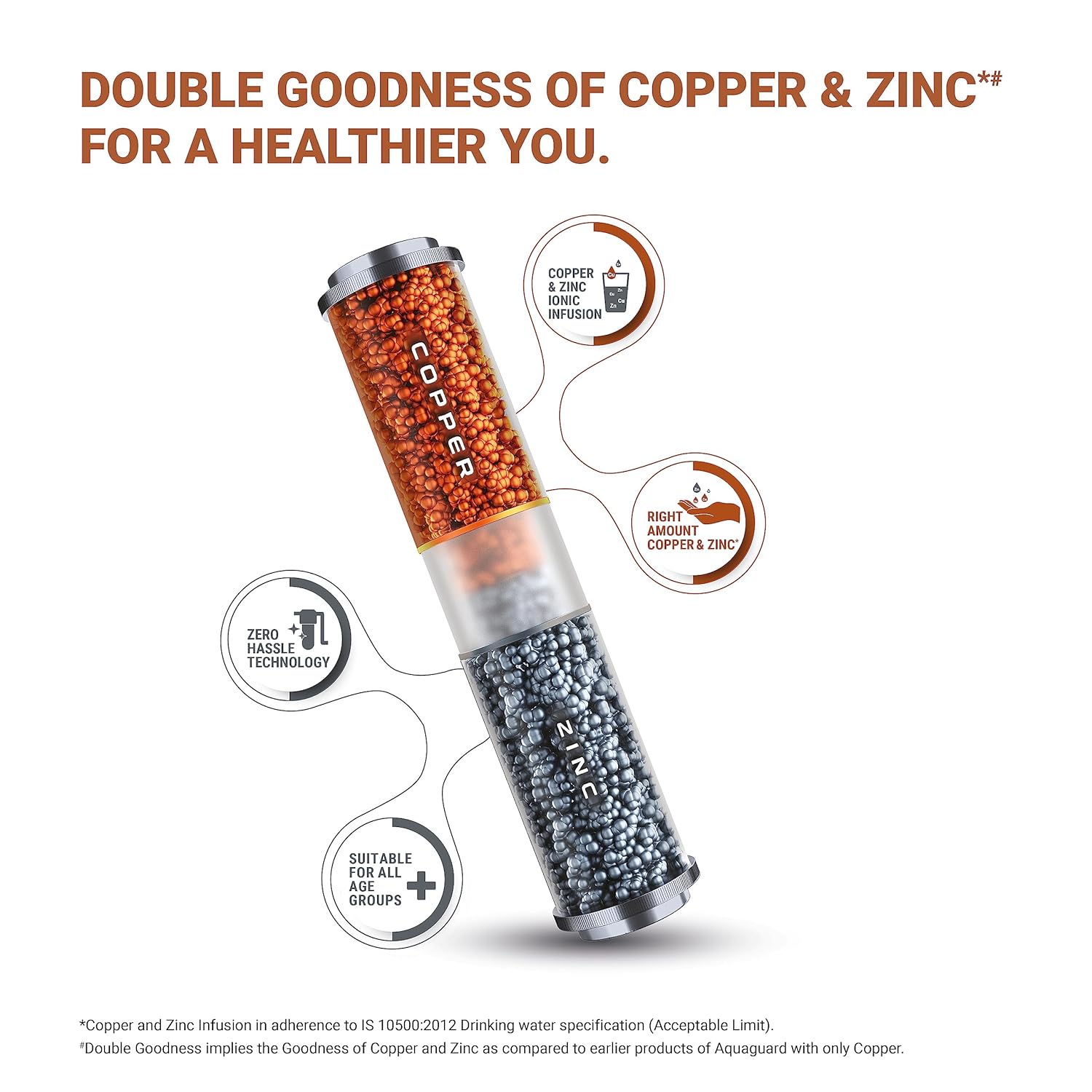

Image: A detailed diagram explaining the "Double Goodness of Copper & Zinc" feature, showing how these essential minerals are infused into the water, emphasizing its health benefits and suitability for all ages.
Setup and Installation
The Aquaguard UTC Inline UV Water Purifier is designed for under-sink installation. Due to the technical nature of the installation, it is highly recommended to have the unit installed by an authorized service technician. Attempting self-installation may void your warranty and could lead to improper functioning or damage.
Included Components:
- Water Purifier Unit
- Input pipe
- Diverter valve
- Faucet
- Warranty Card
Ensure all components are present before installation. The compact design allows it to fit seamlessly into most kitchen cabinets.
Image: The Aquaguard UTC Inline UV Water Purifier shown installed under a kitchen counter, illustrating its slim profile and how it integrates with other kitchen appliances.
Operating Instructions
Once professionally installed, operating your Aquaguard UTC Inline UV Water Purifier is straightforward.
- Power On: Ensure the purifier is connected to a power source and switched on.
- Water Flow: Open the dedicated faucet connected to the purifier to dispense purified water.
- Continuous Supply: The purifier is designed to provide a continuous supply of water without a storage tank, ensuring fresh purification on demand.
- Water Quality: This purifier is suitable for water with a Total Dissolved Solids (TDS) level of up to 200 mg per liter. Using it with water exceeding this limit may affect performance and lifespan.
The 5th Gen UV LED technology ensures zero wait time for purified water.
Maintenance
Regular maintenance is crucial for the optimal performance and longevity of your water purifier.
- Filter Replacement: The I-Filter and Chemi-Block filters have a limited lifespan and require periodic replacement. The frequency depends on the quality of your input water and usage. Refer to your warranty card or contact customer support for recommended replacement schedules.
- UV LED Life: The 5th Gen UV LED is designed for a long life of up to 10 years. However, if you notice any issues with purification or indicator lights, contact service.
- Cleaning: Wipe the exterior of the purifier with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Professional Servicing: Schedule regular professional servicing by authorized technicians to ensure all components are functioning correctly and to replace filters as needed.
Troubleshooting
If you encounter any issues with your Aquaguard UTC Inline UV Water Purifier, please refer to the following common problems and solutions. For complex issues, always contact authorized service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| No water dispensing from faucet. |
|
|
| Water leakage from the unit. |
|
|
| Unpleasant taste or odor in purified water. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Eureka Forbes |
| Model Name | UTC Inline |
| Model Number | GWPDUCUSE20000 |
| Installation Type | Under Sink |
| Purification Method | Ultraviolet (UV) |
| Special Feature | Reduce TDS (up to 200 PPM), Copper & Zinc Infusion |
| Product Dimensions (L x W x H) | 18.5L x 31.5W x 42.5H Centimeters |
| Item Weight | 4.8 Kilograms |
| Material | Plastic |
| Power Source Type | Corded Electric |
| Supported Water TDS Level Maximum | 200 PPM |
| Operating Temperature Range | 10 to 40 Degrees Celsius |
| Included Components | Water Purifier, Input pipe, Diverter valve, Faucet, Warranty Card |
Image: Technical drawing showing the dimensions of the Aquaguard UTC Inline UV Water Purifier, with measurements of 425 mm height, 315 mm width, and 185 mm depth.
Warranty and Support
Your Aquaguard UTC Inline UV Water Purifier comes with a 1-year warranty on manufacturing defects from the date of purchase. Please retain your purchase receipt and warranty card for future reference.
For any service requests, technical assistance, or warranty claims, please contact Eureka Forbes Ltd. customer support.
- Manufacturer: Eureka Forbes Ltd.
- Refer to your warranty card for specific contact details and terms.
- Only authorized service personnel should perform repairs or maintenance to ensure the validity of your warranty.
