1. Introduction
The Aputure MC PRO is a compact, high-performance RGBWW LED on-camera video light designed for professional and enthusiast filmmakers. Featuring a wide CCT range, full RGB color control, magnetic adsorption, and robust weather resistance, it offers versatile lighting solutions for various creative applications.
Image 1.1: The Aputure MC PRO light with its comprehensive accessory kit.
2. Package Contents
Verify that all items listed below are included in your package:
- Aputure MC PRO LED Video Light x 1
- Aputure MC Pro Flat Diffuser x 1
- Aputure MC Pro Dome Diffuser x 1
- Aputure MC Pro 30° Light Control Grid x 1
- Aputure Cold Shoe Ball Head x 1
Image 2.1: Overview of the Aputure MC PRO and its included accessories.
3. Setup
3.1 Initial Charging
The Aputure MC PRO features a built-in 15.5Wh lithium-ion battery. Before first use, fully charge the device using the provided USB Type-C cable. The light also supports wireless charging for convenience.
3.2 Attaching Accessories
The MC PRO utilizes a magnetic accessory mount system. Simply align the Flat Diffuser, Dome Diffuser, or 30° Light Control Grid with the front of the light until it snaps into place magnetically.
Image 3.1: The magnetic accessory mount allows for quick attachment of diffusers and grids.
3.3 Mounting the Light
The Aputure MC PRO can be mounted in several ways:
- Magnetic Adsorption: The light features built-in magnets allowing it to attach to metallic surfaces.
- Cold Shoe Ball Head: Use the included Aputure Cold Shoe Ball Head to mount the light onto a camera's cold shoe or other compatible mounts.
- 1/4-20in Screw: The light has a 1/4-20in screw thread for direct mounting onto tripods or light stands.
Image 3.2: The magnetic base and cold shoe mount offer flexible positioning options.
4. Operating Instructions
4.1 Power On/Off
Locate the power button on the side of the unit. Press and hold to power the device on or off. The OLED display will illuminate upon activation.

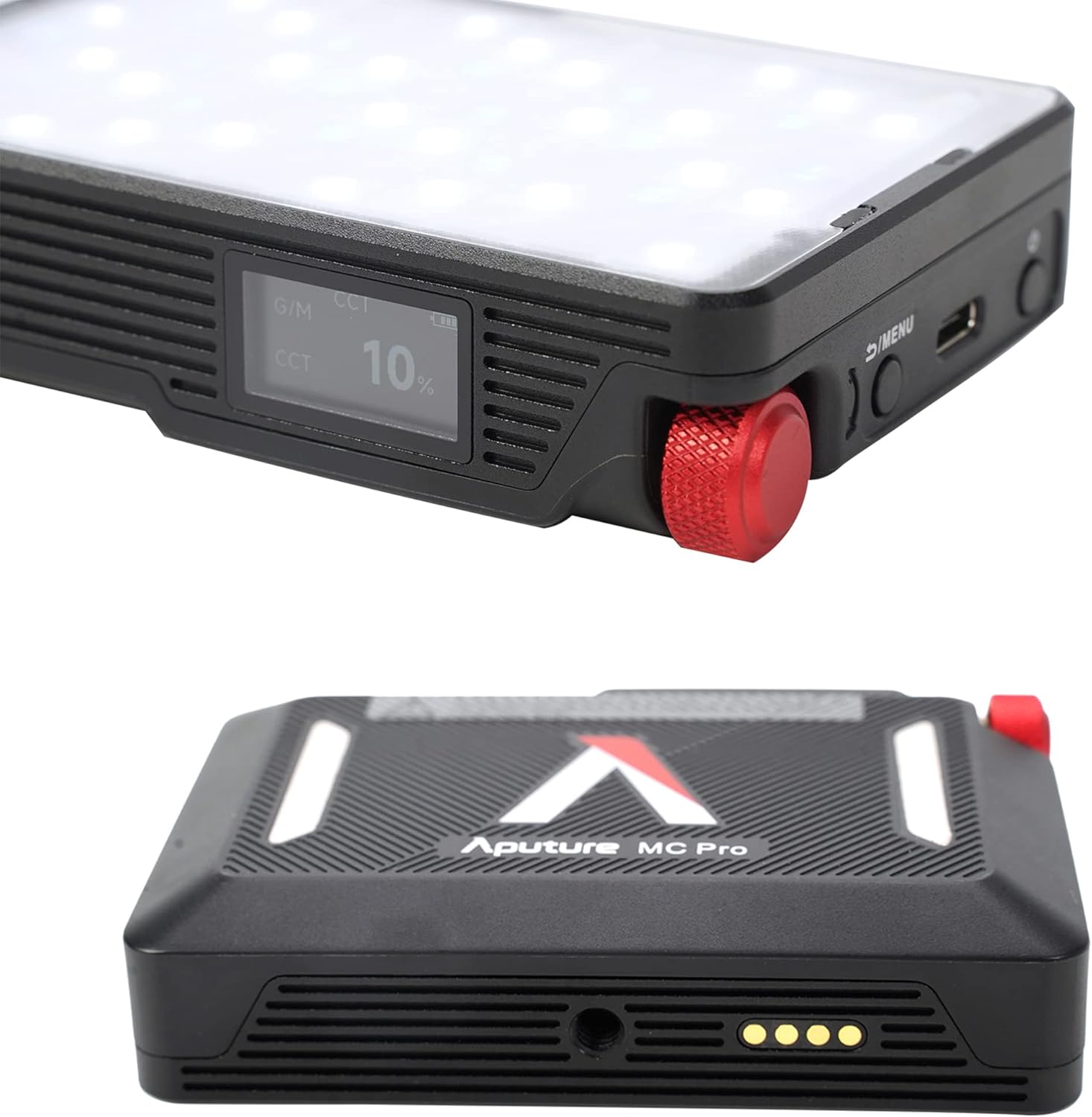

Image 4.1: The OLED display provides real-time information on light settings.
4.2 Adjusting Light Settings
Use the control knob and menu buttons to navigate through the various lighting modes and parameters:
- CCT Mode: Adjust color temperature from 2,000K to 10,000K with green-magenta adjustment.
- HSI Mode: Control hue, saturation, and intensity for full RGB color.
- FX Mode: Select from 15 built-in system effects such as Fireworks, Fire, Paparazzi, Faulty Bulb, TV, Pulsing, Cop Car, Lightning, Party Lights, Welding, Color Chase, Candle, Strobe, Explosion, and Club Lights.
Image 4.2: The light offers a range of special effects for creative lighting scenarios.
4.3 App Control (Sidus Link)
The Aputure MC PRO supports Sidus Link Bluetooth App Control, DMX/RDM1, and LumenRadio CRMX for advanced wireless control. Download the Sidus Link app on your smartphone to access comprehensive control over all light functions, including custom FX and color matching.
Image 4.3: The Sidus Link app provides extensive wireless control capabilities.
Video 4.1: An overview of the Aputure MC PRO RGBWW LED On-Camera Light, demonstrating its features and compact design.
5. Maintenance
5.1 Cleaning
To clean the Aputure MC PRO, use a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the finish or the LED panel. Ensure the device is powered off before cleaning.
5.2 Storage
Store the light in its included carrying case in a cool, dry place when not in use. Avoid extreme temperatures and direct sunlight.

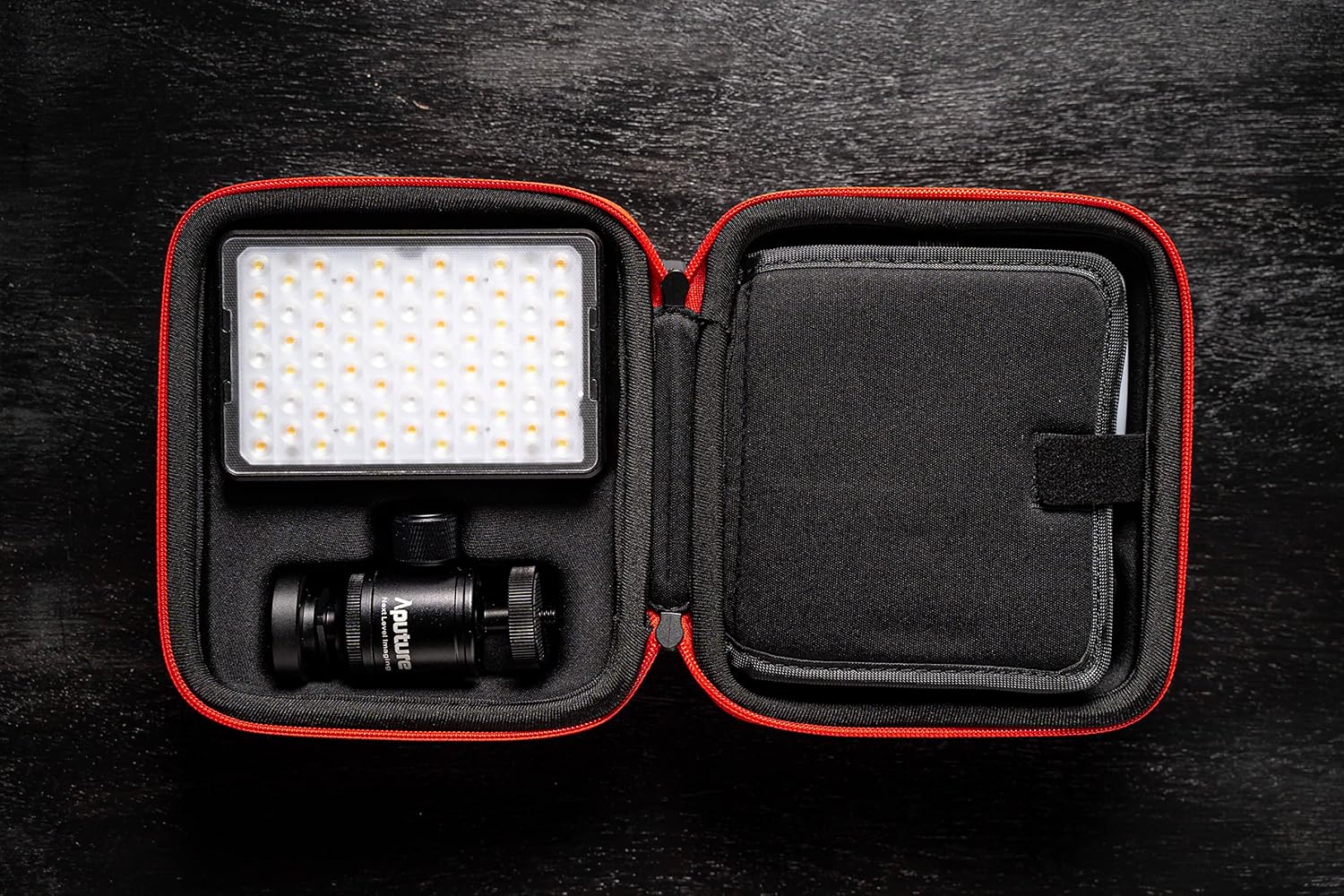

Image 5.1: The compact carrying case protects the light and its accessories during storage and transport.
5.3 Weather Resistance
The Aputure MC PRO is IP65 dust and water-resistant, making it suitable for use in various environmental conditions. While it can withstand splashes and dust, it is not designed for submersion in water.
Image 5.2: The IP65 rating ensures durability in challenging weather conditions.
6. Troubleshooting
- Light not turning on: Ensure the battery is charged. Connect the light to a power source using the USB-C cable.
- App connection issues: Ensure Bluetooth is enabled on your device and the light. Restart both the light and the Sidus Link app.
- Inconsistent light output: Check for any obstructions on the LED panel or diffusers. Ensure the light is not overheating (though the fan should prevent this).
7. Specifications
| Feature | Value |
|---|---|
| Package Dimensions | 6.54 x 6.06 x 3.43 inches |
| Item Weight | 2.24 pounds |
| Batteries | 1 Lithium Ion batteries required (included) |
| Battery Life | 2 Hours (at max output) |
| Connectivity Technology | Bluetooth |
| Hardware Interface | USB Type C |
| Compatible Shoe Mount Type | Cold Shoe |
| CCT Range | 2,000K to 10,000K with Green-Magenta Adjustment |
| CRI/TLCI | 96+ / 96+ |
| IP Rating | IP65 Dust & Water-Resistant |
8. Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the official Aputure website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.
