YinZhiBoo Y800 Step-Thru Electric Bike User Manual

1. Introduction and Safety Information

Thank you for choosing the YinZhiBoo Y800 Step-Thru Electric Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your e-bike. Please read it thoroughly before your first ride and keep it for future reference.

Important Safety Guidelines:

• Always wear a helmet when riding your e-bike.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery security.
• Obey all local traffic laws and regulations.
• Do not ride under the influence of alcohol or drugs.
• The recommended rider height for this bike is 5.2 to 6.5 feet.
• The maximum load capacity for this e-bike is 330 lbs (150 kg). Do not exceed this limit.
• Be aware of your surroundings and ride defensively.

2. Product Overview

The YinZhiBoo Y800 is a robust step-thru electric bike designed for adults, featuring powerful components for an enhanced riding experience.

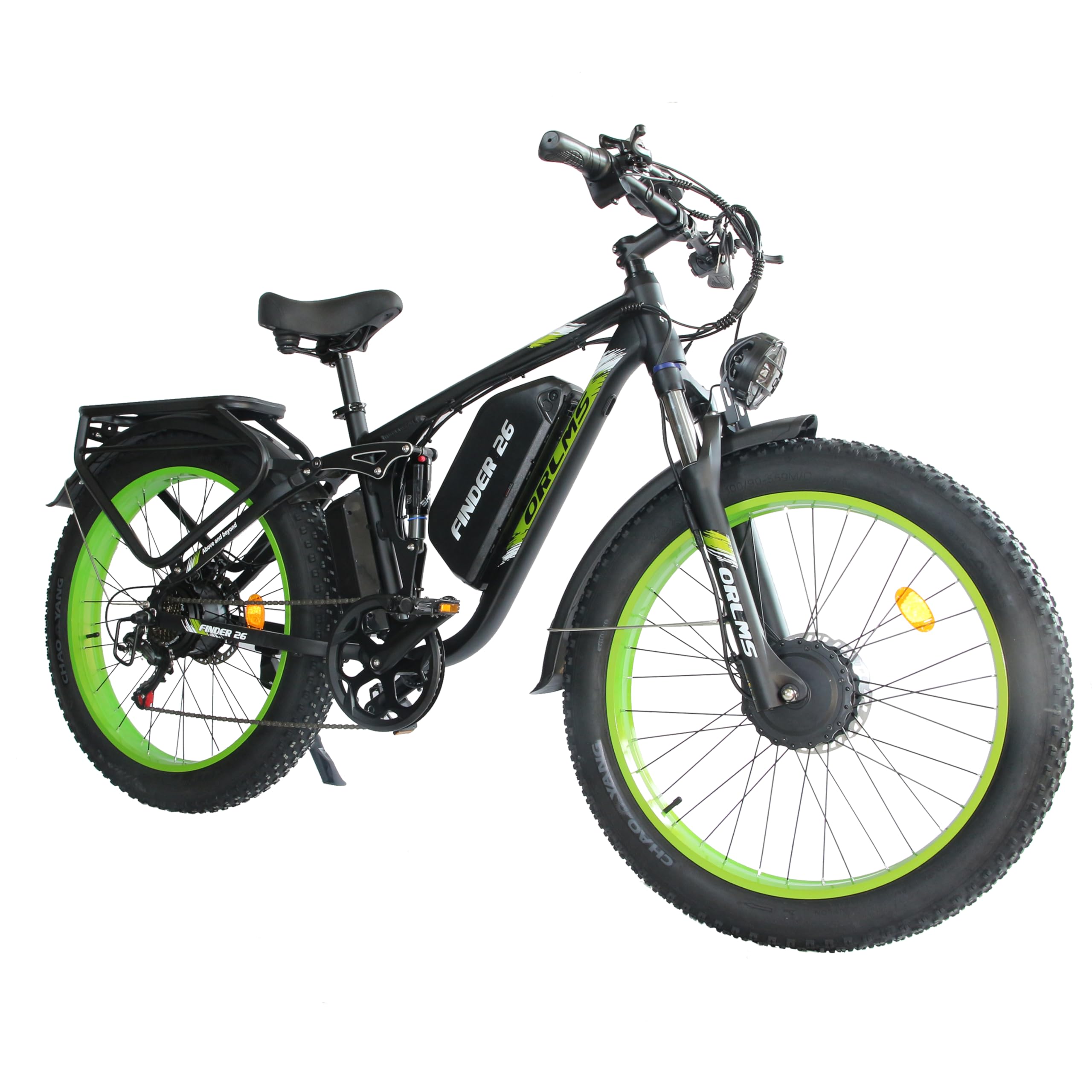

Image 2.1: YinZhiBoo Y800 Step-Thru Electric Bike. This image shows the overall design of the electric bike, highlighting its step-thru frame, fat tires, and integrated components.

Key Features:

• Motor: 750W BAFANG Brushless Geared Motor, providing strong power and a maximum speed of up to 32 MPH.
• Battery: Removable 48V 15Ah Samsung Cell Li-on Battery, offering a range of 35-50 miles in pure electric mode and 50-65 miles in pedal-assist mode.
• Tires: 20-inch Fat Tires for improved traction and stability on various terrains.
• Brakes: Double Hydraulic Disc Brakes System for reliable stopping power.
• Display: Multifunctional 5-inch LCD Display to monitor speed, distance, battery level, and riding mode.
• Frame: Durable 6061 Aluminum-Alloy Step-Thru Frame.
• Suspension: Hydraulic Suspension Adjustable Fork for a comfortable ride.

3. Setup and Assembly

Your YinZhiBoo Y800 e-bike comes 75% pre-assembled. Follow these steps to complete the assembly and prepare for your first ride.

Assembly Steps:

1. Unboxing: Carefully remove all components from the packaging. Keep the original packaging for a while in case of returns or future transport.
2. Install Pedals: Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Ensure they are securely tightened.
3. Install Front Wheel: Attach the front wheel, ensuring the disc brake rotor is correctly aligned with the caliper. Secure the wheel with the quick-release skewer or axle nuts.
4. Install Handlebar: Mount the handlebar onto the stem, adjusting its angle for comfortable riding. Tighten all bolts securely.
5. Inflate Tires: Inflate both fat tires to the recommended pressure indicated on the tire sidewall.
6. Initial Battery Charge: Before your first ride, fully charge the battery. Refer to the 'Battery Information' section for detailed charging instructions.
7. Pre-Ride Inspection: Double-check all bolts, connections, and brake functions before your first ride. Ensure the seat post is adjusted to a comfortable and safe height and is securely clamped.

4. Operating Instructions

Understand how to operate your YinZhiBoo Y800 e-bike's various functions for an optimal riding experience.

Turning On/Off:

• To turn on the e-bike, press and hold the power button on the LCD display until the screen illuminates.
• To turn off the e-bike, press and hold the power button again until the display turns off.

Riding Modes:

The Y800 offers three riding modes:

1. Pure Electric Mode: Engage the throttle to propel the bike without pedaling. Use the 'up' and 'down' buttons on the display to adjust power levels.
2. Pedal-Assist System (PAS) Mode: The motor provides assistance as you pedal. Adjust the assist level using the 'up' and 'down' buttons on the display. Higher levels provide more assistance.
3. Human Pedaling Mode: Ride the bike like a traditional bicycle with no motor assistance.

LCD Display Functions:

The 5-inch LCD display shows important riding data:

• Current Speed
• Distance Traveled (Odometer/Trip)
• Battery Level Indicator
• Pedal Assist Level (PAS)
• Error Codes (if any)

Lights and Walk Mode:

• Headlight: To turn on the headlight, press and hold the 'up' button on the display. Repeat to turn off.
• Walk Mode: To activate walk mode (motor assists at a slow walking speed), press and hold the 'down' button on the display. Release the button to disengage.

5. Battery Information

The YinZhiBoo Y800 is equipped with a removable 48V 15Ah Samsung Cell Li-on battery. Proper care ensures longevity and performance.

Charging the Battery:

• The battery can be charged while installed on the bike or removed for indoor charging.
• Connect the charger to a standard power outlet and then to the battery's charging port.
• The charger indicator light will typically show red during charging and turn green when fully charged.
• A full charge takes approximately 4-6 hours. Do not overcharge the battery.
• Use only the original 48V 2A US Standard DC Smart Charger provided with your e-bike.

Battery Care and Storage:

• Avoid completely draining the battery. Charge it regularly, especially after long rides.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• If storing for an extended period, charge the battery to 50-70% capacity every 1-2 months.
• Do not expose the battery to water or moisture.

6. Maintenance

Regular maintenance is crucial for the safety, performance, and longevity of your YinZhiBoo Y800 e-bike.

General Maintenance Schedule:

• Before Each Ride: Check tire pressure, brake function, and ensure all quick releases and bolts are tight.
• Weekly/Bi-Weekly: Clean the bike, especially the drivetrain. Lubricate the chain. Inspect for any loose components or unusual wear.
• Monthly/Every 100 Miles: Check brake pads for wear, inspect tire tread, and ensure all electrical connections are secure.
• Annually/Every 500 Miles: Consider a professional inspection by a qualified bike mechanic.

Specific Maintenance Tasks:

• Tires: Maintain correct tire pressure to prevent punctures and ensure efficient riding. Inspect for cuts or embedded objects.
• Brakes: Regularly check the hydraulic brake system for proper function. If brake levers feel soft or braking power is reduced, consult a mechanic.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent premature wear.
• Cleaning: Use a damp cloth to clean the frame and components. Avoid high-pressure washing directly on electrical components.

7. Troubleshooting

This section addresses common issues you might encounter with your YinZhiBoo Y800 e-bike.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact YinZhiBoo customer support.

8. Specifications

Detailed technical specifications for the YinZhiBoo Y800 Step-Thru Electric Bike.

9. Warranty and Support

YinZhiBoo is committed to providing excellent customer service for your Y800 electric bike.

After-Sales Service:

• YinZhiBoo offers 24-hour after-sales support.
• If you encounter any issues or have questions, please contact our support team directly.
• For returns, please contact us first to receive a return label and instructions. Do not return the bike without prior authorization to prevent package loss.
• It is recommended to keep the original packaging for a period after purchase in case a return is necessary.

For further assistance, please refer to the contact information provided at the point of purchase or on the official YinZhiBoo website.
